AC599

The AC599 is a full range speaker system for small to medium sized install applications. It can be nice cost effective solution for those looking for good audio quality.

From the Manufacturer:

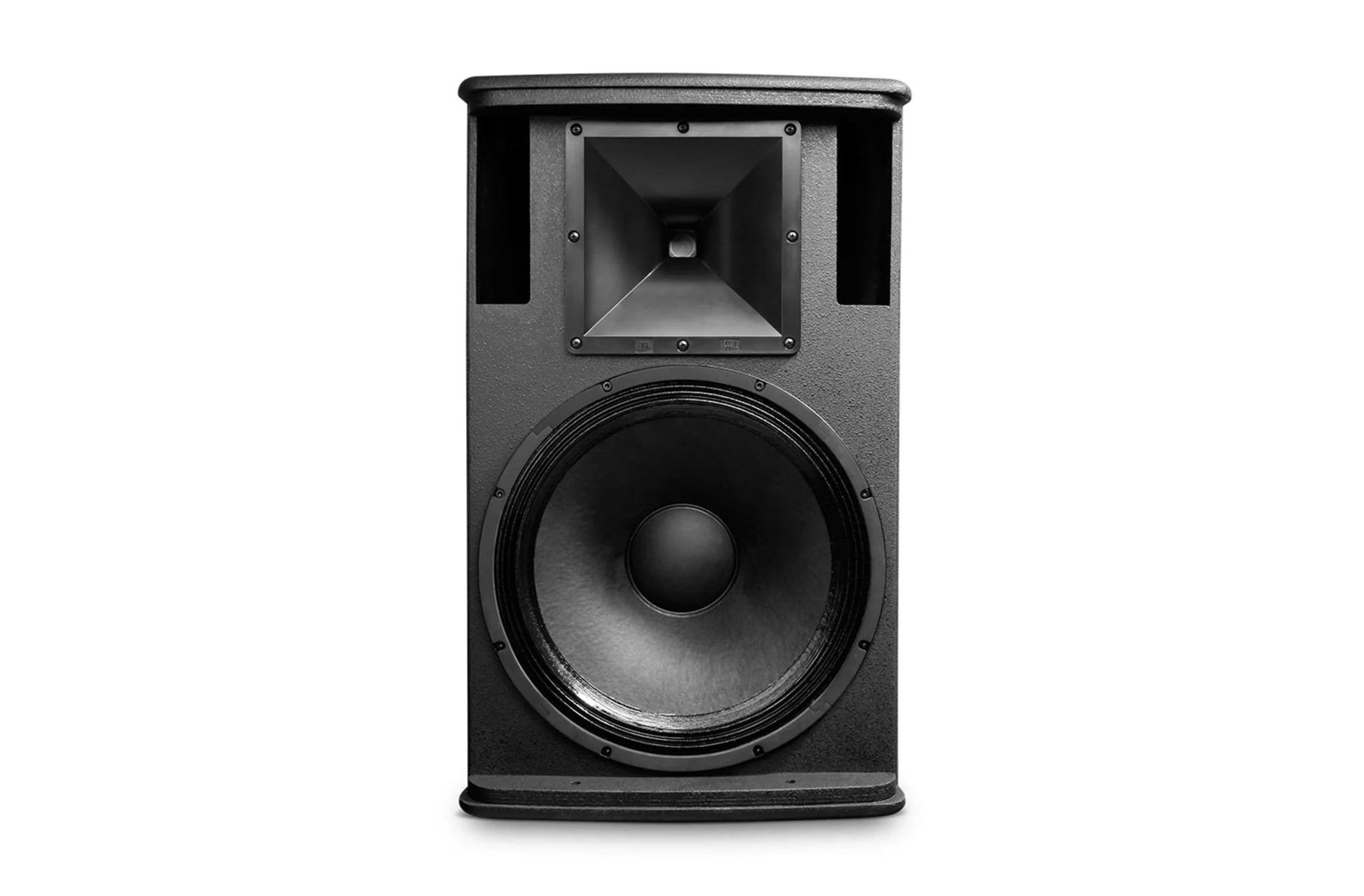

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features:

• Robust 15mm enclosure with black textured finish

• 384 mm (15 in) LF transducer

• 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver

• Dual Neutrik NL4 connectors plus screw terminals

• Multiple attachment points for ultimate flexibility

Applications:

• Performing Spaces

• Clubs & Bars

• Houses of Worship

• Multi Media Spaces

• Retail & Hospitality Spaces

• Presentation Suites

• Educational Facilities

Specifications:

• Frequency Range (-10dB)

• 60 Hz - 20 kHz

• Frequency Response (±3 dB

• 75 Hz - 18 kHz

• System Sensitivity (1w @ 1m)

• 98 dB

• Nominal Impedance

• 8 ohms

• Maximum SPL (1m)

• 122 dB (128 dB peak)

• System Power Rating

• 350W (1400W peak), 2 hrs (AES rated)

• 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)

• Coverage Pattern

• 90° x 90° (H x V)

• Crossover

• 1.5 kHz

• LF Driver

• 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil

• HF Driver

• 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil

• Input Connector

• Dual Neutrik NL4MP connectors plus covered barrier trip terminals

• Enclosure

• 15 mm multi-ply hardwood plywood

• Grille

• Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

• Finish

• Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

• Suspension Attachment

• 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket

• Crossover Modes

• Passive

• Nominal LF Driver Impedance

• 8 ohms

• Nominal

• HF Driver Impedance 8 ohms

• Net Weight (each)

• 19.7 kgs. (43.4 lbs.)
