15 HEX Bar IP
- Regular price
- $899.99
- Regular price
-
- Sale price
- $899.99
- Unit price
- per
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

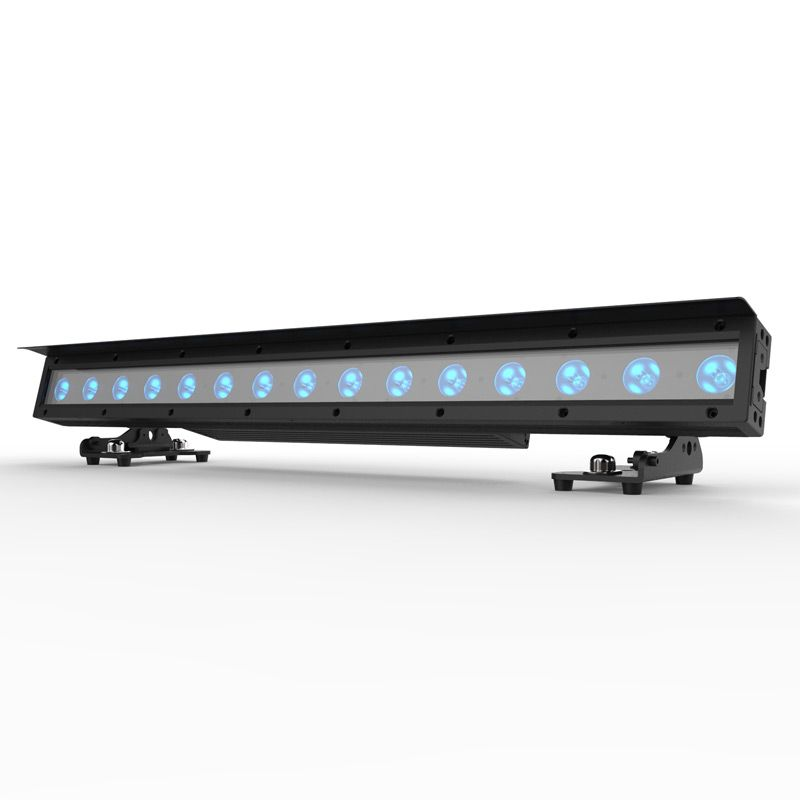

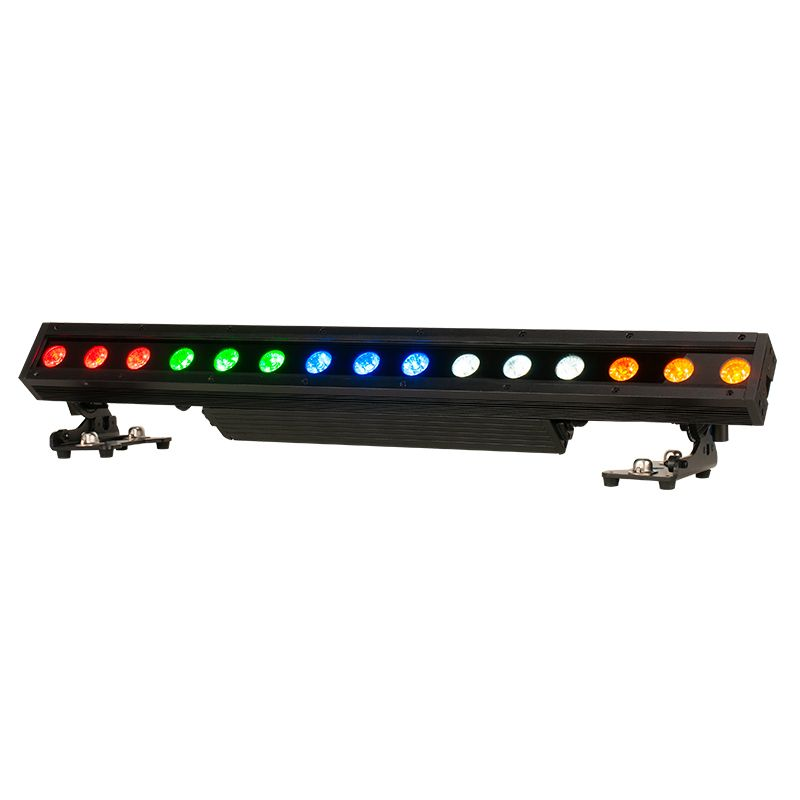

This is a great multi-functional wash linear fixture that is great for in- and outdoor use. It boasts with 15x 12W HEX LEDs divided into 5 individually controlled sections. This product is built to last with an all metal black housing that is IP65 outdoor rated.
From the Manufacturer:

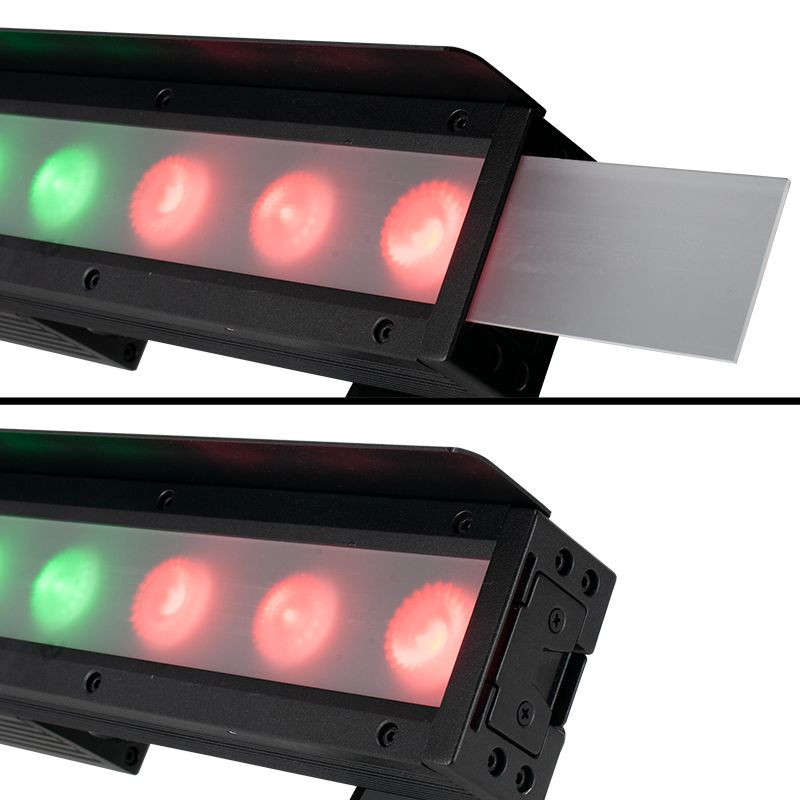

The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a removable diffusion filter to change the beam angle.

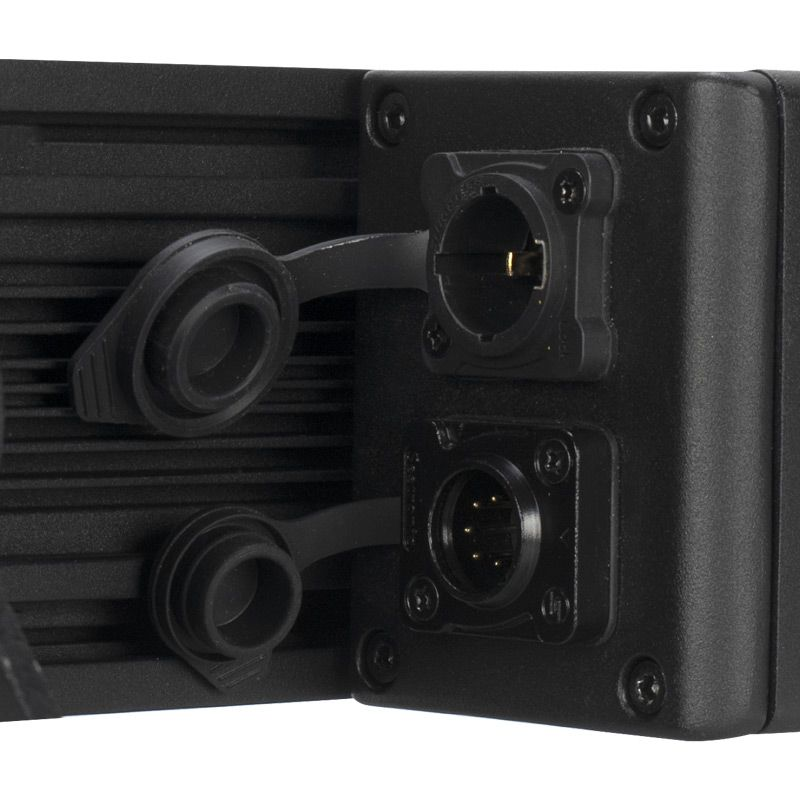

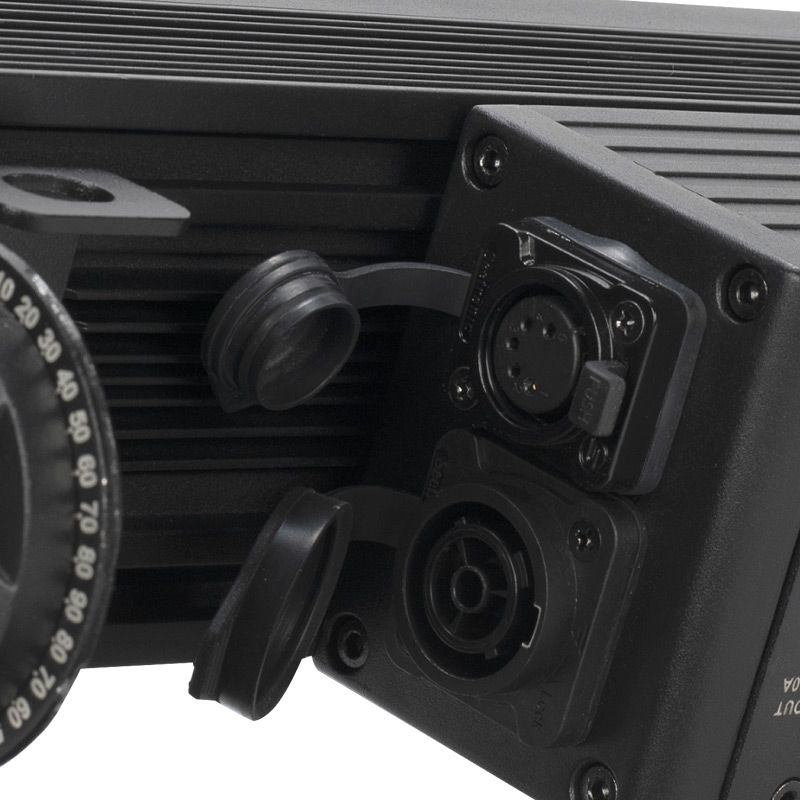

On the rear panel it features, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control modes and dimming modes.
In the Box:
- (1) Seetronic IP65 locking power cord
- (1) Frost/Diffusion Filter
- (1) Glare Shield
- (2) Omega Brackets
- IP65 rated – protects from dust, sand, moisture and liquid (Temporary outdoor use only)
- All metal construction with black housing
- Includes heavy duty bracket

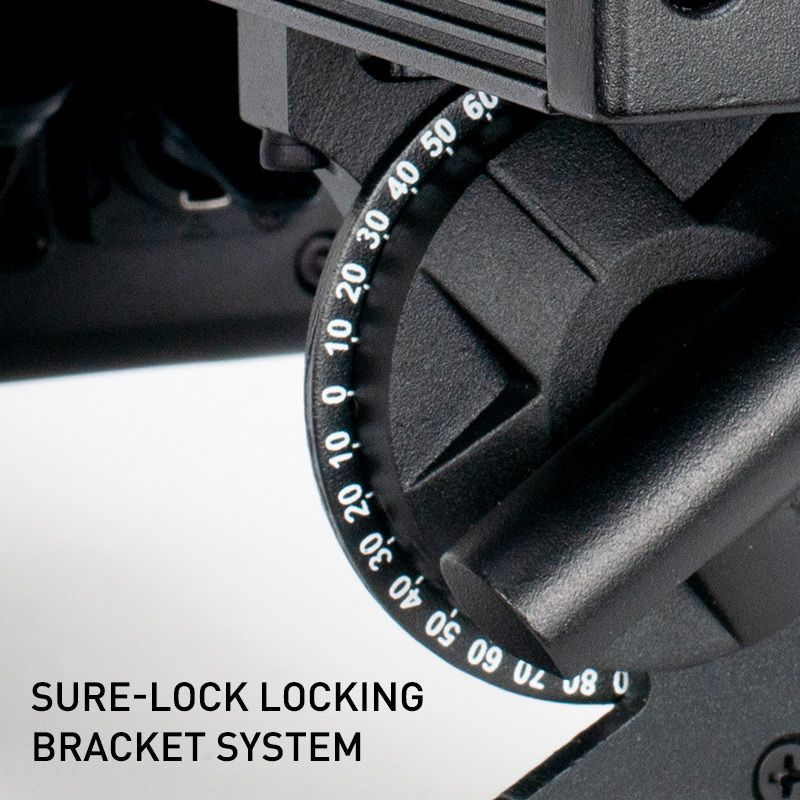

- Sure-lock locking bracket system (securely locks every 10-degrees)
- Flicker free for film and broadcast
- 63 Built-in Color Macros
- Linear variable white temperature control
Light Source:
- LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
- Beam Angle: 25-degrees
- LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
Construction:
- Display: OLED display with function buttons
- Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
- Power In/Out: Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)
- Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
- All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Control:
- Multiple DMX channel modes
- Built-in internal programs
- 5 individually controlled sections with Zone Control
- 0-100% Dimming + smooth 16-bit Dimming
- 6 Dimming Curve Modes• Control Mode: DMX512, RDM (Remote Device Management)
- With Wired Digital Communication Network
Dimensions & Weight:
- Dimension (LxWxH): 36” x 8” x 7.75” / 915x203x200mm
- Weight: 20 lbs. / 8.9 kg.
Approvals / Rating:
- CE Certified / IP65 (Temporary outdoor use only)
Electrical:
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: 130W max
Tech Specs
Optics:
Light Source Type: RGBWA+UV LEDs
Light Source Wattage: 15x 12Ww
Minimum Beam Angle: 25.0°
Maximum Beam Angle: 25.0°
Control
DMX Channel Modes: Multiple DMX channel modes
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 36 in
Width: 8 in
Height: 7.75 in
Weight: 20 lb
Electrical
Voltage Range: AC100-240V, 50/60Hz (Multi-voltage)
Maximum Wattage: 130w
Power Cable Connector - Fixture Side: IEC
Main Power Connector on Included Cable: Edison
Have a question?
Notified by email when this product becomes available
$899.99
