AC115S

The AC15S is a front loaded subwoofer for install applications. It can be a great choice for venues that host a lot of live events.

From the Manufacturer:

AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.

Features:

• High power and long excursion driver for lower frequency reproduction

• High sensitivity with lower power compression

• Large port for high output and low-frequency reinforcement

• Multiple Attachment Points for Ultimate Flexibility

• Robust 18 mm multiply hardwood with textured black finish

Applications:

• Performing Spaces

• Clubs & Bars

• Houses of Worship

• Multi Media Spaces

• Retail & Hospitality Spaces

• Presentation Suites

• Educational Facilities

Specifications:

• Frequency Range (-10dB)

• 32 Hz - 250 Hz

• Frequency Response (±3 dB)

• 40 Hz - 250 Hz

• System Sensitivity (1w @ 1m)

• 94 dB

• Nominal Impedance

• 8 ohms

• Maximum SPL (1m)

• 120 dB (126 dB peak)

• System Power Rating

• 500W (2000W peak), 2 hrs (AES rated)

• 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated)

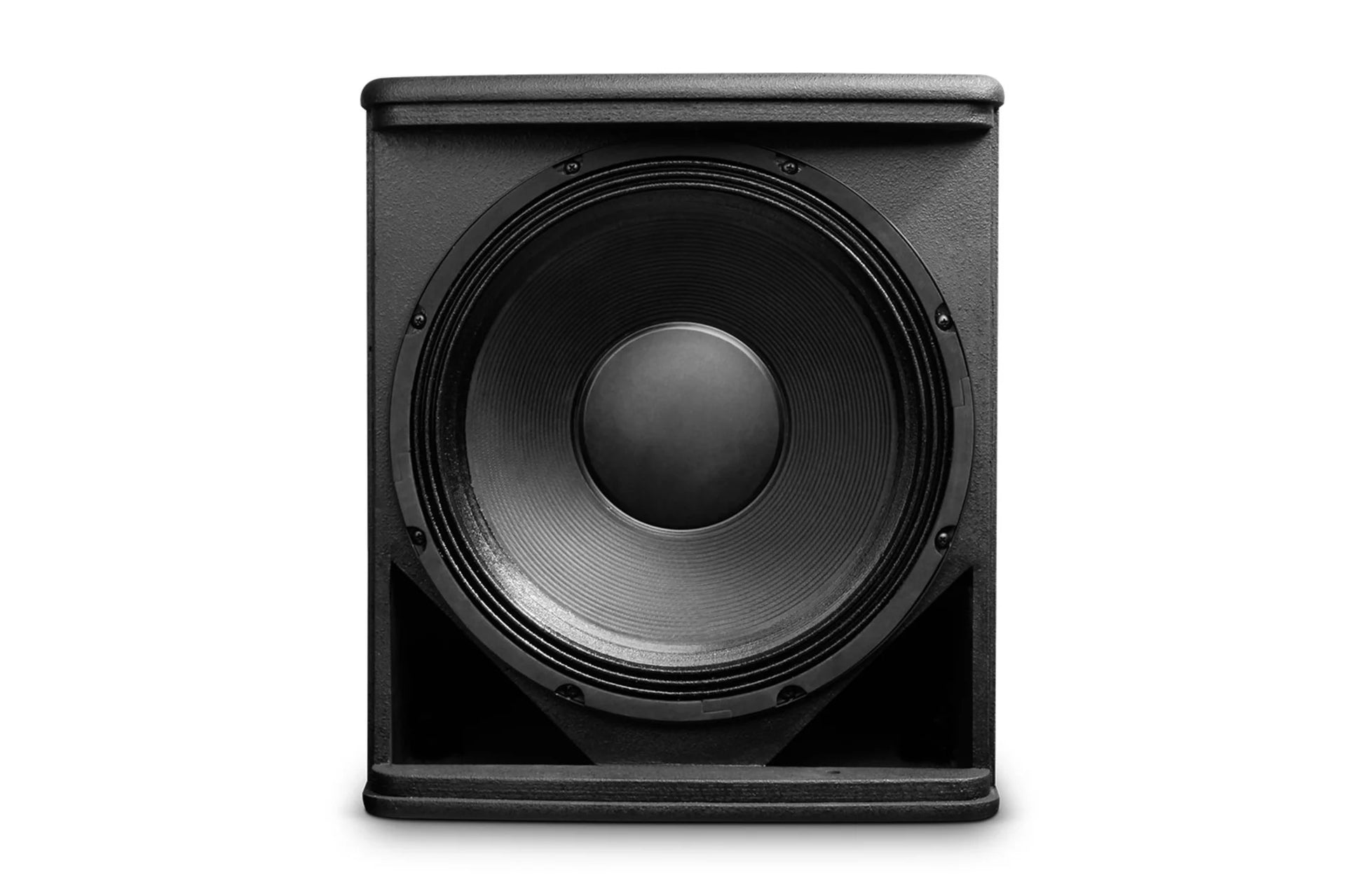

• LF Driver

• 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil

• Input Connector

• Dual Neutrik NL4MP connectors plus covered barrier trip terminals

• Enclosure

• 18 mm multi-ply hardwood plywood

• Grille

• Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing

• Finish

• Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.

• Suspension Attachment

• 12 x M10 threaded suspension points

• Dimensions (H x W x D)

• 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in

• Net Weight (each)

• 24 kg (52.9 lbs)

• Nominal LF Driver Impedance

• 8 ohms
