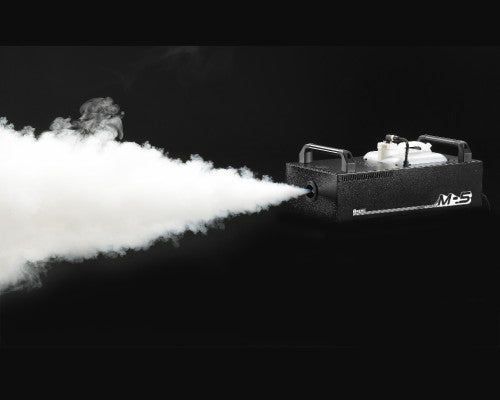

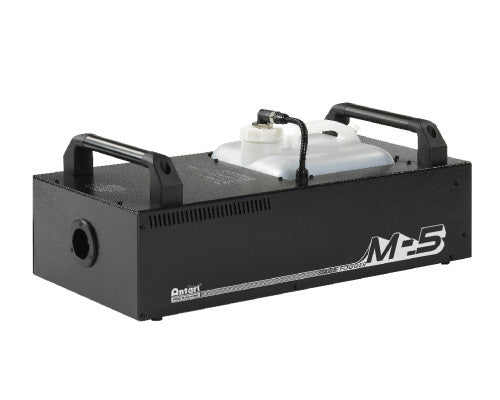

Antari M-5 1500W Performance Touring Class Fog Generator

The Antari M-5 is a professional 1500 W high-performance fog generator engineered for demanding stage and touring applications. Its rugged anti-shock housing, large 10-litre fluid tank and enhanced heat-reservation system provide powerful, efficient fog production while helping reduce energy consumption. With manual, timer and DMX512 control, the M-5 is ideal for concerts, touring productions, film production, fire training and other professional applications requiring dependable high-output fog.

From The Manufacturer:

This high performance heavy-duty M-5 Stage Fog Machine from Antari is uniquely designed to meet the rigorous demands of stage and touring use.

A high-capacity 10 liter tank offers long time operation. A rectangular, durable sleek housing design makes the Antari M-Series Stage Fog Machine easy to carry and able to withstand tough road transport.

Due to its enhanced heat reservation structure, it reduces electricity consumption by approximately 20–25% while producing more powerful fog.

Key Features:

• Professional performance touring-class fog generator

• 1500 W rated power

• Designed for rigorous stage and touring applications

• High-capacity 10 L fluid tank

• Approximately 8-minute warm-up time

• 160 ml/min fluid consumption

• Enhanced heat-reservation structure

• Approximately 20–25% reduced electricity consumption through improved heat retention

• Rugged anti-shock housing

• Designed to withstand demanding road transport

• Manual control

• Timer control

• DMX512 control

• Optional wireless control

• 2 DMX channels

• 3-pin and 5-pin XLR DMX connections

• Neutrik powerCON power connection

• M-20 LCD control module included

• Optional hanging bracket available

• Optional touring flight case available

Specifications:

• Product Type: Performance Touring-Class Fog Generator

• Manufacturer: Antari

• Model / SKU: M-5

• Rated Power: 1500 W

• Warm-Up Time: Approximately 8 Minutes

• Fluid Consumption: 160 ml/min

• Fluid Tank Capacity: 10 L / 2.64 gal

• Control Methods: Manual / Timer / DMX512 / Optional Wireless

• DMX Channels: 2

• DMX Connections: 3-Pin and 5-Pin XLR

• Power Connection: Neutrik powerCON

• Remote Control: M-20 LCD Control Module

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

Compatible Fluids:

• Antari FLG Heavy Fog Fluid

• Antari FLR Light Fog Fluid

• Antari FLH Super Fog Fluid

Applications:

• Concerts

• Touring productions

• Stage productions

• Theatre

• Film production

• Fire training

• Live events

• Large venues

• Entertainment venues

• Theme parks

• Professional atmospheric effects

Included Accessories:

• Antari M-20 LCD Control Module

Optional Accessories:

• Antari M-30 Pro Wireless Control Module

• Antari M-5-HB Hanging Bracket

• Touring Flight Case

• DMX Cables

• Compatible Antari Fog Fluid

Size:

• 668 × 320 × 276 mm

• 26.30 × 12.60 × 10.87 in

Weight:

• 15.5 kg

• 34.17 lb

Electrical / Thermal:

• US Input: AC 100–120 V, 50/60 Hz, 12.5 A

• EU Input: AC 220–240 V, 50/60 Hz, 6.5 A

• Rated Power: 1500 W

• Warm-Up Time: Approximately 8 Minutes

• Enhanced Heat-Reservation Structure

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F
