16 Port Ready2Run Genius Controller

The Experience Lights 16 Port Genius PRO Controller with the innovative Genius Mounting System makes setting up your light display easier than ever, with the all-inclusive design.

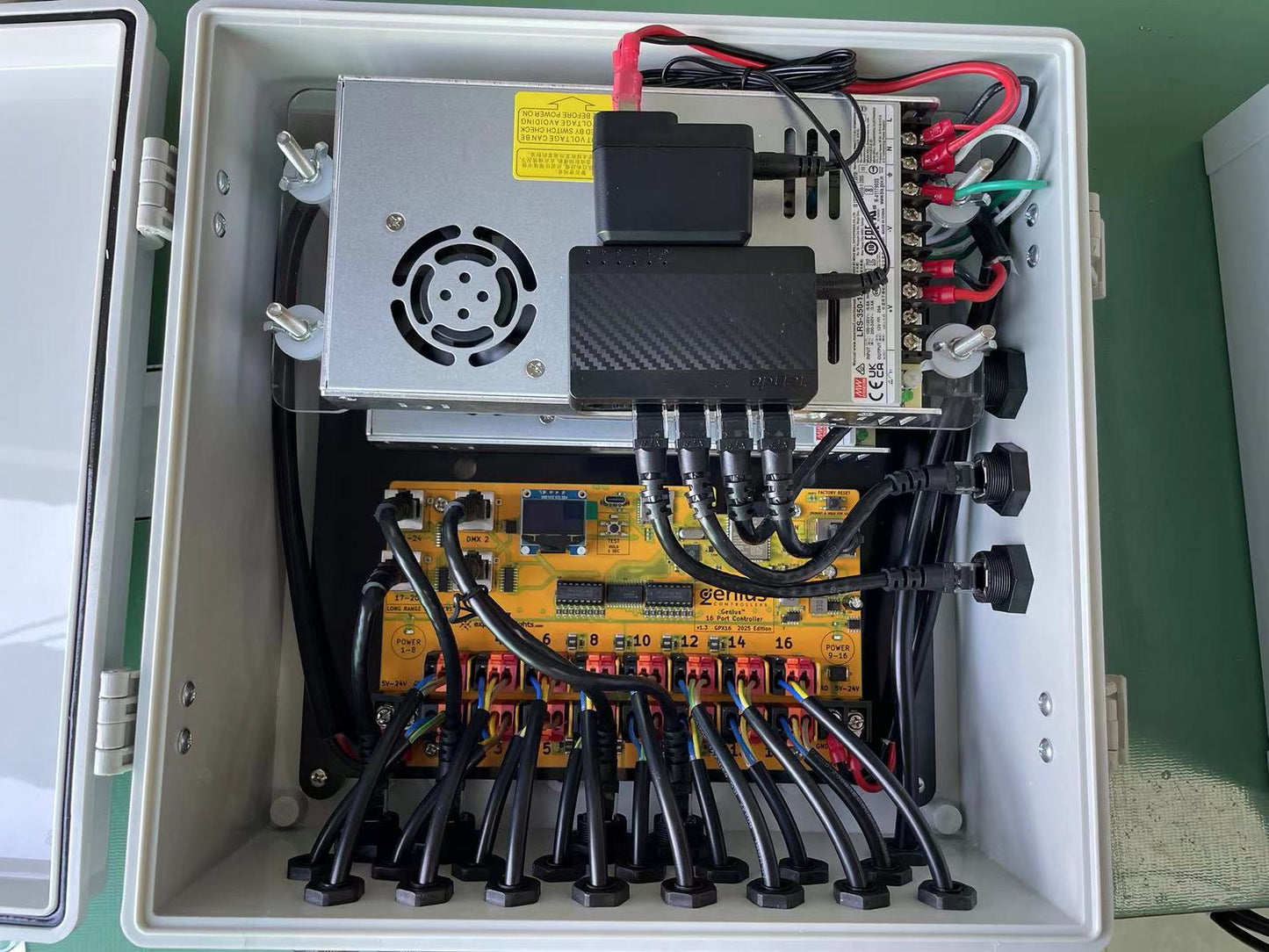

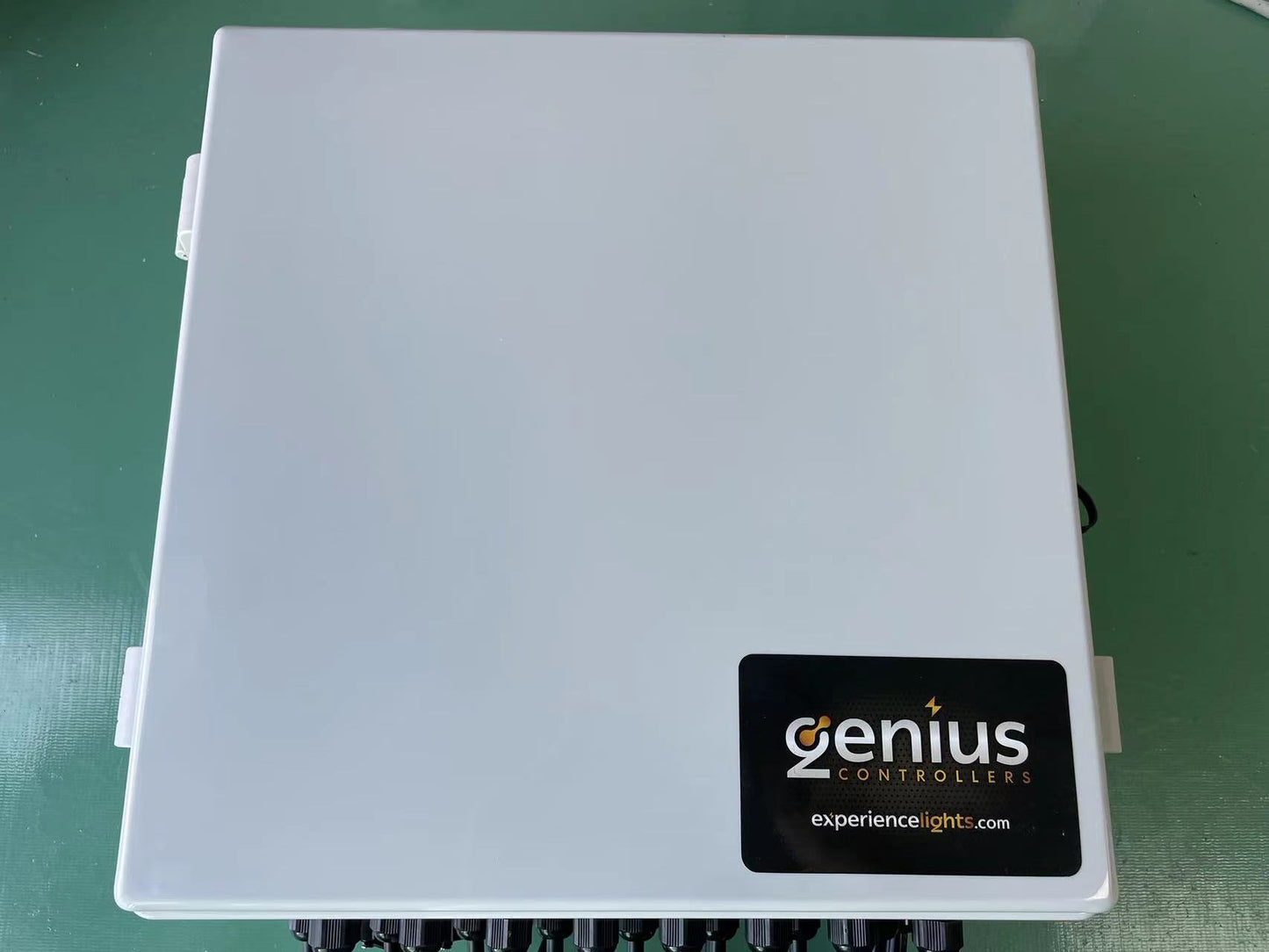

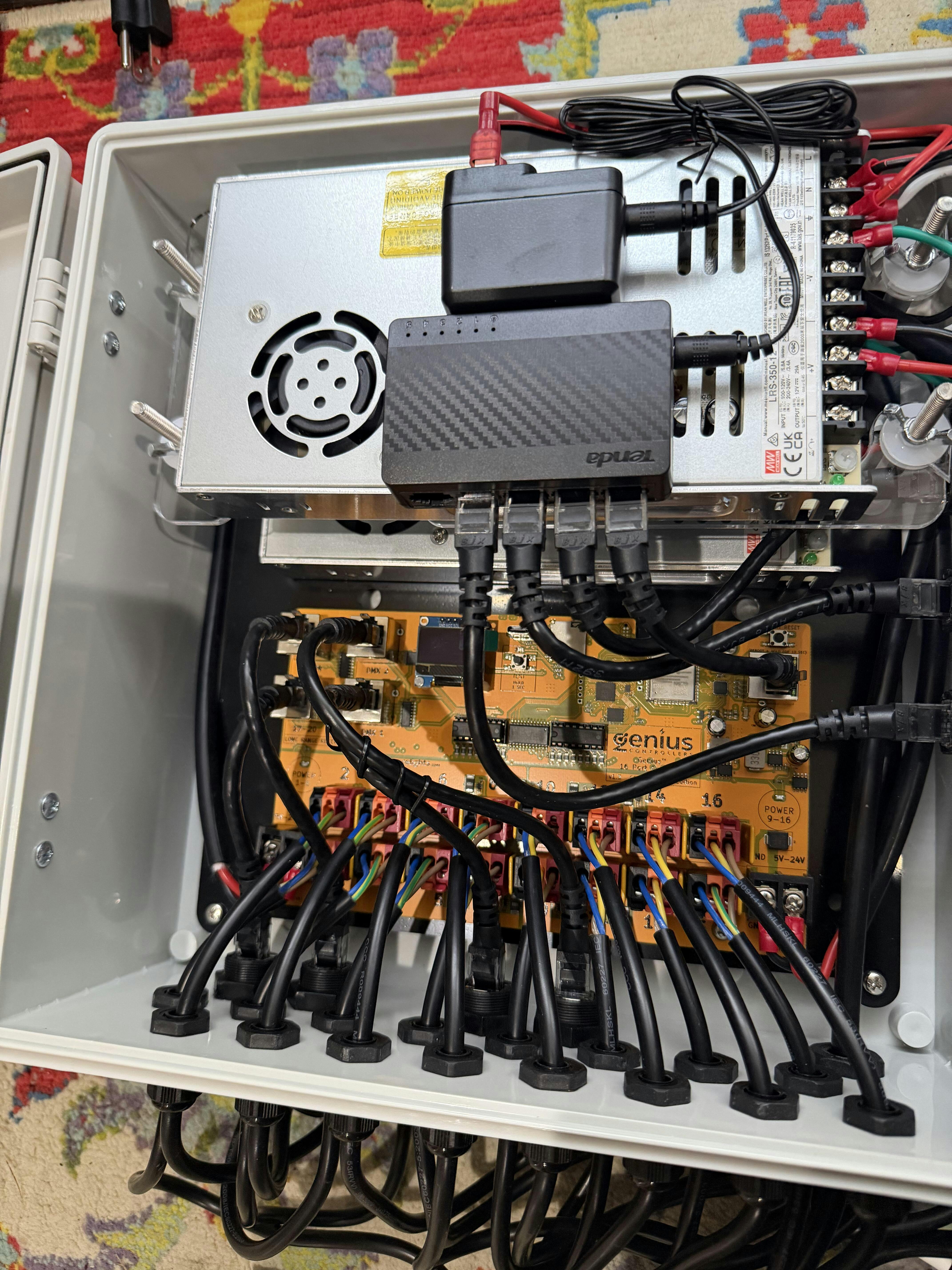

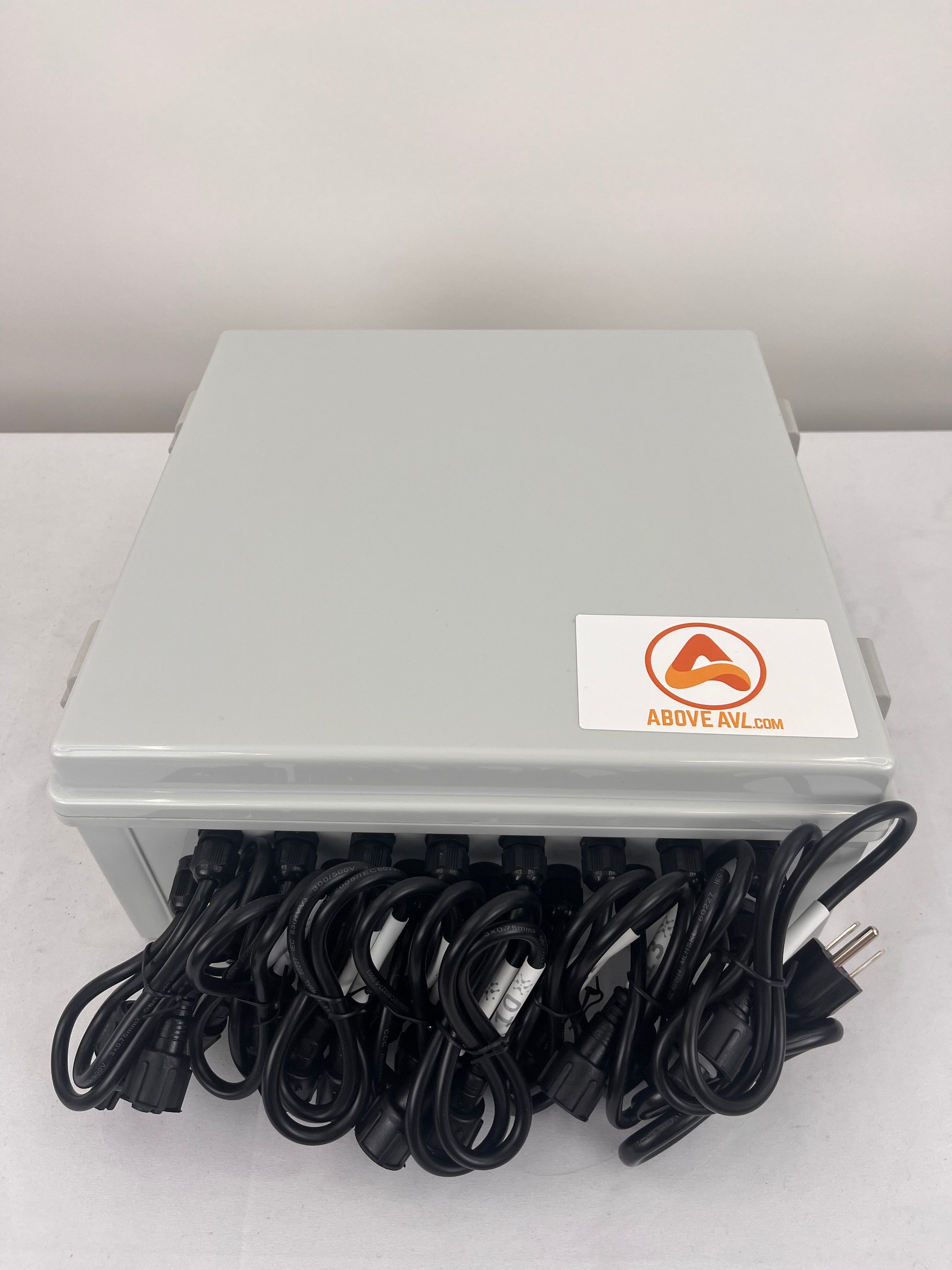

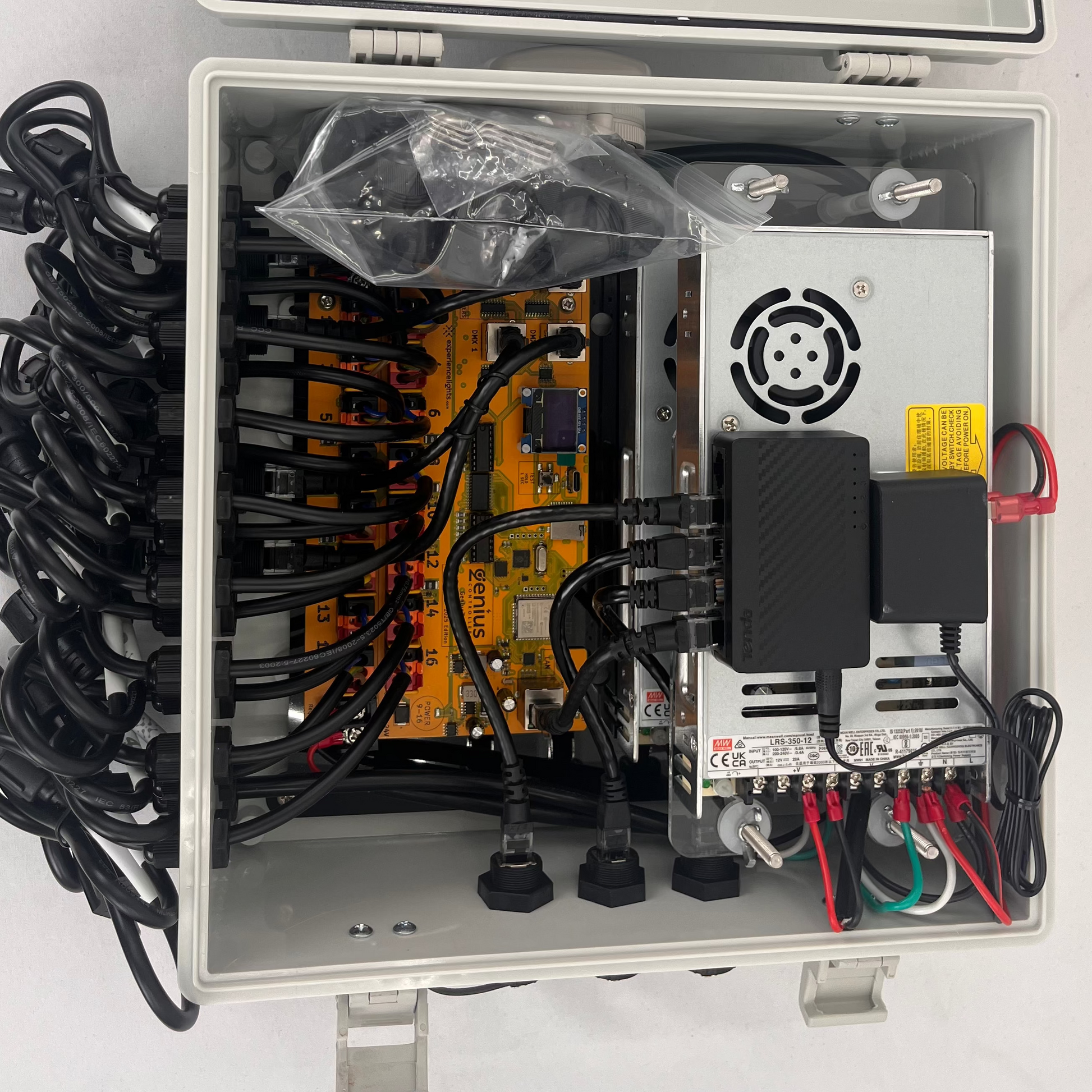

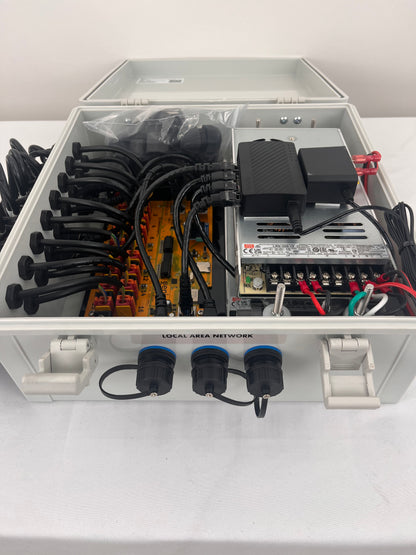

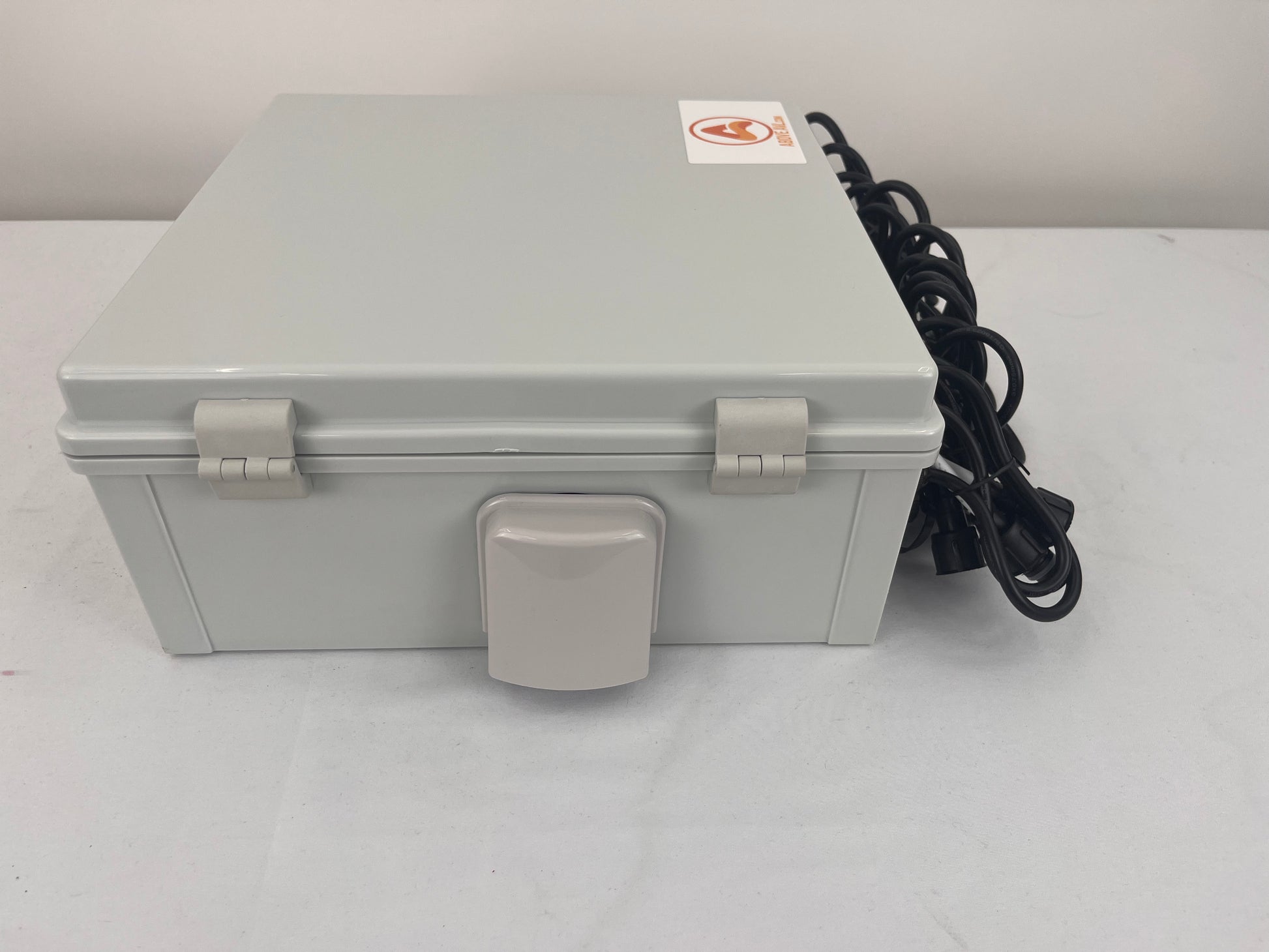

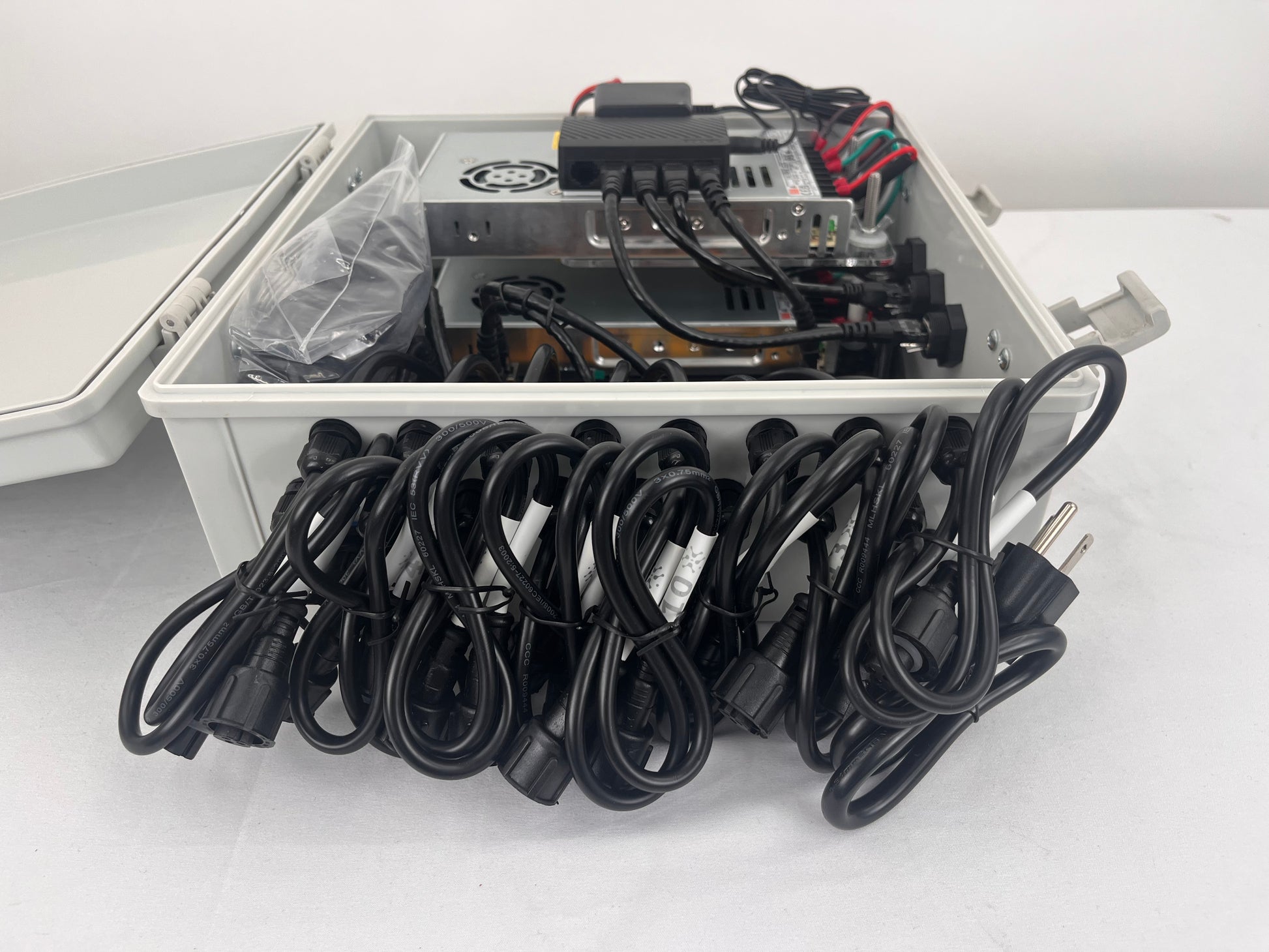

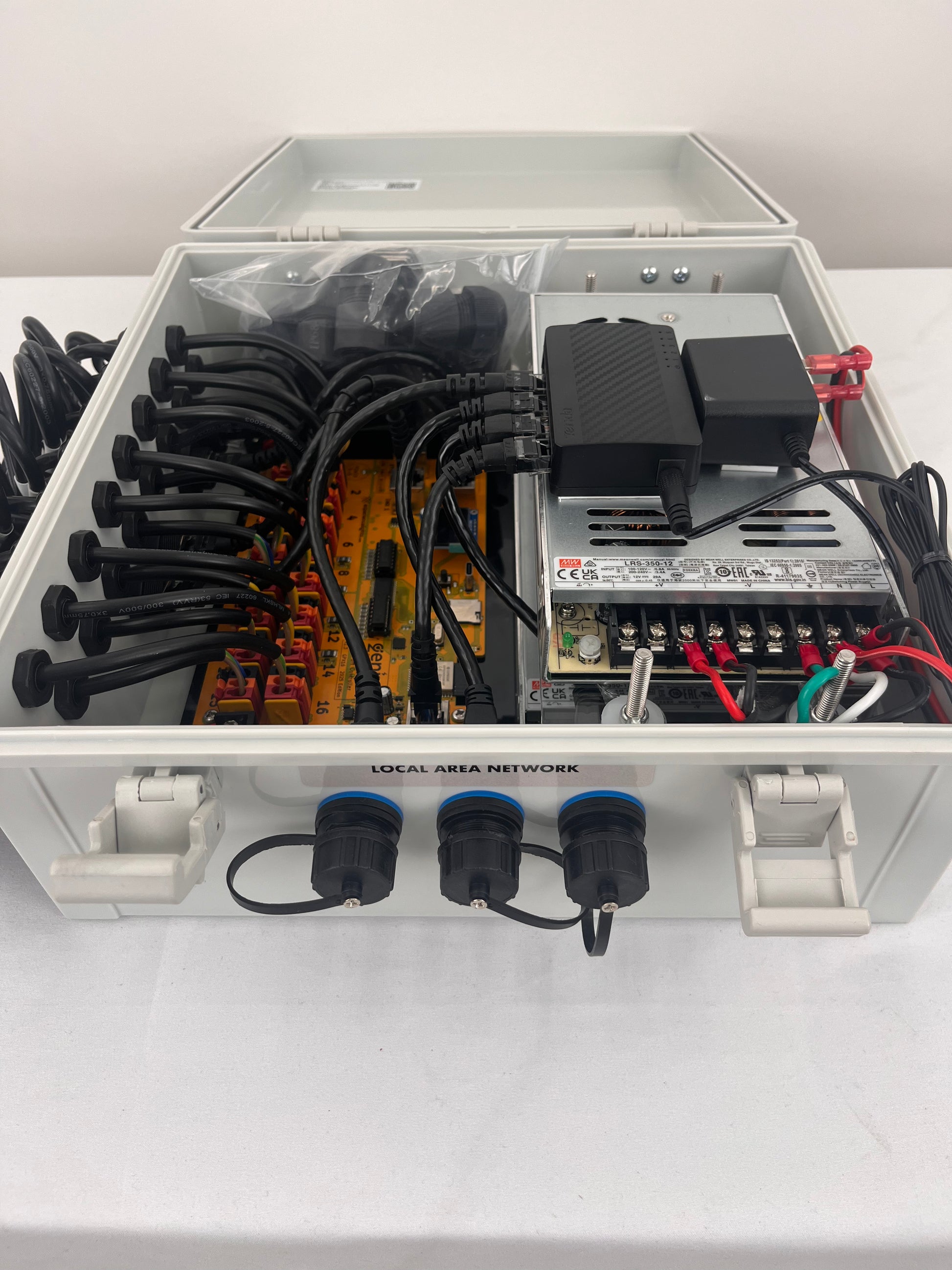

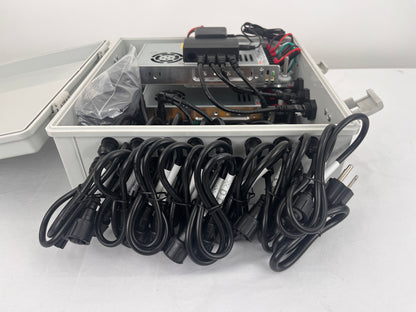

These are fully-built, controllers in a weatherproof box, ready to run featuring:

• Genius 16 Port Genius Controller
• 2 x Meanwell 350w Power Supplies

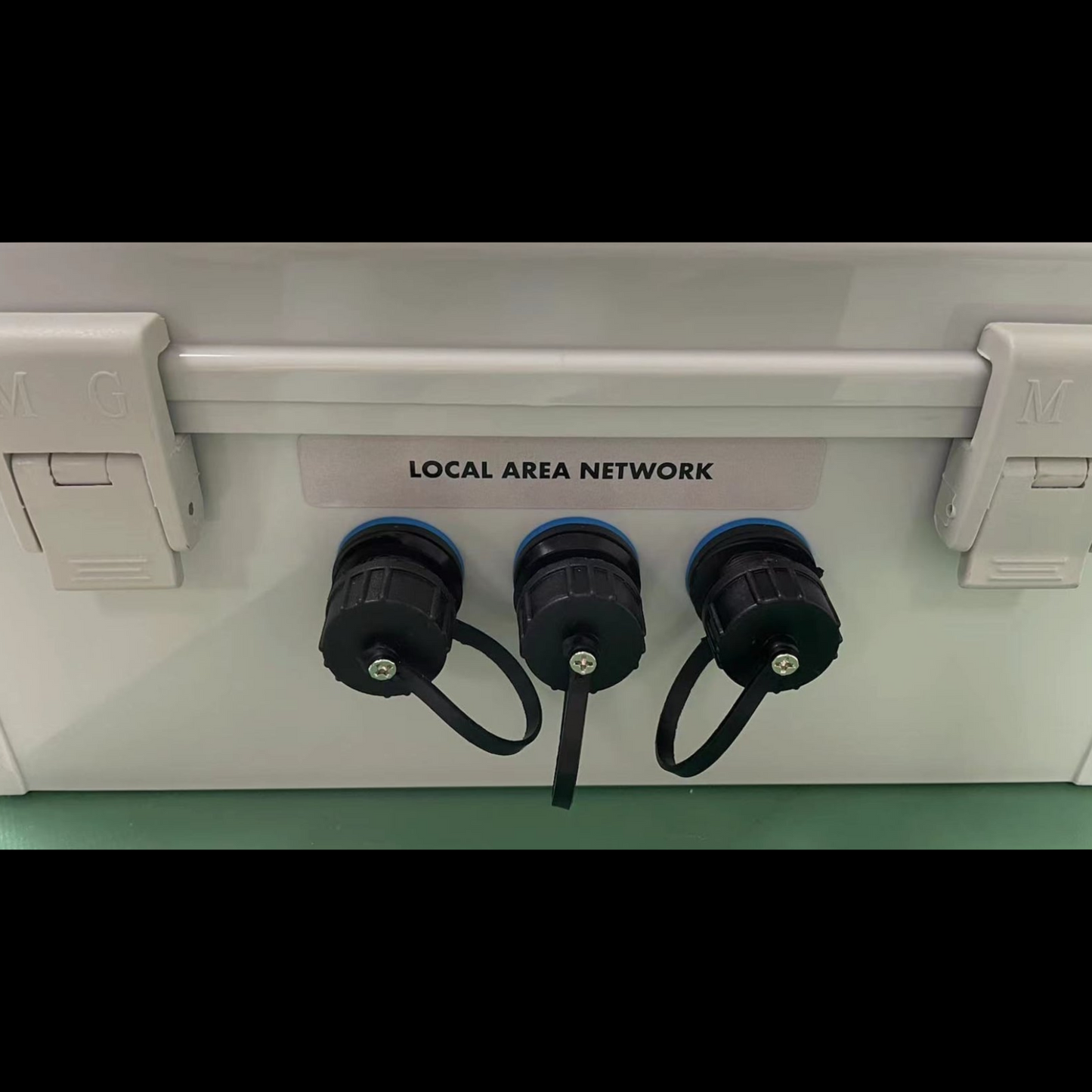

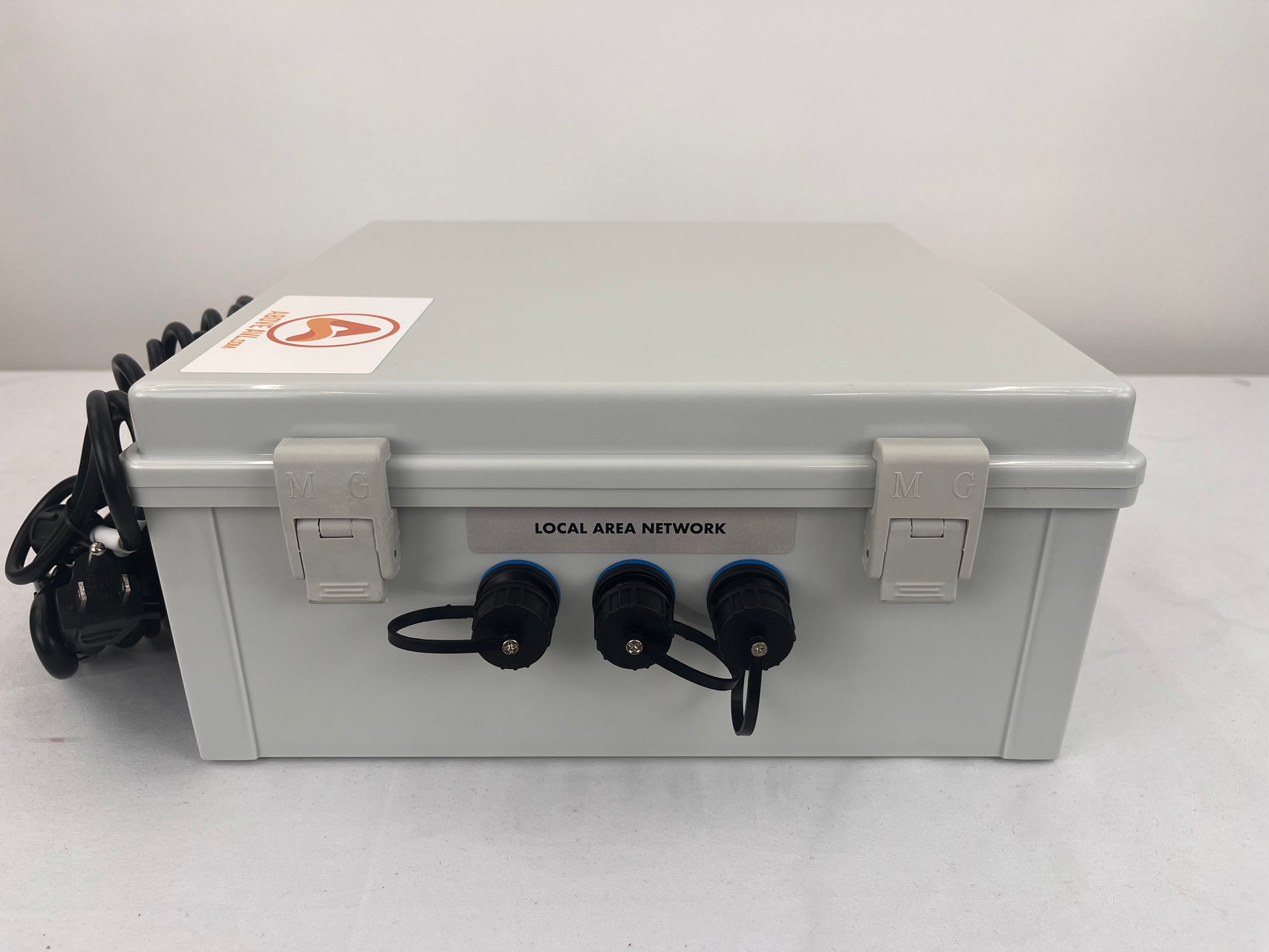

• 5 Port Ethernet Unmanaged Switch with (3) exterior RJ45 plugs

From the Manufacturer:

The Genius PRO series of products features the first of its kind Genius Mounting System; this allow for 1 or 2 power supplies to be mounted directly to the circuit board. By incorporating the mounting plate, power supply brackets, and DC wiring harness into one product, setup has never been faster or easier. Genius PRO features 4 break-away tabs on the bottom of the circuit board which, when used, allow stacking of 2 supplies (not included) on top of each other.

Also included with Genius PRO are pre-attached 12AWG 6" black and red wires with crimp connectors on the ends; this allows for fast connections to your power supply's screw terminals, for a max current carrying capacity of 25A per wire pair.

Features:

New in the 2024 Edition:

• RJ45 jacks changed from plastic to stronger Metal RJ45.
• USB jack changed from USB Micro to USB-C.
• Holes widened for easier mounting.
• eFuses adjusted for additional leniancy, and auto-retry.
• Rotary dial updated to have "detents" that click while you spin for better control.

Supported Enclosures

• Bud Industries NBF-32022 (preferred)
• Your Pixel Store Medium Enclosure (WC-004-2)
• CG-1500

Supported Power Supplies (not included)

• Mean Well LRS-350
  Mean Well LRS-600

Firmware Updates

• Instructions: https://experiencelights.com/firmware
• Master Genius Firmware List https://docs.google.com/spreadsheets/d/1EpIc1IoBcz8VZ_v9NqO6HwNh3JkDPr5gPylhlOVwKck/edit?usp=sharing

Specifications:

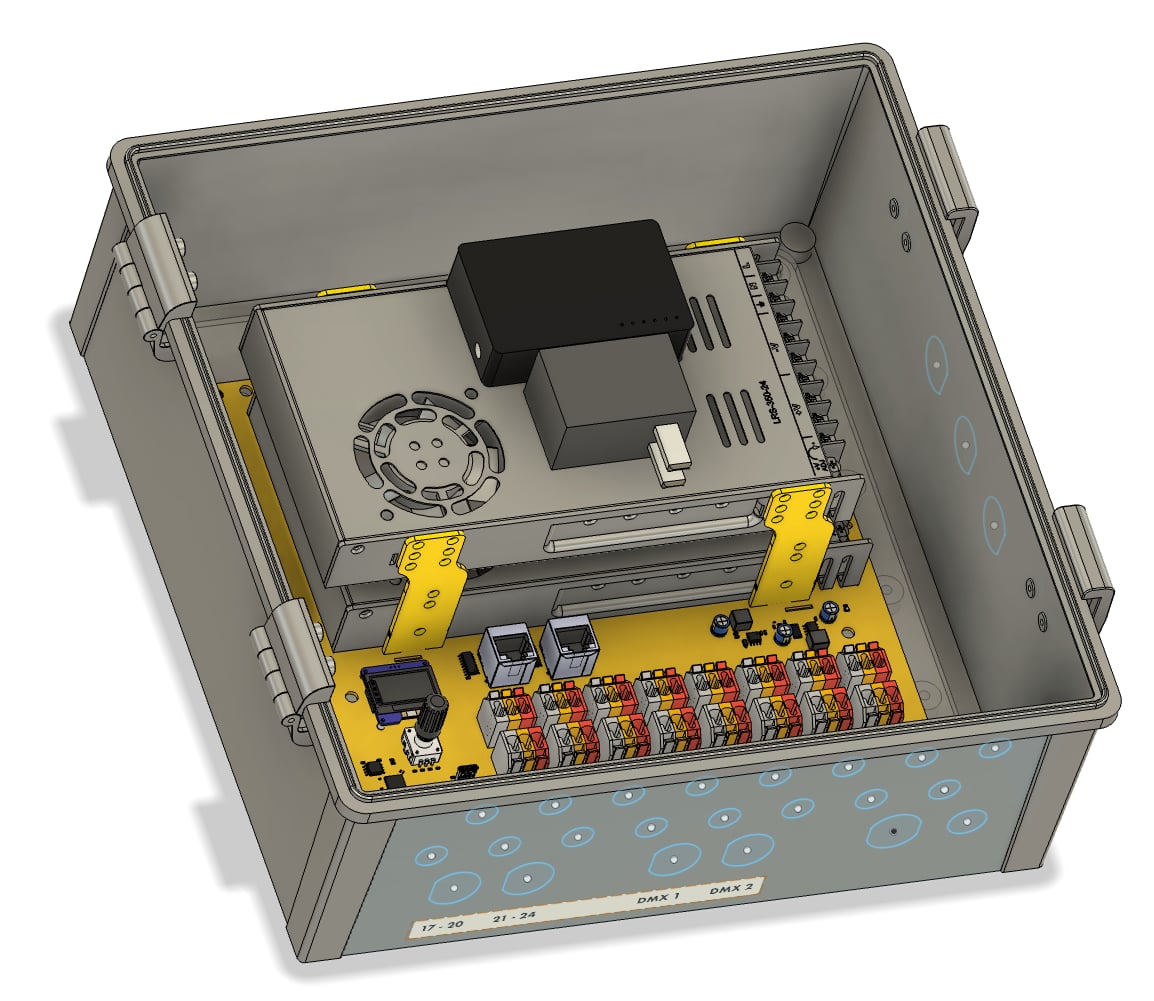

• Patent Pending Genius Mounting System, to mount 1 or 2 power supplies directly to the circuit board
• 2 x 6" black wire and 2 x 6" red wire with connectors pre-attached to the ends for quick power supply hookup
• Rotary knob for navigating menus on the OLED display
• 1 Ethernet Port
• Pre-defined hole patterns to fit neatly into an NBF-32022 bud box, CG-1500, or Your Pixel Store Medium Box (WC-004-2) enclosure
• 16 x 3-pin, extra large, color coded Clever LockTM connectors (no phoenix connectors or screw down terminals)
• Original eFuse design, with configurable per port on/off power control.
• Max 4A per output.
• Supported protocols: DDP, E1.31, ArtNet
• Outputs the most common 3-wire WS281X pixel protocol
• Full range 5V-24V

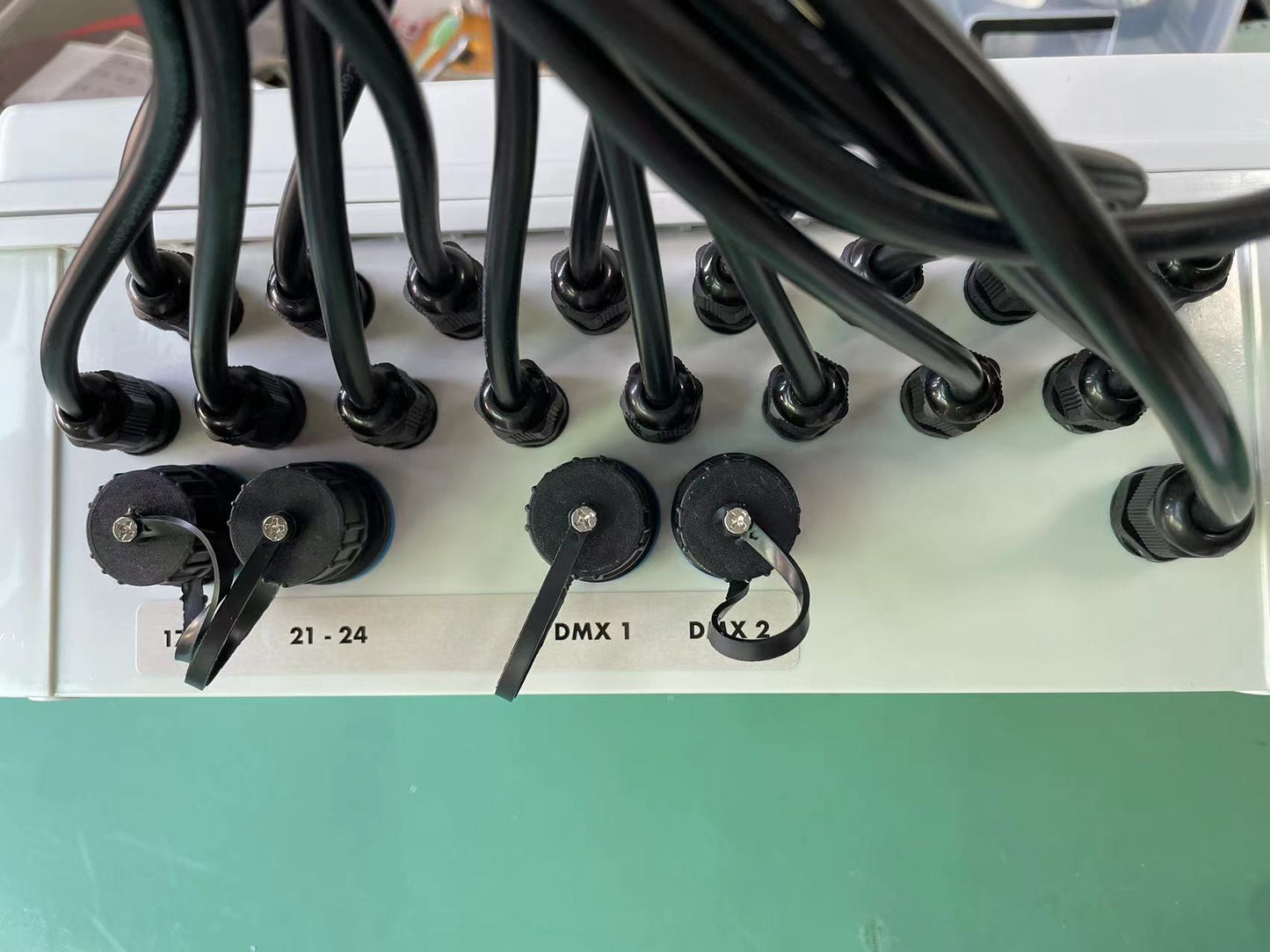

• 2 x RJ45 ports for long range receivers
• 2 x RJ45 ports for DMX output
• Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
• Per port current monitoring (RTCM: Real time current Monitoring)
• Per port pixel counting
• SD card slot for standalone operation or to operate as FPP remote.
• Simple & fast over-the-air updates; with ability to easily roll back to previous firmware versions
• Rich JSON API
• Built-in test mode animations
• Seamlessly control up to ~10,000 pixels using e1.31/artnet, or ~20,000 pixels using DDP
• No banks or groups.  Pixels can be distributed however you'd like on any outputs, with any number of pixels assigned to each port
