16 Port Ready2Run Genius PRO Receiver

The Experience Lights 16 Port Genius PRO Receiver with the innovative Genius Mounting System makes setting up your light display easier than ever, with the all-inclusive design.

These are fully-built receivers in a weatherproof box, ready to run with (2) Meanwell 350w 12v power supply!  Receivers require a main controller in order to function.

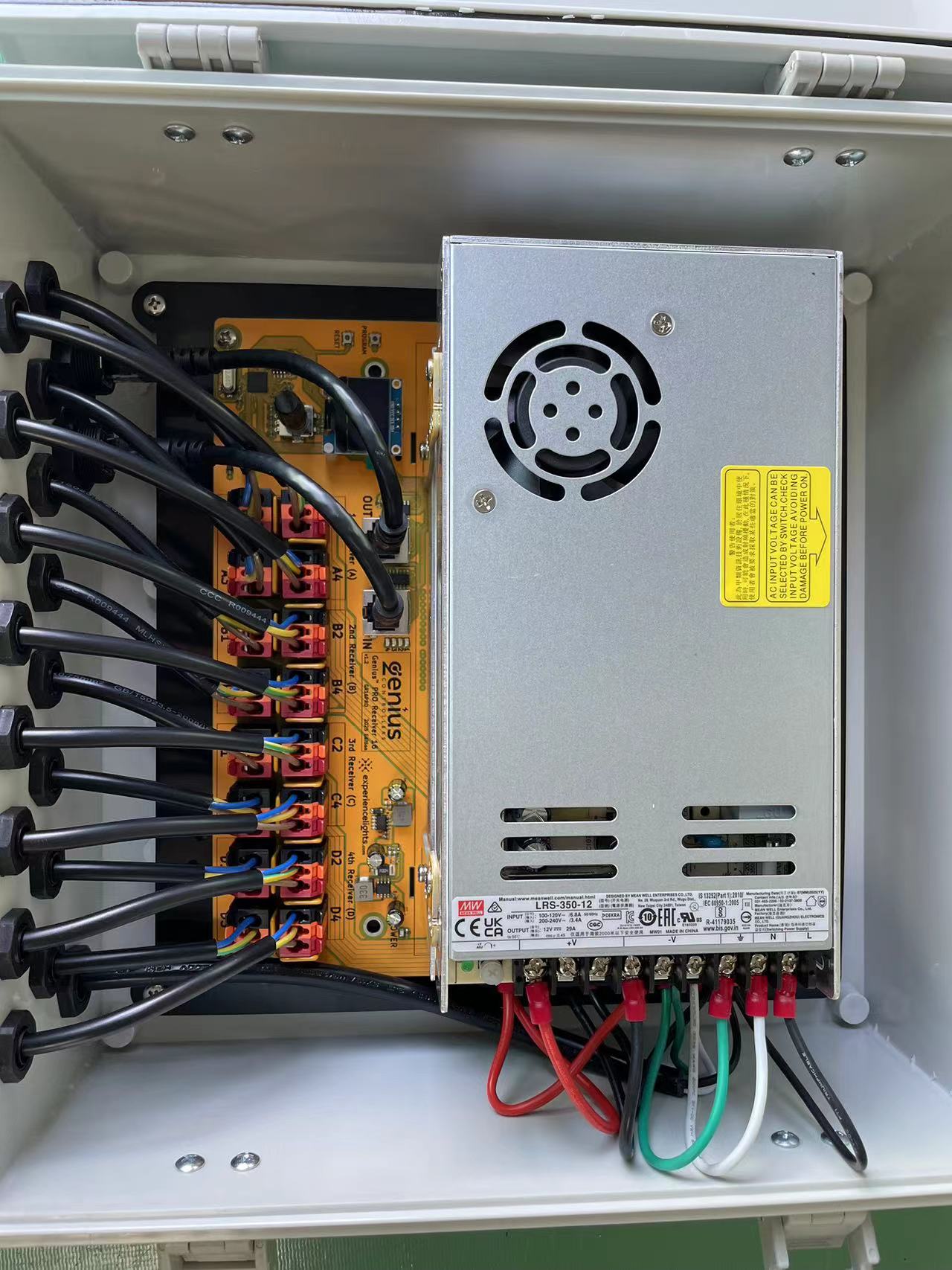

Fully built with the following parts:

• (1) Genius 16 PRO Receiver
• (2) Meanwell LRS-350 12v Power Supplies

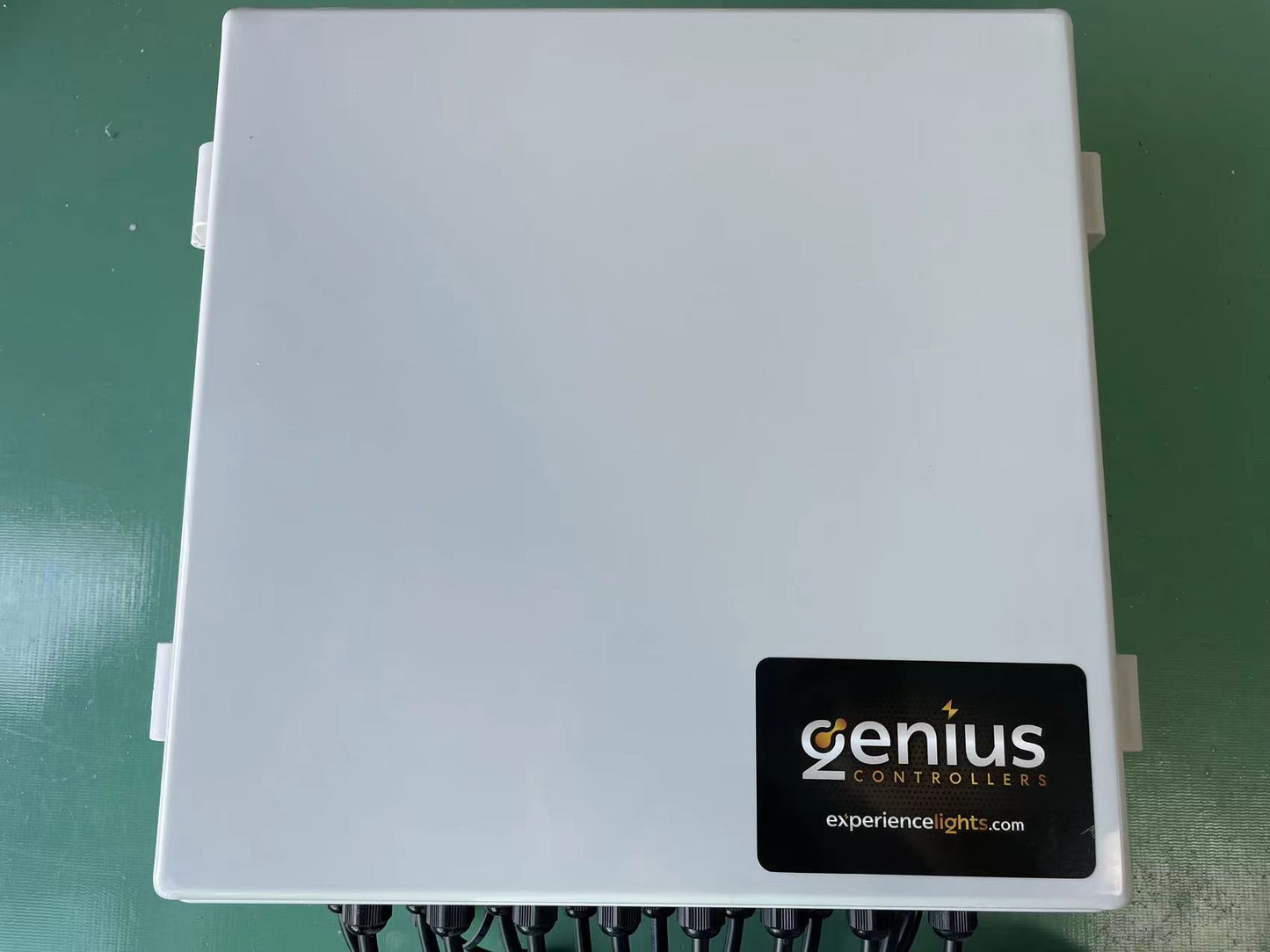

• (1) Waterproof Enclosure

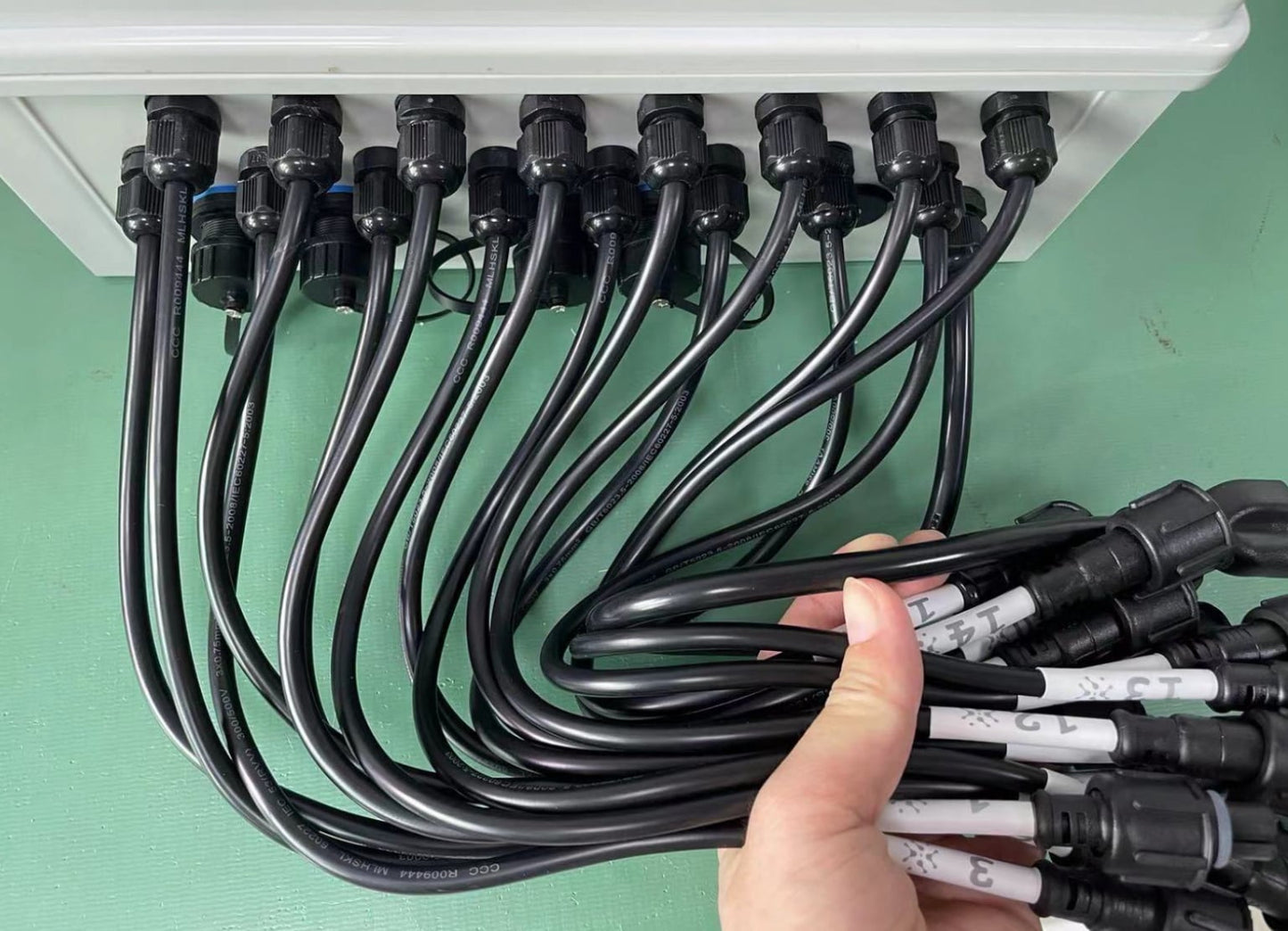

• xConnect pigtails on all pixel outputs

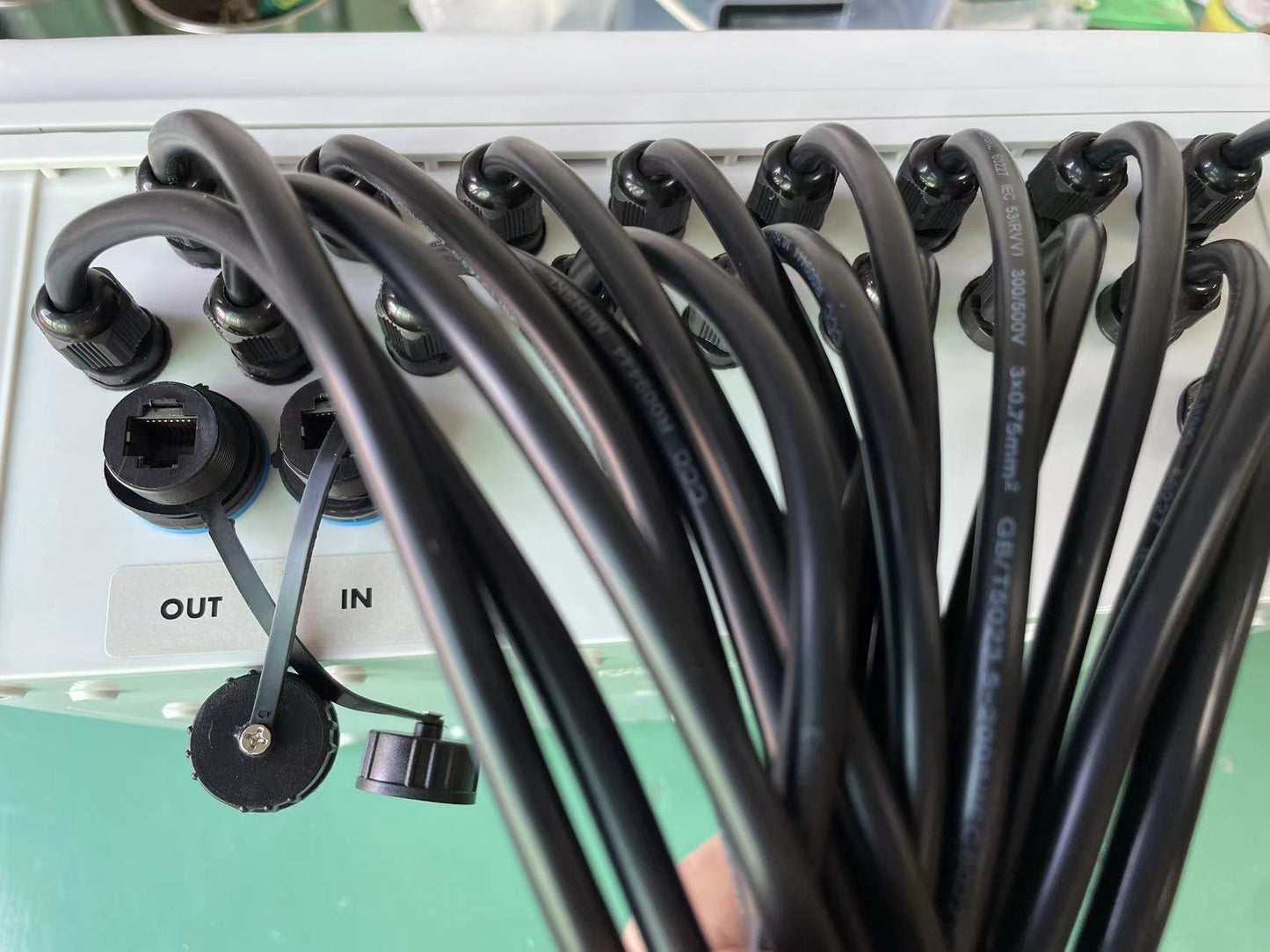

• Pigtails, Power Inlet, Ethernet Cable Glands and fully wired!

User Manual

Find our Ready2Run User Manual here: https://www.dropbox.com/scl/fi/lnksgcai9pqc3kpskpyzk/Genius-Ready-To-Run-User-Manual_.pdf?rlkey=exdpmo67vls0rg9h8t5fyxeqj&dl=0

This manual contains instructions particular to the Ready2Run itself, refer to the Genius User Manual from Experience Lights for all other instructions.

Features:

• 2 x RJ45 ports for Long Range connection; supports daisy-chaining
• 2 x Screw power terminals across 2 power banks (5V-12V)
• 16 x 3-pin spring loaded terminals (no phoenix connectors or screw down terminals)
• 16 x automatically resettable fuses (no replacing tripped fuses)
• Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in. Mix and match with other equipment
• Auto detection of protocol from the sending controller: “Genius”, “Dumb”, “FPP” (Falcon Pi Player Smart Version 1 & 2), “V3 Falcon (white)” or “V4 Falcon (Blue)”. No switches to toggle, or temination resistors required.
• Works with WS281X differential signals only
• Built-in test mode animations
• Auto positioning determines the receiver’s “place in line” without the need for dip switches on each receiver.
• If you need to manually set a receivers position, there is an on-board rotary dial to optionally override
• MAX 25A per bank, or 5A per output
• Works with xLights, Light-O-Rama, Vixen, and stage lighting apps like ELM, Madrix, Resolume and more!
