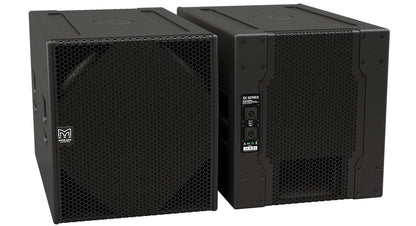

SXC115 15" Passive Cardioid Subwoofer

The SXC115 is a Cardioid subwoofer with front and rear facing drivers to maximize rear rejection. This is a great option for small to medium sized events.

From the Manufacturer:

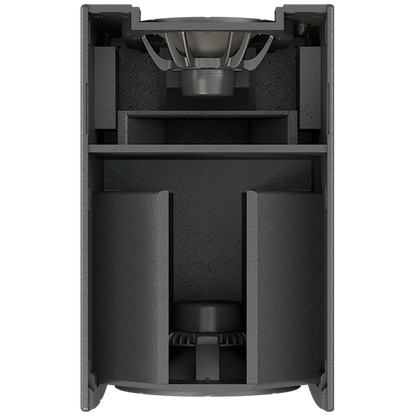

Designed for touring sound and installations, the SXC115 is a compact, high performance cardioid subwoofer. It features a 15” (380mm) forward facing driver and a 12” (300mm) rear facing driver, each driven independently by separate amplifier channels and DSP. Each driver has its own chamber with optimised bass reflex porting

Features:

• Compact, cardioid subwoofer

• Front facing 15” (380mm)/4” (100mm) voice coil driver

• Rear facing 12” (300mm)/4” (100mm) voice coil driver

• Cardioid dispersion pattern

• 28dB rear rejection at 75Hz

• High output capability

• Tour-grade plywood enclosure

Applications:

• Live sound reinforcement

• Fixed installations including live event venues and nightclubs

• Theater sound

• Corporate AV events

• Acoustically-challenging rooms

• Outdoor restaurant, bar and hotel entertainment areas

• Concourses and Theme Parks

Specifications:

• Type

• Compact, cardioid subwoofer

• Frequency Response (1)

• 44Hz – 150Hz ±3dB, -10dB @ 36Hz

• Drivers:

• 15” (380mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone

• 12” (300mm)/4” (100mm) voice coil, long excursion, neodymium magnet, waterproof cone

• Rated Power

• 15”: 1000W AES, 4000W peak

• 12”: 700W AES, 2800W peak

• Sensitivity

• 101dB

• Maximum SPL

• 137dB peak

• Nominal Impedance

• 15”: 8 ohms

• 12”: 8 ohms

• Dispersion (-6dB)

• Cardioid

• Enclosure

• Multi-laminate birch ply

• Finish

• Textured black paint

• Protective Grille

• Black HEX perforated steel

• Connectors

• 2 x NL4

• Pin Connections Input

• 15”: +1, -1; 12”: +2, -2

• Pins Connections (Link)

• 15”: +1, -1; 12”: +2, -2

• Fittings:

• Two skids on base, with mating channels on top

• M20 top-mounted thread plate for pole mounting

• Two bar handles on each side

• 16 x M10 mounting points

• 16 x M8 inserts for optional castors

• Dimensions (INCL Skids)

• (W) 500mm x (H) 550mm x (D) 811mm (939mm incl castors)

• (W) 19.69in x (H) 21.67in x (D) 31.92in (36.96in incl castors)

• Weight

• 53kg (117lbs)

• 56kg (124 lbs) incl castors
