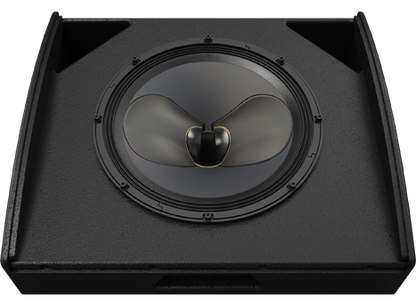

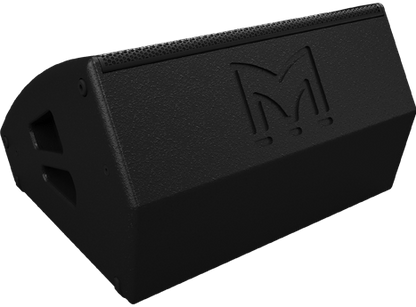

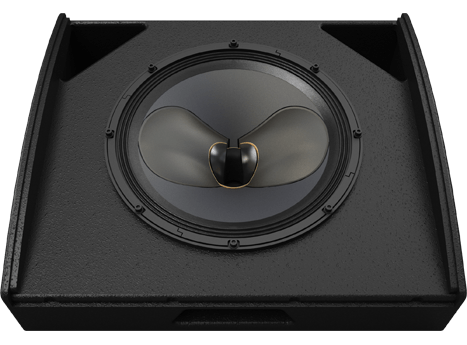

LE200 15" Passive Coaxial Differential Dispersion Stage Monitor

The LE200 15" is a passive coaxial differential dispersion professional stage monitor.

From the Manufacturer:

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.

Features:

• Compact, two-way stage monitor

• Coaxial ‘point-source’ performance

• Differential Dispersion™ technology for consistent coverage

• Defined, near-rectangular coverage plane at head-height

• Switchable active/passive operation

• Low-profile plywood enclosure

• M8 rigging inserts

• Multiple connectors for flexible deployment

Applications:

• Stage monitor

Specifications:

• Type

• Two-way, bi-amp/passive Coaxial Differential Dispersion

• Frequency Response

• 68Hz-18kHz ± 3dB,

• -10dB @ 50Hz

• Drivers

• LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF

• HF: 1.4” (32mm) exit/3” (75mm) voice coil, titanium dome compression driver

• Rated Power

• 400W AES, 1600W peak

• Sensitivity

• LF: 100dB, HF: 103dB

• Passive: 100dB

• Maximum SPL

• 133dB peak

• Nominal Impedance

• LF/FR: 8Ω

• HF: 8Ω

• Dispersion (-6dB)

• 100°-60° horizontal, 60° vertical

• Crossover

• 1.2kHz active/passive (switchable)

• Enclosure

• Birch/poplar ply

• Finish

• Black textured paint

• Protective Grille

• Black perforated steel with scrim cloth backing

• Baffle Angle

• 30˚

• Connectors

• 4 x NL4 type

• Pin Connections

• LF/FR: 1+/-

• HF: 2+/-

• Fittings

• 2 x pocket handles

• Protective rubber feet on base and sides

• 4 x M8 inserts

• Dimensions

• (W) 610mm x (H) 364mm x (D) 562mm

• (W) 24.0ins x (H) 14.3ins x (D) 22.1ins

• Dimensions INCL Feet

• (W) 616mm x (H) 367mm x (D) 562mm

• (W) 24.2ins x (H) 14.4ins x (D) 22.1ins

• Weight

• 26kg (57.3lbs)
