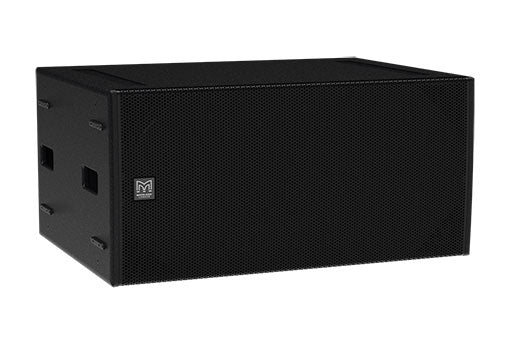

SX215 Subwoofer

The SX215 is a compact professional subwoofer great for medium to large sized events

From the Manufacturer:

The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long-excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels.

Features:

• Dual-driver, direct radiating subwoofer

• Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones

• Very high output capability

• Plywood enclosure with flying inserts

• Large ports for reduced air noise

Applications:

• Live sound reinforcement for medium-size venues

• Fixed installations in concert halls, theatres and ballrooms

• Sports stadium and arena installations

• Houses of Worship

• Conference halls and corporate AV events

• Nightclubs, bars and hotels

• Retail outlets and leisure centres

Specifications:

• Type

• Dual Driver, Direct radiating subwoofer

• Crossover Frequency

• 100Hz

• Frequency Response 4π (5)

• 45Hz - 100Hz ± 3dB, -10dB @ 36Hz

• Drivers

• LF: 15” with 4” Voice coil, Ferrite Motor

• Sensity

• (2W 1m half space) 106dB

• (1W 1m half space) 103dB

• Nominal Impedance

• 4 Ohms

• Rated Power

• AES 1600W, PEAK 6400W

• Maximum SPL (System)

• 136dB continuous, 142dB peak

• Dispersion

• Omni-Directional/ or Cardioid (paired)

• Connectors

• 2 x NL4

• Pin Connections (Input)

• 1+/-

• Pin Connections (Link)

• 1+/- and 2+/-

• Dimensions

• (W) 961mm, (H) 463mm, (D) 679mm (807mm with Casters)

• (W) 37.83ins, (H) 18.23ins, (D) 26.73ins (31.77ins with Casters)

• Weight

• 64kg

• 141 lbs)
