Optic-ER2X 16-FT X 10-FT 2.9mm Indoor LED Video Wall System Package

The 30x Optic-ER2X w/ Processor, Rigging Bars, and Cases is a complete indoor LED video wall package from DVS LED, pairing 30 Optic-ER2X panels (2.9mm pixel pitch) with a video processor, rigging bar(s), and flight case(s) for turnkey deployment. This configuration forms a total display wall size of approximately 16.4' W x 9.8' H.

From the Manufacturer

The Optic ER series from DVS LED is an entry-level line of LED video wall panels built to deliver a cost-effective yet dependable modular display solution for stage installations, mobile use, and rental applications. It features a lightweight, intuitive hardware design with hot-swappable modular components that are free of internal flat-ribbon cables, improving both reliability and ease of service. The panel is front- and rear-serviceable with magnetic modules, and its 2.97mm pixel pitch, 5,000:1 contrast ratio, and 4,880≥ Hz deliver clear, fluid, camera-friendly imagery suited to live streaming and broadcast use. Standard NovaStar processing and a detachable, easy-swap power/control unit keep setup and maintenance straightforward, and the panels are backed by DVS' 7-year warranty.

Features

• 2.97mm pixel pitch with 168×336 pixel density for sharp, close-viewing image quality
• 5,000:1 contrast ratio for vivid, life-size color reproduction
• 4,880≥ Hz refresh rate and 14-Bit grayscale for smooth, camera-friendly playback ideal for live streaming and broadcast
• Modular, hot-swappable design free of internal flat-ribbon cables for improved reliability and lower maintenance
• Front- and rear-serviceable with magnetic modules for fast, easy access
• Detachable, easy-swap power/control unit for simplified user-level serviceability
• NovaStar A5S receiving card for straightforward setup and programming
• PowerCON IN/THRU power and EtherCON IN/THRU signal connections for simplified daisy-chain looping
• Lightweight die-cast aluminum cabinet with simplified locking mechanisms for quick rigging and setup
• Backed by DVS' 7-year warranty
• Bundled with an LED video processor serving as the gateway between input sources and the LED screen
• Includes rigging bar(s), available in single and double widths, for flown or ground-stacked configurations
• Includes rolling, stackable flight case(s) for protected storage and transport
• Recommended use: Special events, trade shows, house of worship, hospitality, stage and touring production, rental and staging

Note: The specifications below apply to each individual panel included in this package.

Specifications

Optical

• Pixel Pitch: 2.97mm
• LED Type: SMD1515
• Pixel Density: 168×336
• Brightness: 800~ NITS
• Contrast Ratio: 5,000:1
• Viewing Angle: 140° H | 120° V
• Refresh Rate: 4,880≥ Hz
• Grayscale: 14-Bit

Physical

• Material: Die-Cast Aluminum
• Dimensions: 19.6 x 39.2 x 2.9″ (500x1000x76mm)
• Weight: 29 lbs (13.1 kg)
• Serviceability: Front/Rear
• Mounting Options: Fly / Ground Stack
• Max Hanging (Flown): 8 Panels
• Max Stacking (Ground Stack): 4 Panels
• Ingress Protection Rating: IP30

Control System

• Control System: NovaStar
• Receiving Card: NovaStar A5S

Connections/Electrical

• Power Connection: PowerCON IN/THRU
• Signal Connection: EtherCON IN/THRU
• Voltage: 120-240v
• Average Power: 120w / panel
• Max Power: 240w / panel

Approvals

• Ingress Protection Rating: IP30 (Indoor Use Only)
• Certifications: cMETus, FCC, CE, ROHS, EMC

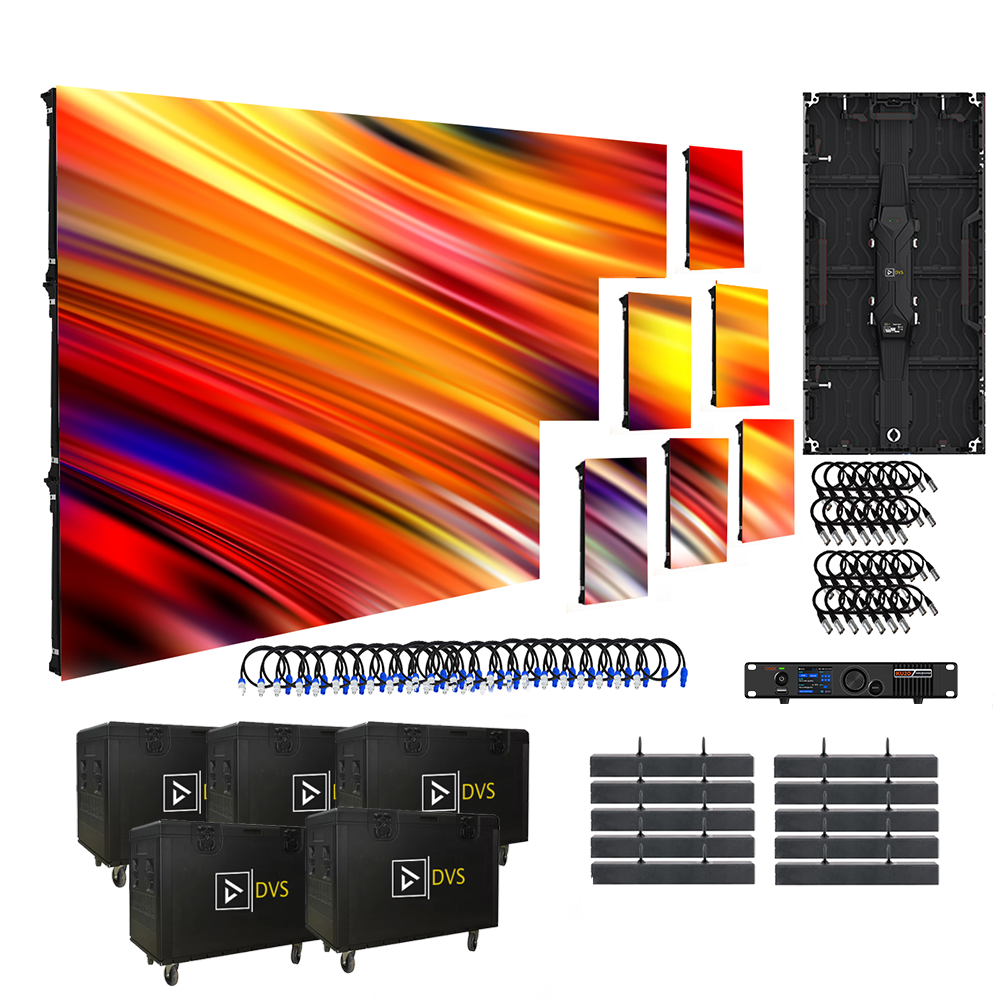

What's in the Box

• 30x Optic-ER2X LED Video Panels
• 1x NovaStar KU20 LED Video Processor
• 10x RB500 Rigging Bars
• 6x 6-Panel Road Cases
• PowerCON and EtherCON Cabling (Master-In and Jumper/Datalink Cables)
• Spare Modules (2 pieces or 4% of total modules)
• Spare Power Control Unit - Inc. Pre-Installed PSU, HUB & Matching Receiving Card - Hot Swap Ready (1 piece or 4%)
• Spare Parts Kit - PSU, HUB, & Receiving Card (1 set or 4%)
