Sku: HEX032

32 HEX Panel IP

Name: 32 HEX Panel IP
Brand: ADJ
SKU: HEX032
Price: 1219.99 USD
Availability: InStock

$1,219.99

Sold out

Shipping calculated at checkout.

Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

Quantity

Description

This multi-functional fixture is great for indoor and outdoor use. It packs a powerful set of 32x12W LEDs and has 8 sections that can be controlled individually and has a 24-degree beam angle. This heavy duty fixture has an all metal black housing and has an IP65 outdoor rating.

From the Manufacturer:

The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

On the rear panel it features IP65 Locking 5-pin XLR, DMX In/Out connections, and IP65 Locking Power In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 32 HEX Panel IP is flicker free for film and broadcast, and has multiple DMX control modes, dim modes, and selectable gamma and LED refresh rate settings.

In the Box:

(1) 32 HEX Panel IP
(1)Removable frost filter with metal frame
(1) IP65 locking power cable
(1) Two Safety cables

Light Source:

LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
Beam Angle: 24-degrees
LUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)

Features:

IP65 rated – protects from dust, sand, moister, water
All metal construction with black housing
Includes heavy duty bracket

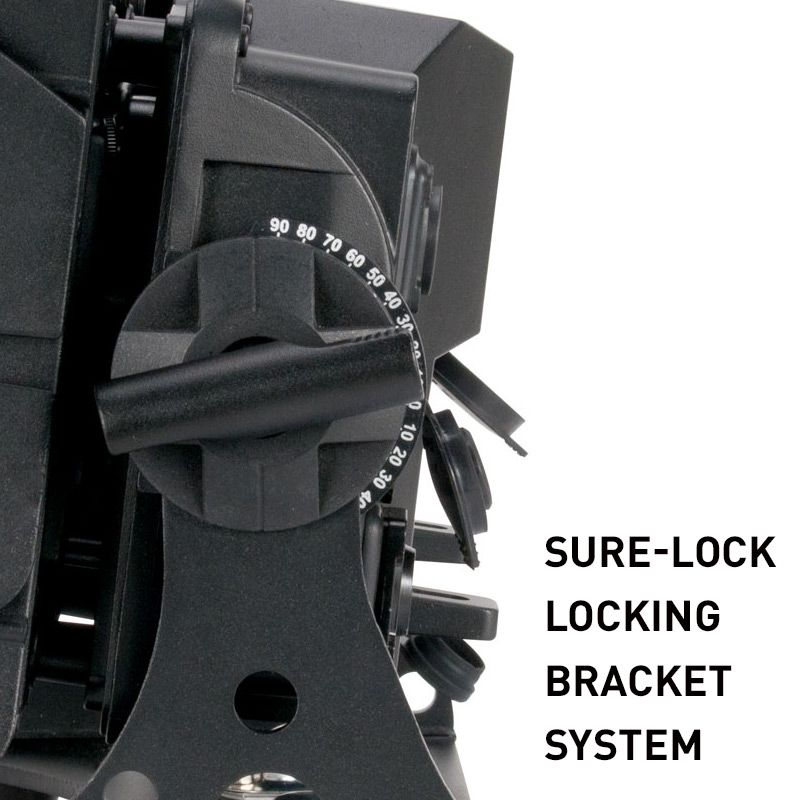

Sure-lock locking bracket system (securely locks every 10-degrees)
Includes magnetic removable filter frame to add a diffusion filter
Flicker free for film and broadcast
Linear variable white temperature control
Daisy chain up to 3 fixtures max (@ 120V); 6 fixtures max (@ 230V)

Connections:

IP65 PowerLock AC In/Out connections
IP65 Data linkable via 5-pin XLR cables
Daisy chain: 16 units (120V); 34 units (220V)

Control:

Multiple DMX channel modes
8 individually controlled sections with Pixel Zone Control
0-100% Dimming + smooth 16-bit Dimming
5 Dimming Curve Modes
Control Mode: DMX512, RDM (Remote Device Management)
Gamma Brightness: Multiple settings
LED Refresh Rate: Multiple settings
With Wired Digital Communication Network

Approvals / Rating:

CE Certified

Dimensions & Weight:

Dimension: 13.75”x 9” x 6.75” / 350x230x170mm
Weight: 24.25 lbs. / 11kg.

Construction:

Display: OLED display with function buttons
Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

Tech Specs

Optics:

Light Source Type: RGBWA+UV LEDs

Light Source Wattage: 32x 12w

Minimum Beam Angle: 24.0°

Maximum Beam Angle: 24.0°

Control

DMX Channel Modes: DMX512, RDM (Remote Device Management)

Physical:

Length: 13.75 in

Width: 9 in

Height: 6.75 in

Weight: 24.25 lb

Electrical

Voltage Range: AC100-240V, 50/60Hz

Maximum Wattage: 220w

Power Cable Connector - Fixture Side: PowerCON

Main Power Connector on Included Cable: Edison
