Sku: 4ST100

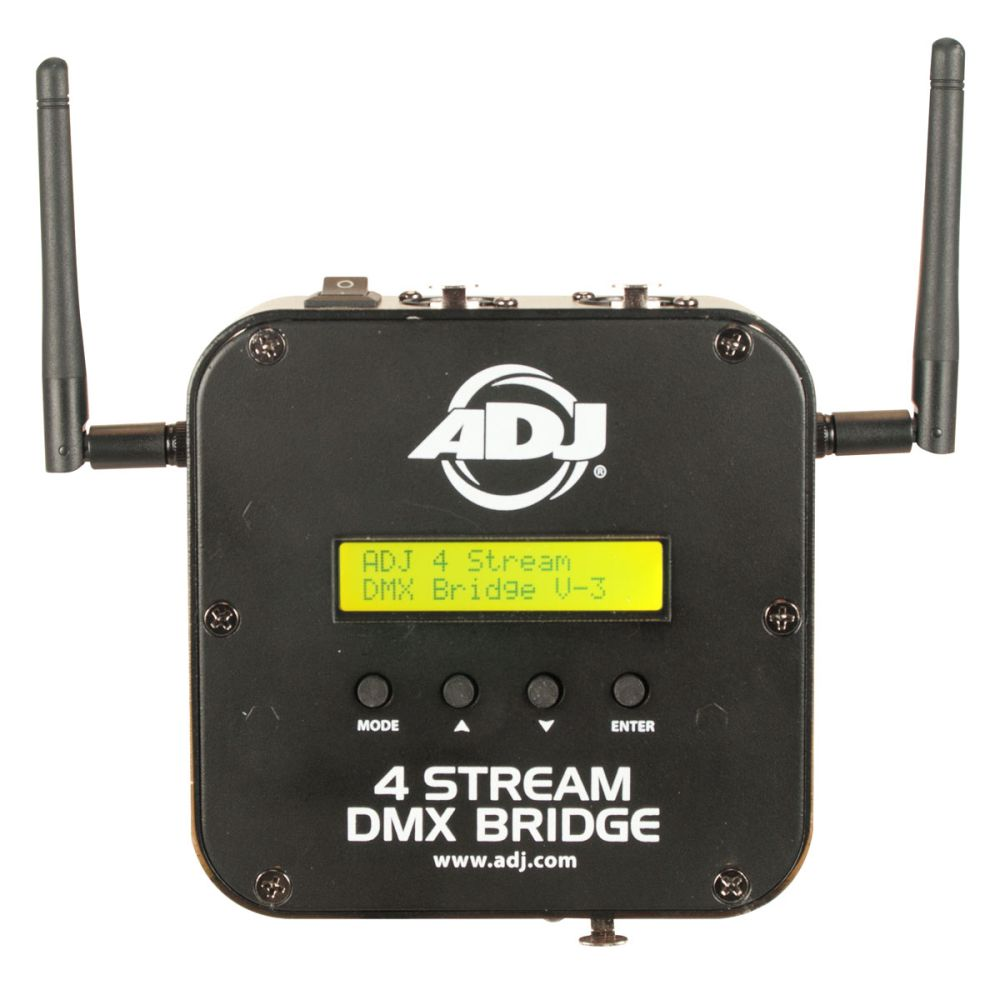

4 Stream DMX Bridge

Regular price
$529.99
Regular price
Sale price
$529.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

This is a WIFI interface that works with the ADJ Airstream DMX Pro App to control DMX products wirelessly.

From the Manufacturer:

WIFI interface that works with the ADJ Airstream DMX Pro App to control DMX products through WiFLY wireless DMX or a hardwire connection via 5-pin XLR. Download the Airstream DMX Pro App for iOS devices in the App store. APP include 4 DMX universes.

Features:

  • Seamless Wireless Bridge To DMX Compatible Devices
  • Supports Standard Network Protocols, Art-Net, sACN and WiFly
  • Private Standalone 2.4 GHz DSSS WiFi Network
  • No Existing Network Needed or Connect to External Network
  • Supports up to 4 DMX Universes (3 wired and 1 WiFLY wireless)
  • Control Compatible WiFly Devices up to 2,500 Feet Away
  • 14 WiFly Wireless Channels

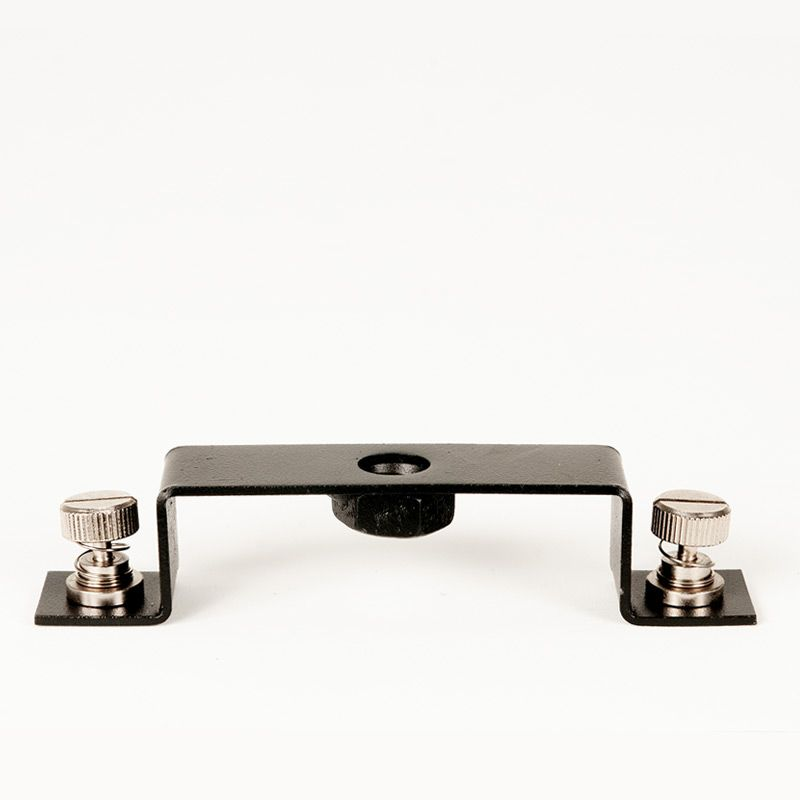

  • Easy Clamp/Truss Mounting

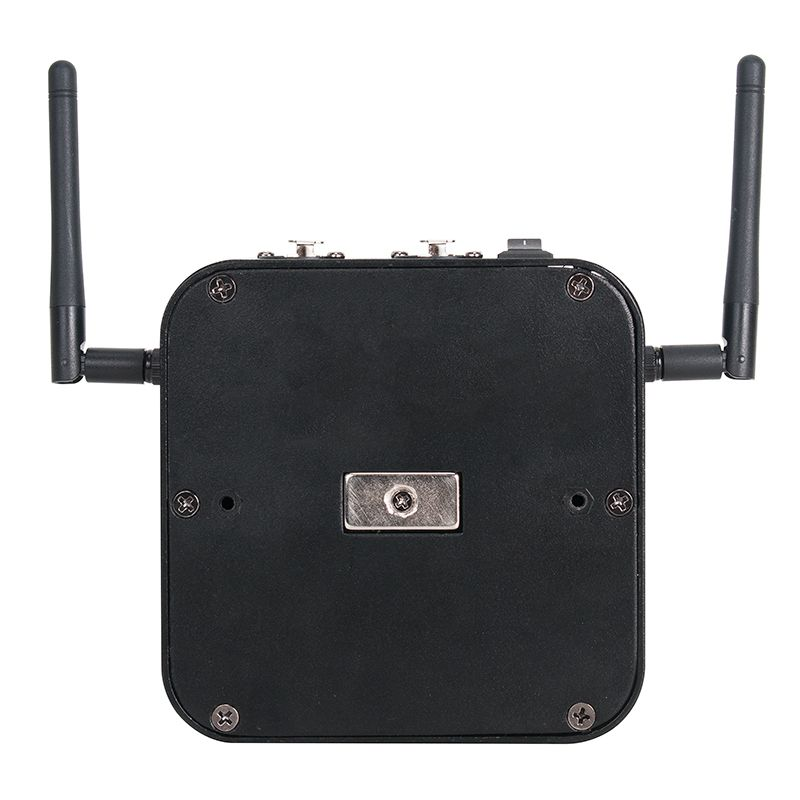

  • Magnetic Back for Easy Attachment to Metal Surfaces
  • Easy Configuration using iOS App
  • Dedicated control APP with 4 DMX universes available in the Apple APP Store

SIZE / WEIGHT:

  • Length: 4.92" (125mm) x Width: 6.88" (175mm) x Vertical Height: 2.44" (62mm)
  • Weight: 1.06 lbs. (0.48kg)

ELECTRICAL:

  • DC 9-12V 1Amp

APPROVALS:

  • CE | cETLus
Airstream DMX Pro App compatibility:

Compatible with iPad only. Requires iOS 12.0 or later.

Download the ADJ Airstream DMX Pro App for free from the App Store: https://itunes.apple.com/gb/app/adj-airstream-dmx-pro/id1339818459

*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.

Download the ADJ 4 Stream Configuration App for free from the App Store:https://itunes.apple.com/gb/app/elation-4cast-config/id1326427969?mt=8

*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.

Tech Specs

Control

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 2.44 in

Width: 6.88 in

Height: 4.92 in

Weight: 1.06 lb

Electrical

Voltage Range: DC 9-12V 1Amp
