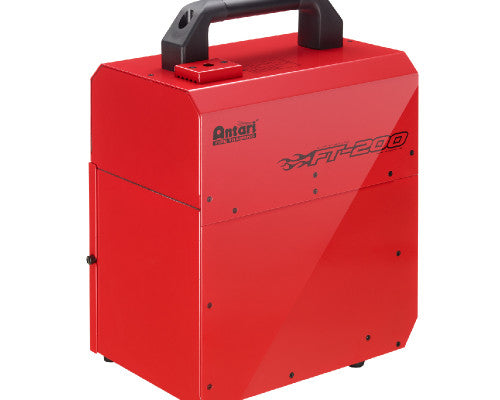

Antari FT-200 40,000 CFM High-Output IP63 Fire Training Smoke Generator

The Antari FT-200 is a rugged, high-output smoke generator specifically engineered for professional fire and rescue training. Producing up to 40,000 CFM of dense smoke, its advanced 1600 W steel heater block provides approximately twice the flow rate of the FT-100. An IP63-rated case, multi-position operation, built-in timer, DMX512 and wireless control make it well suited to realistic indoor and outdoor emergency training scenarios.

From The Manufacturer:

Antari developed the FT-200 as an advanced smoke generator specifically for fire and rescue training.

Building on the FT-100, the FT-200 features an advanced steel heater block that doubles the flow rate, increasing output by approximately 200%.

Its IP-rated case allows outdoor operation, while the compact housing and heavy-duty handle make the machine easy to transport and store.

The FT-200 can operate in multiple positions to generate smoke horizontally or vertically, and its built-in electronic timer enables hands-free operation.

Key Features:

• Specifically designed for fire and rescue training

• High-output 40,000 CFM smoke generation

• Advanced 1600 W steel heater block

• Approximately 200% increased output compared with FT-100

• IP63-rated case

• Suitable for demanding indoor and outdoor training environments

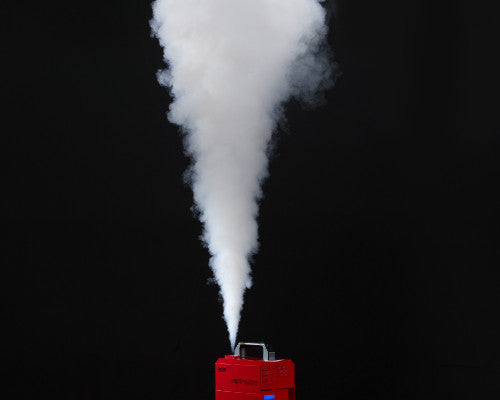

• Horizontal or vertical smoke operation

• Maximum output height of approximately 8 m

• Heavy-duty carrying handle

• Rugged professional construction

• Built-in electronic timer

• Manual control

• Timer control

• DMX512 control

• Wireless control

• Optional wired remote control

• 1 DMX channel

• 5-pin XLR DMX connection

• Neutrik powerCON power connection

• W-2 wireless transmitter included

Specifications:

• Product Type: Fire Training Smoke Generator

• Manufacturer: Antari

• Model / SKU: FT-200

• UPC: 4719850652609

• Rated Power: 1600 W

• Smoke Output: 40,000 CFM

• Maximum Output Height: Approximately 8 m

• Warm-Up Time: Approximately 10 Minutes

• Fluid Consumption: 270 ml/min

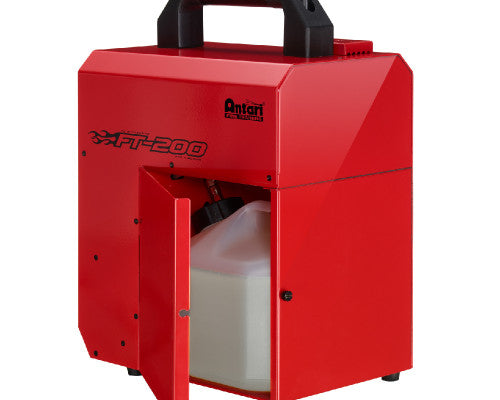

• Fluid Tank Capacity: 2.4 L / 0.63 gal

• Compatible Fluid: Antari FLP Fire Training Fog Fluid

• Control: Manual / Timer / DMX512 / Wireless

• DMX Channels: 1

• DMX Connection: 5-Pin XLR

• Power Connection: Neutrik powerCON

• Protection Rating: IP63

• Operating Positions: Horizontal / Vertical

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

Applications:

• Firefighter training

• Fire and rescue training

• Search and rescue exercises

• Emergency response simulations

• Smoke-filled room training

• Evacuation exercises

• Industrial emergency training

• Fire academies

• Outdoor training exercises

• Professional emergency simulations

Included Accessories:

• Antari W-2 Wireless Radio Transmitter

Optional Accessories:

• Antari Z-3 Cable Remote

• Antari FLP Fire Training Fog Fluid

• DMX Cable

• Additional power cabling as required

Size:

• 301 × 194 × 414 mm

• 11.85 × 7.64 × 16.30 in

Weight:

• 16 kg

• 35.27 lb

Electrical / Thermal:

• US Input: AC 100–120 V, 50/60 Hz, 13.5 A

• EU Input: AC 220–240 V, 50/60 Hz, 7 A

• Rated Power: 1600 W

• Warm-Up Time: Approximately 10 Minutes

• Ambient Operating Temperature: 0°C–40°C / 32°F–104°F

• Protection Rating: IP63
