40 HEX PANEL IP

The ADJ 40 HEX Panel IP fixture shines as a versatile wash, blinder, or color strobe, indoors or out. It looks great on camera and is perfect for film and broadcast settings.

From the Manufacturer:

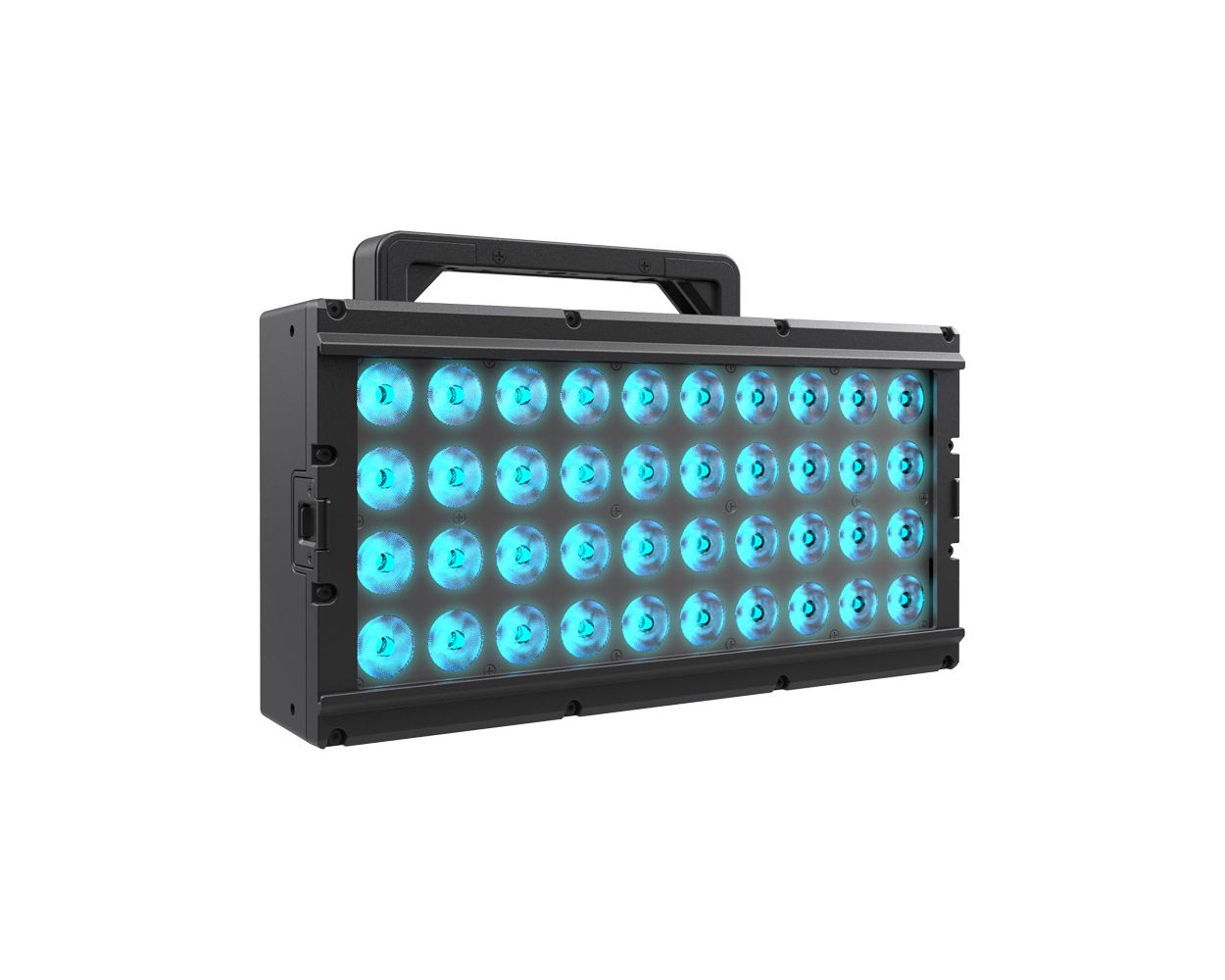

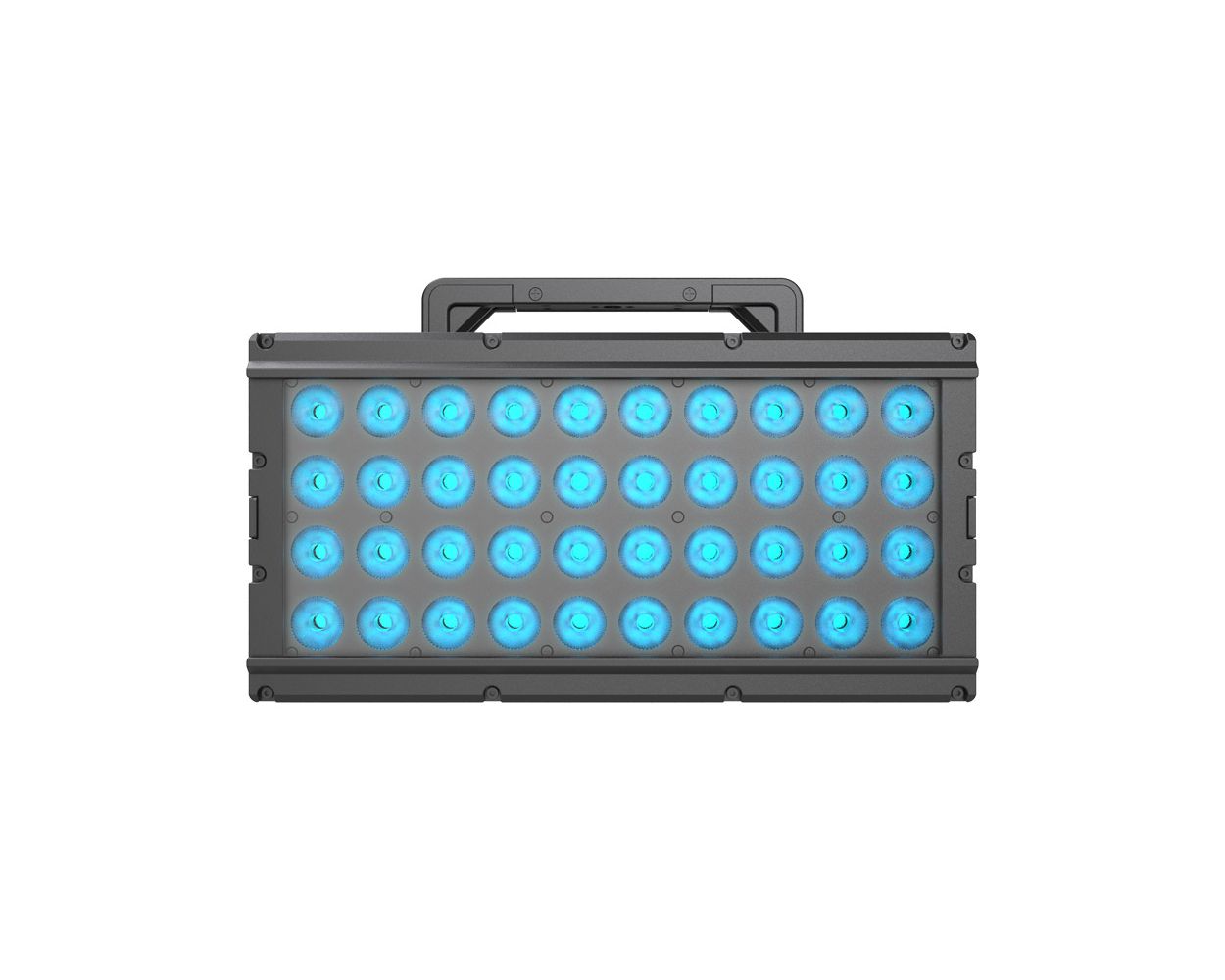

40 HEX Panel IP is a versatile IP65-rated fixture designed for indoor and outdoor use, functioning as a wash, blinder, or color strobe. It features 40 high-performance 20W HEX LEDs (6-in-1: RGBAL+UV), 10 pixel-controlled sections, and a durable all-metal black housing for reliable operation in any setting.

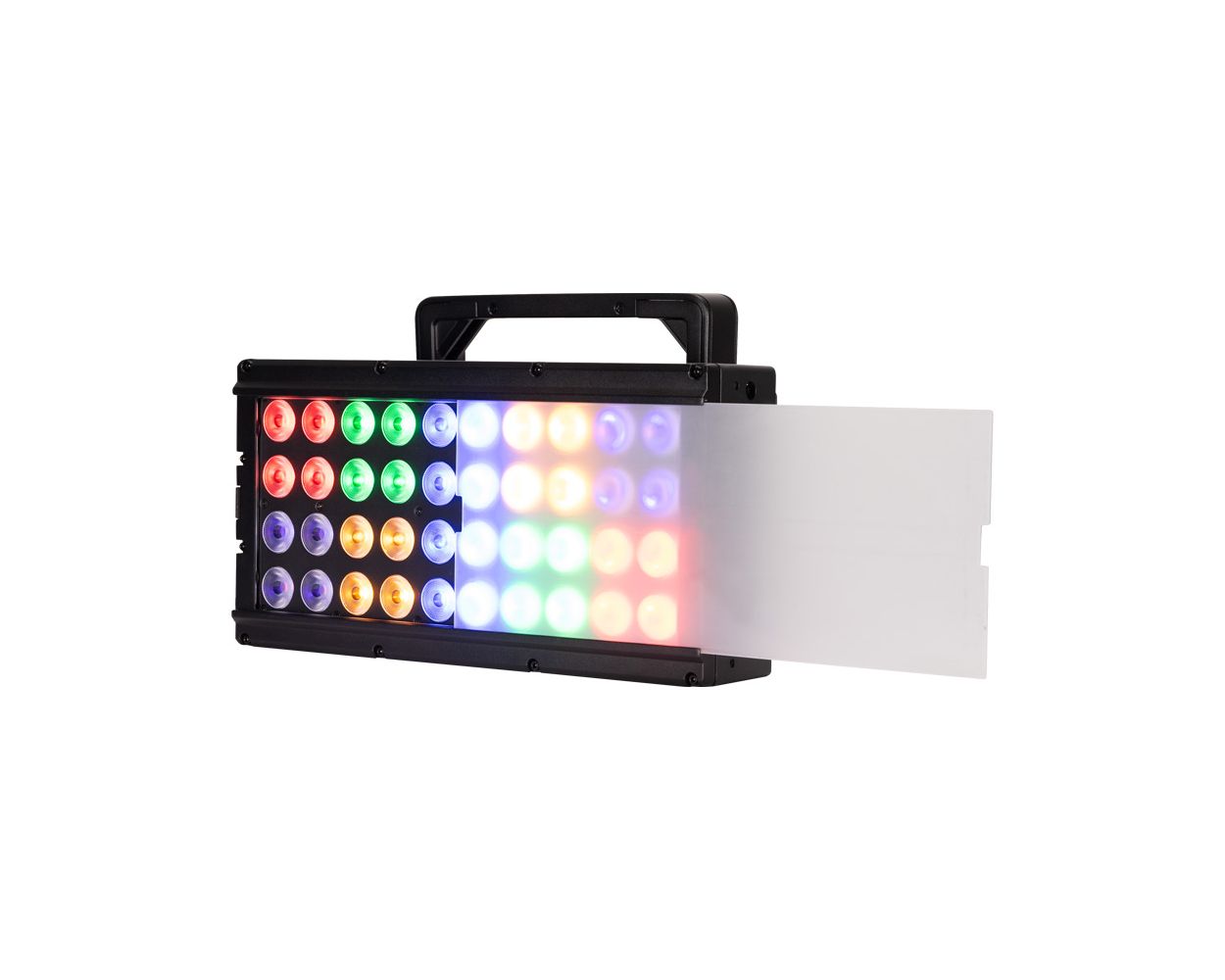

40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture.

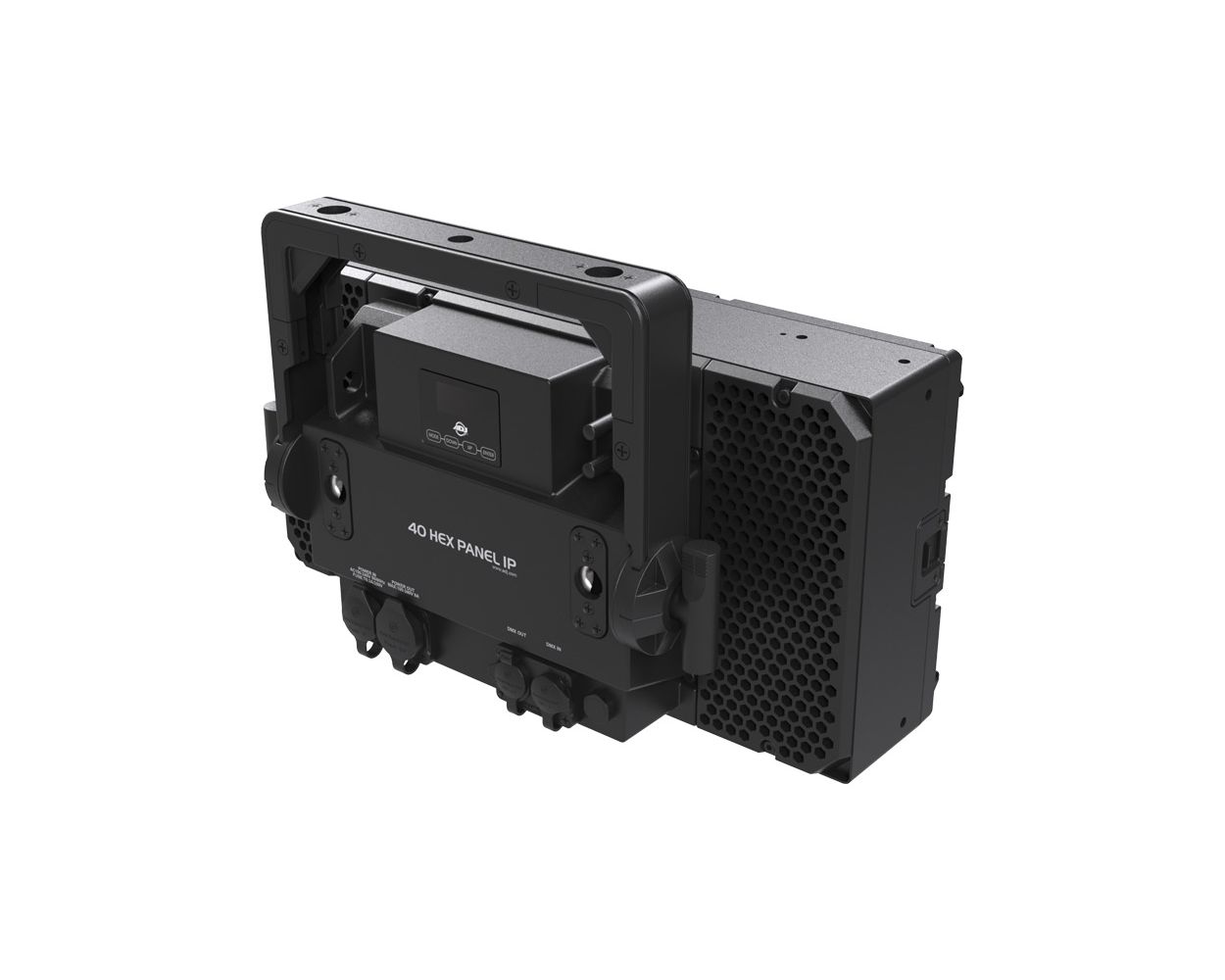

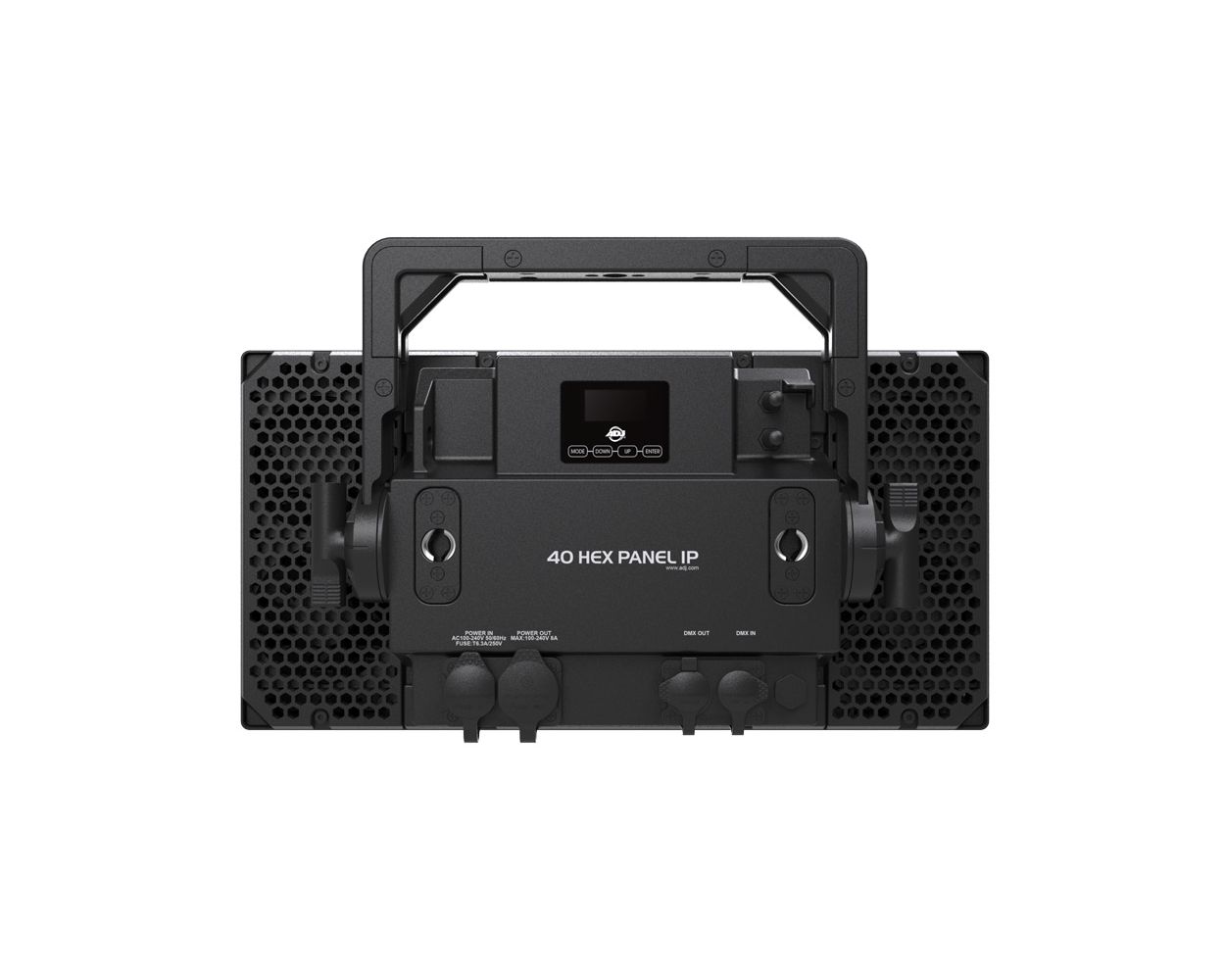

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.

Features:

•  IP65 rated – protects from dust, sand, moister, water
• Aria X2 Management System
• All metal construction with black housing
• Includes heavy duty bracket
• Flicker free for film and broadcast
• Linear variable white temperature control

Specifications:

• Light Source:

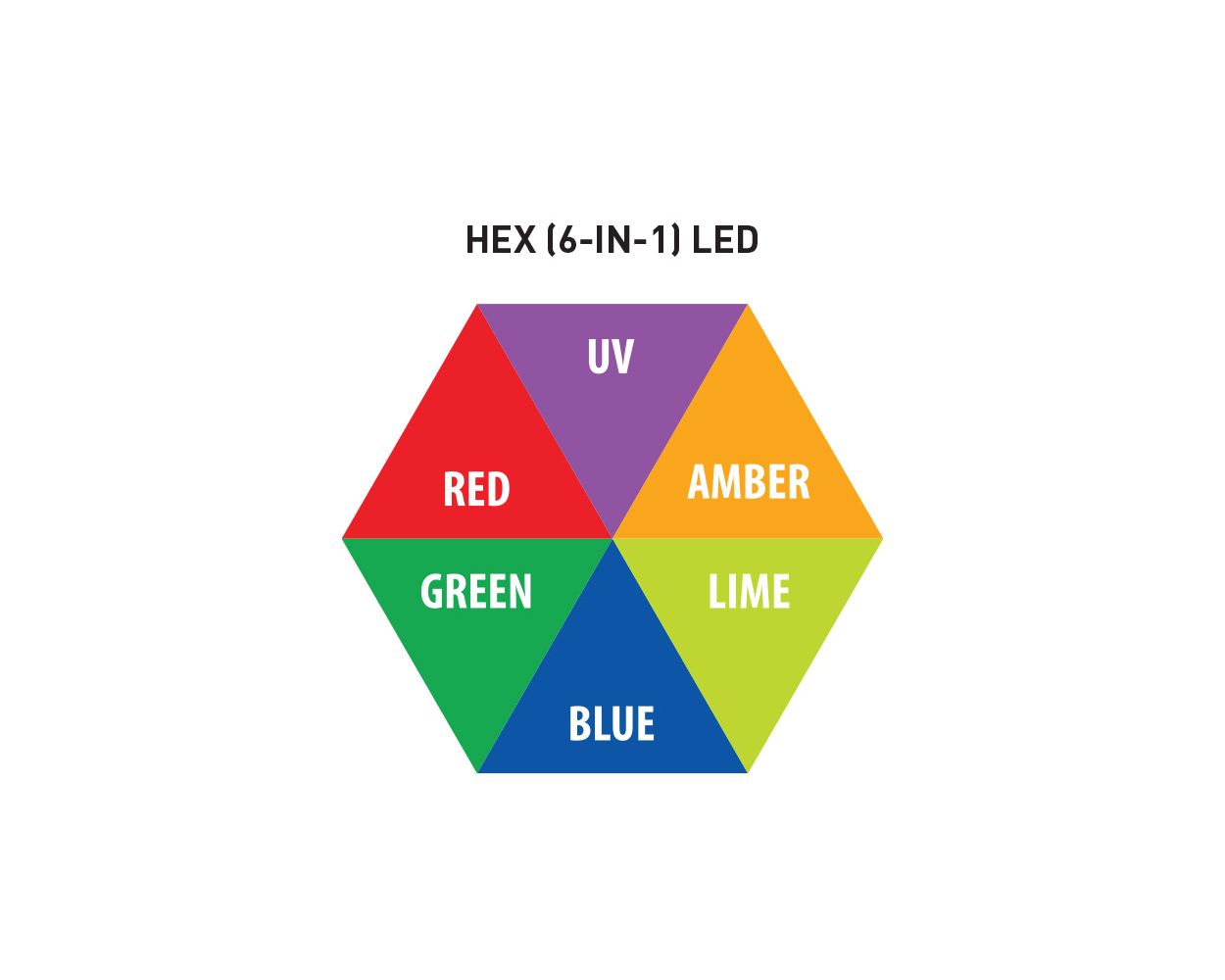

  • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
  • Beam Angle: X = 28.61°, Y = 23.72°
  • Field Angle: X = 50.82°, Y = 44.95°
  • Lumens: 19,590
• Construction:
  • Display: OLED display with function buttons
  • All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
• Control:
  • 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
  • 4 Control Groups: 1 / 2 / 5 & 10 Groups
  • 0-100% Dimming + smooth 16-bit Dimming
  • 5 Dimming Curve Modes
  • Control Mode: DMX512, RDM (Remote Device Management)
  • LED Refresh Rate: Multiple settings
  • With Wired Digital Communication Network
• Connections:
  • Data: IP65 Locking 5-pin DMX In/Out
  • Power: IP65 Locking Power In/Out
• Electrical:
  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 513W @120V; 492W @220V
  • Max Power Link: 1pcs @120V; 4pcs @230V
  • Fuse Protected: T4A/250V Glass Fuse (5*20MM)
• Dimensions / Weight:
  • Length: 16.42" (417mm)
  • Width: 11.7" (296.8mm)
  • Height: 8.35” (212mm)
  • Weight: 24.58 (11.15kg)
• What’s Included:
  • 1 x IP65 Locking Power Cable
  • 1 x Frost Filter
  • 1 x Safety Cable
• Approvals and Ratings:
  • CE
  • cETLus (Pending)
  • IP65
