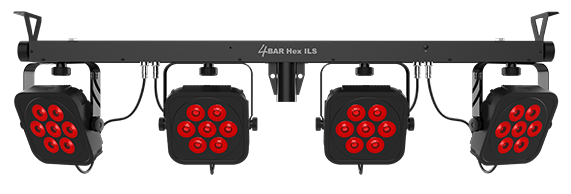

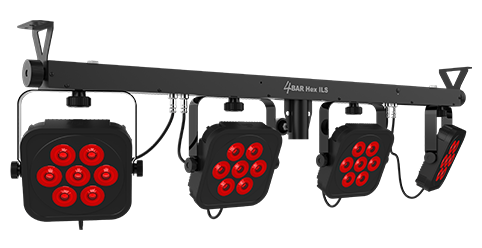

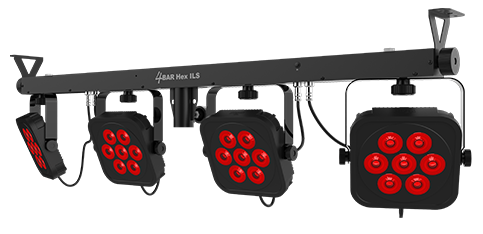

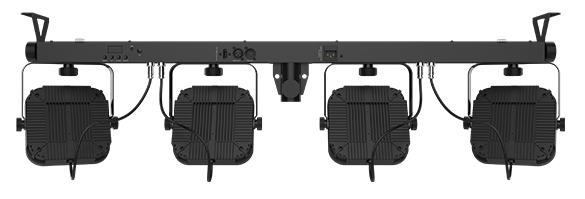

4BAR Hex ILS

The 4BAR Hex ILS has RGBAW+UV  LEDs and wireless control via footswitch or optional IRC-6 remote. This is an easy to setup rig for small bands or other performers looking for an easy way to add lighting to their shows.

From the manufacturer:

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.

Specification:

• DMX Channels:6, 8, or 27DMX

• Connectors:3-pin XLR

• Max Unobstructed Distance:(foot switch): 100 ft (30.5 m)

• Light Source:42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy

• Strobe Rate:0 to 20 Hz

• Beam Angle:16°

• Field Angle:25°

• Illuminance:1570 lux @ 2 m (per pod)

• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current:

• 97 W, 1.3 A @ 120 V, 60 Hz

• 94 W, 0.7 A @ 230 V, 50 Hz

• Approvals:CE, RoHS, UKCA

• Footswitch battery: 9 V

• Operating Frequency (D-Fi): 2.412 to 2.484 GHz

• Operating Frequency (foot switch): 433 MHz

• Stand Height: 7 ft 4 in (2.2 m)

• Fits Tripod Sizes: 1.5 in (36.80 mm)

• Bracket Mounting Hole: M10 (1.5 mm pitch)

• Weight (Controller): 1.2 lb (0.6 kg)

• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)

• Optional Controllers: IRC-6, ILS Command

Dimensions:

• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)

Weight:

• Weight:12.2 lb (5.5 kg)

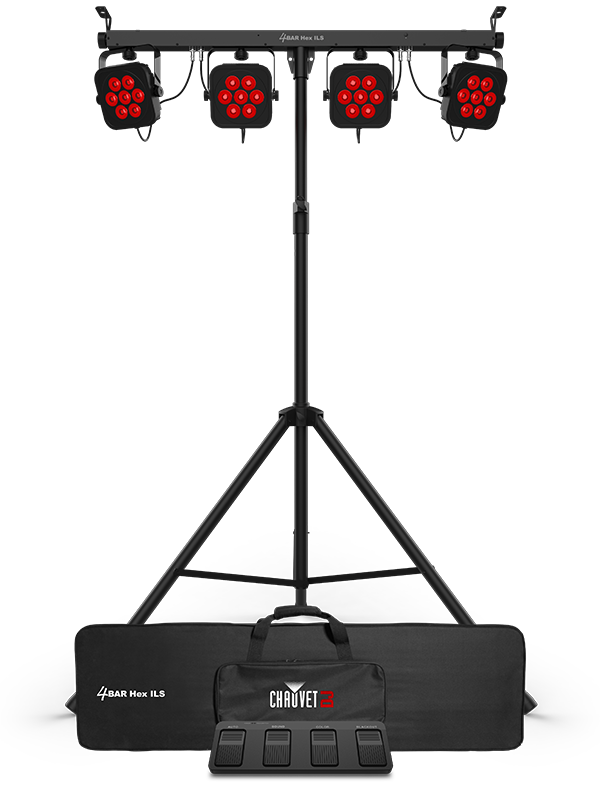

What’s Included:

• 4Bar Hex ILS

• Power Cord

• Carrying bag

• Tripod

• Tripod Carry bag

• Wireless Footswitch

• Quick Reference Guide
