4BAR LT Quad BT ILS

The 4Bar LT QuadBT ILS has RGBA LEDs it is compatible with the D-FI USB for wireless control. This is an easy to setup rig for small bands or other performers looking for an easy way to add lighting to their shows.

From the manufacturer:

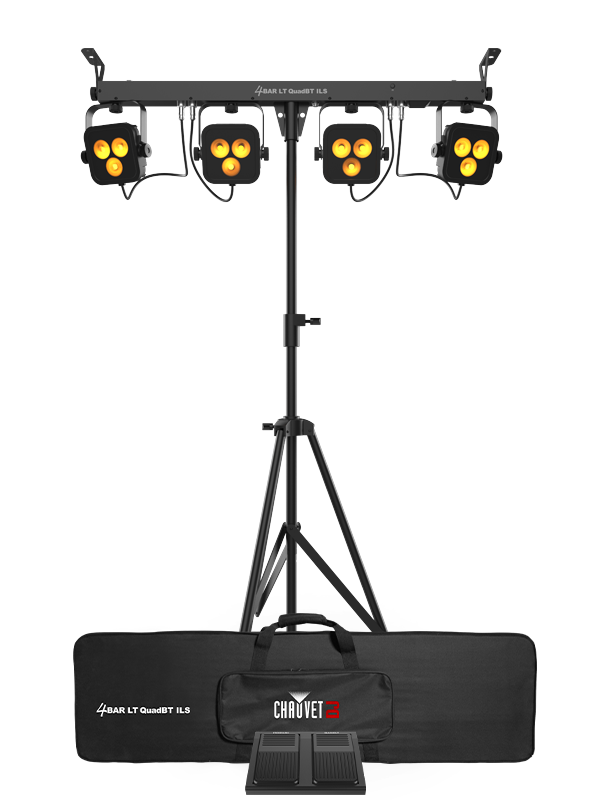

The ILS ecosystem grows with the addition of the 4Bar LT QuadBT ILS, a complete, pack-n-go wash lighting solution with built-in Bluetooth® wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. 4Bar LT QuadBT ILS is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. 4Bar LT QuadBT ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

Specification:

• DMX Channels:4, 6 or 19

• DMX Connectors:3-pin XLR

• Max Unobstructed Distance:150 ft (25.7 m)

• Light Source:12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy

• Beam Angle:12°

• Field Angle:21°

• Operating Frequency:2.4 GHz

• Illuminance:2,162 lux @ 2 m (per pod)

• Power and Current:

• 46 W, 0.6 A @ 120 V, 60 Hz

• 44 W, 0.3 A @ 230 V, 50 Hz

• Approvals:CE, FCC, RoHS, UKCA

• Stand Height: 50-83 in (127-211 cm)

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Fits Tripod Sizes: 1 in (25.4 mm)

• Optional Controllers: IRC-6, BTAirBluetooth Version: 4.2

Dimensions:

• Size:36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)

Weight:

• 7.2 lb (3.3 kg)

What’s Included:

• 4Bar LT QuadBT ILS

• Power cord

• Carrying bag

• TripodFootswitch

• L- bracket

• Quick Reference Guide
