UDA: 4K UHD HDMI HDBaseT Splitter/Distribution Amplifier Kit
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

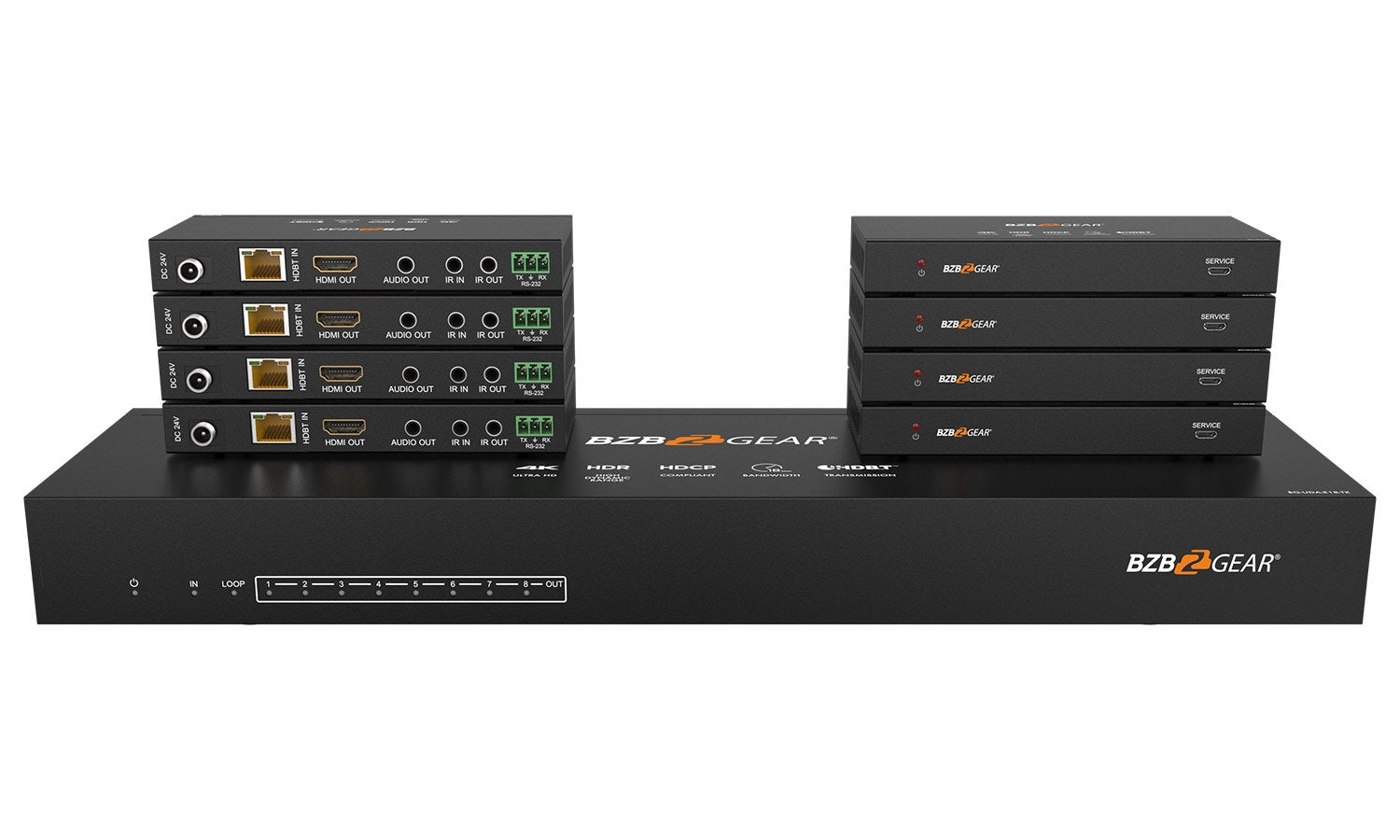

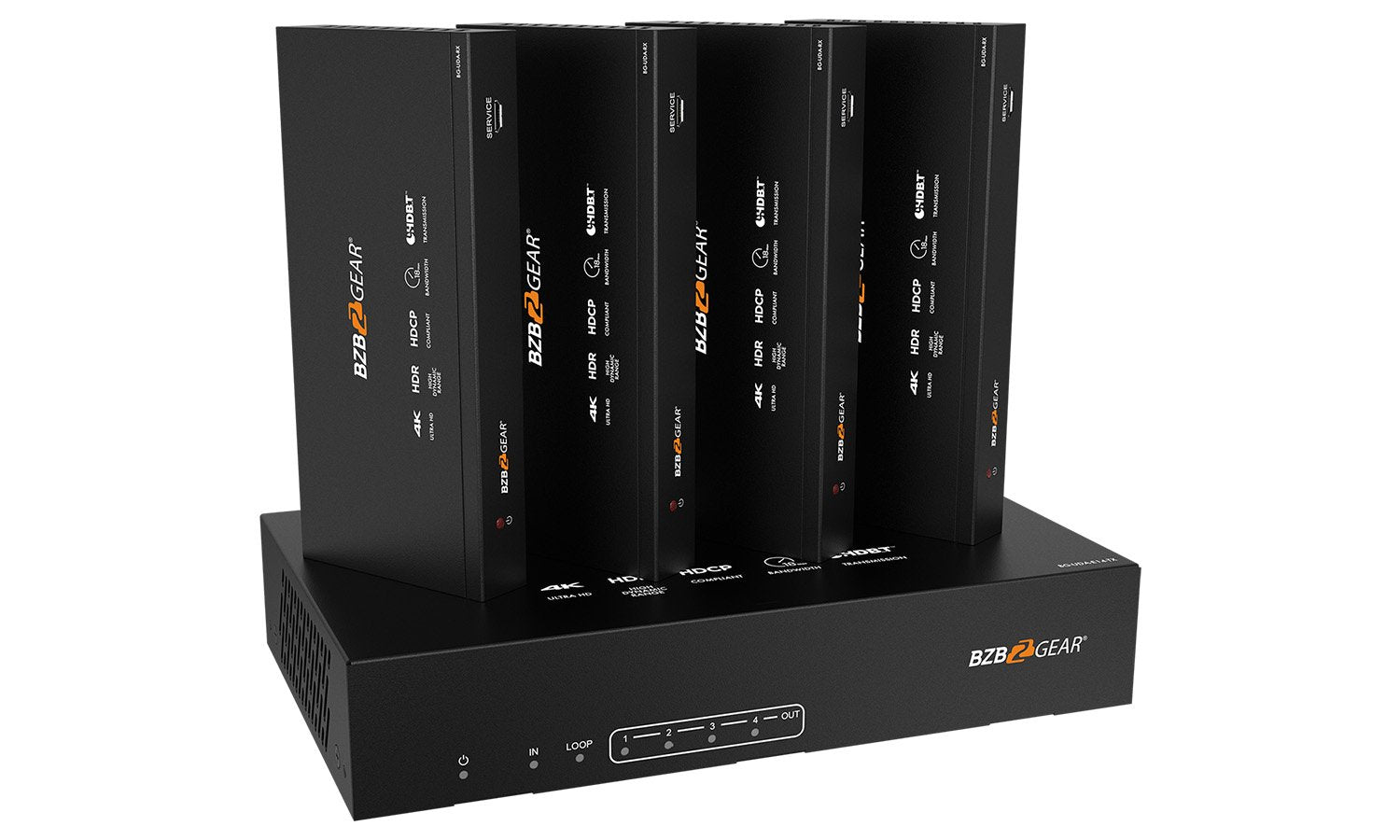

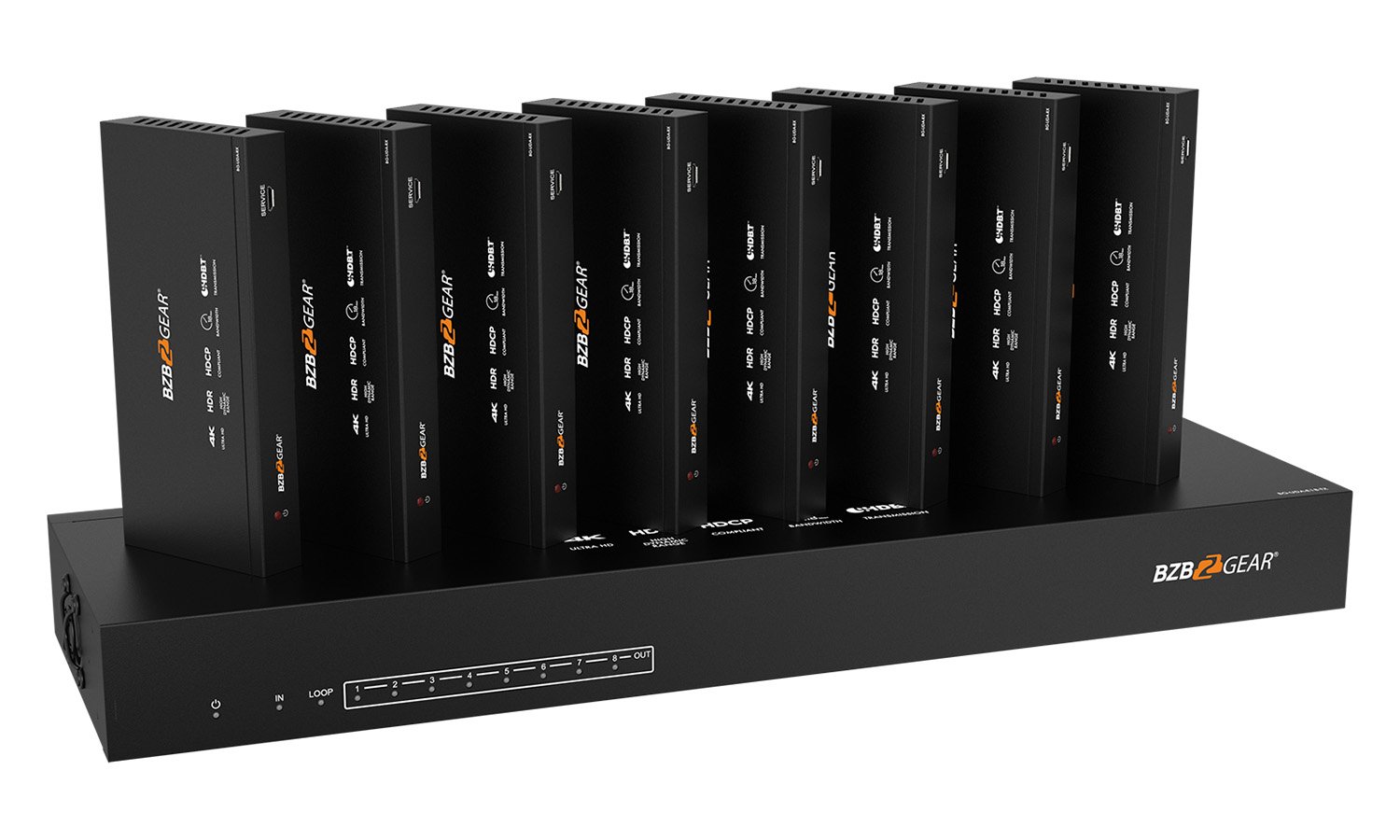

The BG-UDA 4K HDBaseT splitter/extender kit. Supporting resolutions up to 4K@60Hz, users can extend HDMI sources over category 6 cabling at distances up to 390 feet, or up to 490 feet at 1080P@60Hz with the included HDBaseT extenders. With the ability to connect to one local and eight remote displays, this unit is ideally suited for use in restaurants, sports bars, retail spaces, and auditoriums.
Connectivity and Features

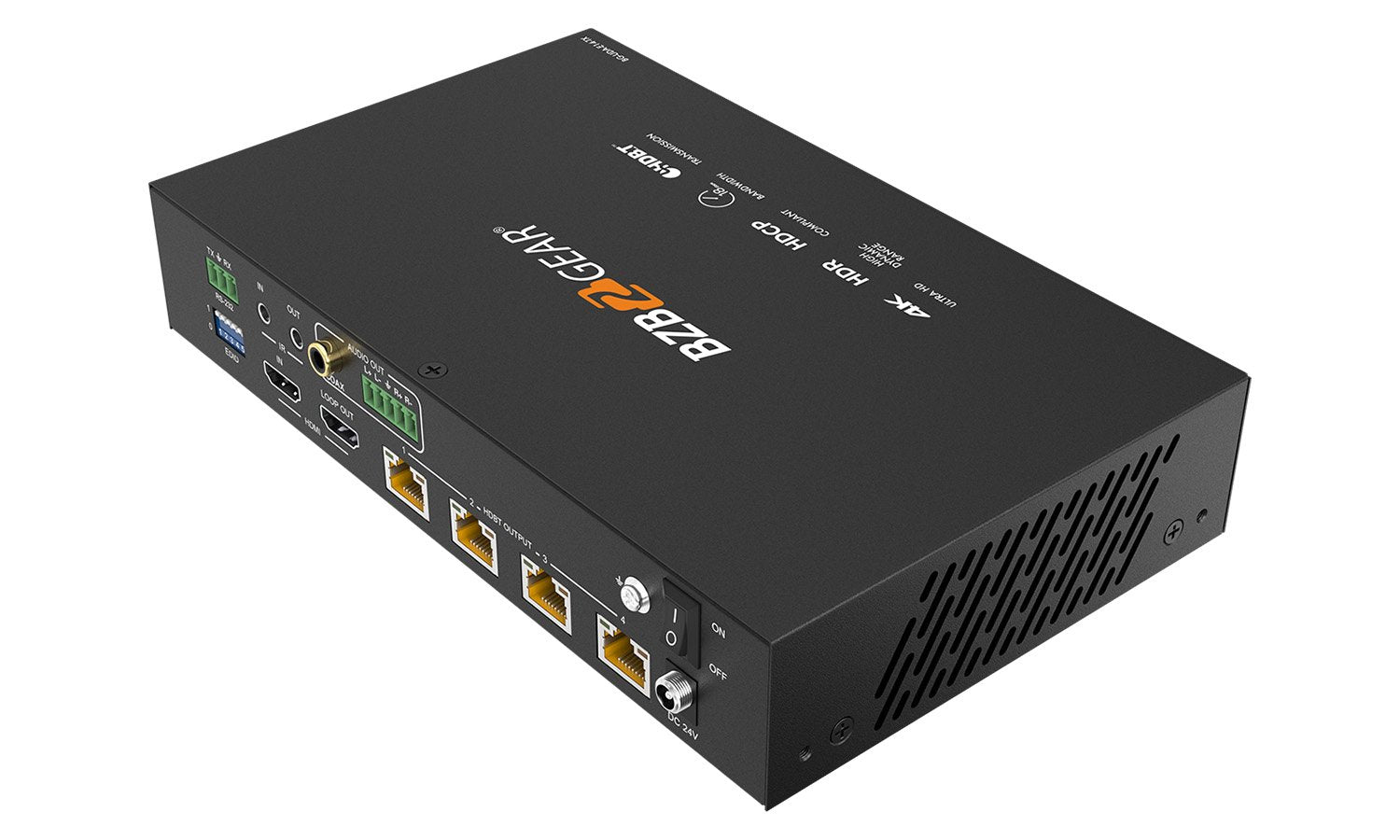

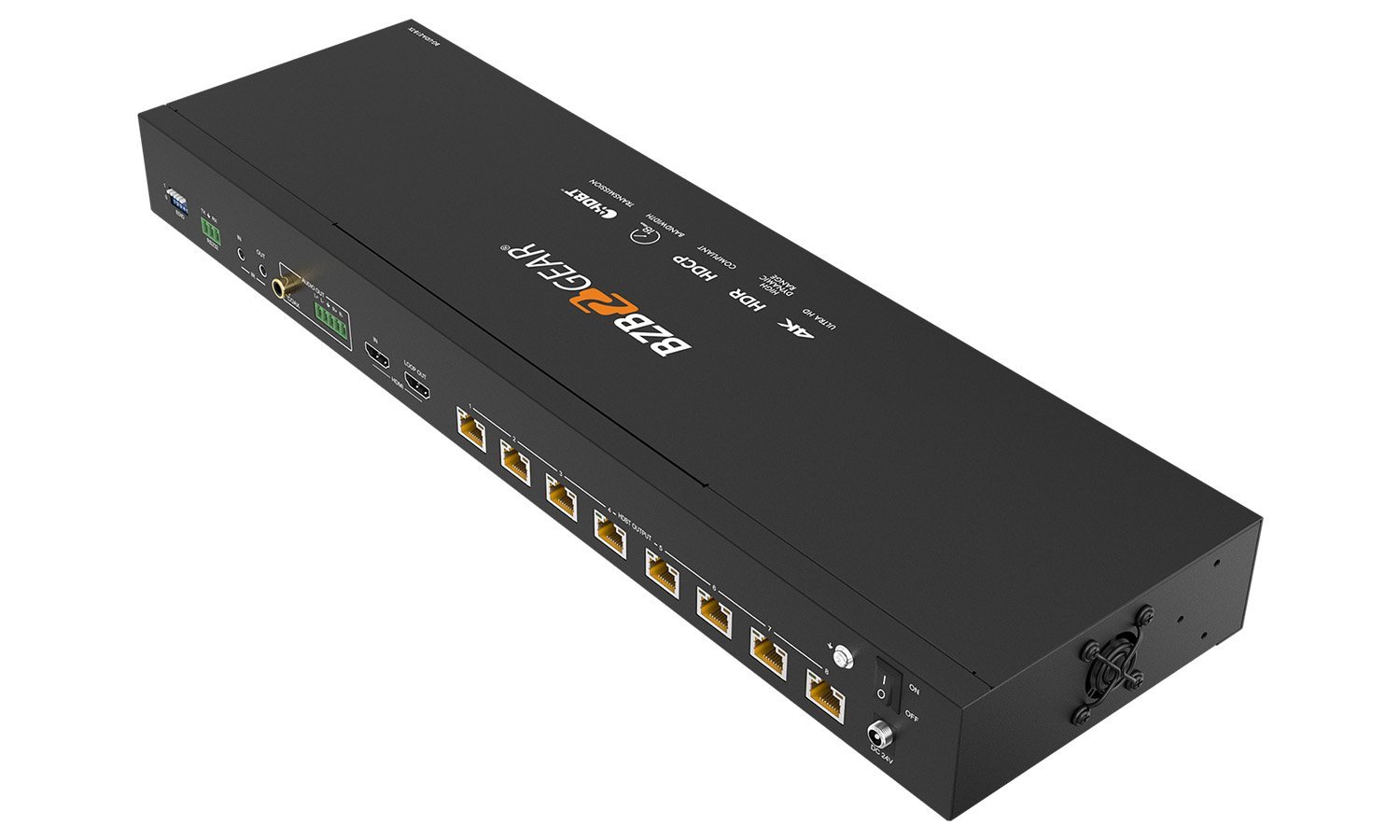

The BG-UDA supports a maximum resolution of 4K@60Hz 4:4:4. Compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x, the transmitter offers EDID management to eliminate HDMI connection problems. The transmitter is equipped with an HDMI loop out connection for connection to a local display. One digital coax and one analog audio phoenix connector provide audio extraction from the source for connection to an external sound system.

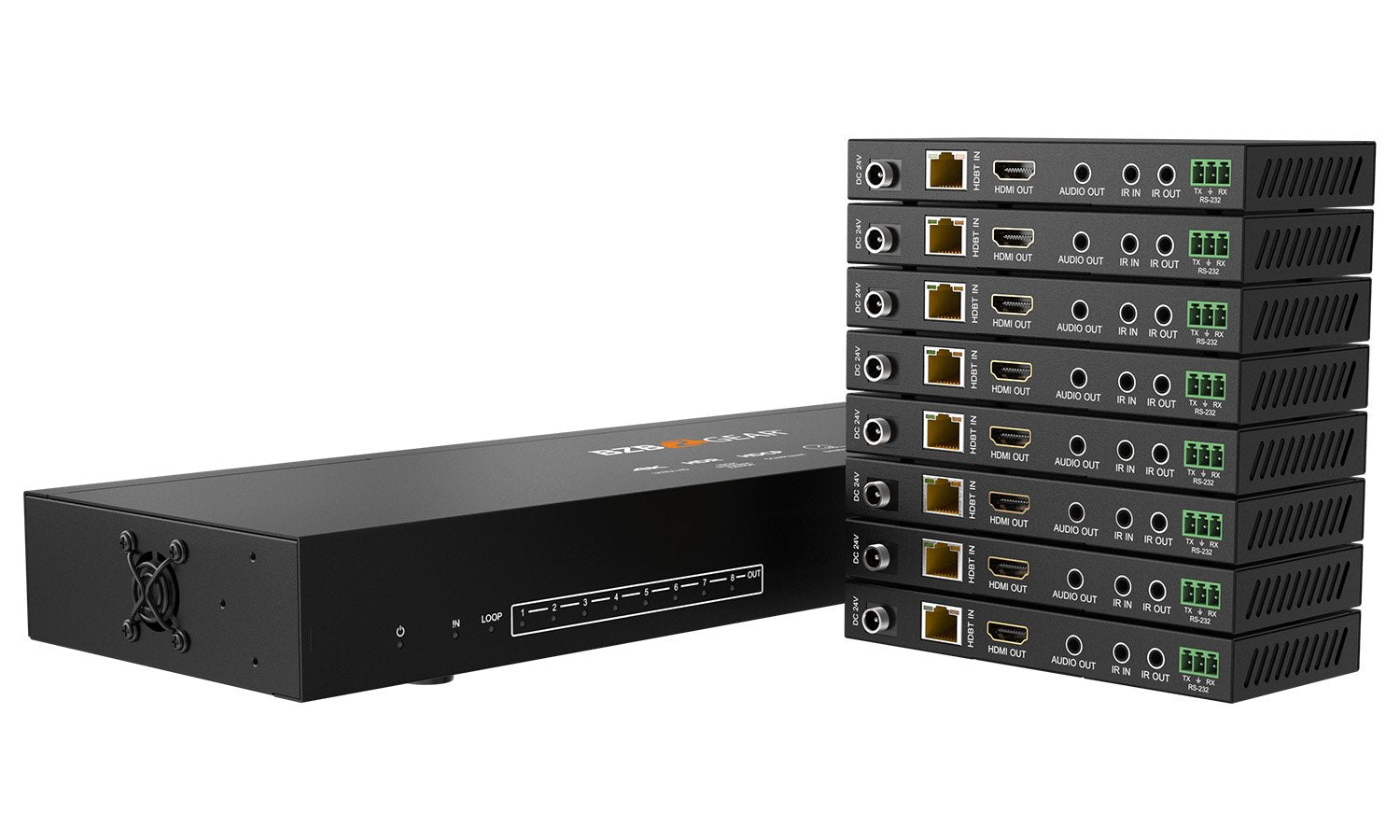

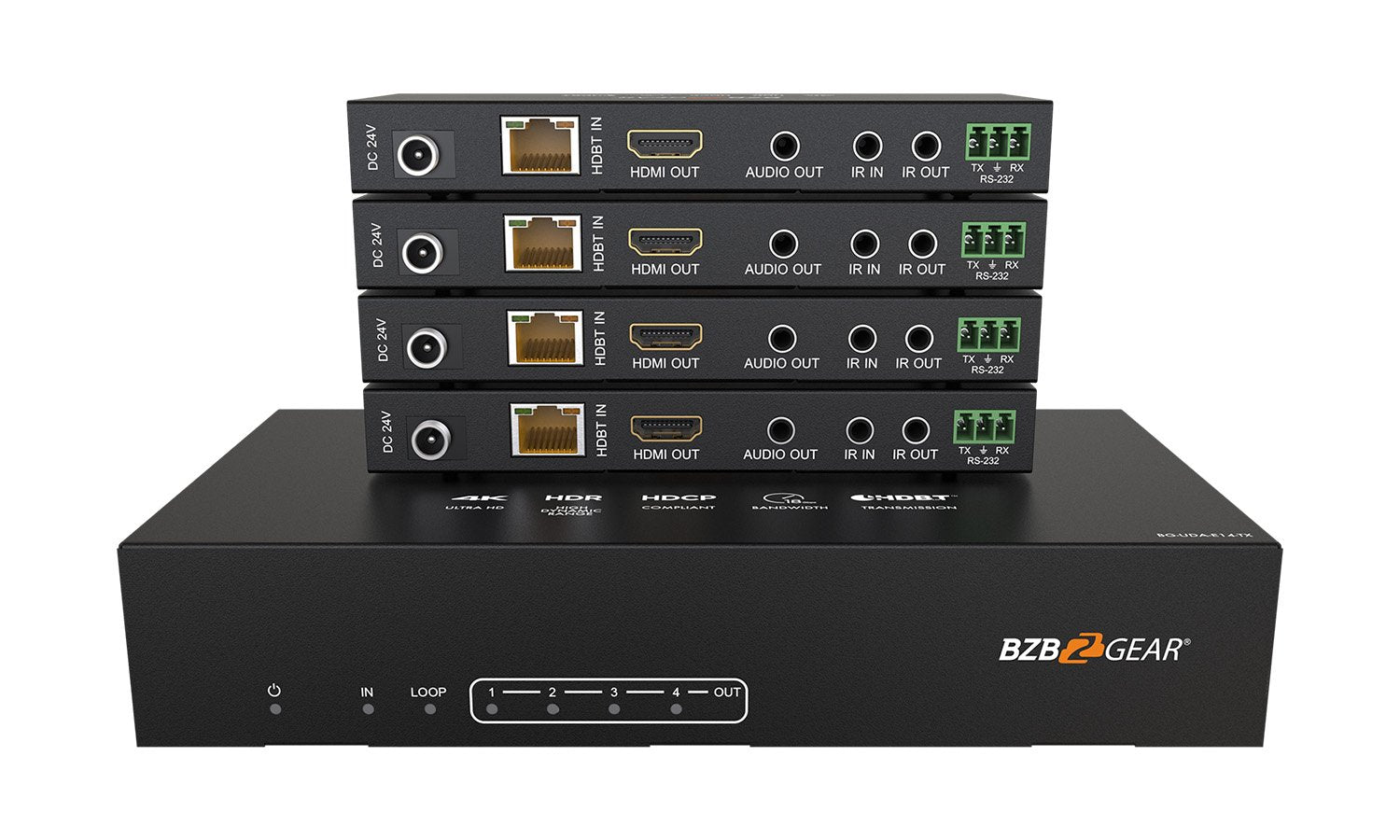

Each receiver features Power over Ethernet, eliminating the need for a power supply at the display-end and enabling a clean installation. Each receiver has a 3.5mm stereo output for connection to a local sound source. The slim design of the receivers helps them fit behind the displays, and each one is equipped with RS-232 passthrough and bi-directional IR passthrough for integration with control systems.
HDBaseT technology enhances the capabilities of the BG-UDA by providing extended transmission distances, simplifying cable management, maintaining high signal quality, enabling control signal transmission, supporting Power over Ethernet, and allowing for scalability in AV distribution setups. This makes it a valuable choice for applications where you need to distribute HDMI signals to multiple displays over long distances.
Features
- 4K@60 4:4:4 Support Ultra HD refers to a TV resolution of 3840 x 2160 pixels
- Multi-Channel Audio Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master
- Power over Cable Receivers need no power supply
- Long-Distance Transmit signal up to 120 meters (390 feet)
- Compact Design Slim components make a clean installation easy
- EDID Control Multiple selectable EDID modes ensure reliable connectivity
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Support HDR, HDR10+, HLG and Dolby vision
- Support digital and analog audio de-embedded output
- Support 1 HDMI input, 1 HDMI loop output and 4/8 HDBaseT outputs
- IR, RS-232 routed to HDBaseT output
