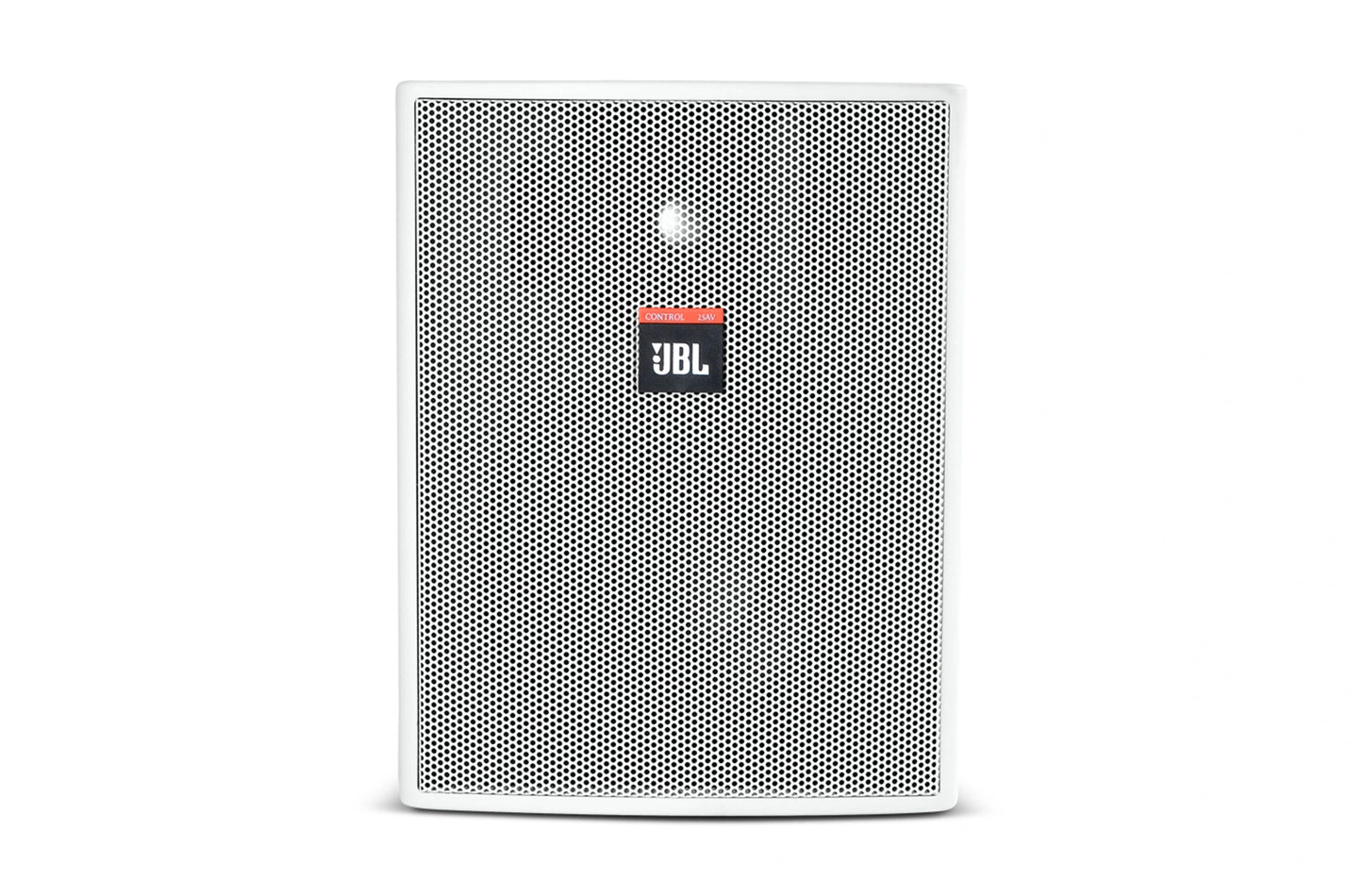

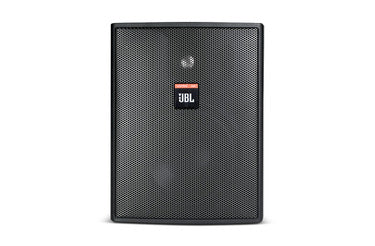

Control 25AV

The Control 25AV-WH is a cabinet type 2-way loudspeaker. It is a great option for outdoor or indoor foreground and background applications.

From the Manufacturer:

The Control® 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Features:

• Video shielded for use near video monitors.

• Extremely smooth frequency response.

• Stainless steel grill for harsh environments.

• 60 W transformer for 70 V or 100 V lines, with 8 ohms thru.

• SonicGuard™ overload protection.

• 130 mm (5.25 in) polypropylene coated woofer, 20 mm (.75 in) titanium coated horn-loaded tweeter.

• Includes InvisiBall® mounting hardware and sealed input panel cover.

• Screw-down input terminals.

• 100° x 100° high frequency horn.

Specifications:

• Frequency Range

• 70 Hz - 23 kHz (-10 dB)

• Power Capacity

• 200 W Continuous Program Power; 100 W Continuous Pink Noise

• Transformer Taps

• 70V: 60 W, 30 W, 15 W, 7.5 W 100V: 60 W, 30 W, 15 W

• Sensitivity

• 87 dB SPL, 1 W @ 1 m (3.3 ft)

• Midrange (±1.5 dB, typical)

• 130 Hz - 14 kHz

• Coverage Angle

• 100°H x 100°V

• Maximum SPL (1m)

• 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech

• Directivity Factor (Q)

• 4.9 dB, averaged 500 Hz to 4 kHz

• Directivity Index (DI)

• 6.9 dB, averaged 500 Hz to 4 kHz

• Impedance

• 8 ohms

• Minimum Impedance

• 6.7 ohms at 230 Hz

• Crossover Network

• Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response

• Drivers

• LF: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former

• HF: 20 mm (.75 in) titanium coated PEI

• Enclosure

• High Impact polystyrene

• Grille

• Painted stainless steel, black or white to match cabinet, paintable

• Overload Protection

• Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition

• Outdoor Capability

• Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating

• Input Connectors

• Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)

• Safety Agency

• Transformer is listed per UL1876

• Colors

• Black or white (-WH)

• Rotation

• Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions

• Dimensions (H x W x D)

• 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)

• Net Weight (each)

• 4.0 kg (9 lb)

• Shipping Weight (ea)

• 9.0 kg (20 lb) per pair

• Included Accessories

• 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench

• Optional Accessories

• MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter.

• Mounting Hardware

• InvisiBall™ aimable wall-mounting system included.
