Sku: 705P

705P

Regular price $1,199.00
Regular price Sale price $1,199.00
Sold out
Shipping calculated at checkout.
Vendor: JBL

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

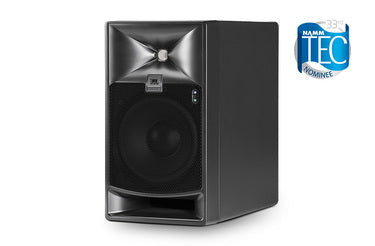

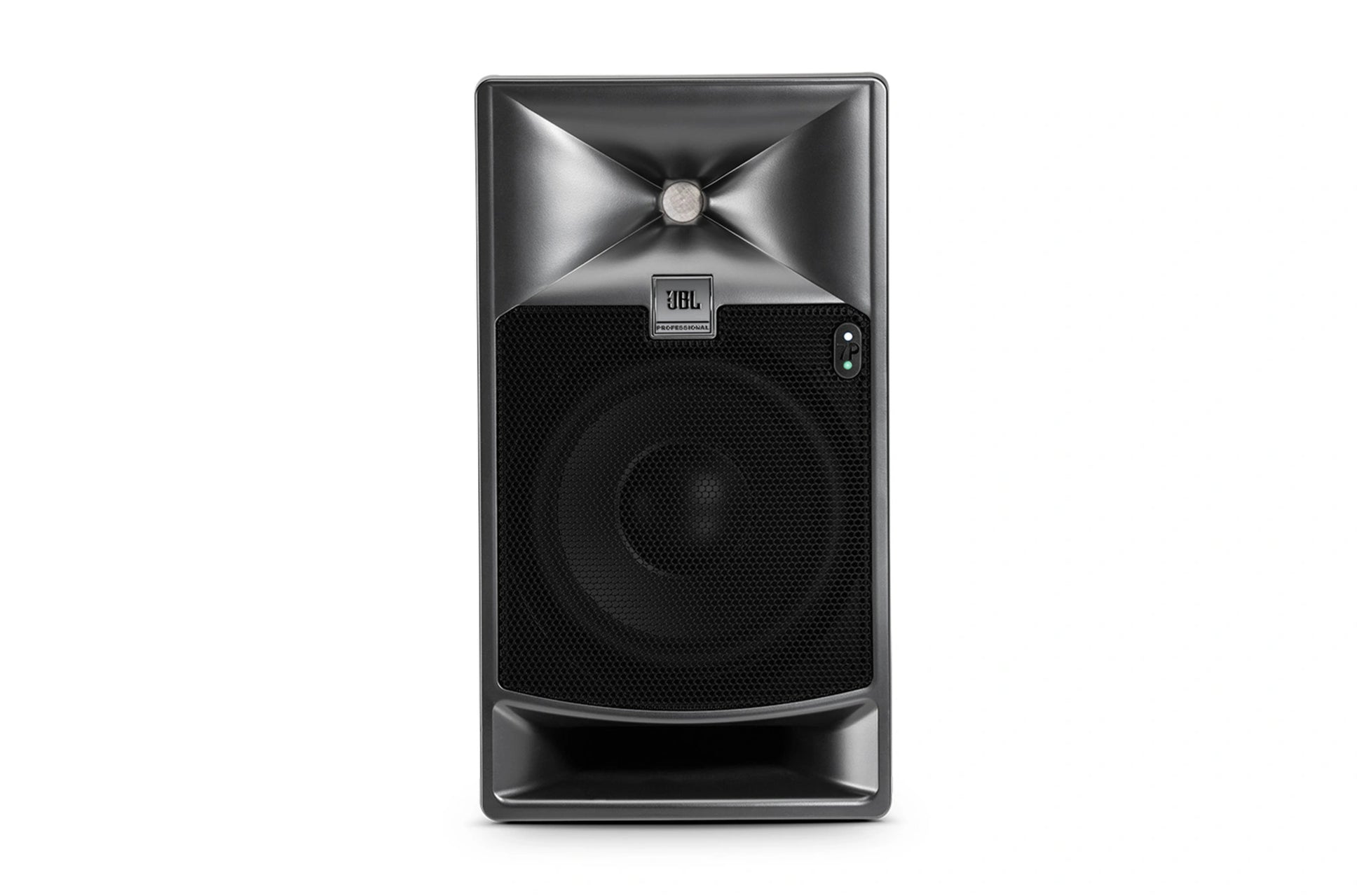

The JBL 705P is a 5" Bi-Amplified Master Reference Monitor. It is a great option if you need a good quality, but cost effective studio monitor.

From the Manufacturer:

The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.

Features:

  • Next-generation JBL driver technology

  • Patent-pending JBL Image Control Waveguide

  • Integrated dual amplification system with internal floating-point DSP

  • Comprehensive room EQ and delay controls

  • Compact enclosures for easy placement and installation

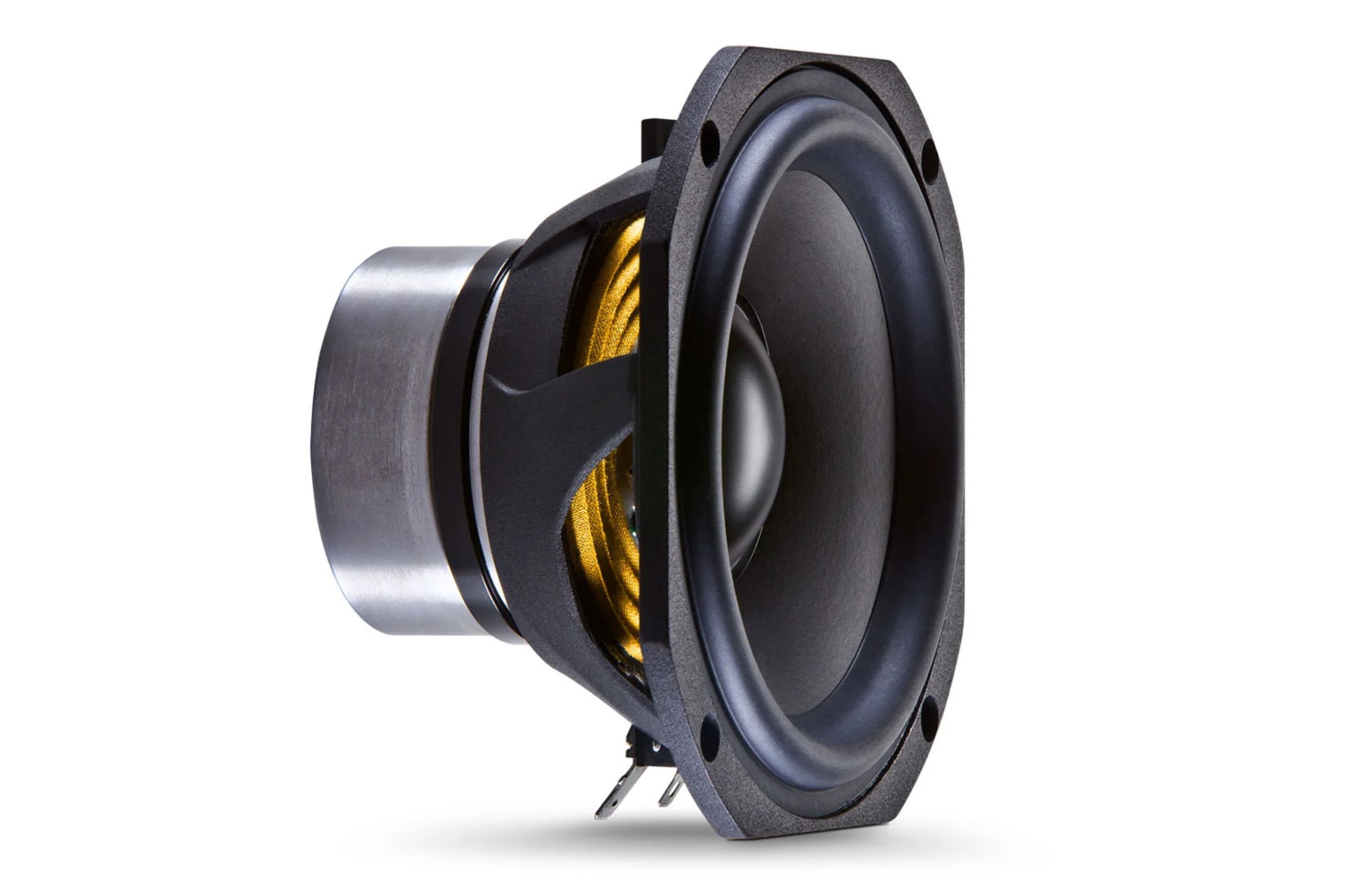

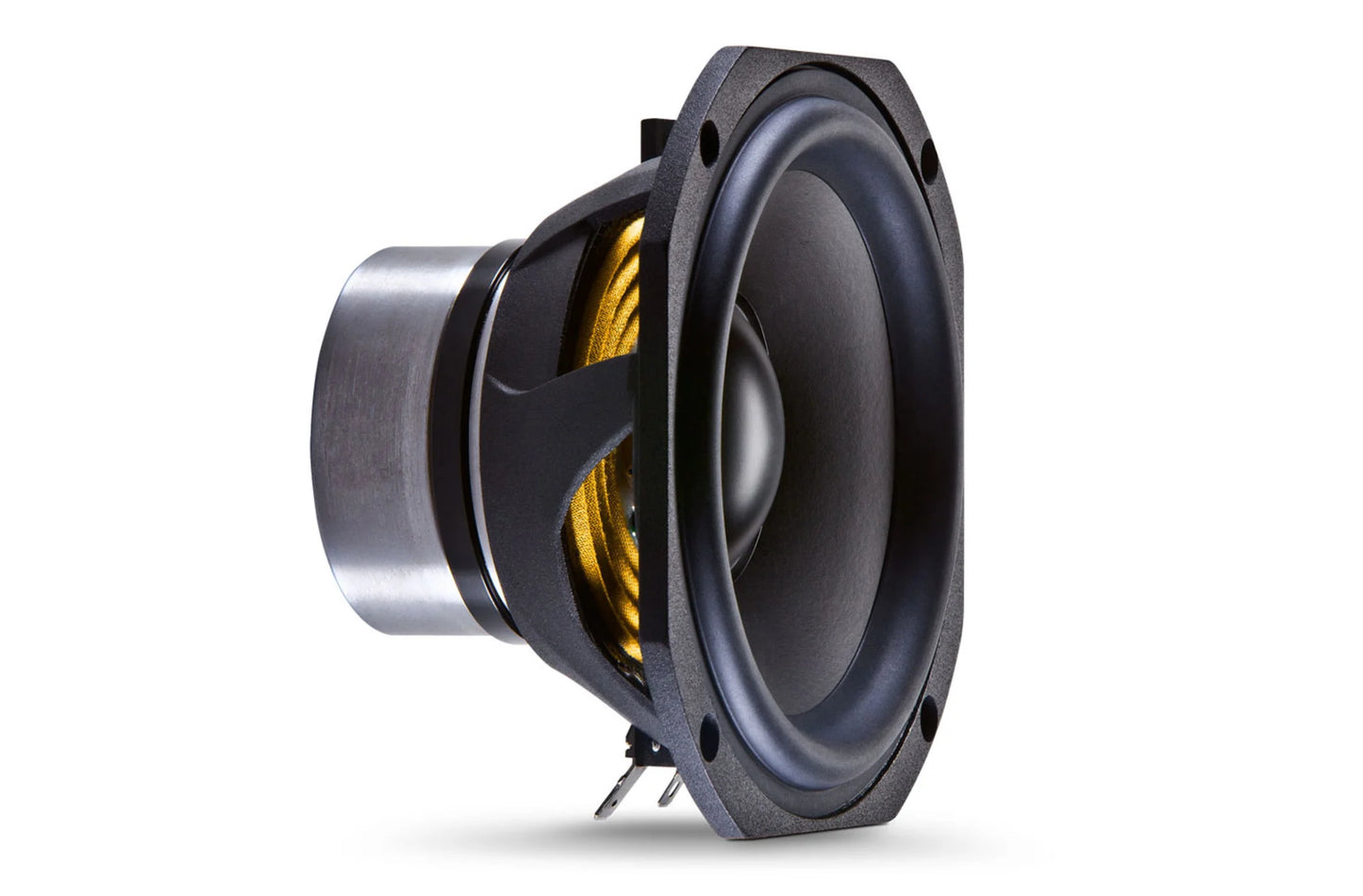

  • JBL 725G low-frequency transducer delivers low-distortion and high SPL

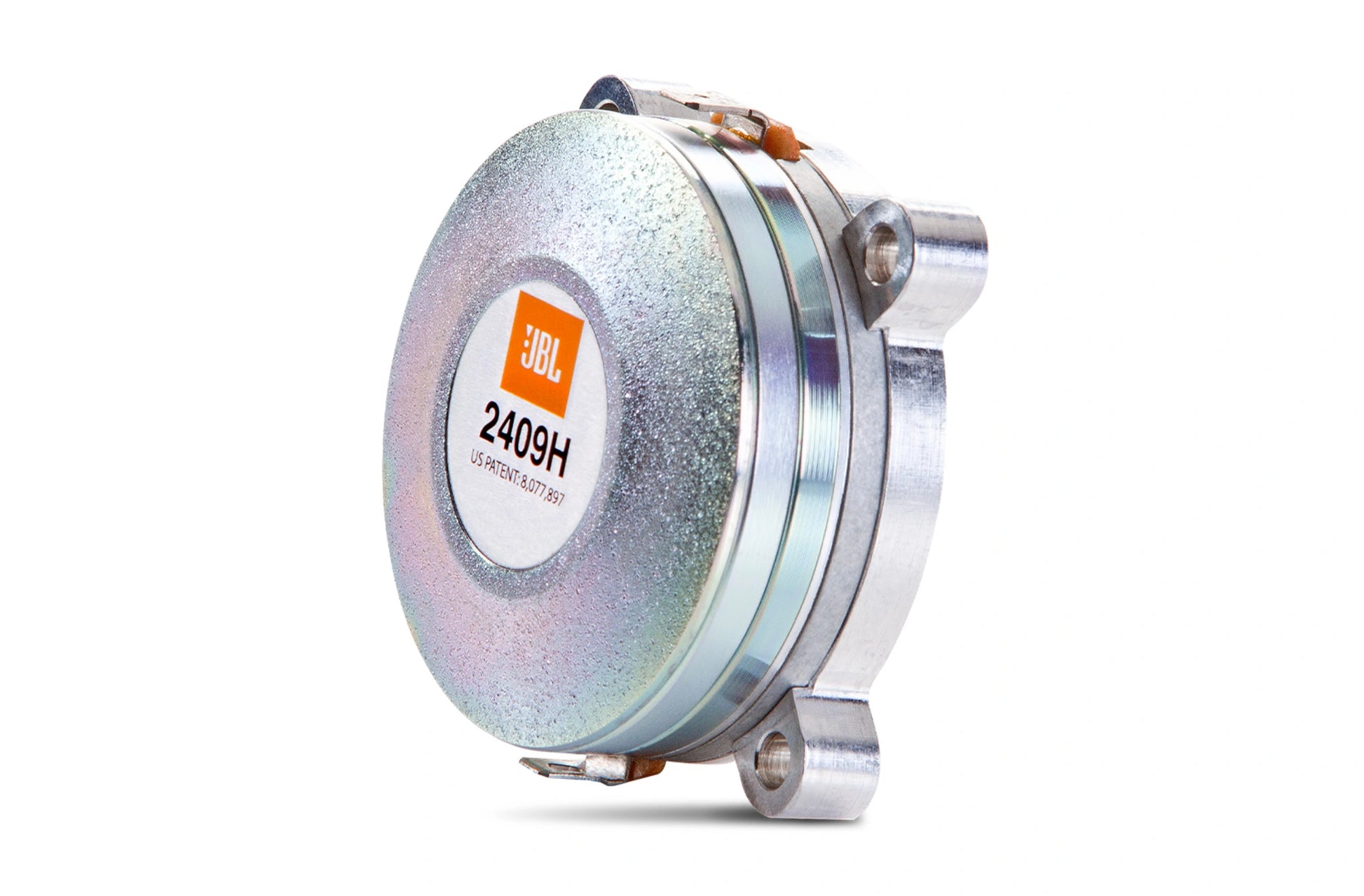

  • JBL 2409H high-frequency transducer with low-mass annular diaphragm

  • JBL-designed patent-pending Image Control Waveguide

  • 2-channel Class-D amplifier HF 250W / LF 250W

  • 192 kHz, 32-bit floating point processing

  • 12 bands of Room EQ, 8 bands of User EQ

  • 6 factory presets, 6 user-defined presets

  • 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay

  • 1 x XLR-1/4" balanced combination analog audio input

  • 1 x XLR AES3 format digital input with 1 x XLR pass-through output

  • Digital input accepts sample rates of up to 192 kHz

  • User-enabled sample rate converters

  • RJ-45 network connection for Harman HiQnet connectivity

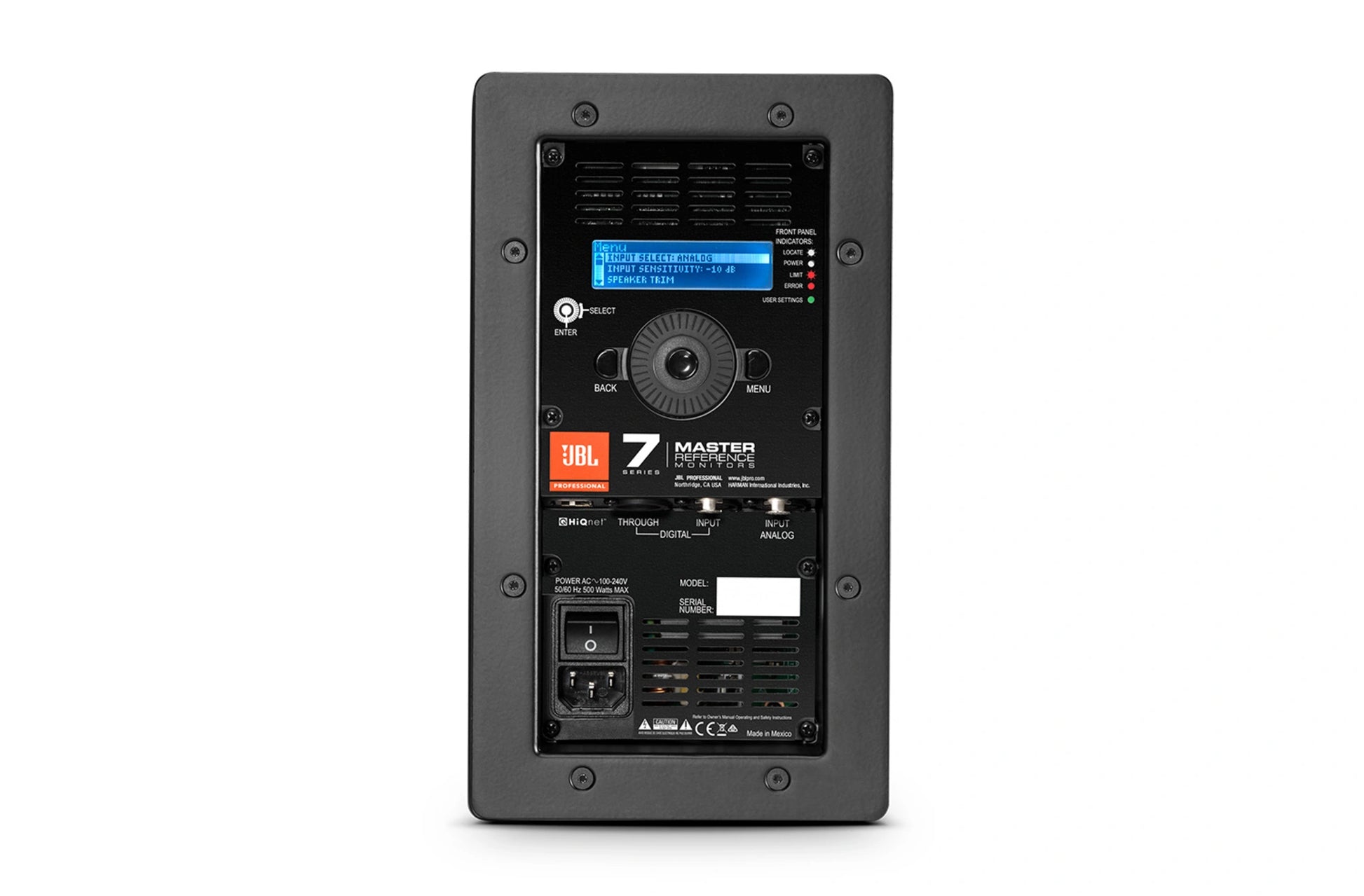

  • Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay

  • Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting

  • Protective steel grilles

Specifications:

  • Frequency Response (±3 dB)

    • 45Hz-25kHz

  • Frequency Range

    • 39Hz – 36 kHz

  • Max Continuous SPL

    • (80 Hz - 20 kHz) >101 dB SPL / 1m

  • Maximum Peak SPL

    • (80 Hz - 20 kHz) >107 dB SPL / 1m

  • HF Driver

    • 2409H

  • LF Driver\

    • 725G - 5in (127mm)

  • Dividing Network Transition Frequency

    • 1.9 kHz

  • Input Connectors

    • 1 x XLR balanced analog audio input

    • 1 x XLR AES3 format digital input with

    • 1 x XLR pass-through output

    • Digital input will accept sample rates up to 192 kHz

  • Dimensions (HxWxD)

    • 268 x 151 x 274 (10.56 x 5.94 x 10.80)

  • Net Weight (each)

    • 5.68 kg (12.5 lbs.)

  • Enclosure

    • Birch plywood reinforced for mounting

  • Mounting

    • Top, bottom and rear mounting points. 2-hole mounting pattern

  • LF Driver Power Handling

    • 250W Class D

  • Amplifier Power Rating

    • 250W

Tech Specs
