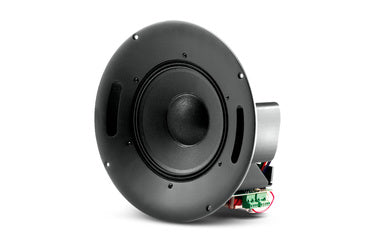

Control 328C

The Control 328C Is a High quality ceiling install type speaker. It is a great option for commercial applications.

From the Manufacturer:

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features:

• Consistent 120° broadband pattern control covers an extremely large area.

• Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.

• Components

  • 200 mm (8 in) woofer with Kevlar reinforced cone and 50 mm (2 in) voice-coil.

  • 25 mm (1" exit) compression driver.

• Extraordinary clarity for speech and vocals with extended frequency response for music.

• 250 Watt power handling with very high sensitivity provides high SPL capability.

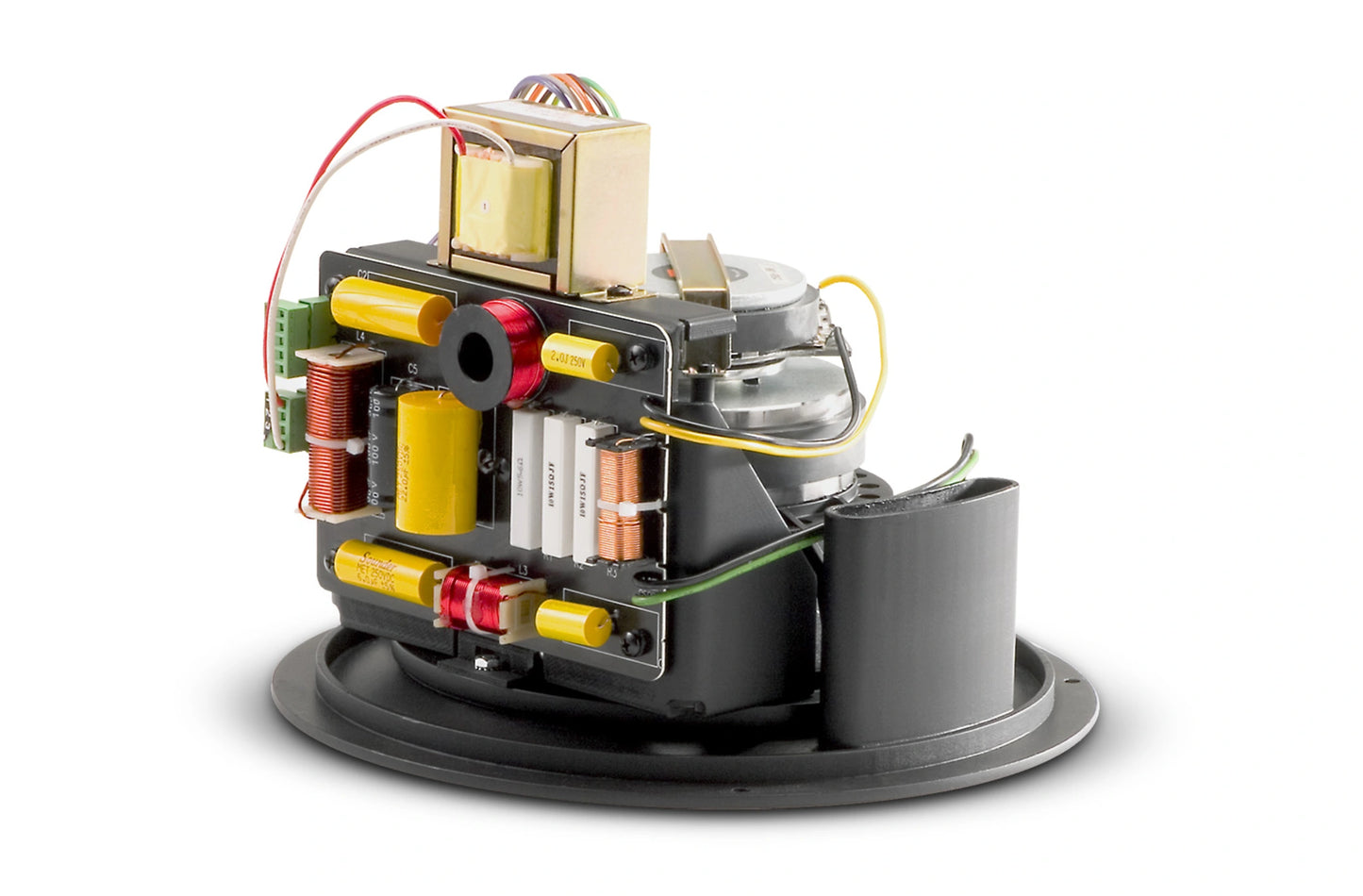

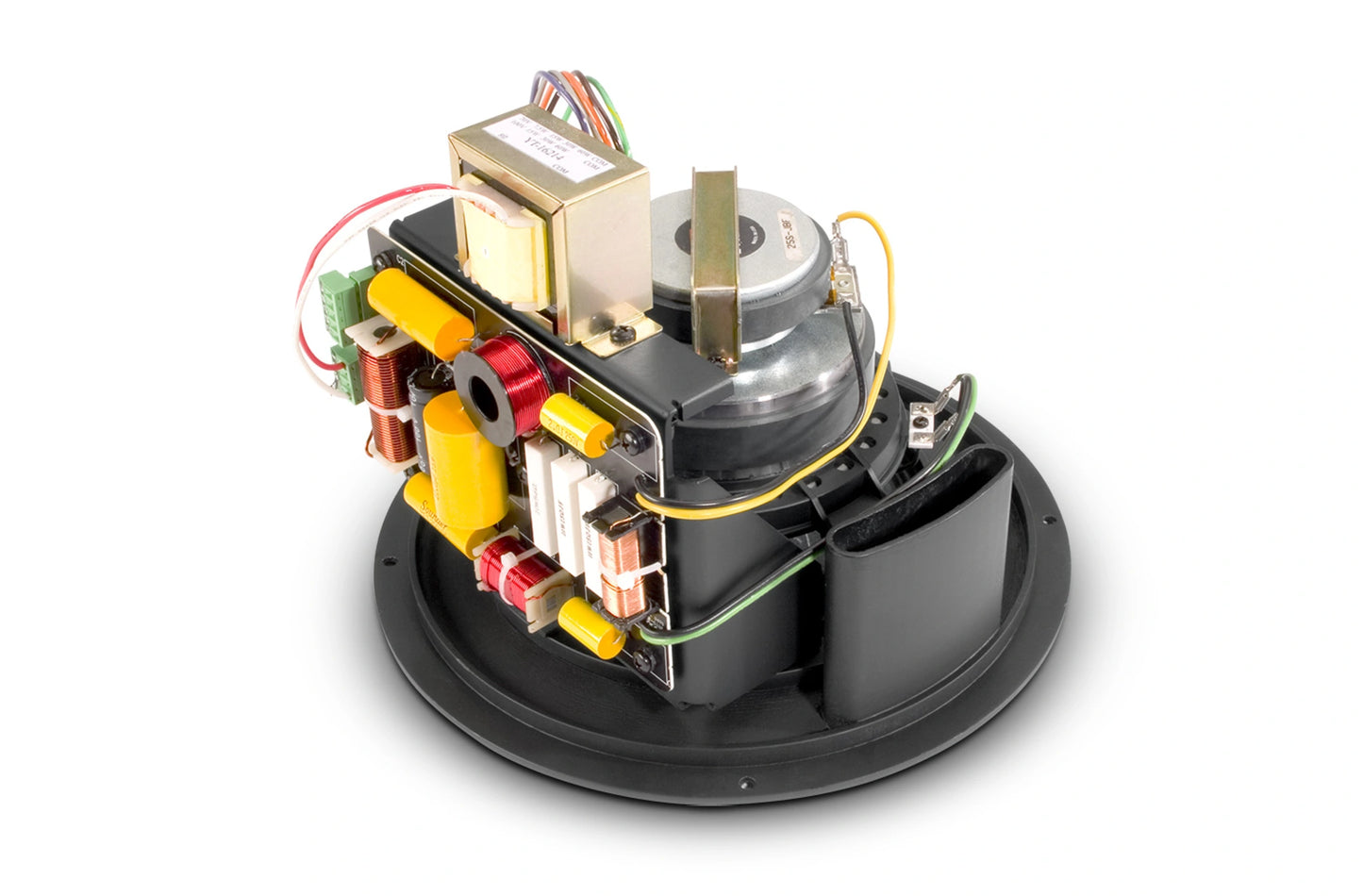

• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.

• Clean, contemporary grille and optional backbox available.

Specifications:

• Frequency Range (-10dB)

• 45 Hz – 18 kHz

• Power Rating

• IEC Long-Term System Power Rating: 250 W continuous pink noise (1000 W peak), 2 hrs 150 W continuous pink noise (600 W peak), 100 hrs

• Sensitivity

• 93 dB (1 kHz - 16 kHz)

• Frequency Response (±3 dB)

• 60Hz – 16 kHz

• Coverage Angle

• 120° conical, constant directivity

• Directivity Factor (Q)

• 7.0 (Avg 1k - 16kHz)

• Directivity Index (DI)

• 8.5dB (Avg 1k - 16kHz)

• Maximum SPL (1m)

• 118 dB (124 dB peak)

• Crossover Network

• 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

• Impedance

• 8 ohms

• Dimensions (H x W x D)

• 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in)

• Input Connectors

• Screw locking barrier strip for bare wire

• Drivers LF Driver:

•  200 mm (8 in)

• HF Driver:

• compression driver, 25 mm (1 inch) coil

• Color

• White

• Safety Agency

• Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

• Backcan

• formed steel (wood-lined; accessory)

• Baffle/Rim

• Metal, round, driver pre-mounted to baffle, ported.

• Ceiling Cutout Size

• 310 mm (12.2 in) diameter (for MTC-300BB8 backcan)

• Optional Accessories

• MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet)

• Plenum Usage

• Yes, with accessory backcan
