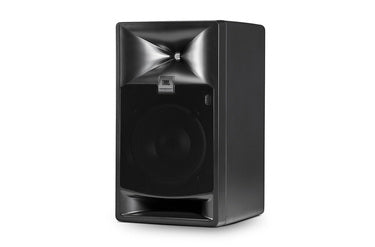

LSR708i

The LSR708i is a versatile production speaker intended for use in Post and Broadcast Production in Control Rooms and Trucks.

From the Manufacturer:

The first in JBL’s new 7 Series line, the 705i and 708i models answer the call for next generation multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for our flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended frequency response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, 705i and 708i Studio Monitors are the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats.

Features:

• Next Generation Systems for Post and Broadcast Production in Control Rooms and Trucks

• Next Generation Driver Technology

• Patent Pending Image Control Waveguide

• Compact, Install Friendly Enclosures

Specifications:

• Frequency Response (±3 dB)

• 45 Hz – 23 kHz

• Frequency Range

• 35Hz – 36 kHz

• Maximum Continuous SPL

• (80 Hz - 20 kHz) >108 dB SPL / 1m

• Maximum Peak SPL

• (80 Hz - 20 kHz) >114 dB SPL / 1m

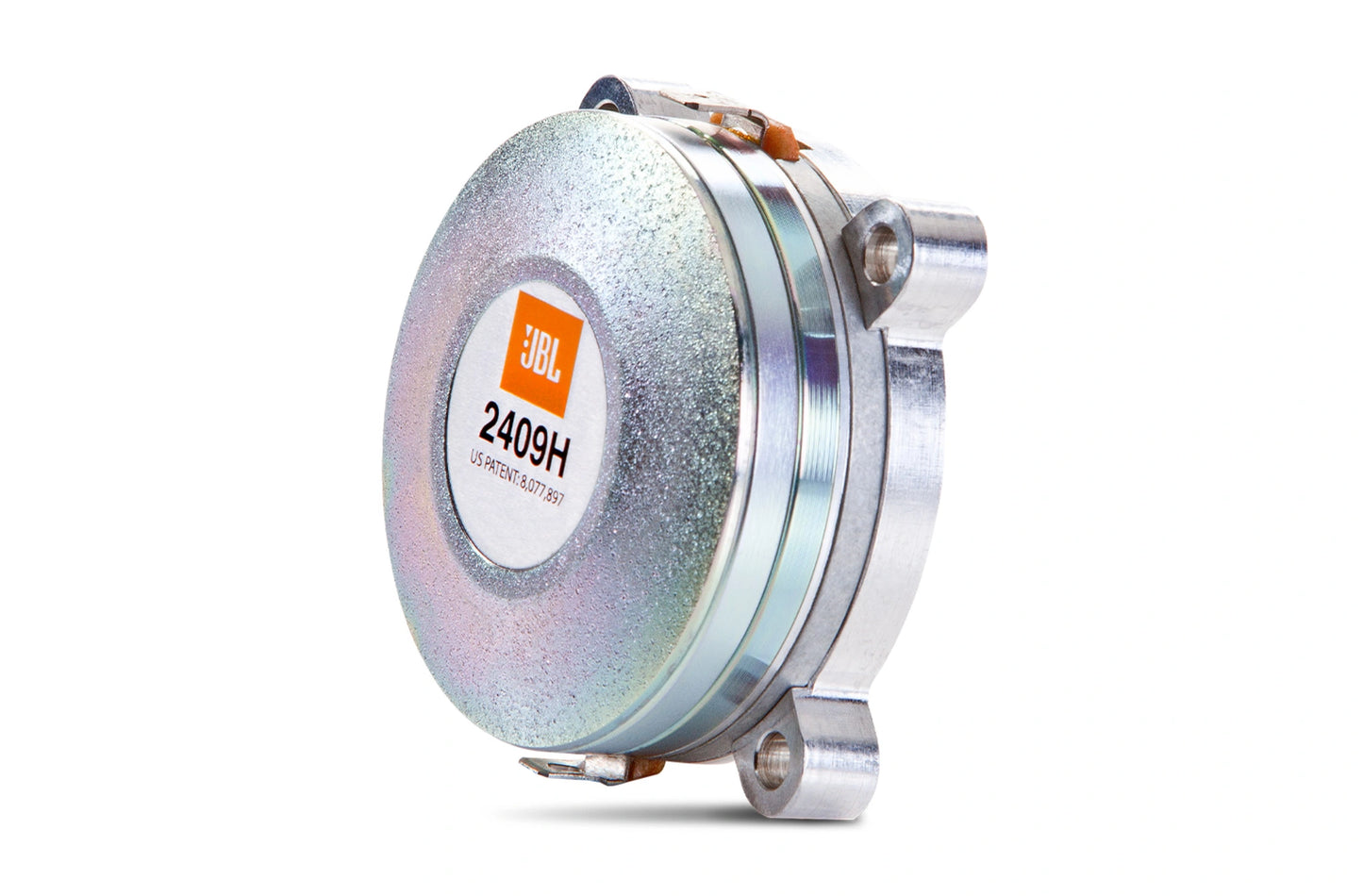

• HF Driver

• 2409H

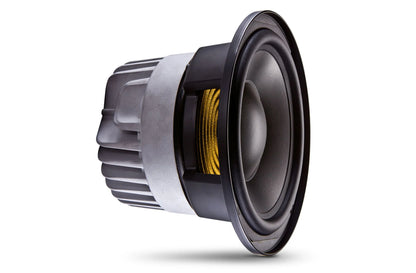

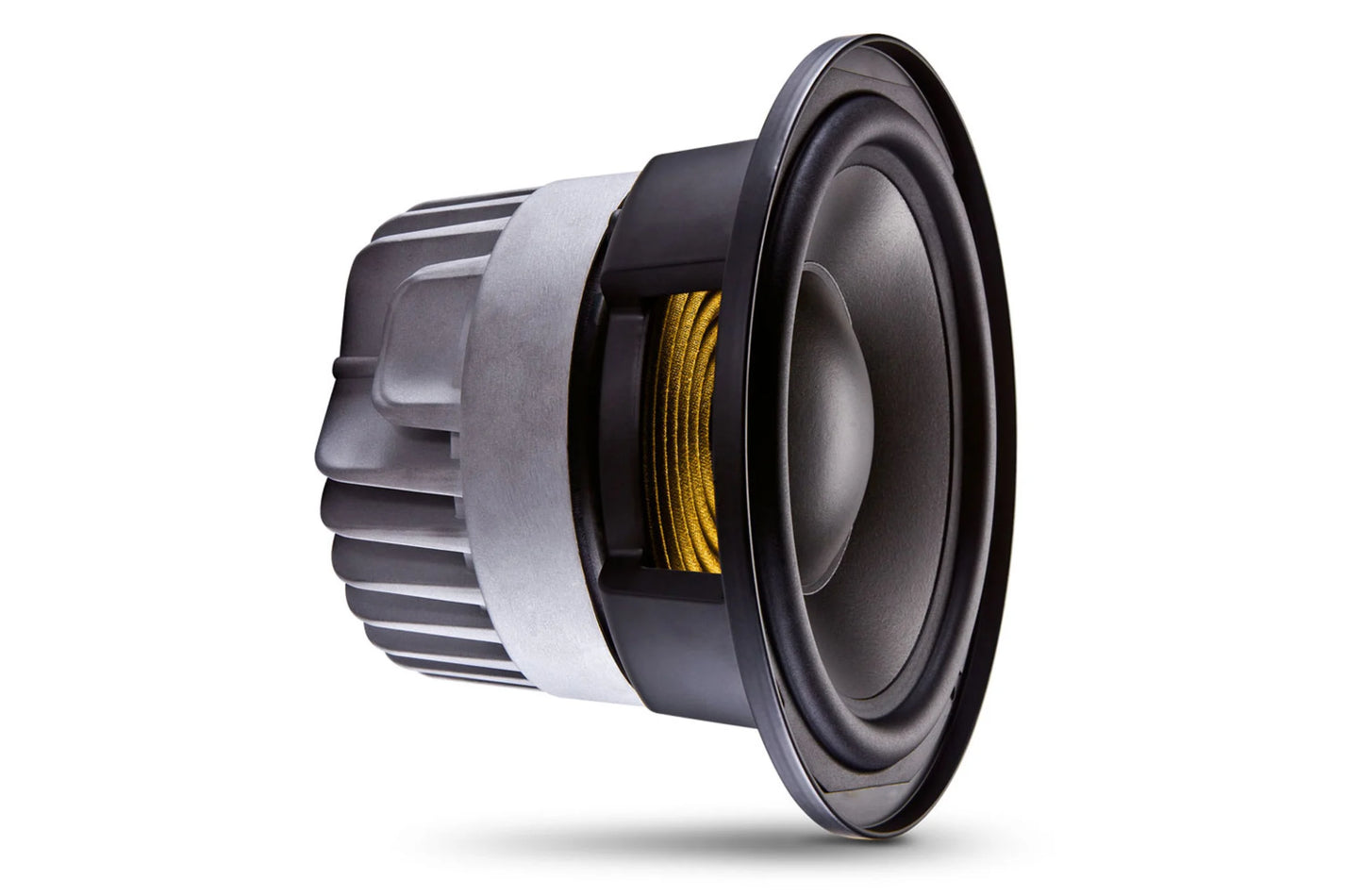

• LF Driver

• 728G - 8in (127mm)

• Dividing Network Transition Frequency

• 1.7 kHz

• Input Connectors

• Phoenix Terminals accept 12 gauge speaker wire

• Dimensions (HxWxD)

• 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)

• Net Weight (each)

• 25.2 lb

• 11.5 kg

• Enclosure

• Birch plywood reinforced for mounting

• Mounting

• Top, bottom and rear mounting points. 4-hole mounting pattern
