8 Port Ready2Run Genius PRO Receiver

The Experience Lights 8 Port Genius PRO Receiver with the innovative Genius Mounting System makes setting up your light display easier than ever, with the all-inclusive design.

These are fully-built receivers in a weatherproof box, ready to run with a Meanwell 350w 12v power supply!  Receivers require a main controller in order to function.

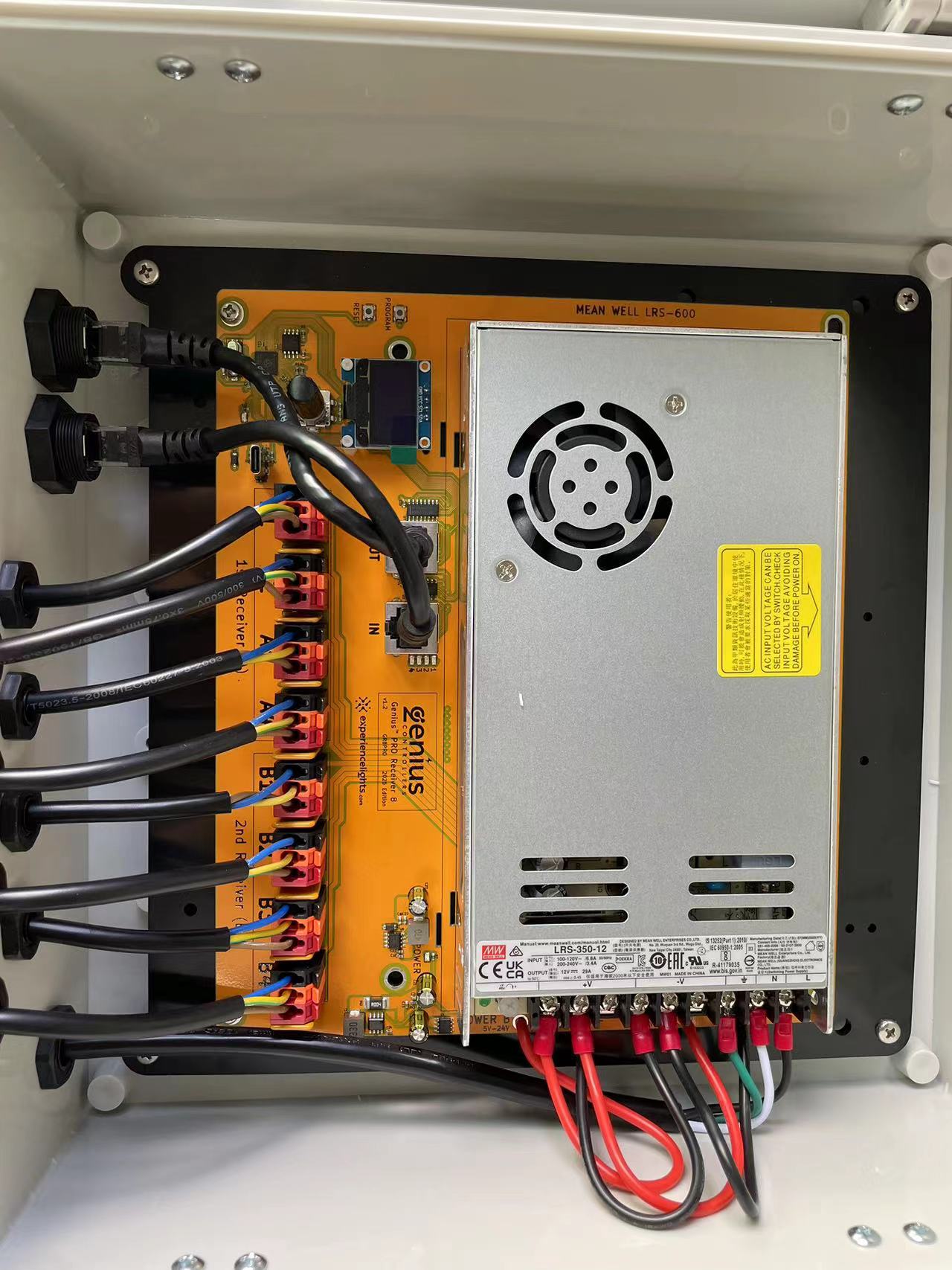

Fully built with the following parts:

• (1) Genius 8 PRO Receiver
• (1) Meanwell LRS-350 12v Power Supply

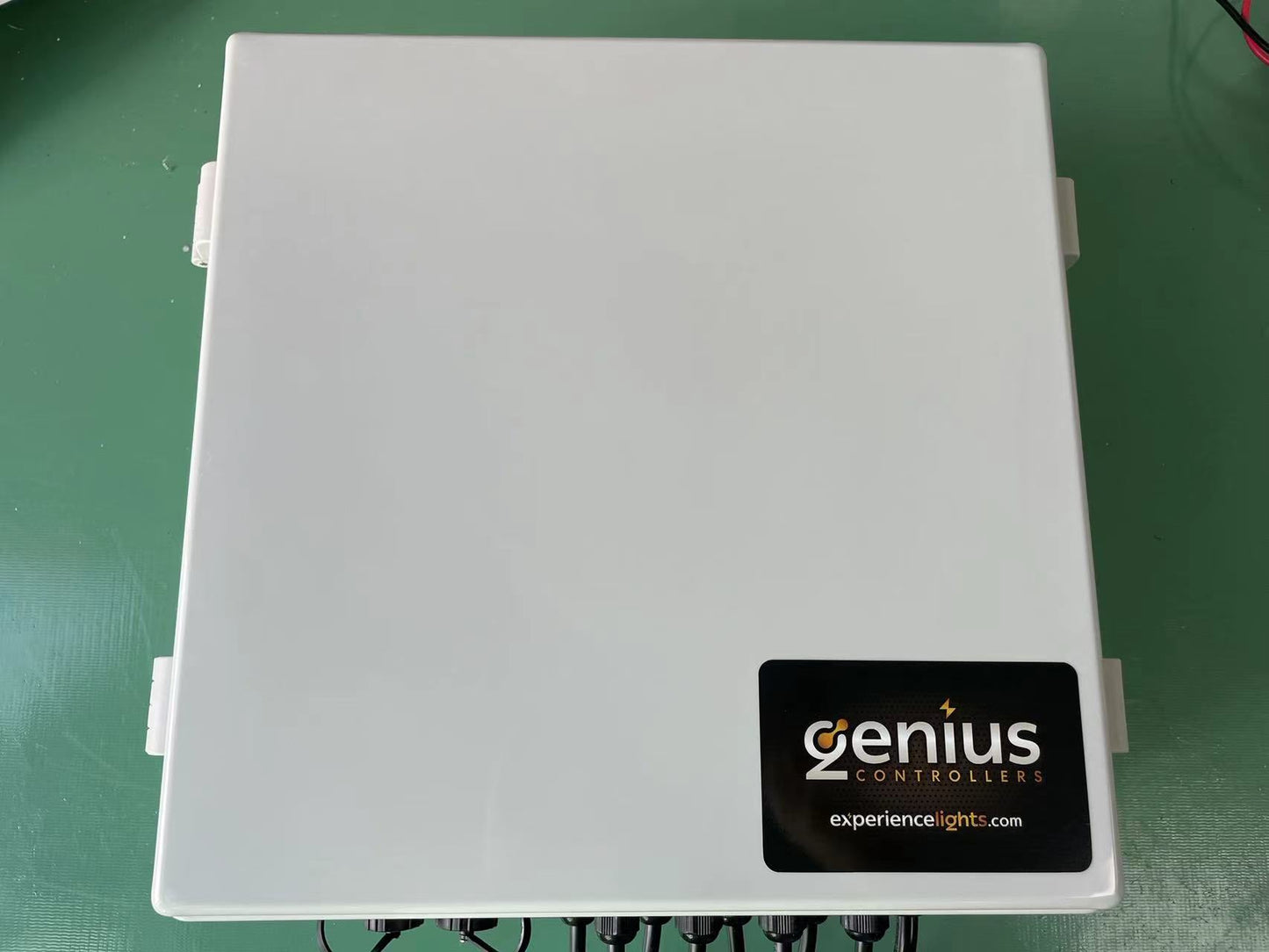

• (1) Waterproof Enclosure

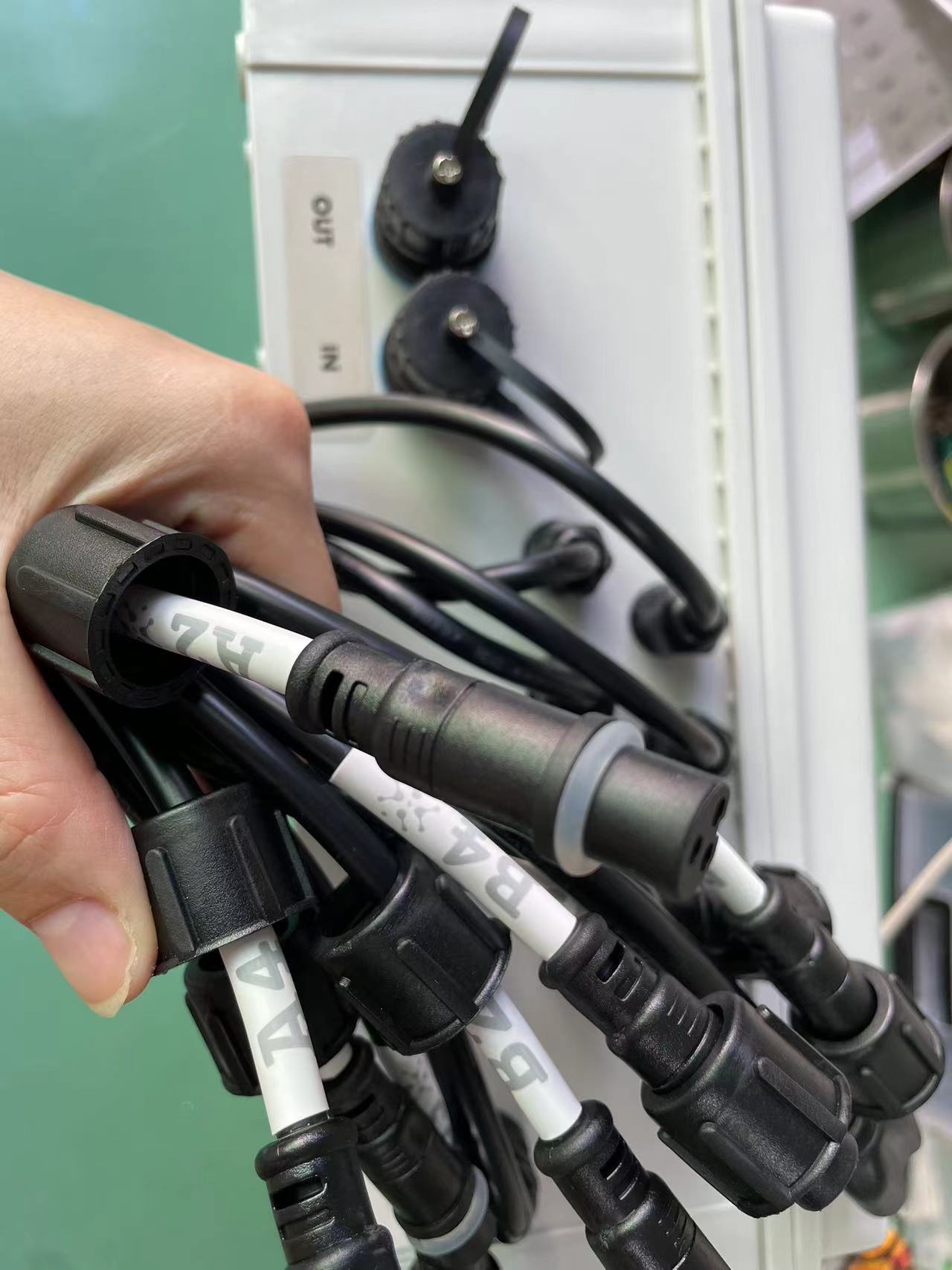

• Pigtails, Power Inlet, Ethernet Cable Glands and fully wired!

User Manual

Find our Ready2Run User Manual here: https://www.dropbox.com/scl/fi/lnksgcai9pqc3kpskpyzk/Genius-Ready-To-Run-User-Manual_.pdf?rlkey=exdpmo67vls0rg9h8t5fyxeqj&dl=0

This manual contains instructions particular to the Ready2Run itself, refer to the Genius User Manual from Experience Lights for all other instructions.

Features:

• 2 x RJ45 ports for Long Range connection; supports daisy-chaining
• 2 x Screw power terminals across 2 power banks (5V-12V)
• 16 x 3-pin spring loaded terminals (no phoenix connectors or screw down terminals)
• 16 x automatically resettable fuses (no replacing tripped fuses)
• Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in. Mix and match with other equipment
• Auto detection of protocol from the sending controller: “Genius”, “Dumb”, “FPP” (Falcon Pi Player Smart Version 1 & 2), “V3 Falcon (white)” or “V4 Falcon (Blue)”. No switches to toggle, or termination resistors required.
• Works with WS281X differential signals only
• Built-in test mode animations
• Auto positioning determines the receiver’s “place in line” without the need for dip switches on each receiver.
• If you need to manually set a receivers position, there is an on-board rotary dial to optionally override
• MAX 25A per bank, or 5A per output
• Works with xLights, Light-O-Rama, Vixen, and stage lighting apps like ELM, Madrix, Resolume and more!
