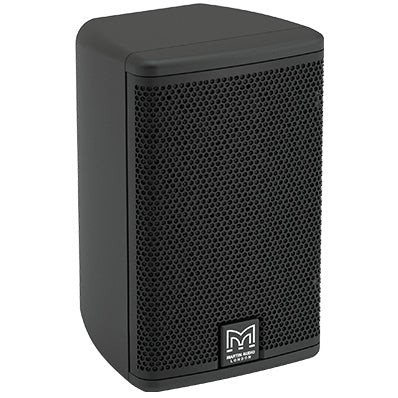

Adorn A40 4" Passive Two-way On-wall Loudspeaker

The A40 is a two-way passive speaker with a compact enclosure making it great for architectural environments.

From the Manufacturer:

The SX215 is a very powerful, compact subwoofer with an operating range of 45-100Hz + 3dB. Featuring two long-excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds, it delivers exceptional low frequency extension and impact from such a compact enclosure. Eight reflex ports with a large frontal area increase LF output efficiency and reduce turbulent air noise at high levels.

Features:

• Dual-driver, direct radiating subwoofer

• Dual long excursion 15” (380mm)/4” (100mm) voice coil drivers with water-resistant cones

• Very high output capability

• Plywood enclosure with flying inserts

• Large ports for reduced air noise

Applications:

• Retail outlets

• Cafes, bars and restaurant chains

• Hotels and convention centres

• Educational facilities

• Corporate offices

Specifications:

• Type

• Ultra-Compact passive two-way system, front ported bass reflex

• Frequency Response

• 98Hz-17kHz ± 3dB

• -10dB @ 70Hz

• Drivers

• LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis

• HF: 0.75” silk dome, neodymium motor

• Rated Power

• 40W AES, 160W peak

• Recommended Amplifier

• VIA2004

• Sensitivity

• 87dB/1W/1m

• Maximum SPL

• 109dB peak

• Nominal Impedance

• 16Ω

• Dispersion  (-6dB)

• 110° H x 80° V

• Crossover

• 3.5kHz passive (LF and HF auto-resetting fuses)

• Recommended High Pass Filter

• 60Hz 24dB/oct

• Enclosure

• ABS, UL 94V-0 rated

• Finish

• Black or white

• Grille

• Perforated steel

• Connectors

• Push terminals

• Fittings

• Wall bracket included

• Dimensions EXCL. Bracket

• (W) 124mm x (H) 200mm x (D) 114mm

• (W) 4.9in x (H) 7.9in x (D) 4.5in

• Weight

• 1.75kg (3.9lbs)
