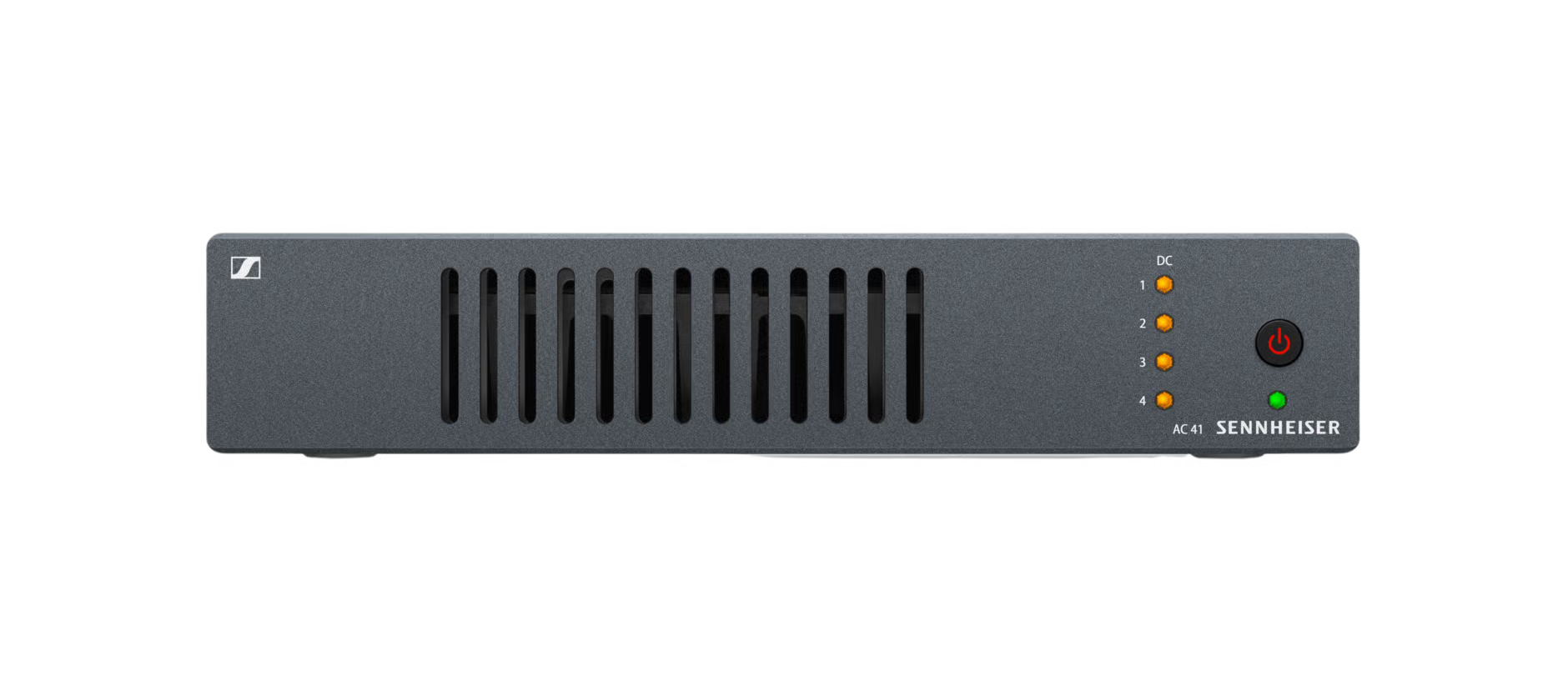

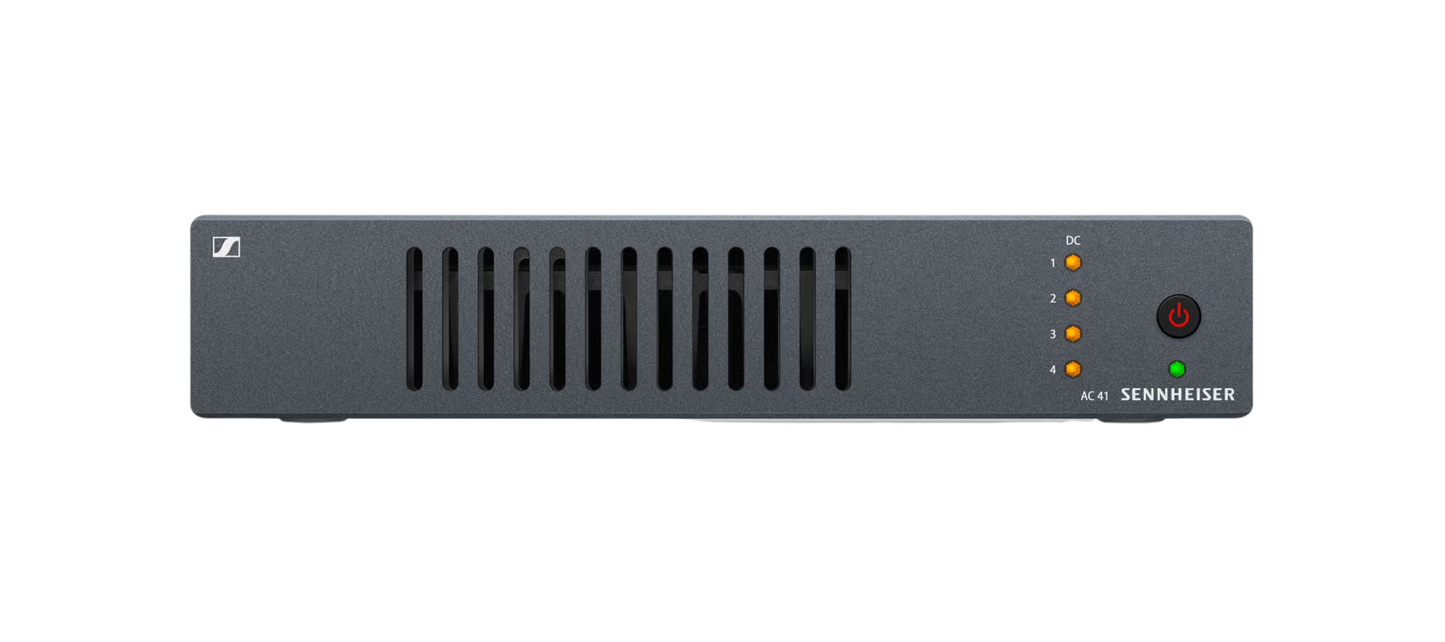

AC 41-US

Active antenna combiner with DC power distribution for IEM transmitters. Includes (1) NT 3-1-US power supply and (4) BNC cables

From The Manufacturer:

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

Specifications:

• Frequency ranges

• AC 41-EU/UK: 470 - 870 MHz

• AC 41-US: 470 - 608 MHz

• Transmission loss

• 0 dB (±1 dB)

• RF input power max.

• 30 mW per input

• Impedance

• 50 Ω

• Power supply

• 13.8 V DC (with tabletop power supply unit NT 3-1)

• Total power consumption

• max. 3.4 A (with connected transmitters)

• Transmitter power supply on RF IN 1 to RF IN 4

• 11.4 V DC (protected against reverse supply), 350 mA

• Relative air humidity

• 5 to 95 %

• Temperature range

• Operation: -10 °C to +55 °C (14 °F to 131 °F)

• Storage: -20 °C to +70 °C (-4 °F to 158 °F)

• Dimensions approx.

• 212 x 168 x 43 mm

• Weight approx.

• 1470 g
