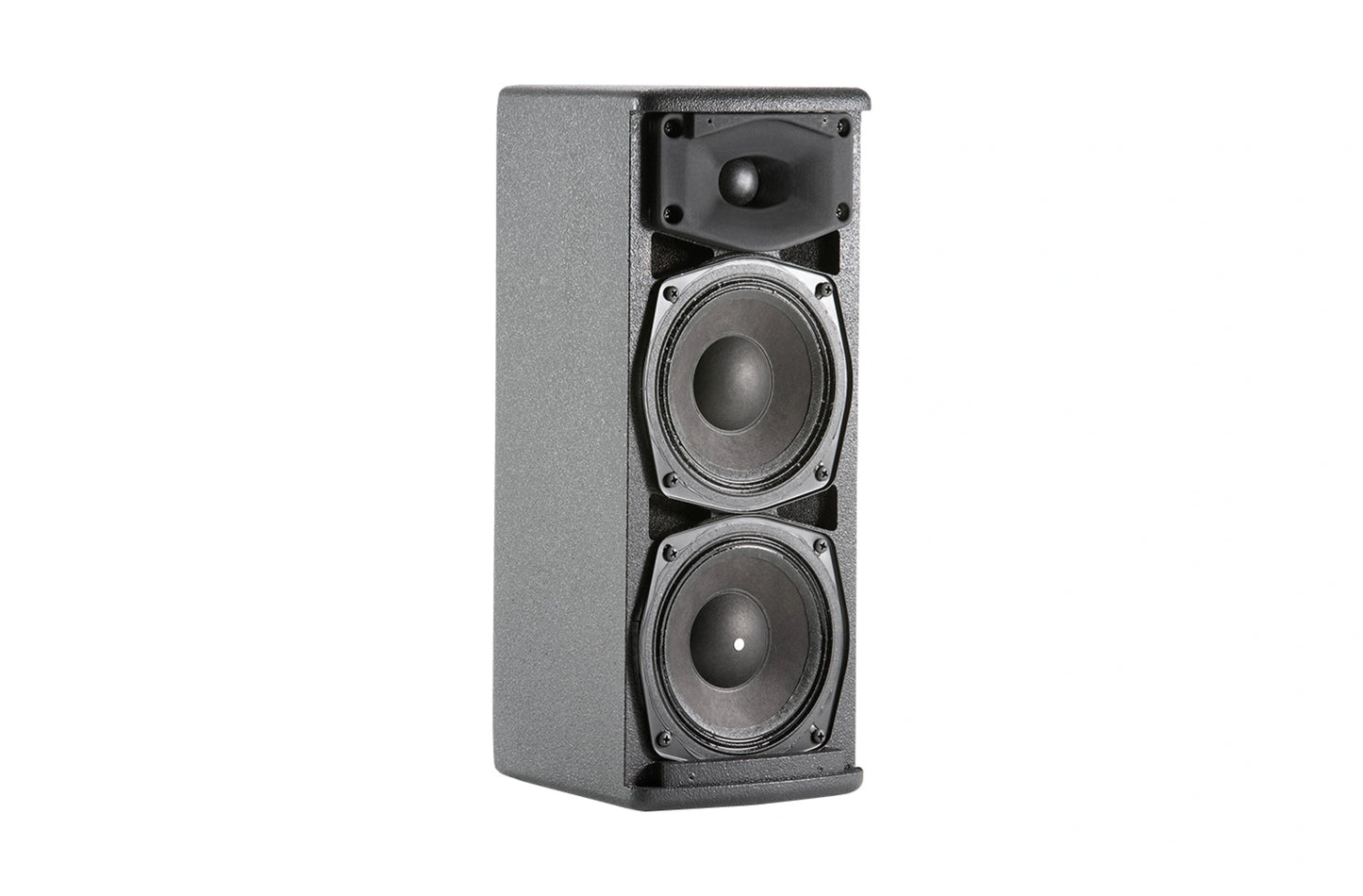

AC25

The AC25 is a compact but powerful full-range speaker.

From The Manufacturer:

The JBL AC25 is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a visually unobtrusive package. The enclosure can be installed close to walls and ceilings, making it a strong choice for under-balcony, column, or wall mounting applications.

The system uses dual 5.25-inch Symmetrical Field Geometry low-frequency transducers and a 1-inch dome tweeter on a 90-degree x 90-degree waveguide for even coverage and natural voicing.

Specifications:

• Included: AC25 ultra-compact 2-way loudspeaker with dual 5.25-inch LF drivers.
• Applications: Performing arts facilities, houses of worship, sports facilities, multimedia spaces, retail spaces, presentation suites, educational facilities and portable audio-visual systems.
• Contents: 2 x JBL 225H 135 mm (5.25 in) SFG LF drivers and 1 x JBL 201J 25 mm (1 in) dome tweeter.
• Included Accessories: Dual Neutrik NL4 connectors plus screw terminals and multiple attachment points.
• Accessories (Not Included): Optional U-bracket and OmniMount-type mounting accessories.
• Size: 378 x 150 x 178 mm (14.9 x 5.9 x 7.0 in).
• Weight: 7.5 kg (16.5 lb).
• Electrical/Thermal: 16 ohms nominal impedance; 225 W continuous, 450 W program, 900 W peak; 300 W AES power rating; 3.3 kHz crossover.
• Coverage: 90-degree x 90-degree waveguide.
• Frequency Response: 90 Hz - 18 kHz (+/-3 dB); 80 Hz - 20 kHz (-10 dB).
• Maximum SPL: 115 dB rated maximum SPL at 1 m.
• Finish: Textured black DuraFlex finish with heavy-duty powder-coated steel, foam-backed grille.
