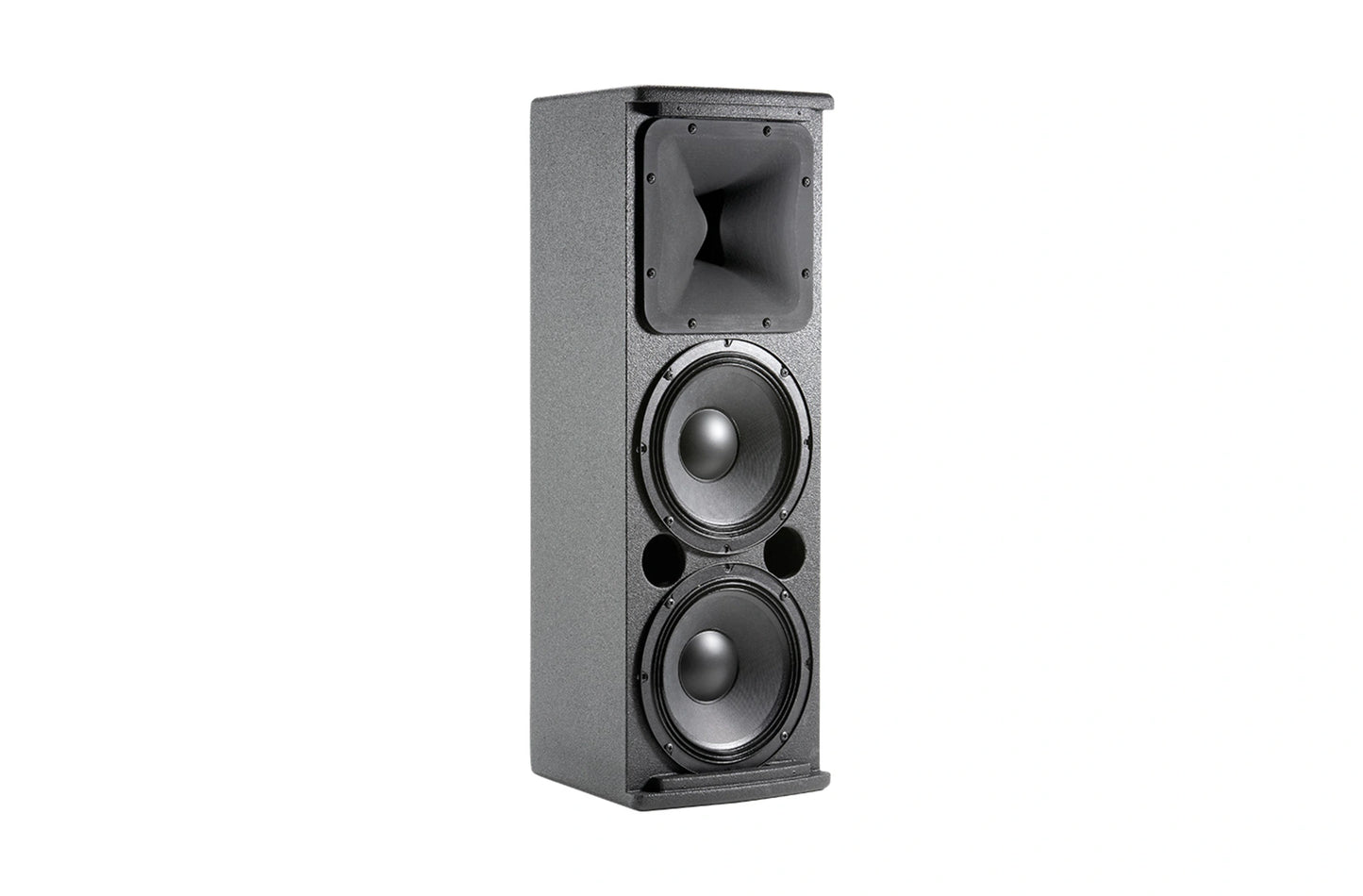

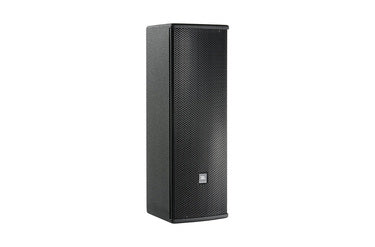

AC28/95

The JBL AC28/26 loudspeaker systems offer high fidelity sound in an ultra-compact enclosure with a 90° x 50° coverage pattern, for a variety of commercial facility applications.

From the Manufacturer:

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker system that are specifically designed to better serve the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Features:

• 1” Exit Compression Driver with PT™ Waveguide
• 205 mm (8 in) LF transducer
• Compact enclosure
• 750W Program
• Dual Neutrik NL4 connectors plus screw terminal
• FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

Applications:

• Performing Arts Facilities
• Theatrical Sound Design
• Auditoriums
• Worship Facilities
• Live Clubs
• Dance Clubs
• Sports Facilities
• Themed Entertainment Venues

Specifications:

• Frequency Range (-10dB): 53 Hz - 20 kHz
• Frequency Response (±3 dB): 65 Hz – 20 kHz
• System Power Rating: 700 W (AES rated)/ 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
• Impedance: 8 ohms
• Coverage Pattern: 90° x 50°
• Dimensions (H x W x D): 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
• Net Weight (each): 18.6 kg (40.9 lb)
• Crossover Modes: Passive
• Maximum SPL (1m): 120 dB
• System Sensitivity (1w @ 1m): 94 dB SPL
• LF Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
• Nominal LF Driver Impedance: 8 Ohms
• HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
• Enclosure : 12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment: 6 x M8 points; 1 top, 3 bottom, 2 rear. 4 x M8 rear for MultiMount® MM-120-BT.
• Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
