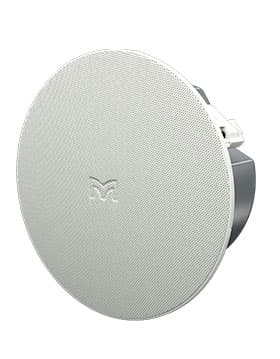

Adorn ACS-40TS-W

The Adorn ACS-40TS-W is a  High-Performance 2-Way Ceiling Loudspeaker. It is a great install option for background or foreground applications.

From the Manufacturer:

As part of the ADORN commercial loudspeaker series, the ACS-40TS is an ultra-compact, two-way ceiling speaker designed for background and foreground applications that require premium performance and cost competitiveness.

Features:

• High performance two-way ceiling speaker

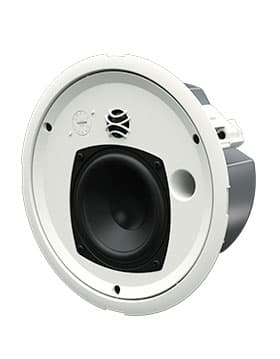

• 4” (100mm) LF driver and 0.75” (19mm) HF dome tweeter

• Very wide 180° conical coverage pattern reduces speaker count required for even coverage

• 70V/100V multitap line transformer or 16-ohm low-impedance operation

• Low and high-frequency overload protection

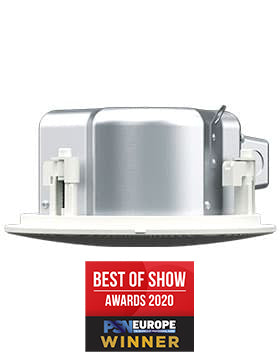

• UL94V-0 rated baffle with zinc-plated steel backcan

• Quick release, bezel-less grille

• Tile rails and C-ring included

• 5-year warranty

Applications:

• Retail outlets

• Cafes, bars and restaurants

• Museums and Houses of Worship

• Hotels, casinos and concourses

• Transportation facilities

• Boardrooms and reception areas

Specifications:

• Type

• Ultra-compact, passive two-way ceiling speaker, ported bass reflex

• Frequency Response

• 106Hz-20kHz ± 3dB

• -10dB @ 73Hz

• Drivers

• LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis

• HF: 0.75” silk dome, neodymium motor

• Rated Power

• 40W AES, 160W peak

• Recommended Amplifier

• VIA2004 (for low-impedance operation)

• Sensitivity

• 86dB / 1W(4V) / 1m

• Maximum SPL

• 108dB peak

• Nominal Impedance

• 16Ω

• Dispersion (-6dB)

• 180° conical up to 10kHz

• Crossover

• 3.5 kHz passive (LF and HF auto-resetting fuses)

• Transformer Taps

• 70V: 20w / 10w / 5w / 2.5w

• 100V: 20w / 10w / 5w

• Recommended High-Pass Filter

• 75Hz 24dB/oct

• Enclosure

• UL 94V-0 rated ABS baffle with steel backcan

• Finish

• Baffle and grille: RAL9016 white Backcan: zinc plated

• Grille

• Perforated steel, powder-coated, bayonet fitting

• Connectors

• Ceramic connector (in and link) located behind fire-retardant steel cover

• Dimensions

• (OD) 221mm x (D) Back Can 97mm, (D) Inc. Grille 115mm

• (OD) 8.7in x (D) Back Can 3.81in, (D) Inc. Grille 4.51in

• Hole Cut-Out Dimensions

• 197mm (7.75”) diameter

• Weight

• 2.2kg (4.8lbs)

Included:

• 2 tile rails

• C-ring backing plate

• Cut-out template
