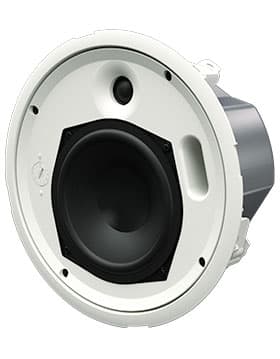

ACS-55TS-W High-Performance 2-Way Ceiling Speaker, Shallow

The Adorn ACS-55TS-W  is a commercial passive loudspeaker for background or foreground installs.

From the Manufacturer:

As part of the ADORN commercial loudspeaker series, the ACS-55TS is a compact, two-way ceiling speaker designed for background and foreground applications that require premium performance and cost competitiveness.

Features:

• Compact two-way ceiling speaker, shallow backcan

• 5.25” (135mm) LF driver and 0.75” (19mm) HF dome tweeter

• Wide 150° conical coverage pattern reduces speaker count required for even coverage

• 70V/100V multi-tap line transformer or 16-ohm low-impedance operation

• Low and high-frequency overload protection

• UL94V-0 rated baffle with zinc-plated steel backcan

• Quick release, bezel-less grille

• Tile rails and C-ring included

• 5-year warranty

Applications:

• Retail outlets

• Cafes, bars and restaurants

• Museums and Houses of Worship

• Hotels, casinos and concourses

• Transportation facilities

• Boardrooms and reception areas

Specifications:

• Type

• Compact, passive two-way ceiling speaker, ported bass reflex

• Frequency Response

• 117Hz-20kHz ± 3dB -10dB @ 79Hz

• Drivers

• LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis

• HF: 0.75” silk dome, neodymium motor

• Rated Power

• 50W AES, 200W peak

• Recommended Amplifier

• VIA2004 (for low-impedance operation)

• Sensitivity

• 90dB / 1W(4V) / 1m

• Maximum SPL

• 113dB peak

• Nominal Impedance

• 16Ω

• Dispersion (-6dB)

• 150° conical up to 7kHz

• Crossover

• 3kHz passive (LF and HF auto-resetting fuses)

• Transformer Taps

• 70V: 30w / 15w / 7.5w / 3.75w

• 100V: 30w / 15w / 7.5w

• Recommended High-Pass Filter

• 65Hz 24dB/oct

• Enclosure

• UL 94V-0 rated ABS baffle with steel backcan

• Finish

• Baffle and grille: RAL9016 white Backcan: zinc plated

• Grille

• Perforated steel, powder-coated, bayonet fitting

• Connectors

• Ceramic connector (in and link) located behind fire-retardant steel cover

• Dimensions

• (OD) 245mm x (D) Back Can 100mm, (D) Inc. Grille 118mm

• (OD) 9.7in x (D) Back Can 3.95in, (D) Inc. Grille 4.65in

• Hole Cut-Out Dimensions

• 222mm (8.74”) diameter

• Weight

• 2.8kg (6.2lbs)

Included Accessories:

• 2 tile rails

• C-ring backing plate

• Cut-out template
