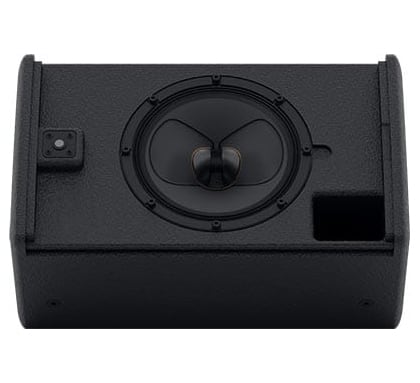

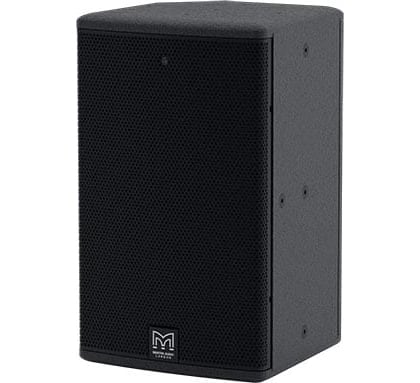

CDD-LIVE 8

The CDD-LIVE 8 is a compact active speaker for live production or install applications on medium sized invents.

From the Manufacturer:

The CDD-LIVE 8 is an ultra-compact, self-powered, two-way system featuring an 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation. Its small size gives no indication of its high output capability and exceptional fidelity. As a stand-alone loudspeaker, it has a multitude of professional applications — from small-medium scale sound reinforcement, AV presentations and HoW to distributed systems, frontfill/infill and use as a micro stage monitor.

Features:

• Ultra-Compact, self-powered two-way system

• Coaxial Differential Dispersion™ technology

• Onboard Class D amplification and DSP

• Dante™ Digital Audio networking

• Global mains operation with Power Factor Correction

• User-rotatable CDD™ driver

• Vertical and horizontal mounting options

• Tour-grade, multi-angle plywood enclosure

• IP24 rating option with rain cowl

• Comprehensive mounting accessories

Applications:

• Live sound reinforcement

• Theatre sound

• Corporate AV events

• Fixed installations in concert halls, ballrooms and HoW

• Stage monitor and sidefill

• Bars and clubs

• Frontfill/infill

Specifications:

• Type

• Ultra-Compact, Coaxial Differential Dispersion powered two-way system

• Frequency Response

• 70Hz – 20kHz ±3dB, -10dB @ 50Hz

• Driver

• LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver

• Input Sensitivity

• -26dBu for 100dB SPL

• Maximum SPL

• 117dB continuous / 123dB peak

• Dispersion

• 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)

• Crossover

• 2.3kHz Active LR8 Balance presets for pole mount/ pole mount with sub/ stage monitor

• Connectors

• Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon

• Analogue Input Impedance

• 20 kΩ balanced to ground

• Maximum Analogue Input Level

• 24.6 Vpp (+21dBu), over voltage protected

• Internal Processing

• Multi-channel DSP, programmable via TCP/IP using VU-Net software

• PEQ/shelving filters

• Up to 48dB/Oct HPF

• Low latency HF FIR filters

• Up to 200ms input delay

• Pre-set selection via rear panel switch

• Connectors

• 2x Neutrik ® Ethercon RJ45

• Protocol

• TCP/IP and UDP/IP

• Type

• 2 channel switch-mode, class D

• Peak Output Power

• 1300W total 1000W LF, 300W HF

• Average Efficiency

• 89%

• Cooling

• External convection cooled, with internal fan

• Maximum Ambient Temperature

• 40°C (104°F) for full output

• Type

• Switch mode, fixed frequency with PFC

• AC Input Operating Range

• 85 – 265V ~ AC, 50 - 60Hz

• Power Factor

• > 0.98

• Nominal Power Consumprion

• 550W

• Mains Connector

• Neutrik® Powercon True1

• Enclosure

• Extensively braced multi-laminate plywood.

• Finish

• Textured black PU coating.

• Protective  Grille

• HEX perforated mild steel with protective zinc plating and black powder coat finish. Backed with black grille cloth

• Fittings

• Top hat for pole mounting

• 15 x M8 mounting points

• Single pocket handle

• Optional weather protection cowl

• IP Rating

• IP24 factory option available

• Dimensions

• (W) 258mm x (H) 428mm x (D) 254mm (W) 10.16in x (H) 16.85in x (D) 10.00in

• Weight

• 14kg (30.8lbs) excluding Transit cover

• Accessories

• Transit Cover Optional wall, yoke and universal brackets
