Active Junction Box Power-DMX-Ethernet to PDE

A Junction Box that merges power, DMX and  Ethernet signals into a single connector and cable system.

From the Manufacturer:

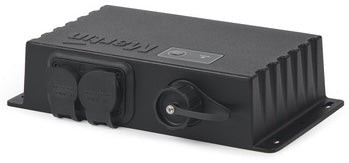

The Martin PDE Junction Box Active merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.

The unit also features a DMX-thru and Ethernet-thru port, supported by the internal RDM-compliant DMX splitter and 3-port Ethernet switch. The multi-color status LED gives a clear indication of the protocol being received, as it is compatible with DMX, Art-Net, sACN and Martin P3. And, the convenient test button allows all connected fixtures to be tested at once for easy system checking during installation.

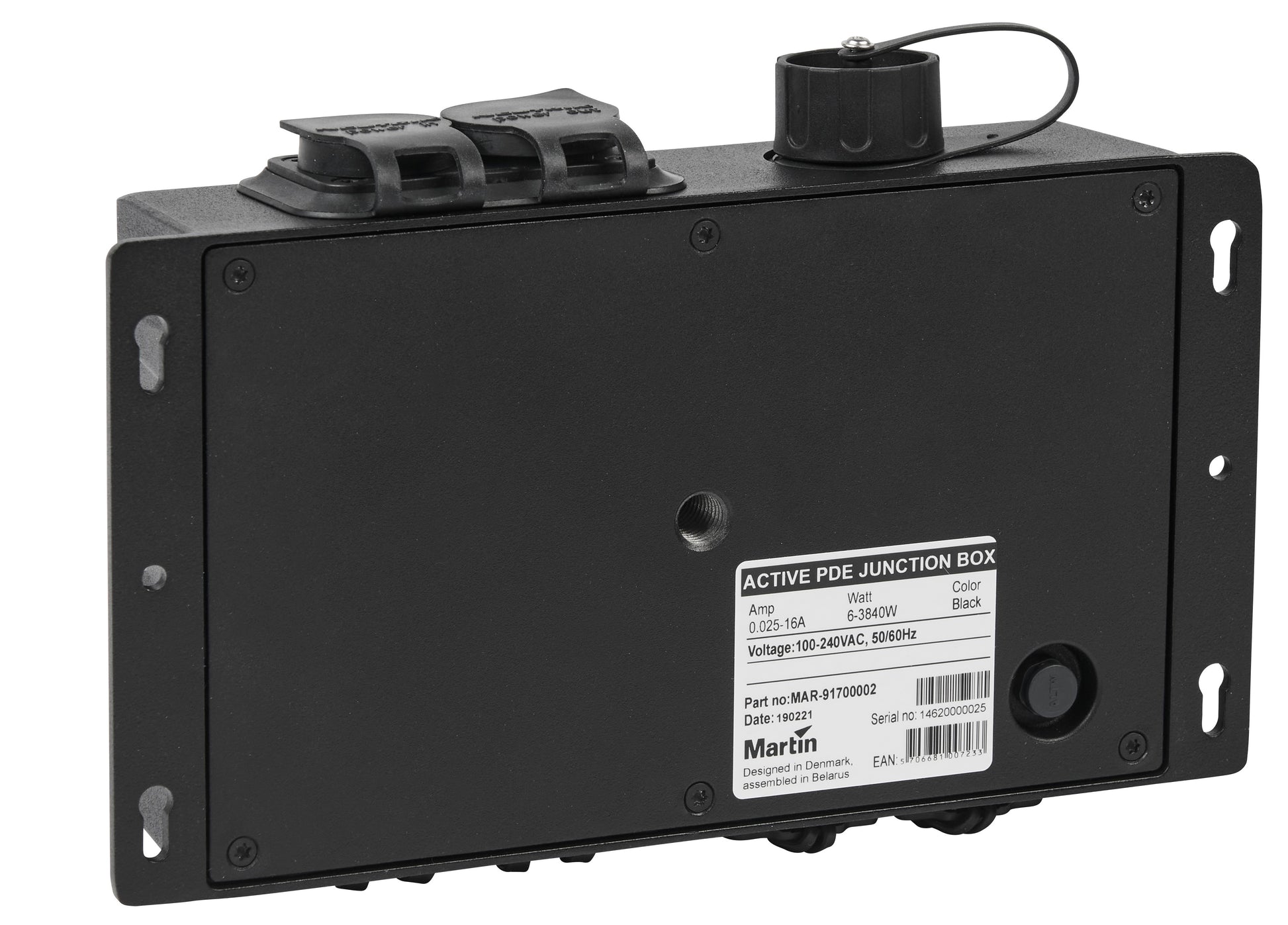

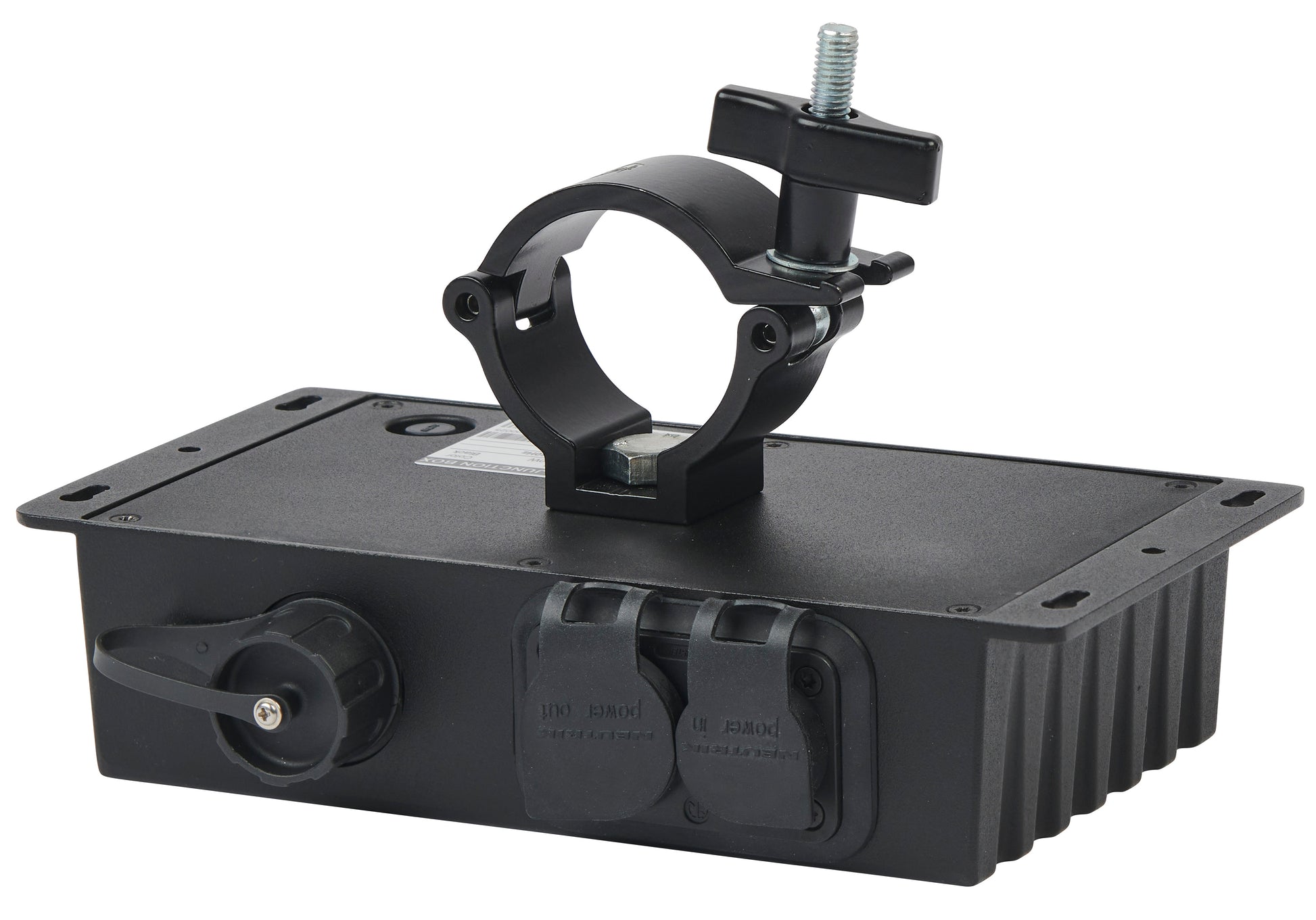

The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.

Features:

• PowerCON TRUE1 TOP power in & thru

• XLR 5 TOP DMX in & thru (build-in DMX/RDM splitter)

• etherCON TOP Ethernet in & thru (build-in gigabit switch with fail-safe bypass)

• Martin PDE Hybrid output

• IP65 rated

• Status LED to indicate received protocol

• Pushbutton to recall test patterns on all attached fixtures

• Robust metal housing

• Wall or truss-mountable

Specifications:

• Physical:

• Length: 215 mm (8.5 in.) (incl. mounting flanges)

• Width: 115 mm (4.5 in.)

• Height: 51 mm (2.0 in.)

• Weight: 1 kg (2.2 lbs.)

• Electrical:

• AC power: 100-240 V AC nominal, 50/60 Hz

• Power supply unit: Auto-ranging electronic switch mode

• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.5 A

• Typical earth-leakage current: 0.25 mA

• Power Factor: 0.58 @ 100 V , 0.56 @ 120 V , 0.55 @ 208 V , 0.55 @ 230 V , 0.55 @ 240 V

• Max current draw: 0.10 A @ 100 V / 120 V , 0.05 A @ 208 V / 230 V / 240 V

• Typical current draw: 0.09 A @ 100 V , 0.08 A @ 120 V , 0.05 A @ 208 V , 0.05 A @ 230 V , 0.05 A @ 240 V *

• Power Consumption:

• Maximum: 6 W

• Typical: 6 W *

• Idle: 5 W *

(Measurements made at nominal voltage. Allow for a deviation of +/- 10%).

• Thermal

• Cooling: Convection

• Maximum ambient temperature (Ta max.): 40° C

• Minimum ambient temperature (Ta min.): 0° C

• Maximum total heat dissipation, calculated, +/- 10%: 20 BTU/hr

• Approvals

• Global CB Certification/IECEE: IEC 61347-2-11

• EU safety: EN 61347-2-11, EN 62493

• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547

• US safety: UL 1573

• US EMC: 47 CRF Chapter 15 Class B

• Canadian safety: CSA 22.2 No. 166

• Canadian EMC: ICES-003 Class B, ICES-005 Class B

• Australia/NZ: RCM

• United Kingdom: UKCA

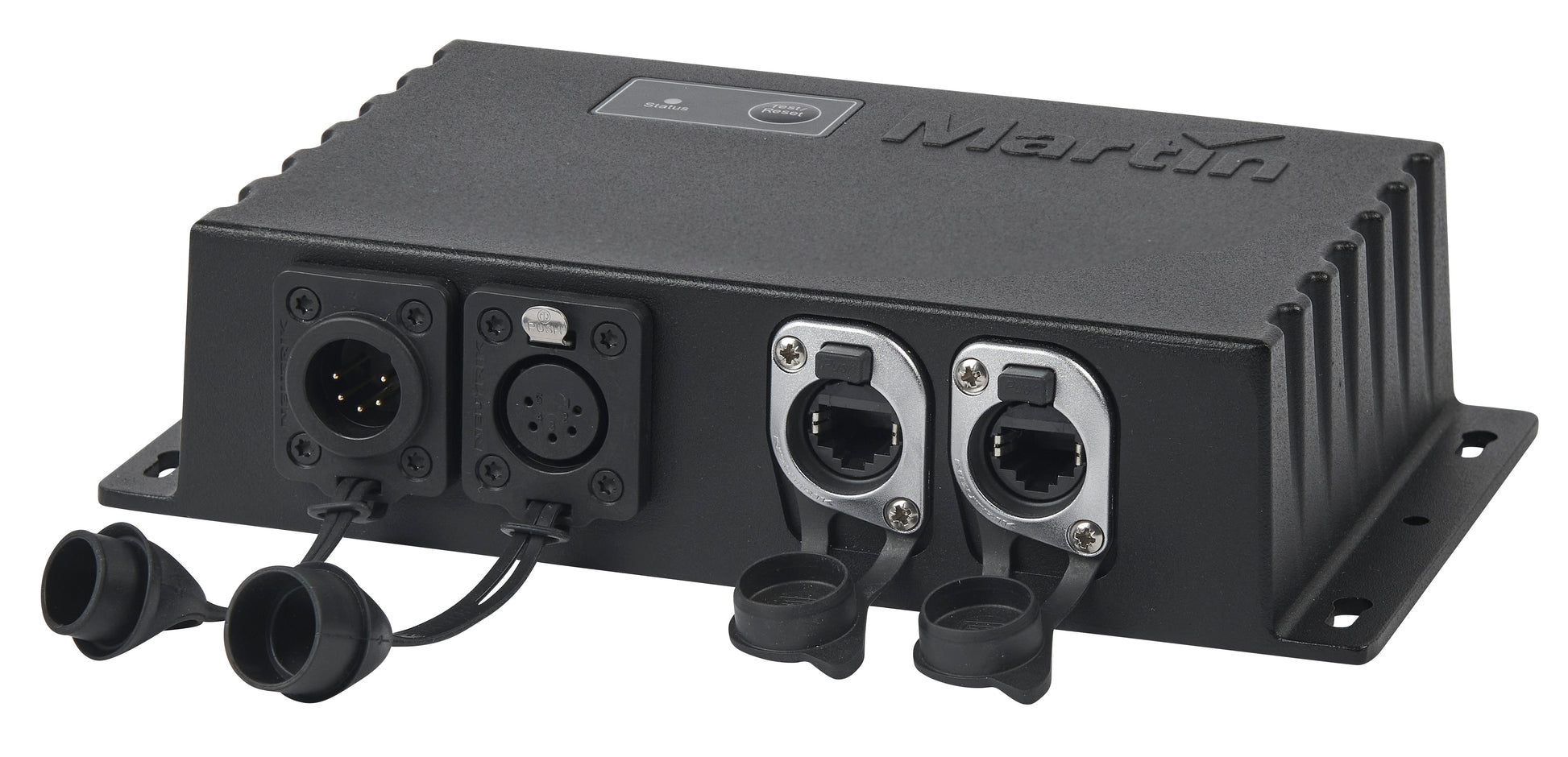

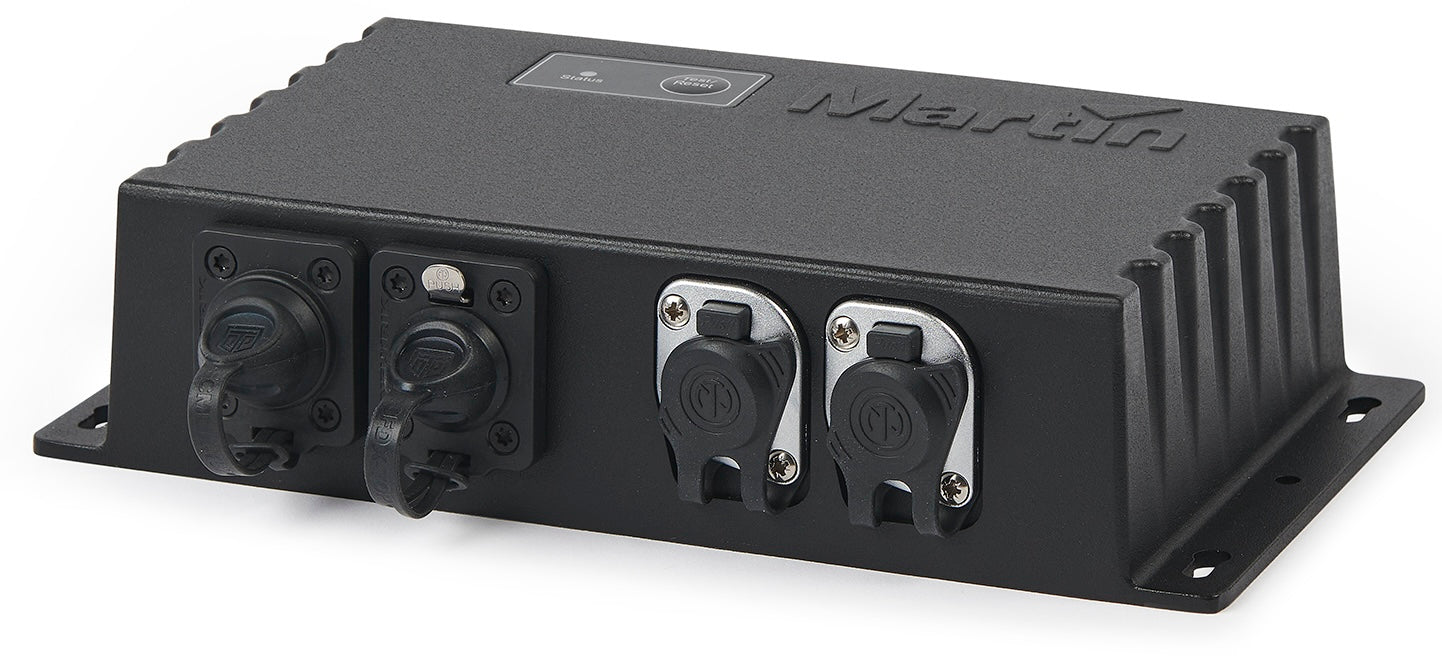

• Connections

• AC power input: Neutrik powerCON TRUE1 TOP (IP65)

• AC power thru: Neutrik powerCON TRUE1 TOP (IP65)

• Ethernet input: Neutrik etherCON TOP (IP65)

• Ethernet thru: Neutrik etherCON TOP (IP65)

• DMX input: Neutrik XLR 5-pin Male TOP (IP65)

• DMX thru: Neutrik XLR 5-pin Female TOP (IP65)

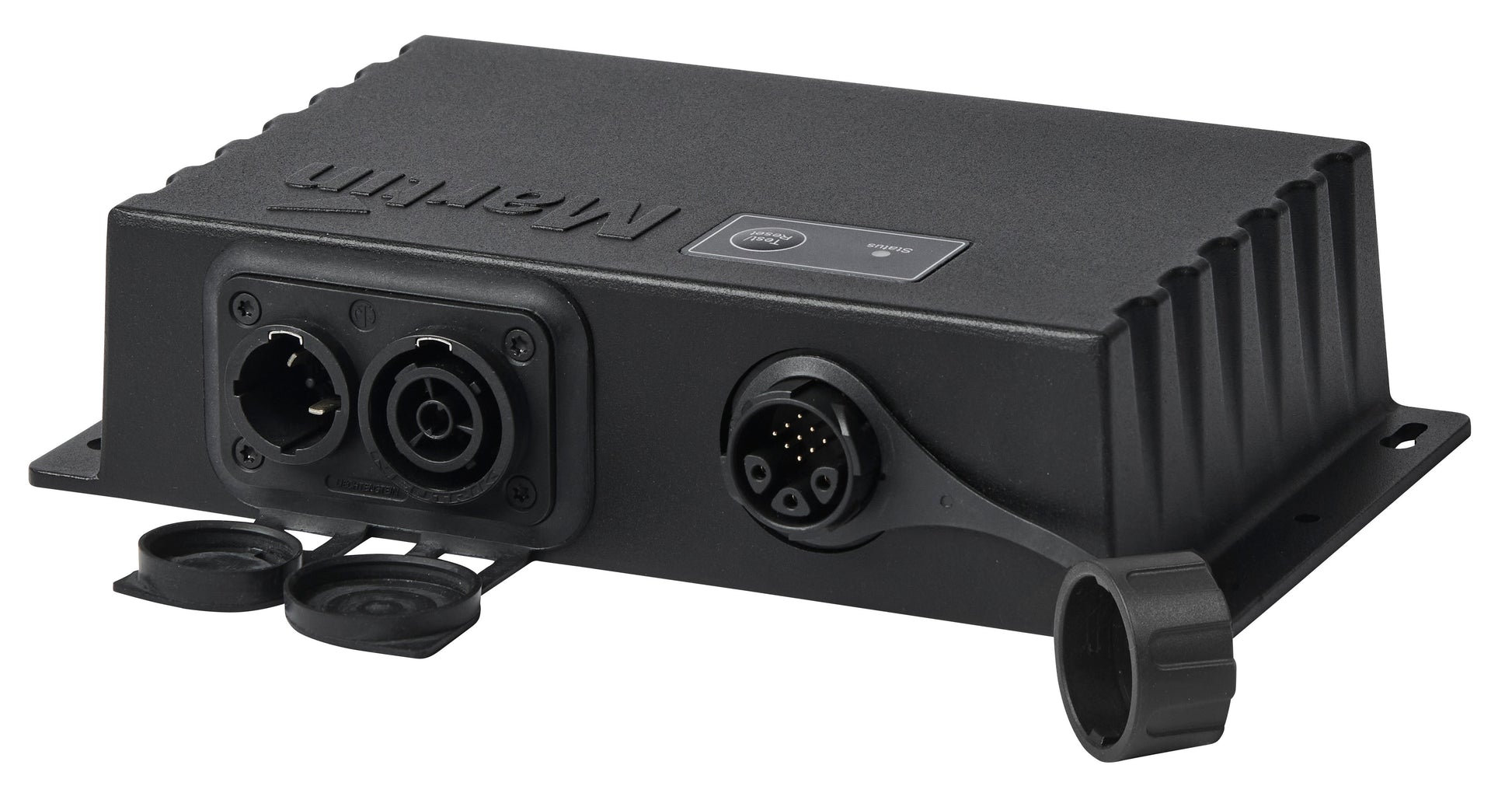

• AC Power, DMX and Network out: PDE hybrid connector (IP65)

(All connections hot plugging compatible)
