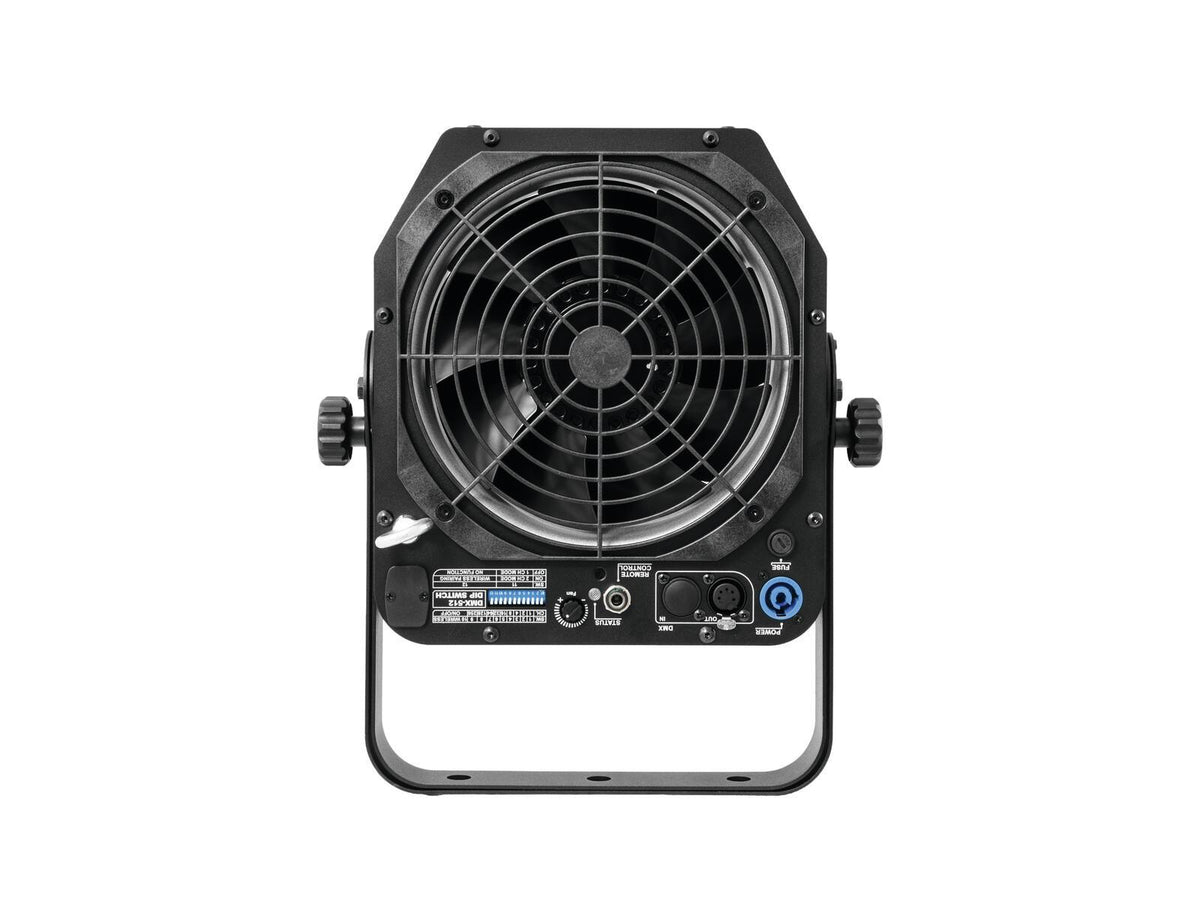

AF-3X Compact, Lightweight Variable Speed DMX Fan

The Antari AF-3X is a compact, variable-speed effects fan designed to distribute fog, haze and snow effects across stages and performance spaces. Featuring built-in DMX512 control, manual speed adjustment and a durable metal housing, it provides flexible airflow control for professional entertainment applications. Its adjustable mounting bracket allows the airflow direction to be changed through a 90-degree range.

From The Manufacturer:

The AF-3X is a compact, all-purpose stage fan featuring multiple control options, linear output control, low power consumption, adjustable airflow direction and durable metal construction. Built-in DMX control and a manual adjustment knob are standard, while wired and wireless remote controllers are available as optional accessories. Its adjustable bracket supports different output directions when the fan is mounted or positioned on the floor.

Key Features:

• Compact and lightweight design.

• Variable-speed airflow control.

• Built-in DMX512 control.

• Manual speed adjustment.

• Adjustable airflow direction through 90 degrees.

• Durable metal housing.

• Low power consumption.

• Suitable for distributing fog, haze and snow effects.

• Compatible with optional wired and wireless remote controllers.

• Single-channel DMX control.

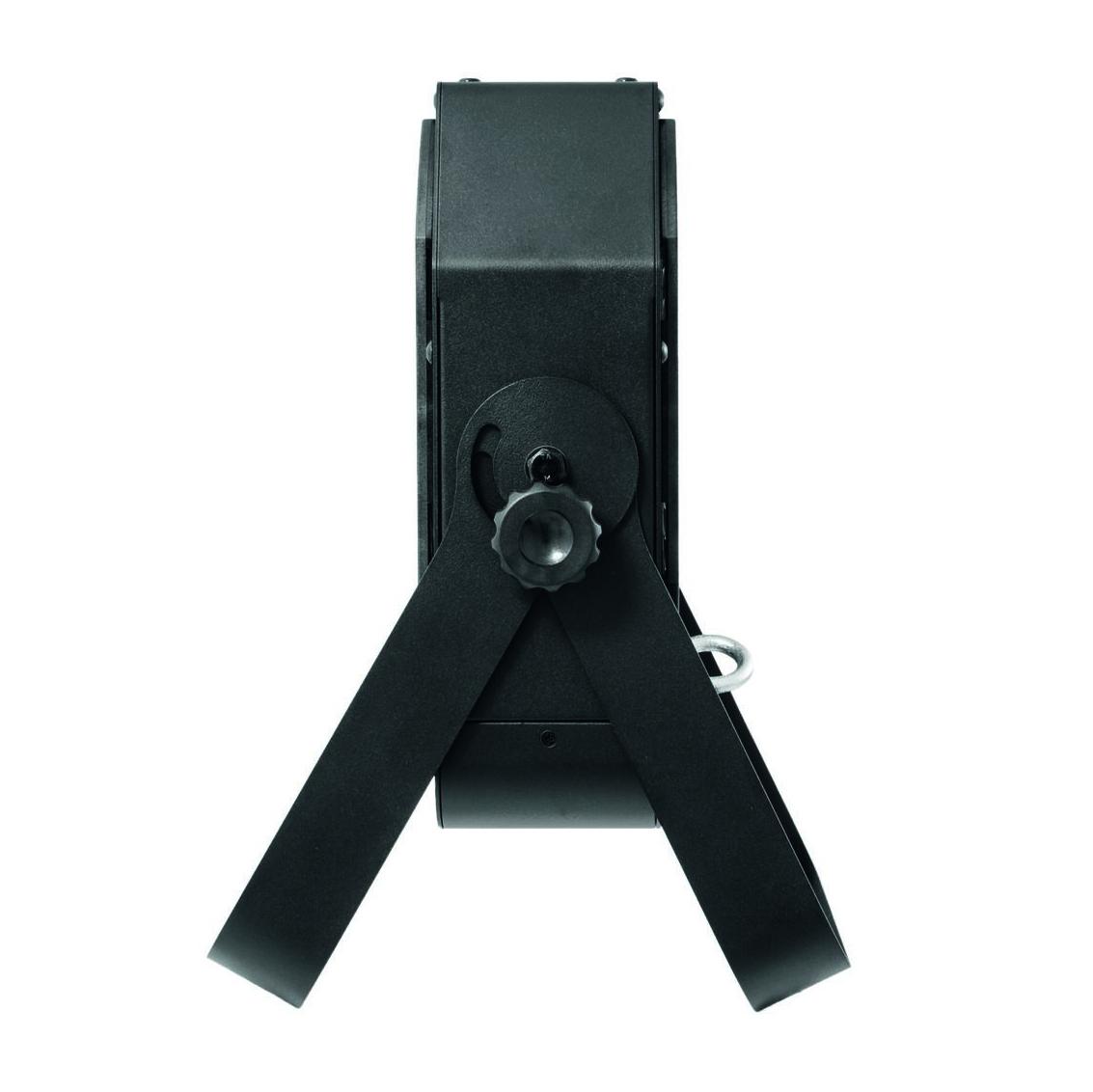

• Adjustable bracket for floor placement or mounting.

Specifications:

• Brand: Antari.

• Model: AF-3X.

• Product Type: Variable-speed effects fan.

• Control Methods: Manual and DMX512.

• DMX Channels: 1.

• Airflow: 530 CFM at 50 Hz; 600 CFM at 60 Hz.

• Fan Speed: 750–2,550 RPM at 50 Hz; 750–2,800 RPM at 60 Hz.

• Noise Level: 72.6 dB at 1 metre.

• Airflow Adjustment: Direction adjustable through 90 degrees.

• Housing Material: Metal.

• Operating Ambient Temperature: 0°C–40°C.

• DMX Connection: 5-pin XLR.

• Power Connection: Neutrik powerCON.

Included Accessories:

• One Antari AF-3X effects fan.

• Adjustable mounting/floor bracket.

Applications:

• Distributing fog effects across stages.

• Spreading haze throughout performance spaces.

• Directing snow-machine output.

• Concerts and live entertainment.

• Theatre and stage productions.

• Churches and auditoriums.

• Event production and special-effects installations.

Included Accessories:

• Antari AF-3X fan.

• Adjustable mounting/floor bracket.

Accessories (Not Included):

• Z-3 Cable Remote: Optional wired controller.

• WTR-10 Wireless Remote: Optional wireless controller.

• DMX controller or lighting console.

• DMX cable.

• Compatible fog, haze or snow machine.

Size:

• Length: 124 mm (4.88 inches).

• Width: 316 mm (12.44 inches).

• Height: 368 mm (14.49 inches).

Weight:

• Net Weight: 6 kg (13.23 lb).

Electrical/Thermal:

• European Voltage Version: AC 220–240 V, 50/60 Hz.

• Rated Power: 127 W.

• Rated Current: Approximately 1.0 A for the European model, according to the manufacturer-listed specification.

• Operating Ambient Temperature: 0°C–40°C.

• Power Connector: Neutrik powerCON.
