AirHub DMX

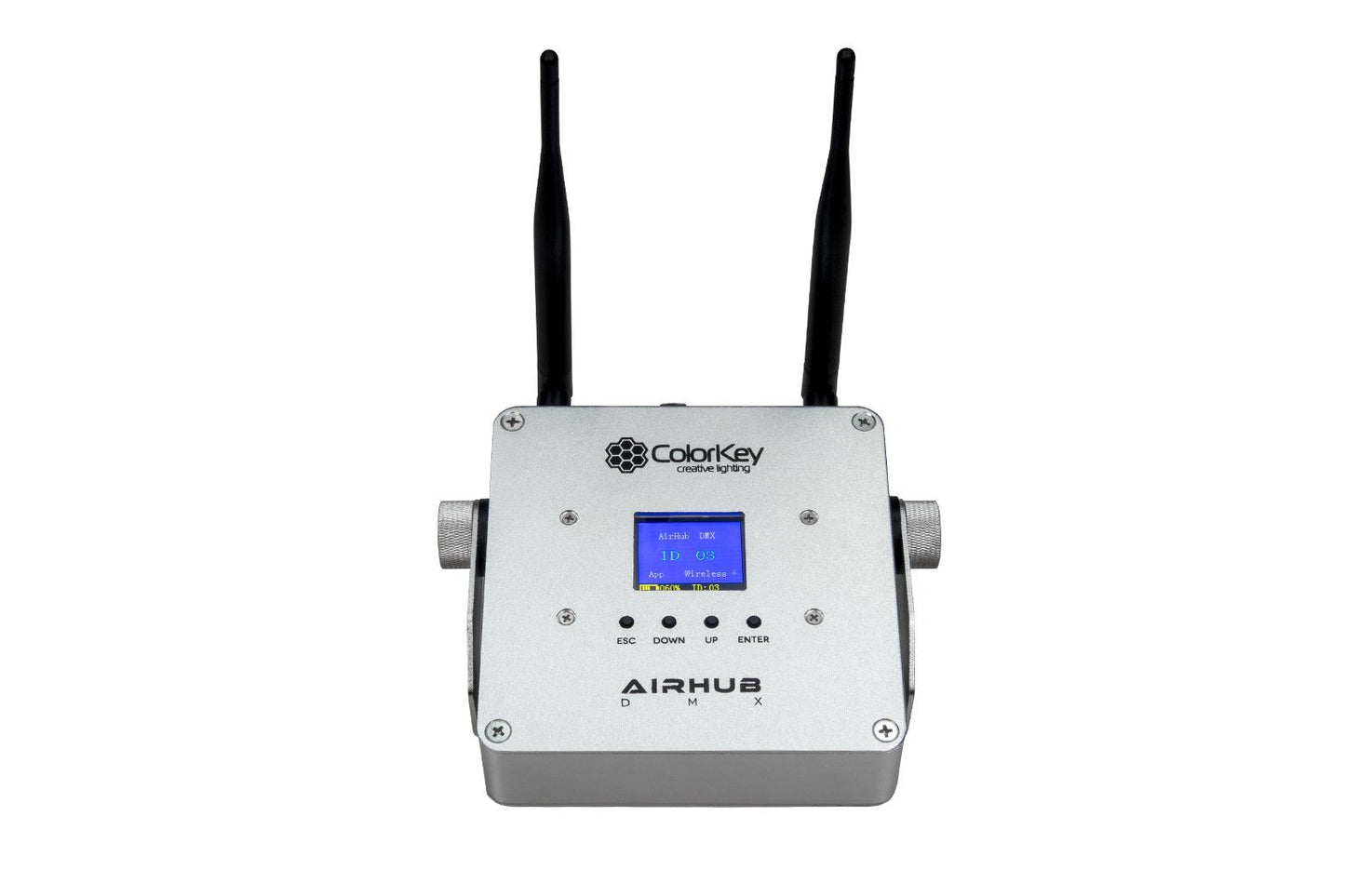

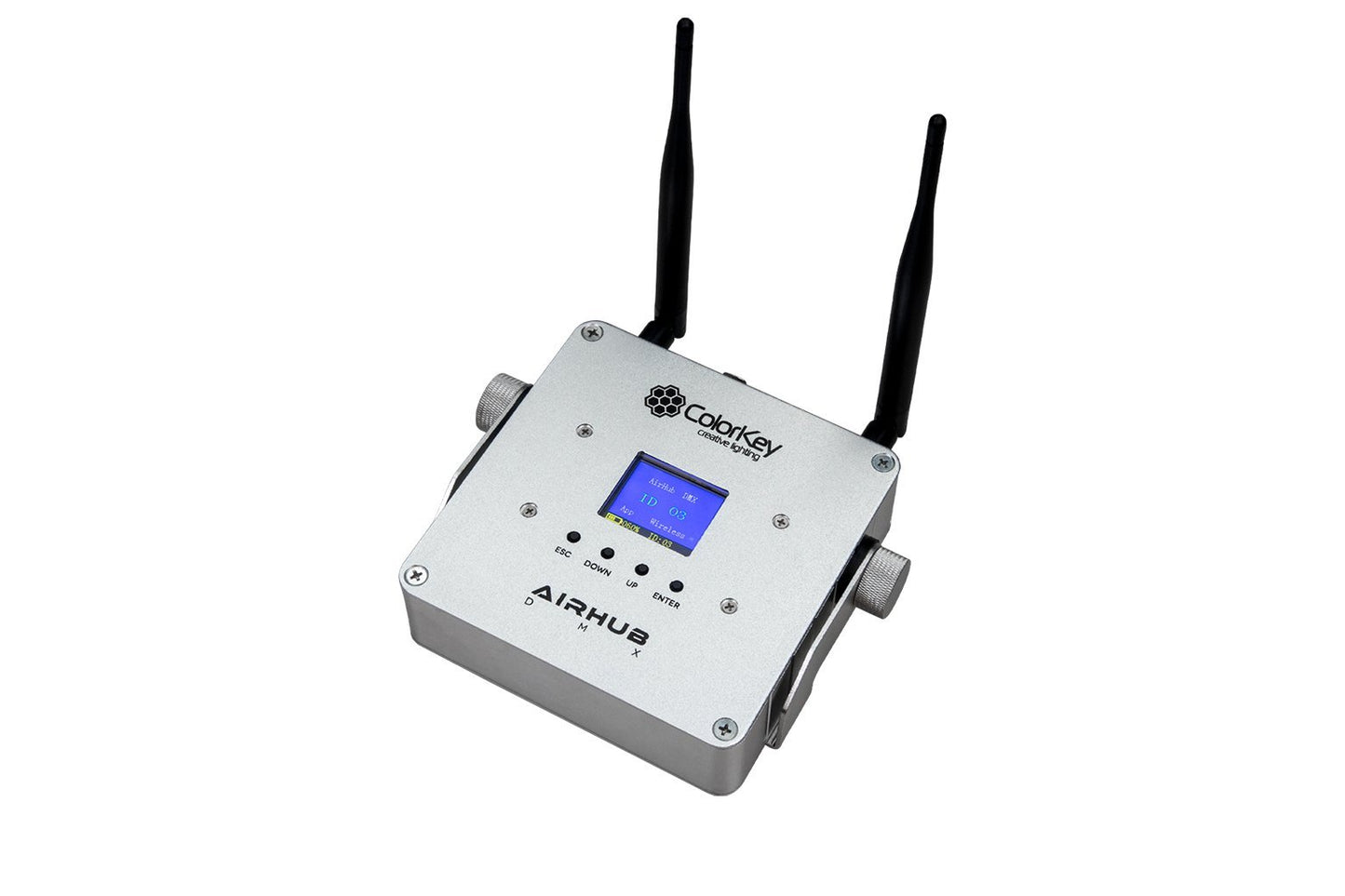

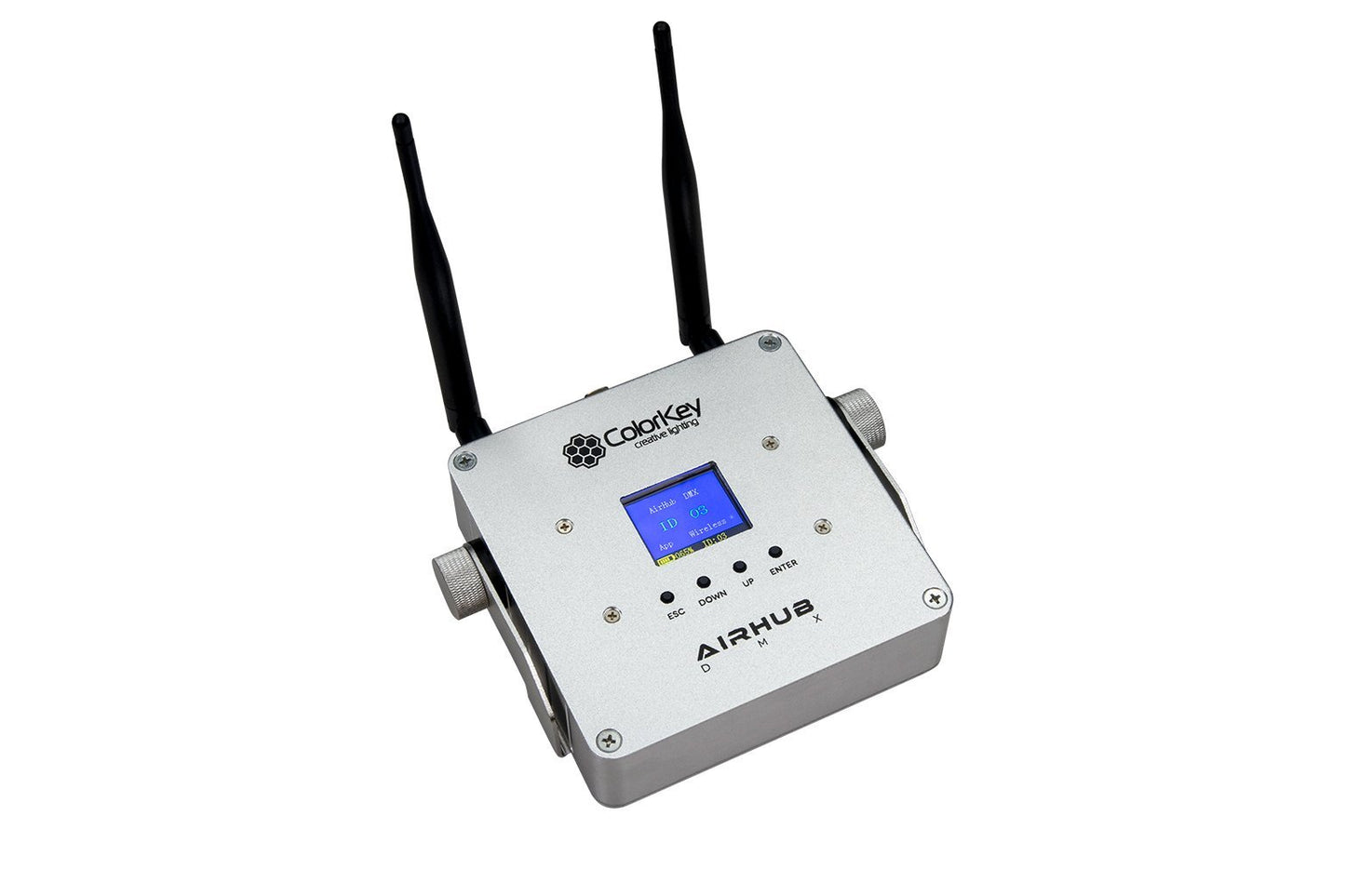

The ColorKey AirHub DMX battery-powered Wi-DMX transceiver is the central control hub for the Air Series range of lights, offering four methods to control fixtures.

From the Manufacturer

The ColorKey AirHub DMX is a battery-powered Wi-DMX transceiver, and the central control hub for the range of the Air Series ecosystem. It offers four convenient methods for controlling your fixtures: Stand-alone; using the AirApp for iPhone and iPad; as a wireless transmitter for DMX controllers; or as a wireless receiver for traditional DMX fixtures.

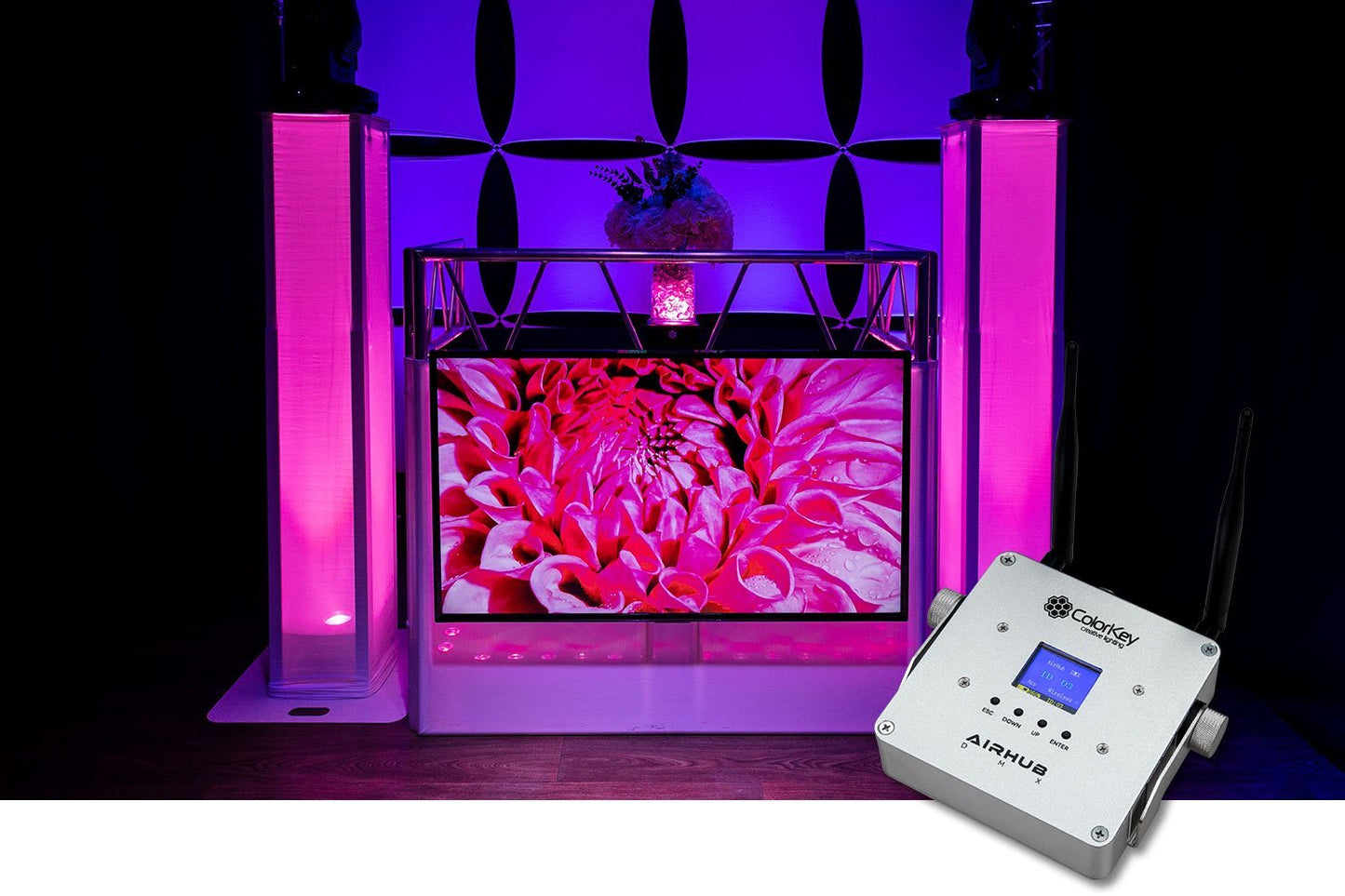

In stand-alone mode, the onboard menu is used to set auto programs, fades, color presets, or switch to sound active mode. The AirHub features different programs for RGBW and RGBAW-UV fixtures. It’s now easier than ever to fill a room with color by simply setting all the fixtures to the same wireless group ID and watching them automatically connect and synchronize.

The AirHub can also generate a WIFI network for use with the included AirApp for iPhone and iPad. The AirApp is a basic DMX controller in your pocket. It offers access to all the presets found on the AirHub, plus a color palette with dimmer. The AirApp for iPhone and iPad is available on the App Store.

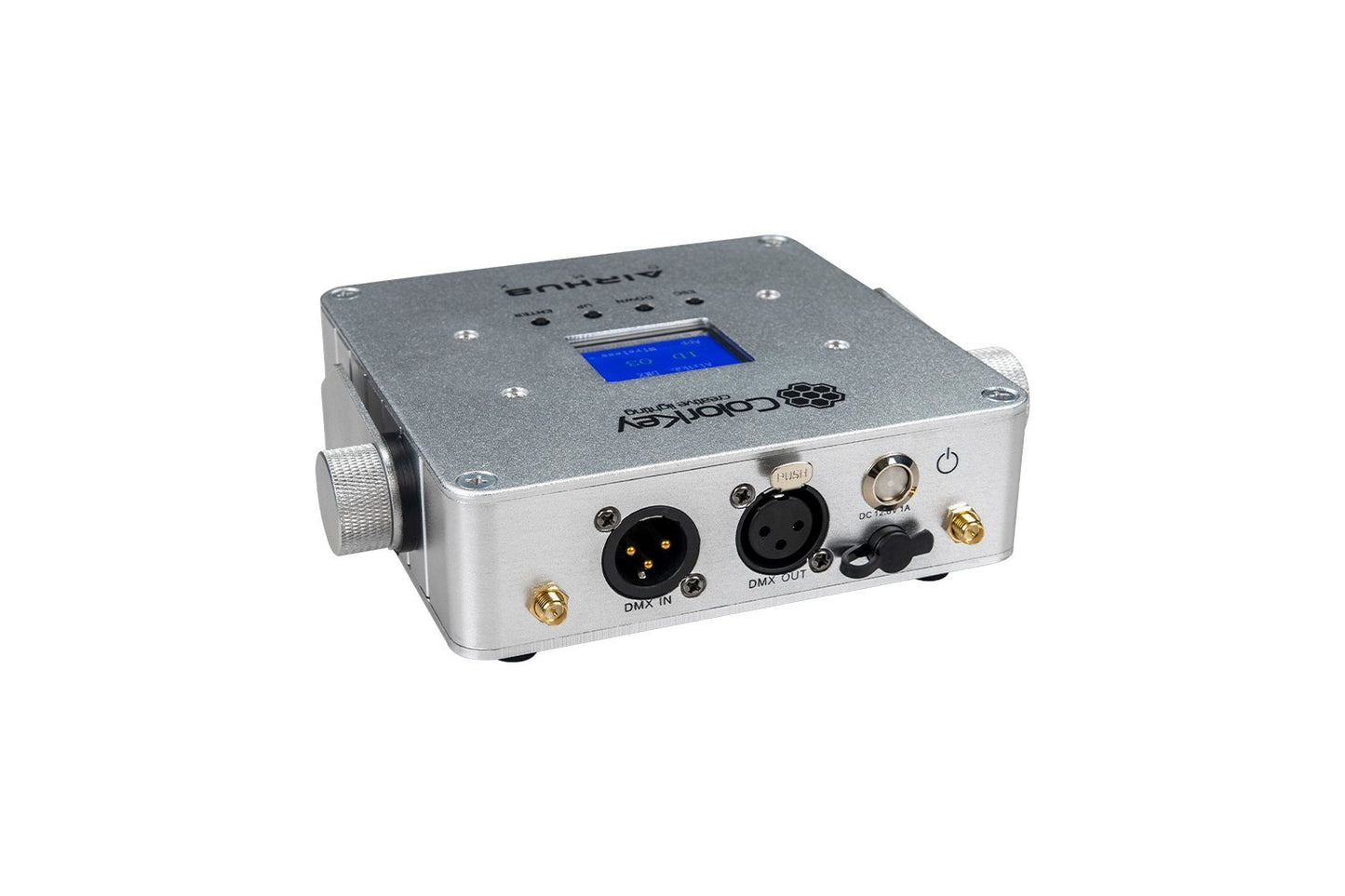

The AirHub has 3-pin DMX in and out connectors to wirelessly incorporate Air Series fixtures into any DMX setup. This gives you the freedom to place your fixtures around the room completely untethered, within the same universe as your wired DMX fixtures. The AirHub can also transform your existing wired fixtures and controllers into a fully wireless system. It functions as a either a transmitter for any standard DMX512 controller, or as a receiver for lighting fixtures. It can also transmit Wi-DMX to most 2.4Ghz enabled fixtures outside of the Air Series ecosystem.

The AirHub features a rechargeable lithium-ion battery for a completely untethered experience. The battery can power the unit for up to 20 hours from a full charge. A universal power supply with an input voltage range of 100-240 is also included.

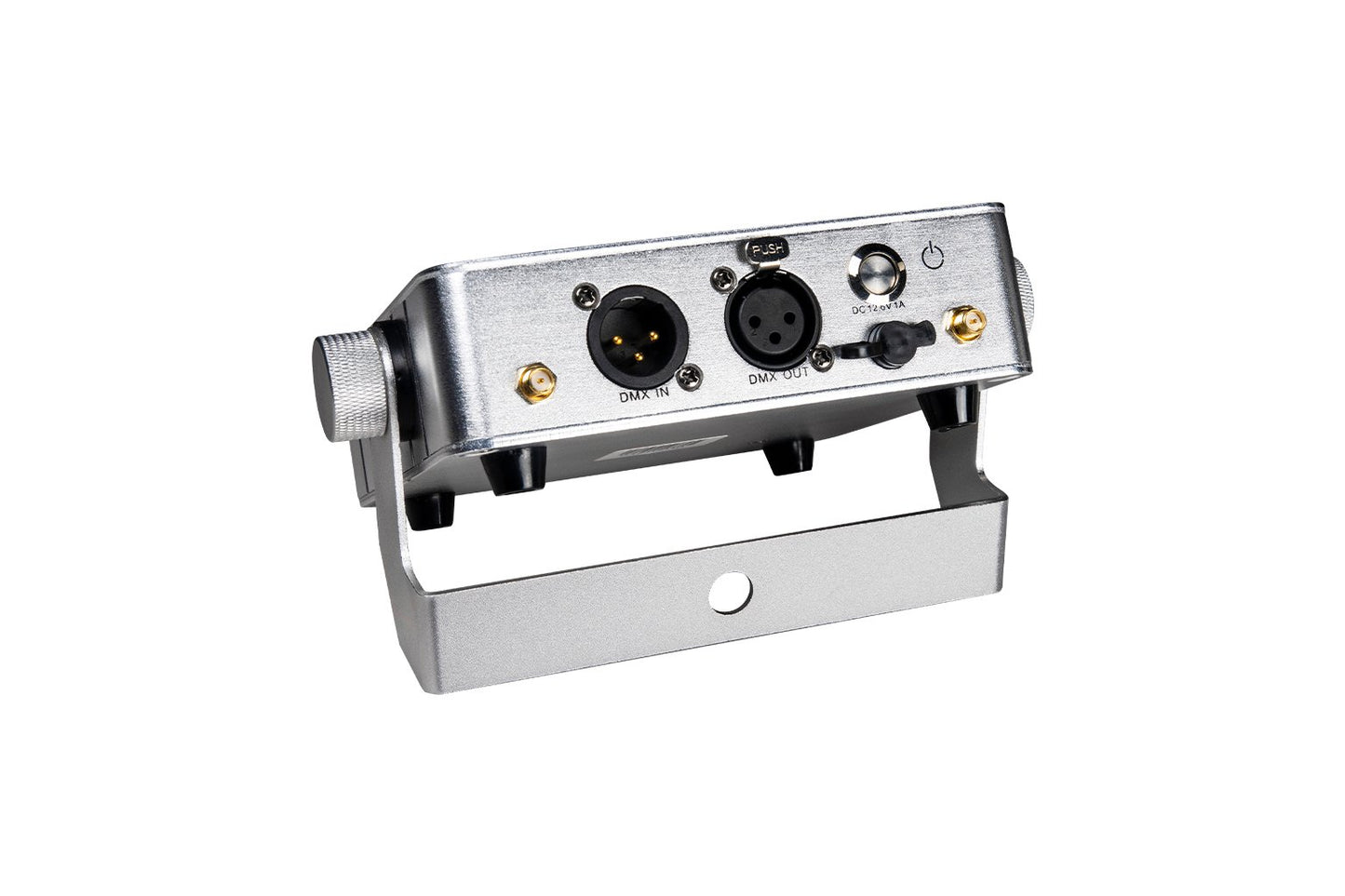

A built-in mounting bracket with adjustable angle also doubles as a kick stand, providing a variety of mounting options to use the AirHub handheld, on a desktop or controller, or mounted to truss when using as a receiver for your traditional DMX fixtures.

Features

• 4 convenient methods for controlling fixtures: Stand-alone; as a wireless transmitter for DMX controllers; as a wireless receiver for traditional DMX fixtures, or using the optional AirApp for iPhone and iPad.
• In stand-alone mode, the onboard menu is used to set auto programs, fades, color presets, or switch to sound active mode.
• Built-in rechargeable lithium-ion battery for a completely untethered experience.
• Battery powered Wi-DMX transceiver works either as a transmitter or receiver
• Connect and synchronize an unlimited number of Air Series fixtures and receivers
• Also controls most 2.4GHz wireless lighting fixtures, such as the ColorKey MobilePar Mini HEX 4
• Create different lighting environments with up to 16 wireless groups
• Quick access to preset colors, fades, and sound active mode from on-board display.
• AirApp for iPhone and iPad provides access to a color palette, dimmer, auto programs and fades.
• 3-pin DMX in/out to connect to wired fixtures and controllers
• Large color OLED display for ease of use and readability in dark environments
• Up to 20 hours of battery life for uninterrupted use
• Includes mounting bracket to hang from truss when using as receiver for wired lights

Specifications

• 2.4Ghz Wireless DMX Transmitter and Receiver
• 16 wireless group ID's
• 15 static color presets
• Auto mode (color chase) with 15 speeds
• Fade mode with 15 speeds
• Sound active mode with sensitivity adjustments
• Control modes: Wi-DMX, DMX 512, Stand Alone, Mobile App
• Lithium-Ion battery (+/-) 20 hours working time, (+/-) 5 hours charge time
• Power Consumption: 11.7W
• Power supply: 12.6V 1A; AC100-240V; 50-60Hz
• Working temperature: up to 40ÀöC
• Product size: 5.5 x 5.5 x 3.5 in
• Net Weight: 1.6 lbs
