AM5212/26

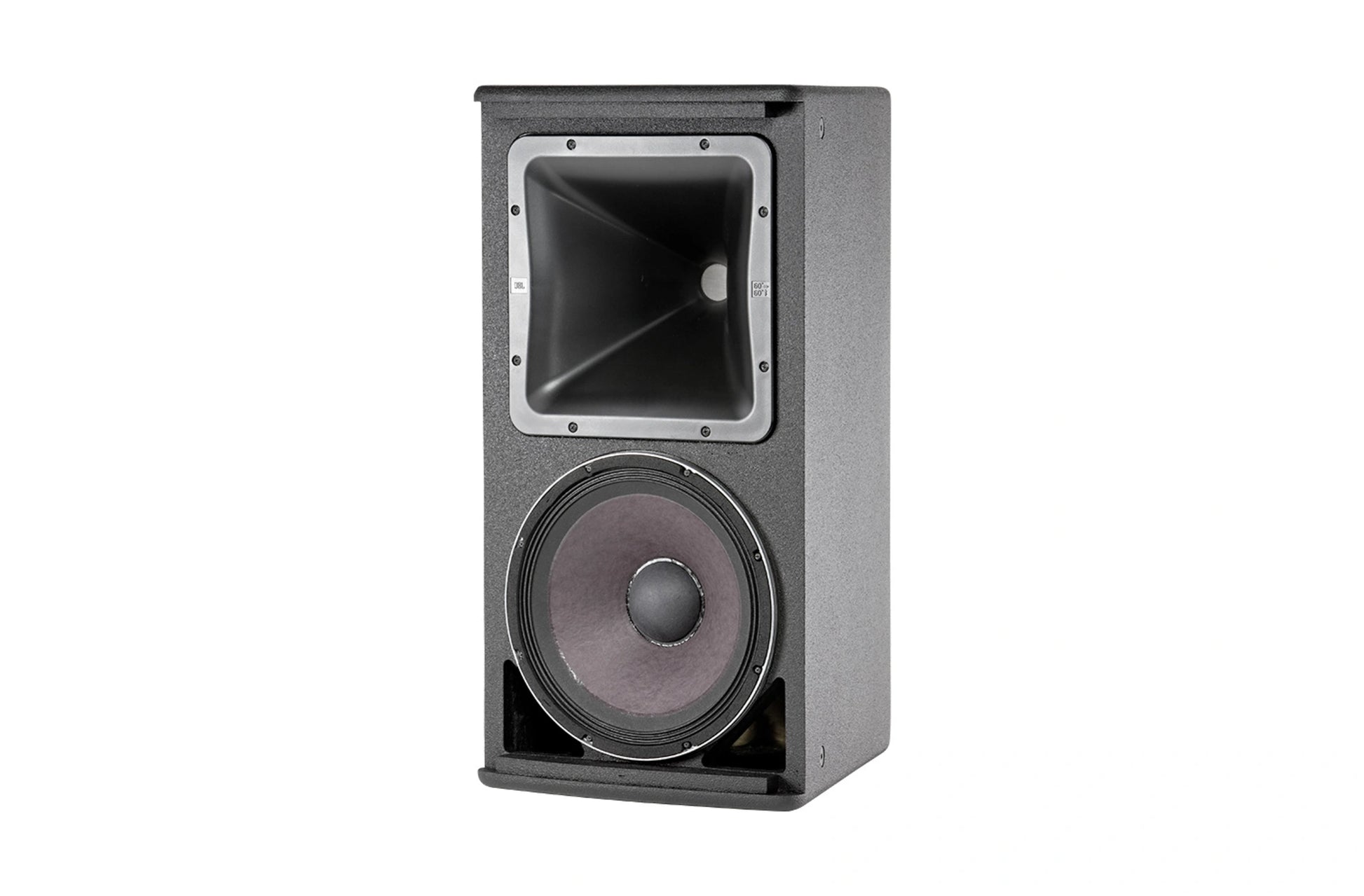

The JBL AM5212/26 is a 12 in full-range installation speaker with broad 120 x 60 degree coverage for venues that need wide, controlled sound from a single cabinet.

From The Manufacturer:

JBL describes the AM5212/26 as a medium-power, lightweight, 2-way full-range loudspeaker with a 12 in Differential Drive low-frequency driver, 2408H-1 compression driver, and rotatable Progressive Transition waveguide.

Specifications:

• Type: 12 in 2-way medium-power full-range loudspeaker
• Frequency range: 37 Hz - 20 kHz (-10 dB)
• Frequency response: 43 Hz - 18 kHz (+/-3 dB)
• Coverage: 120 degrees x 60 degrees
• LF driver: 1 x JBL 262H-1, 300 mm (12 in)
• HF driver: JBL 2408H-1, 38 mm (1.5 in) exit
• Crossover modes: Bi-amp/passive switchable
• Passive crossover frequency: 1.5 kHz
• Nominal impedance: 8 ohms

Included:

AM5212/26 loudspeaker cabinet.

Applications:

Performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.

Contents:

Loudspeaker cabinet only.

Accessories (Not Included):

M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-3, amplifier/DSP, and speaker cabling.

Size:

713 x 371 x 458 mm (28.06 x 14.6 x 18.1 in), H x W x D in vertical orientation.

Weight:

20.2 kg (45 lb) each.

Electrical/Thermal

Passive mode: 300 W, 1200 W peak, 100 hours. LF transducer: 400 W, 1600 W peak, 2 hours; 300 W, 1200 W peak, 100 hours. HF transducer: 40 W, 160 W peak, 2 hours. Environmental rating: Mil-Std 810; IP-x3 per IEC529.
