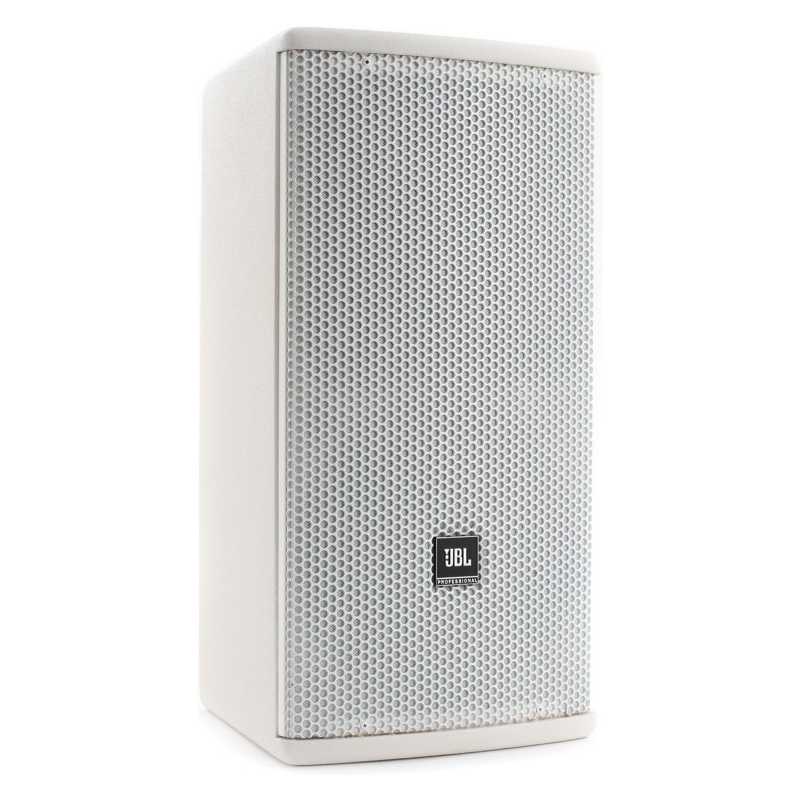

AM5215/64

The JBL AM5215/64 is a medium-power 15 in full-range installation speaker with focused 60 x 40 degree coverage and switchable passive/bi-amp operation.

From The Manufacturer:

JBL describes the AM5215/64 as a lightweight, 2-way full-range loudspeaker with a 15 in Differential Drive low-frequency driver, 2408H-1 compression driver, and rotatable Progressive Transition waveguide.

Specifications:

• Type: 15 in 2-way medium-power full-range loudspeaker
• Frequency range: 35 Hz - 20 kHz (-10 dB)
• Frequency response: 41 Hz - 18 kHz (+/-3 dB)
• Coverage: 60 degrees x 40 degrees
• LF driver: 1 x JBL 265H-1, 380 mm (15 in)
• HF driver: JBL 2408H-1, 38 mm (1.5 in) exit
• Crossover modes: Bi-amp/passive switchable
• Passive crossover frequency: 2 kHz
• Nominal impedance: 8 ohms

Included:

AM5215/64 loudspeaker cabinet.

Applications:

Performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.

Contents:

Loudspeaker cabinet only. Manufacturer page does not list package contents beyond the speaker.

Included Accessories:

Not specified by manufacturer.

Accessories (Not Included):

M10 x 35 mm forged shoulder eyebolts with washers, U-Bracket MTU-1, amplifier/DSP, and speaker cabling.

Size:

783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in), H x W x D in vertical orientation.

Weight:

25.0 kg (55 lb) each.

Electrical/Thermal

Passive mode: 350 W, 1400 W peak, 100 hours. LF transducer: 500 W, 2000 W peak, 2 hours; 350 W, 1400 W peak, 100 hours. HF transducer: 40 W, 160 W peak, 2 hours. Environmental rating: Mil-Std 810; IP-x3 per IEC529.
