AM5215/66

The AM5215/26 is a 15-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn, for use in auditoriums, performance venues, worship facilities and more.

From the Manufacturer

15-inch 2-Way Loudspeaker with 60° x 60° Rotatable Horn

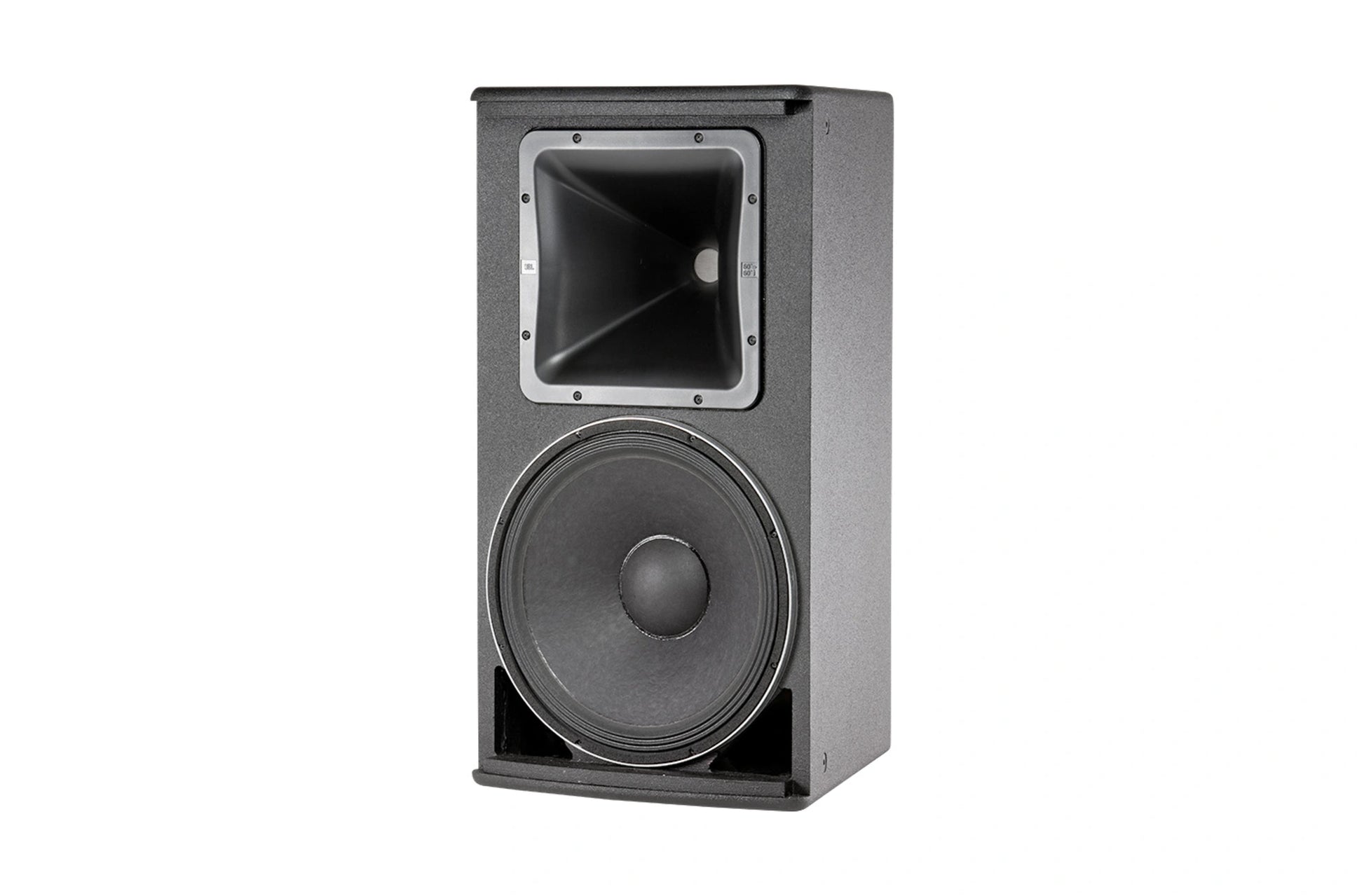

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

• 60° x 60° Coverage

• 265H-1 Differential Drive® Low-Frequency Driver

• 2408H-1 High-Frequency Compression Driver

• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion

• Rotatable waveguide for vertical or horizontal orientation

• Bi-Amp/Passive Switchable

• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality

• Available in Black, White and WRC/WRX weather resistant finishes

Applications:

• Performing Arts Facilities

• Theatrical Sound Design

• Auditoriums

• Worship Facilities

• Live Clubs

• Dance Clubs

• Sports Facilities

• Themed Entertainment Venues

Specifications

• Frequency Range (-10dB)

• 35 Hz - 20 kHz

• Frequency Response (±3 dB)

• 41 Hz – 20 kHz

• Coverage Pattern

• /64: 60° x 40°/66: 60° x 60°/95: 90° x 50° /26: 120° x 60°

• Directivity Factor (Q)

• 14.5

• Directivity Index (DI)

• 11.6 dB

• Crossover Modes

• Bi-amp/Passive switchable

• Passive Crossover Frequency

• 2 kHz

• Transducer Power Rating (AES)

• LF: 500 W (2000 W peak), 2 hrs350 W (1400 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs

• System Power Rating

• Passive mode: 350 W (1400 W peak), 100 hrs

• Maximum SPL (1m)

• Bi-amp mode:LF: 125 dB-SPL cont avgHF: 131 dB-SPL cont avg.

• System Sensitivity (1w @ 1m)

• Passive mode: 98 dB SPL

• LF Driver

• 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil

• Nominal Impedance0

• 8 ohms

• Sensitivity (1W @ 1m, within operational band)

• 99 dB SPL

• HF Driver

• JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil

• Sensitivity

• 115 dB SPL

• Waveguide

• PT-H66HF-1

• Enclosure

• Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood

• Suspension Attachment

• 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware

• Finish

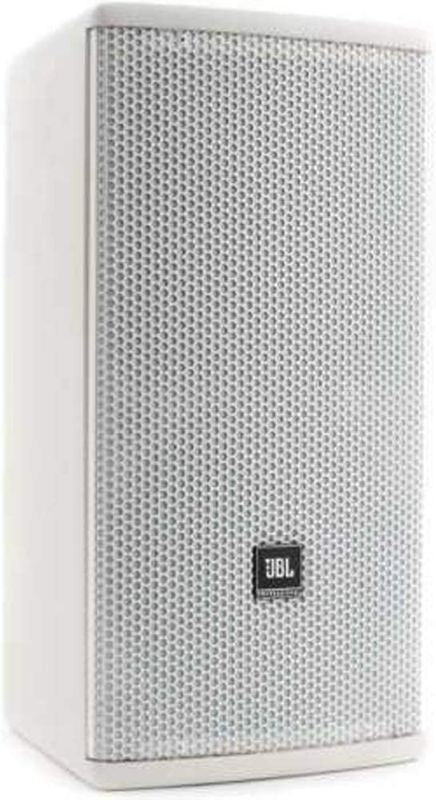

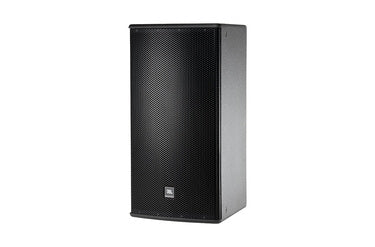

• Black DuraFlex™ finish. White available upon request.

• Grille

• Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

• Input Connector

• NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

• Environmental

• Mil-Std 810; IP-x3 per IEC529.

• Dimensions (H x W x D in vertical orientation)

• 783 x 422 x 504 mm(30.8 x 16.6 x 19.85 in)

• Net Weight (each)

• 25.0 kg (55 lb)

• Optional Accessories

• M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1

• System Power Rating

• Passive mode: 350 W (1400 W peak), 100 hrs (IEC rated)

• Nominal LF Driver Impedance

• 8 ohms

• Nominal HF Driver Impedance

• 8 ohms
