AM7215/26

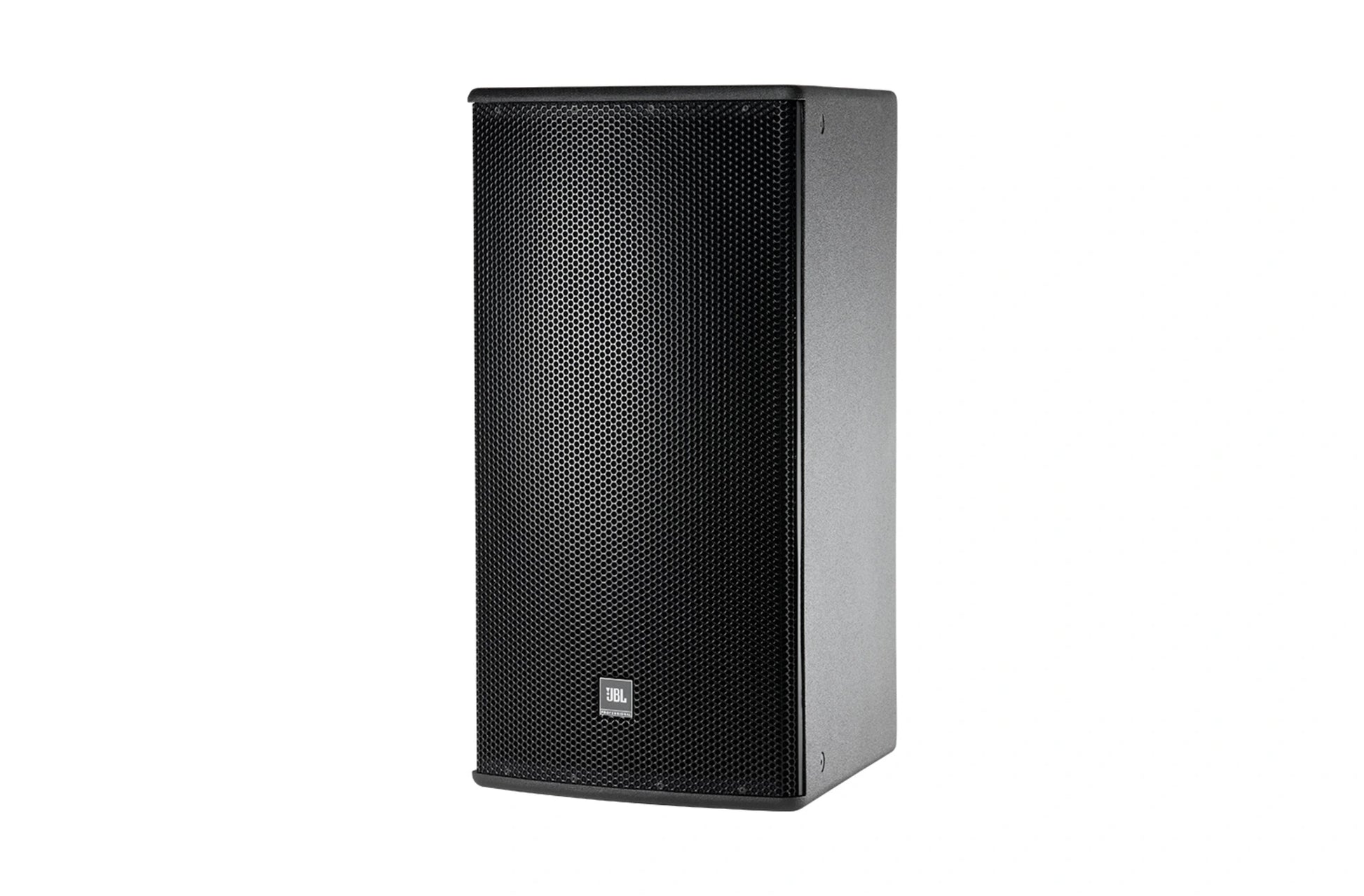

The JBL AM7215/26 high power, lightweight 2-way loudspeaker system provides excellent coverage for performance venues, worship facilities, dance clubs and more.

From the Manufacturer

High Power 15-inch 2-Way Loudspeaker with 120° x 60° Rotatable Horn

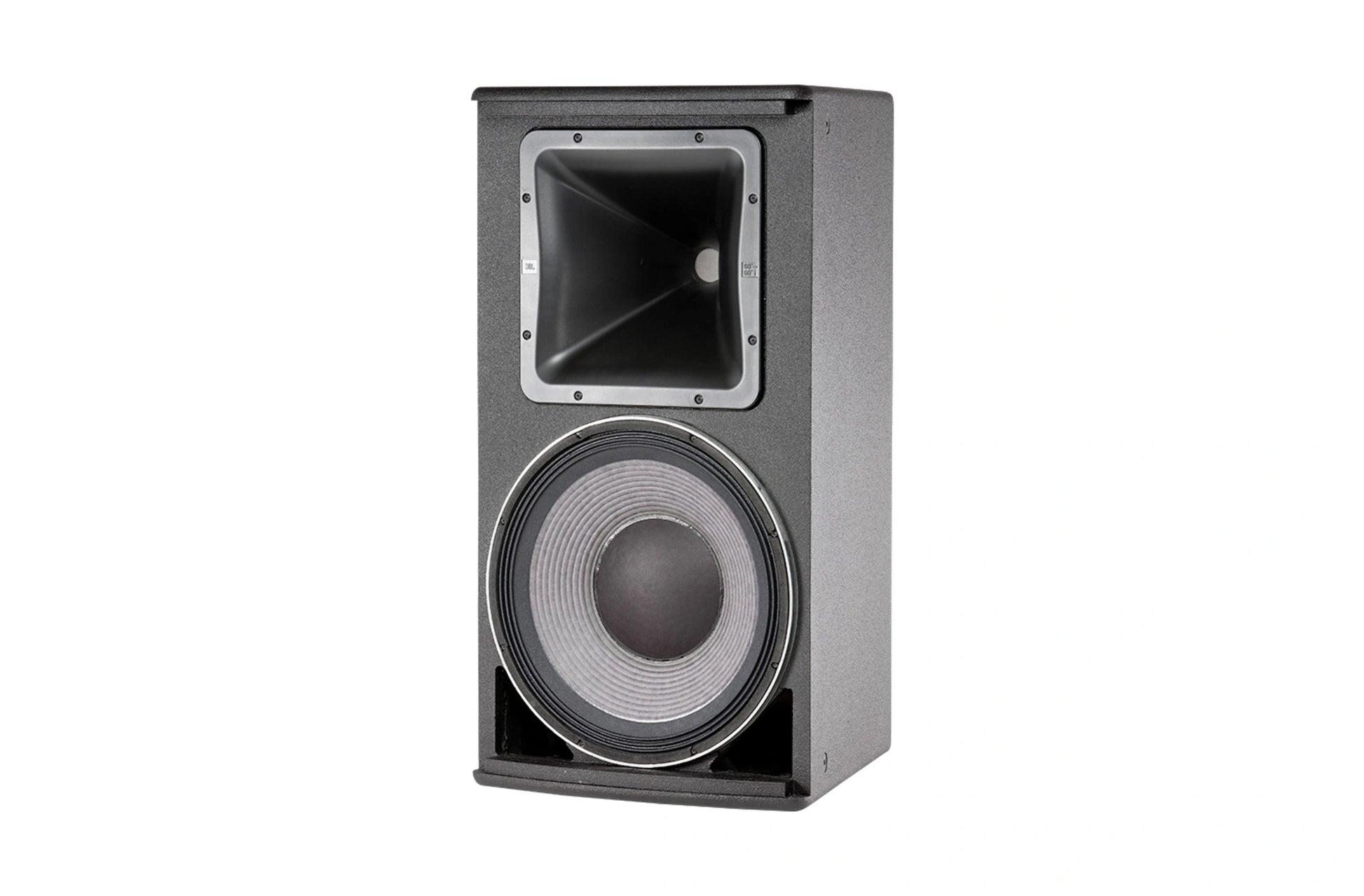

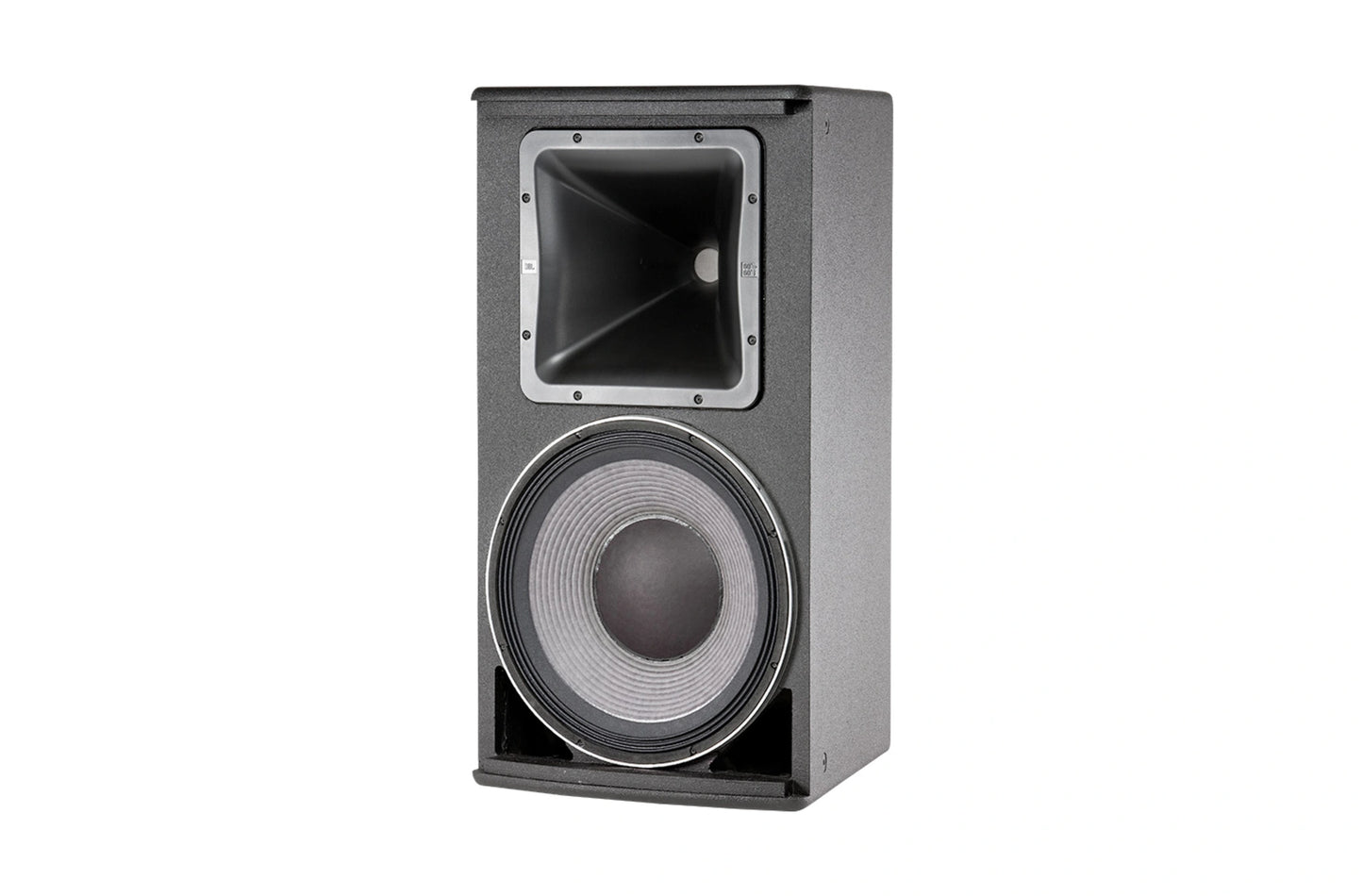

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

• 120° x 60° Coverage
• 2265H Differential Drive® Low- Frequency Driver
• 2432H High-Frequency Compression Driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality

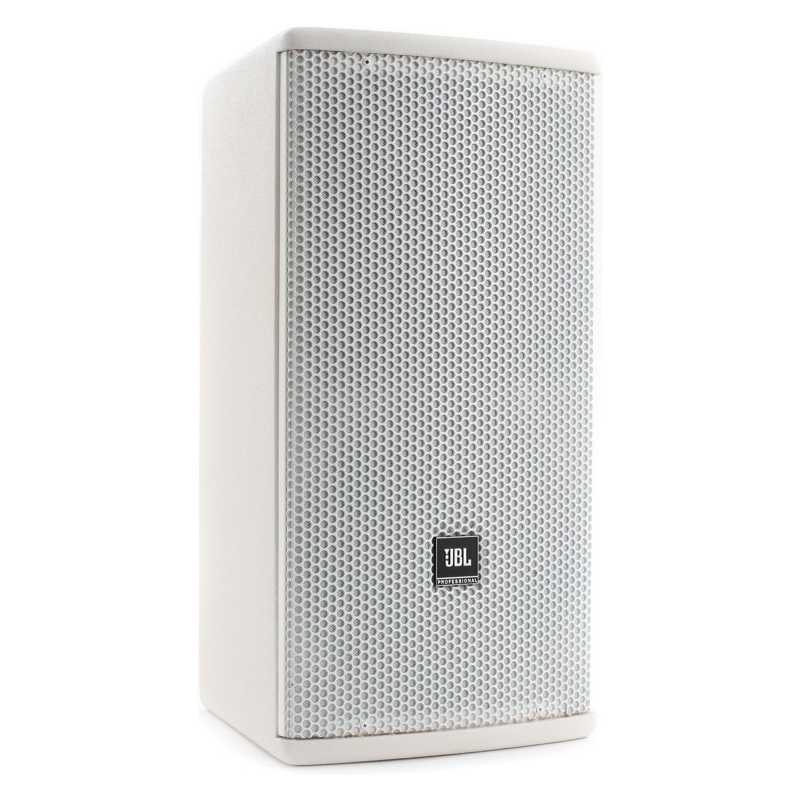

• Available in Black, White and WRC/WRX finishes

Specifications

• Frequency Range (-10dB): 34 Hz - 20 kHz
• Frequency Response (±3 dB): 40 Hz - 18 kHz
• Coverage: /64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
• LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
• HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
• System Type: 15" Two - Way, High Power, Full - Range
• Dimensions (H x W x D): 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
• Net Weight (each): 27.2 kg (60 lb)
• Crossover Modes: Bi-amp/Passive switchable
• Passive Crossover Frequency: 1.8 kHz
• Transducer Power Rating (AES):
  • LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs
  • HF: 100 W (400 W peak), 2 hrs
• System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs
• Maximum SPL (1m):
  • Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)
  • Passive mode:124 dB-SPL cont avg (130 dB peak)
• System Sensitivity (1w @ 1m): Passive mode: 96 dB SPL
• Nominal Impedance: 8 ohms
• System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated)
• Nominal LF Driver Impedance: 8 ohms
• Nominal HF Driver Impedance: 8 ohms
• Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
• Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Environmental: Mil-Std 810; IP-x3 per IEC529.
