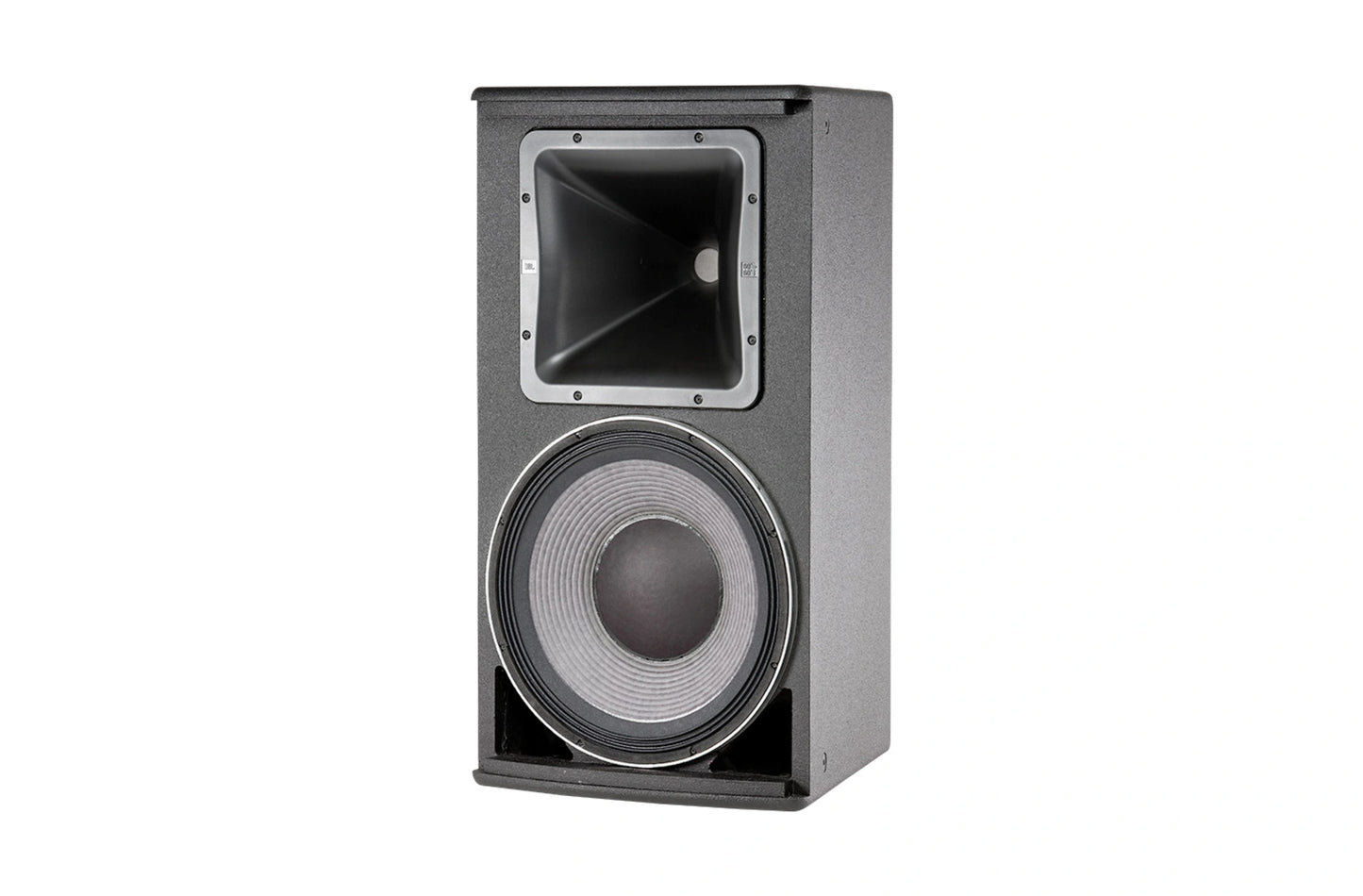

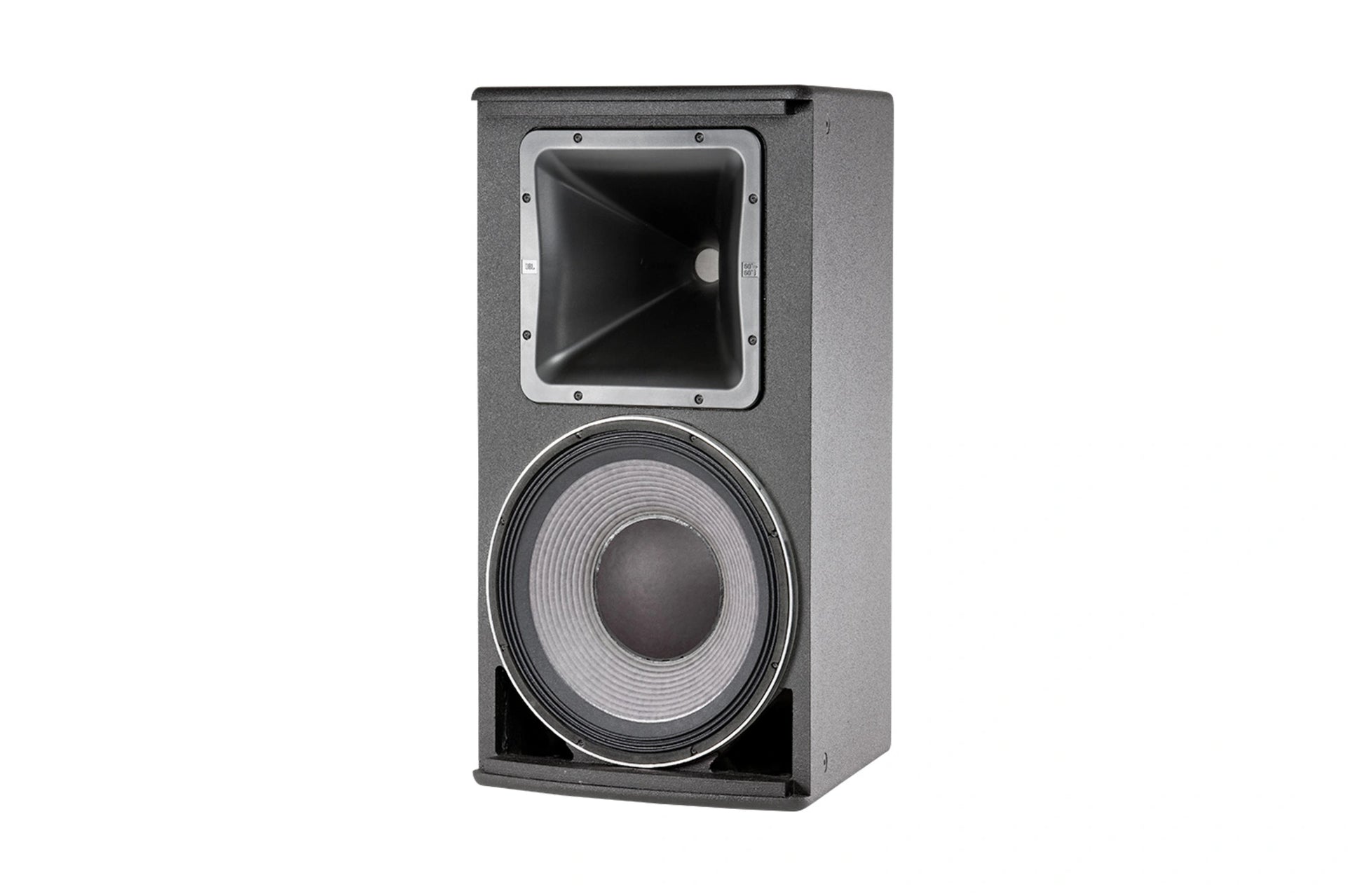

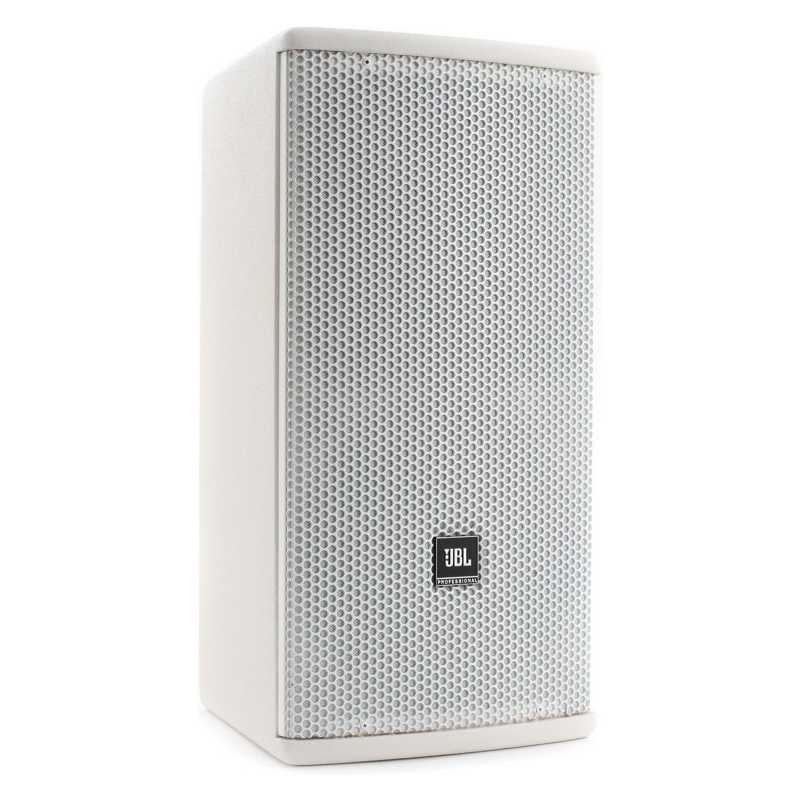

AM7215/95

The JBL AM7215/95 is a high-power full-range installation loudspeaker with a 15 in low-frequency driver and controlled 90 x 50 degree coverage for demanding venues.

From The Manufacturer:

JBL describes the AM7215/95 as a high-power, lightweight, 2-way full-range loudspeaker with a 15 in Differential Drive low-frequency driver, 2432H compression driver, and rotatable Progressive Transition waveguide.

Specifications:

• Type: 15 in 2-way high-power full-range loudspeaker
• Frequency range: 34 Hz - 20 kHz (-10 dB)
• Frequency response: 40 Hz - 20 kHz (+/-3 dB)
• Coverage: 90 degrees x 50 degrees
• LF driver: 1 x JBL 2265H, 380 mm (15 in)
• HF driver: JBL 2432H, 38 mm (1.5 in) exit, 75 mm (3 in) voice coil
• Crossover modes: Bi-amp/passive switchable
• Passive crossover frequency: 1.8 kHz
• Nominal impedance: 8 ohms

Included:

AM7215/95 loudspeaker cabinet.

Applications:

Performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues.

Contents:

Loudspeaker cabinet only.

Included Accessories:

Not specified by manufacturer.

Accessories (Not Included):

M10 x 35 mm forged shoulder eyebolts with washers, compatible U-bracket/rigging hardware, amplifier/DSP, and speaker cabling.

Size:

781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in), H x W x D.

Weight:

27.2 kg (60 lb) each.

Electrical/Thermal

Passive mode: 600 W, 2400 W peak, 100 hours. LF transducer: 1000 W, 4000 W peak, 2 hours; 750 W, 3000 W peak, 100 hours. HF transducer: 100 W, 400 W peak, 2 hours. Environmental rating: Mil-Std 810; IP-x3 per IEC529.
