APS4 EU/US/UK/AU Antenna Power Splitter

The AKG APS4 splitter feeds up to four receivers in a rugged metal housing, compatible with all active and passive AKG antennas on the market.

From the Manufacturer:

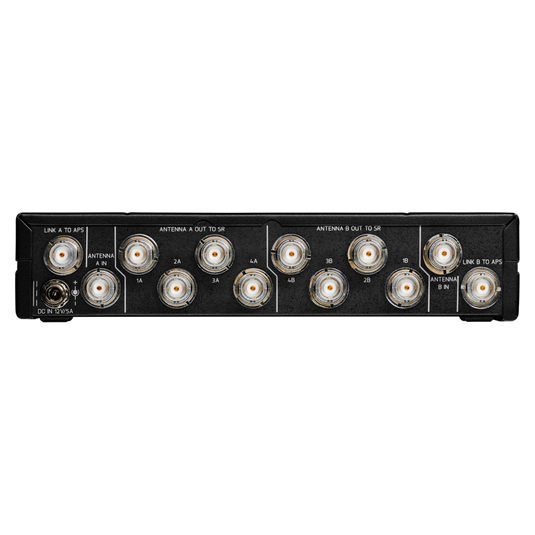

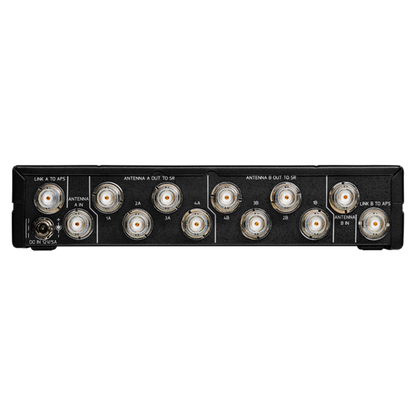

The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup. The APS4 sets are available in four different power supply variants: EU, US, U.K. or none included. Two rear panel antenna inputs provide a 10 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

Features:

• Operates in an extended frequency range: From 470 to 952 MHz for maximum flexibility

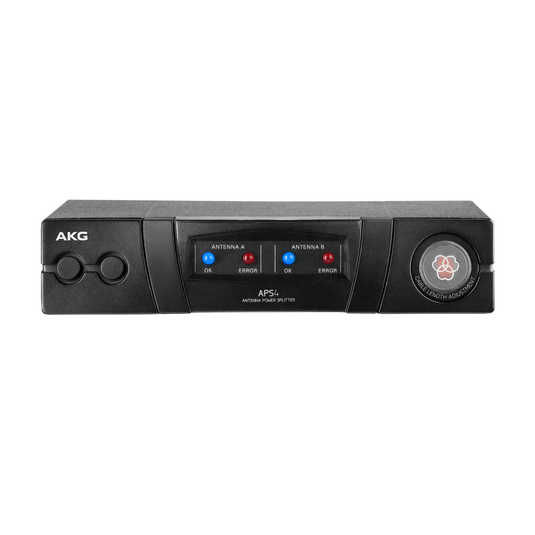

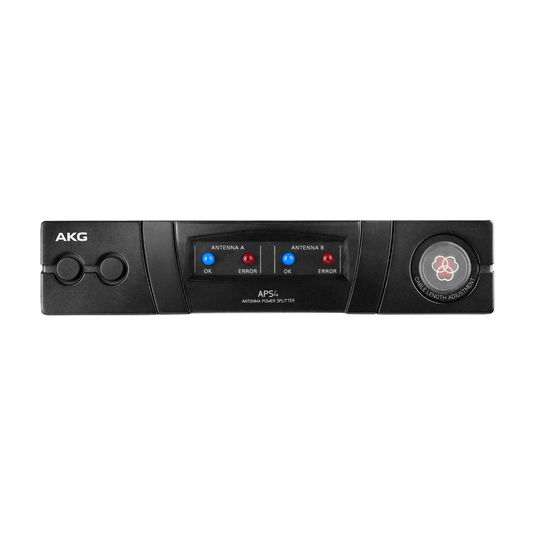

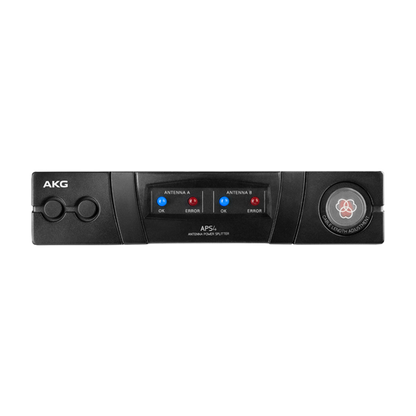

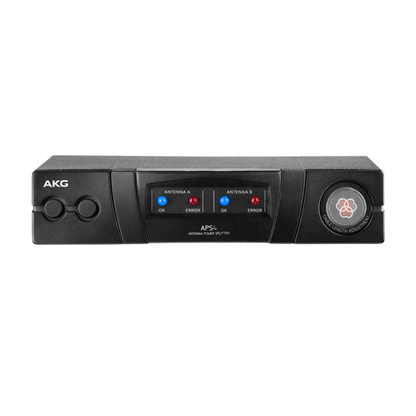

• Cable length adjustment switch: For optimizing antenna signal levels
• Link output: To cascade up to three APS4 for larger systems
• Remote power for antennas and receivers: To eliminate any extra installation effort
• All in one box: Rack mount kit and cables included

Specifications:

• Switching bandwidth (from/to): 470 to 952 MHz
• Operating temperature range: -10 to 50 Celsius
• Dimensions
  • Length: 190 mm
  • Height: 44 mm
  • Width: 200 mm
  • Net Weight: 1062 g
• What’s in the box?
  • 1 x APS4 Antenna power splitter
  • 10 x MK PS Antenna cable
  • 1 x RMU4000 Rack mount kit
  • 2 x Single front mount cable
  • 1 x Power supply (EU/US/UK/AU)
