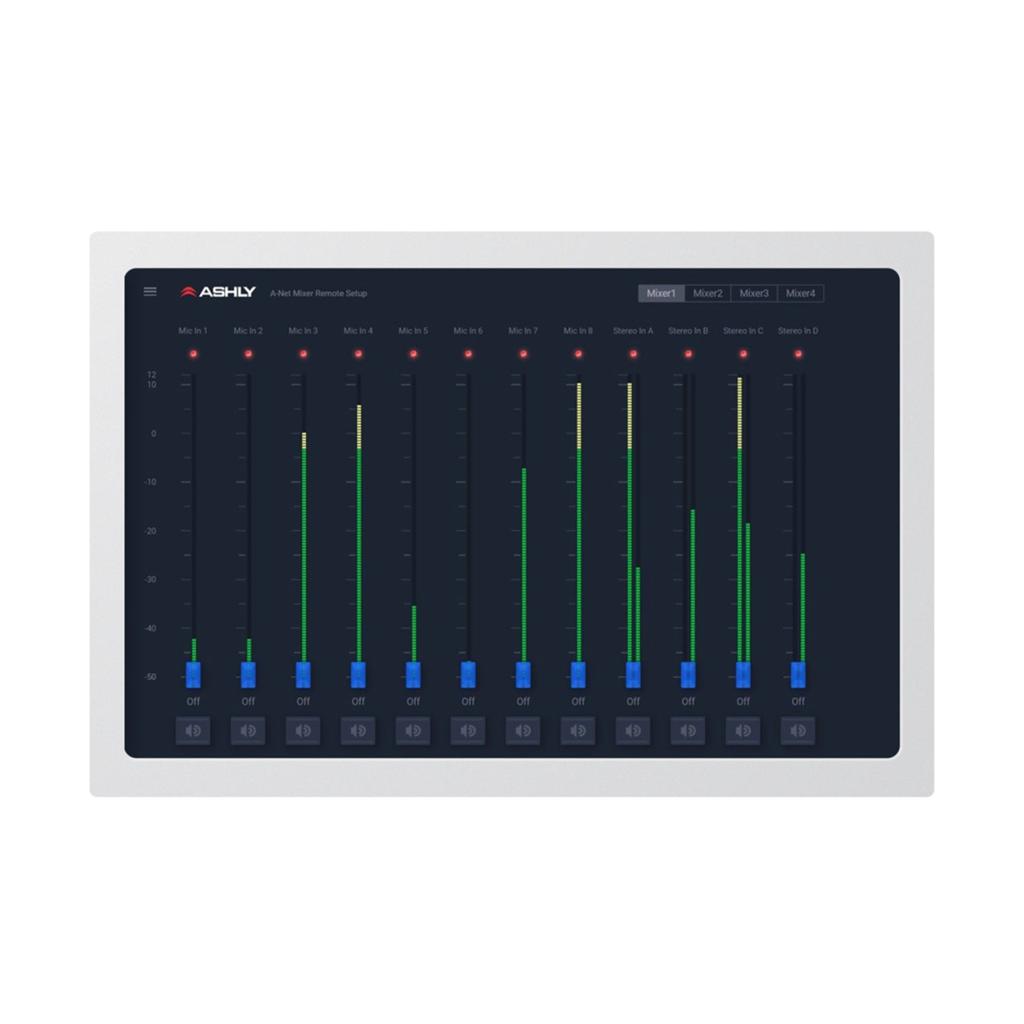

AquaTouch7 7-Inch Touchscreen Control Panel

The Ashly AquaTouch7 is a 7-inch wall-mount touchscreen remote designed for secure, convenient control of compatible Ashly audio systems using AquaControl software. Its high-resolution colour display and wired Ethernet connection provide access to configured audio controls, including volume adjustments, mixer functions, presets, and zone-control interfaces. Power over Ethernet (PoE) simplifies installation by allowing power and network communication over a single cable.

From The Manufacturer:

The AquaTouch7 is a 7-inch colour touch-panel remote designed to complement Ashly AquaControl-compatible products, including the AQM1208 digital zone mixer and mXa1502 mixer-amplifier. It provides secure remote access to the host device through a wired Ethernet connection.

Designed for flush wall mounting, the AquaTouch7 supports Power over Ethernet for straightforward installation. Its configurable access permissions allow system administrators to control which functions are available to individual users.

Key Features:

• 7-inch colour TFT touchscreen.

• Designed for Ashly AquaControl-compatible audio systems.

• Secure touchscreen-based remote control.

• High-resolution 800 × 1280 display.

• Wired RJ45 Ethernet connectivity.

• Power over Ethernet (IEEE 802.3af).

• Wall-mountable design for a neat, integrated installation.

• Compatible with single-gang, double-gang, and 60mm European-style electrical boxes.

• Configurable user permissions and secure access levels.

• Supports control interfaces provided by the connected AquaControl host device.

• Quick setup interface for identifying the compatible host device.

• Supports PoE network switches or a separate PoE injector.

Specifications:

• Brand: Ashly.

• Model: AquaTouch7.

• Product type: Touchscreen audio control panel.

• Display type: 7-inch TFT.

• Display resolution: 800 × 1280 pixels.

• Colour capability: 16.7 million colours.

• Display brightness: 400 nits.

• Network connection: RJ45 Ethernet.

• Wireless connectivity: Wi-Fi not supported.

• Power requirement: IEEE 802.3af PoE.

• Frame colour: White.

• Front material: Clear E-glass.

• Rear housing material: ABS.

• Mounted dimensions: 176 × 115 × 16.5mm (W × H × D).

• Depth behind wall: Approximately 19mm.

• Weight: Approximately 0.55kg.

• Compatible platform: Ashly AquaControl.

• Compatible product examples: Ashly AQM1208 and mXa1502.

Included Accessories:

• Wall-mount bracket.

• Installation kit, including mounting screws and installation tool, according to the product documentation.

Applications:

• Boardrooms and conference rooms.

• Houses of worship and church audio systems.

• Classrooms and educational facilities.

• Hotels and hospitality venues.

• Retail stores and commercial spaces.

• Auditoriums and meeting facilities.

• Audio zone and volume control in installations using compatible Ashly AquaControl equipment.

Included Accessories:

• Wall-mount bracket.

• Mounting hardware and installation tool, as specified in the product documentation.

Accessories (Not Included):

• PoE network switch or PoE injector.

• Ethernet cable.

• Compatible Ashly AquaControl host device.

• Electrical back box, if required for the chosen installation.

• Additional network infrastructure and installation materials.

Size:

• Mounted width: 176mm (6.91 inches).

• Mounted height: 115mm (4.53 inches).

• Mounted depth: 16.5mm (0.65 inches).

• Depth behind wall: Approximately 19mm (0.75 inches).

Weight:

• Net weight: Approximately 0.55kg (1.2lb).

Electrical/Thermal:

• Power source: Power over Ethernet.

• PoE standard: IEEE 802.3af.

• Network interface: Wired RJ45 Ethernet.

• Wi-Fi: Not supported.

• A separate compatible PoE injector or PoE-capable network switch may be required, depending on the installation.

• A DC power supply is not included where DC power is supported by the applicable configuration; confirm compatibility with the manufacturer before use.
