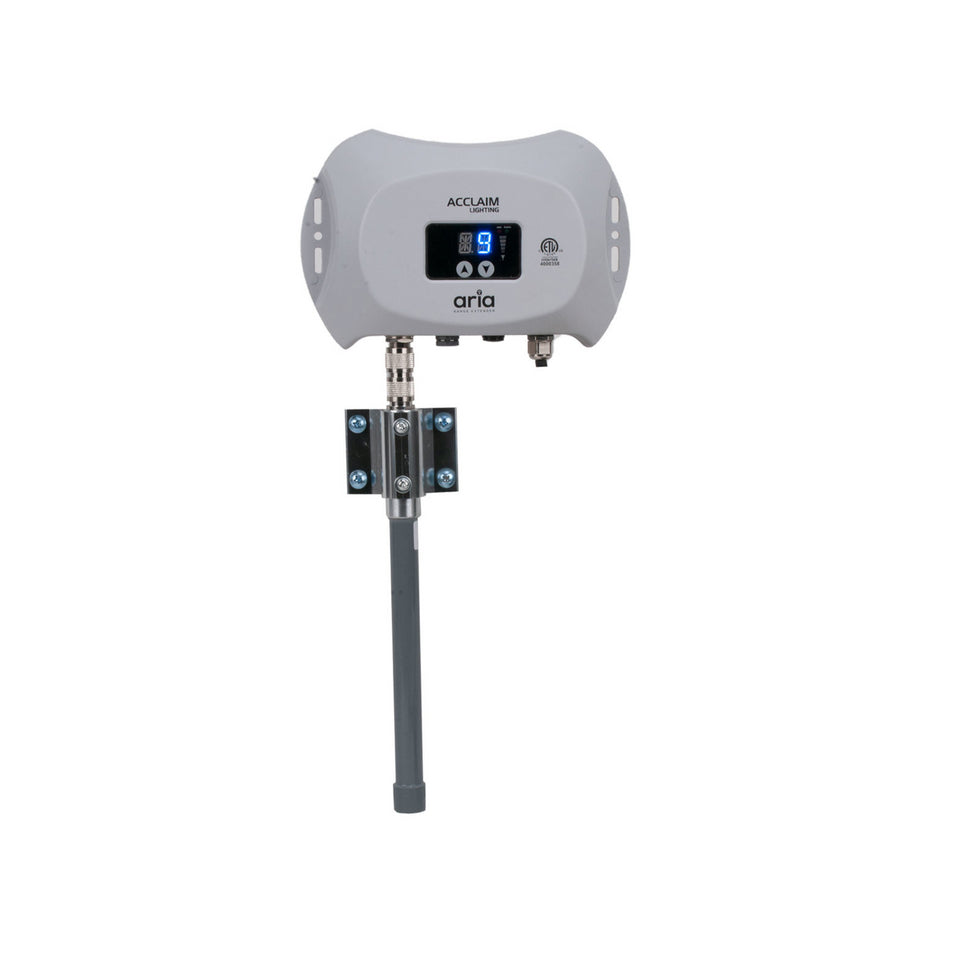

Aria Range Extender

The Elation Professional Aria Range Extender integrates with the Aria wireless DMX system to significantly extend your wireless range in any environment, indoors or out.

From the Manufacturer:

Let the Aria Range Extender, Gray, revolutionize your wireless DMX system with its compact and robust design, specifically engineered for outdoor use. This local, outdoor-rated expansion unit seamlessly integrates with the Aria wireless DMX system, receiving signals from an Aria transceiver and rebroadcasting them to significantly enhance your wireless range. Operating on the 2.4 GHz band, it effortlessly matches your existing radio channel, ensuring seamless connectivity.

The Aria Range Extender is equipped with an advanced internal wireless radio that features automatic networking and signal routing optimization. This technology guarantees optimal reception of DMX data, providing reliable performance in various environments. Included with the extender is a powerful 5dB omnidirectional antenna, capable of transmitting signals up to an impressive 2,600 feet in line of sight and 300 feet through obstructions and walls.

Designed to withstand the elements, the Aria Range Extender meets the IP66 standard for wet locations and the IK07 impact protection standard, ensuring durability and reliability in challenging conditions. With its ability to rebroadcast DMX control signals over the air, it instantly connects to any Aria Direct Connect fixture, enhancing signal strength in specific areas or extending the transmission range. Elevate your wireless DMX capabilities with the Aria Range Extender, Gray, and experience unparalleled performance and connectivity.

Features:

• Compact outdoor-rated expansion unit for the Aria wireless DMX system
• Receives signal from Aria transceiver and rebroadcasts to expand wireless range
• Matches existing radio channel on the 2.4 GHz band for seamless integration
• Internal wireless radio features automatic networking and signal routing optimization
• Ensures optimal reception of DMX data for reliable performance
• Includes a 5dB omnidirectional antenna for extended transmission
• Provides up to 2600' line of sight and 300' between obstructions and walls

Specifications:

• Finish: Gray
• Wireless Protocol: 2.4 GHz, IEEE 802.15.4, 15 selectable channels
• Estimated Transmission Distance: 2600' (792m) line of sight, 300' (91m) between obstructions and walls
• Data Encryption: AES 128-bit
• DMX Universes: One per range extender, maximum of 8 simultaneously
• Max number of transceivers: Up to 5 per single transceiver (limited to ensure optimum data transmission)
• Included Antenna: 5dB, includes direct attachment adapter and 9' extension cable
• Mounting: Wall mountable via screw holes on both the transceiver and antenna mount
• Power Consumption: 3W
• Operating Voltage: 100-240VAC, 277VAC - 50/60Hz
• Display Features: Auto lockout and display blackout
• Housing Material: Die cast aluminum
• Ambient Operating Temperature: -40 Degree F to 122 Degree F (-40 Degree C to 50 Degree C)
• IP Rating: IP66, Wet Location (does not include feed ends - install in an enclosure)
• Wiring: 3.28' (1m) Attached AC power feed cable
• Dimensions (W x H x L): 9.1 x 6.2 x 2.2" (231.6 x 157.7 x 55mm)
• Weight: 3.96 lbs (1.8 kg)
