Sku: AX2139

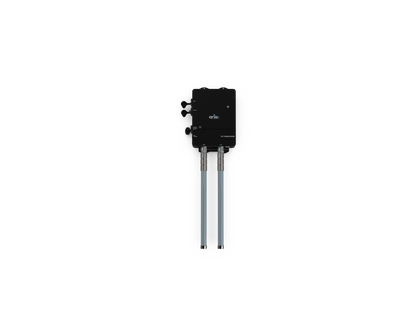

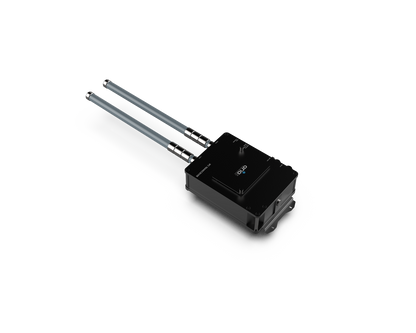

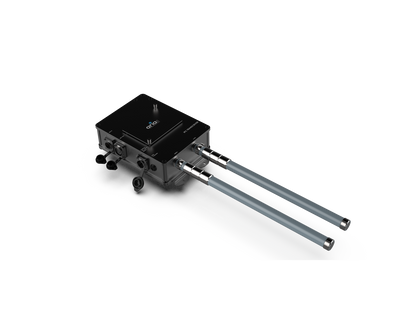

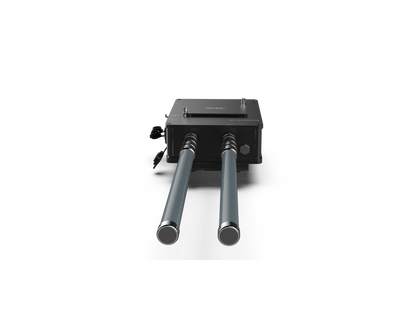

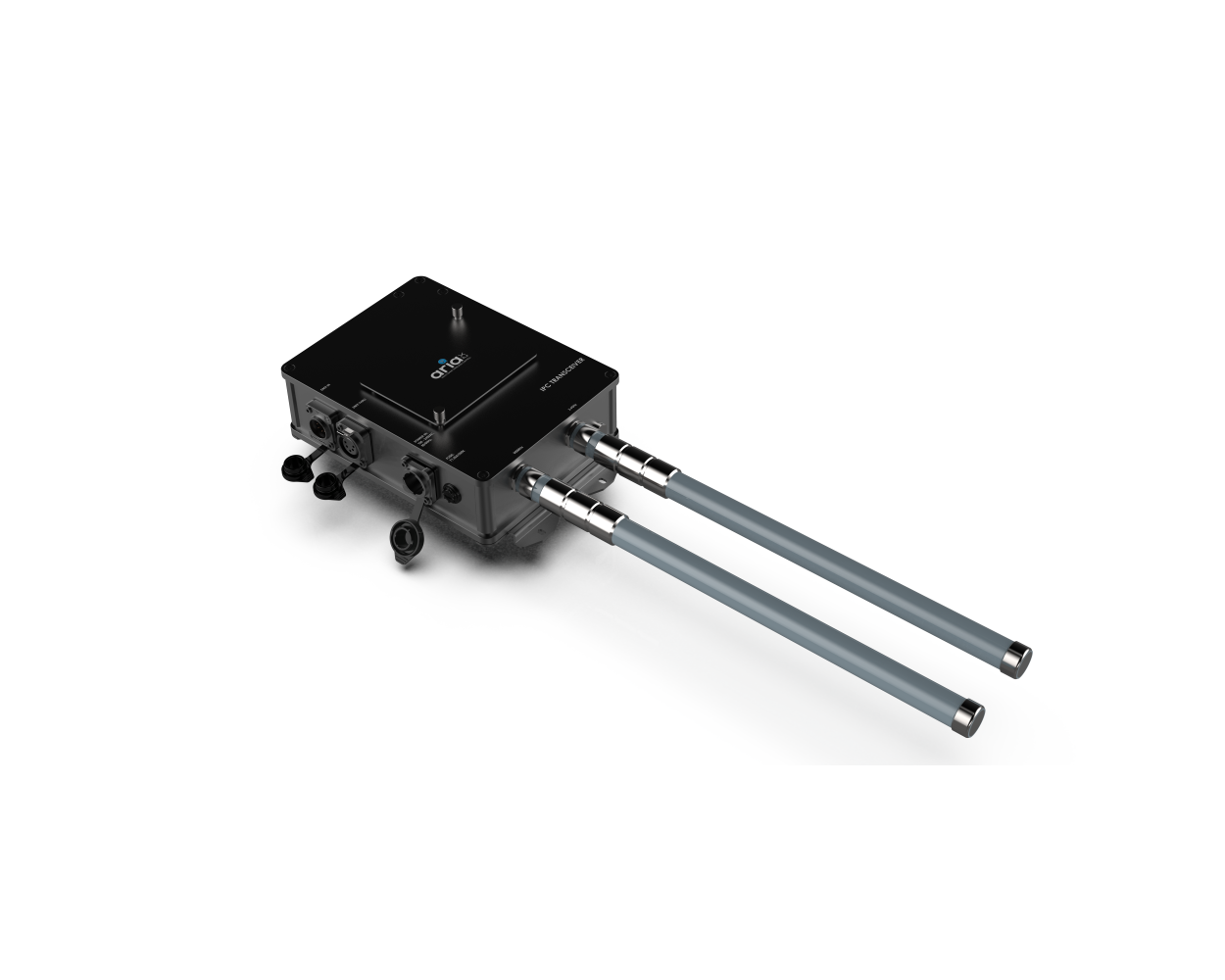

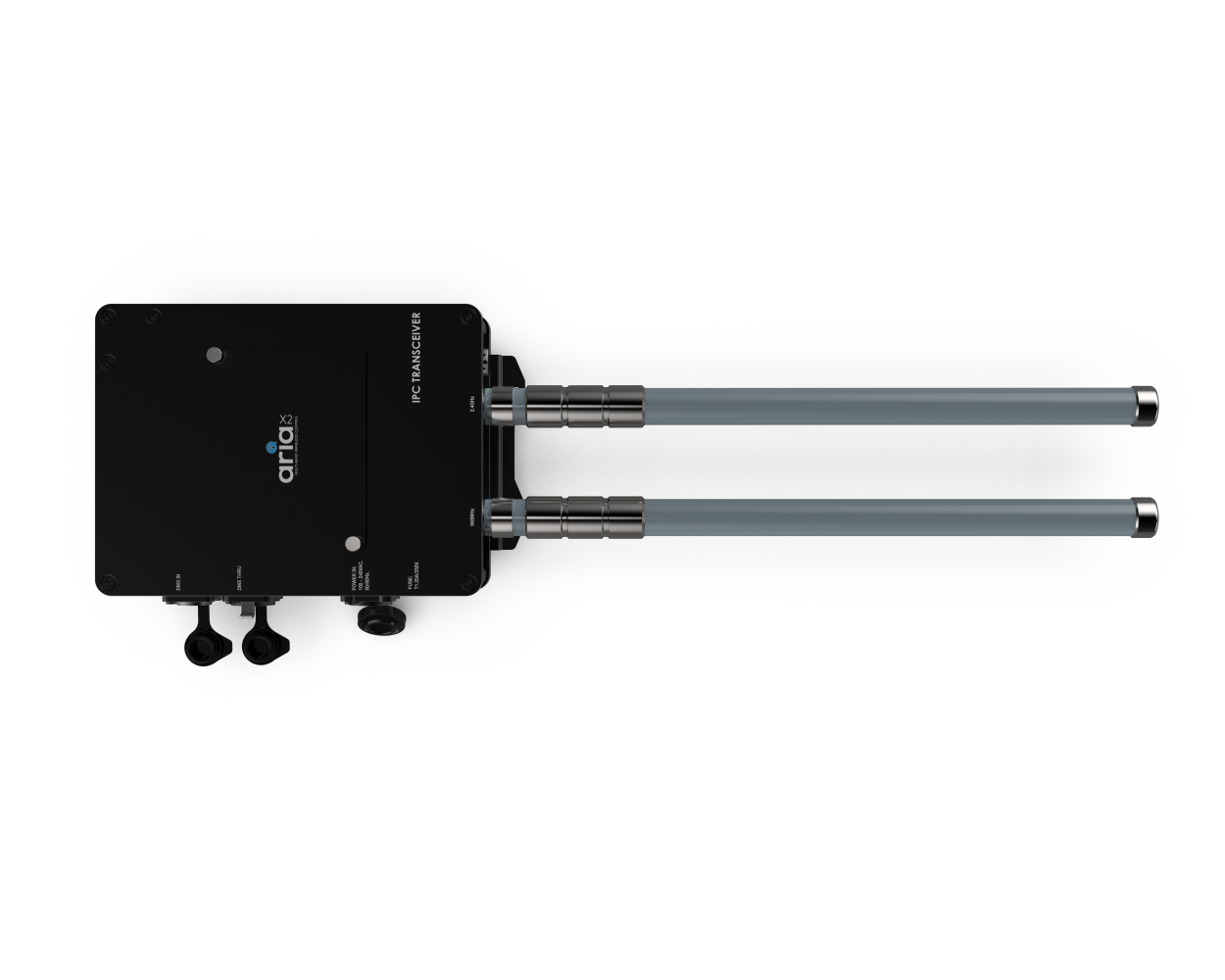

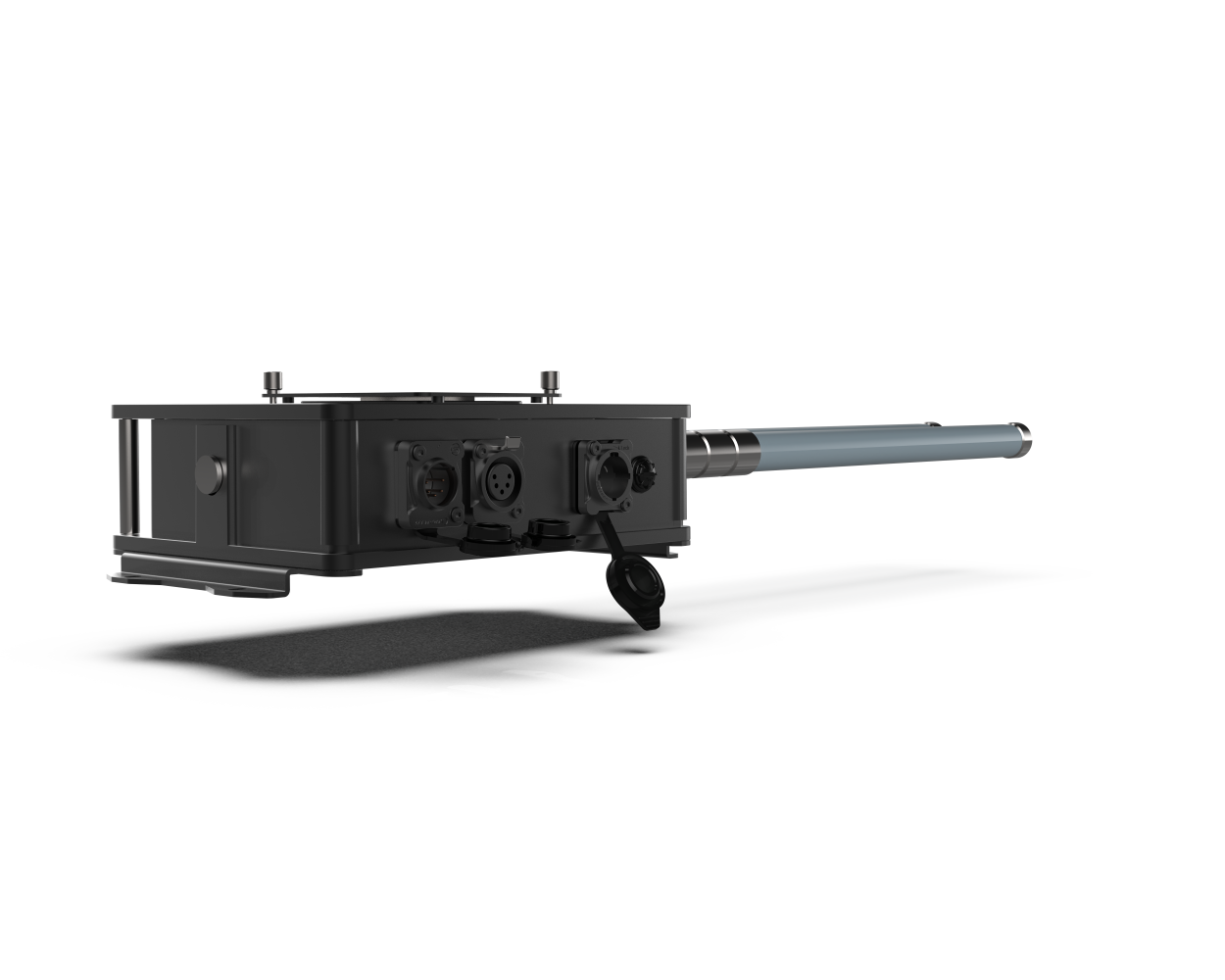

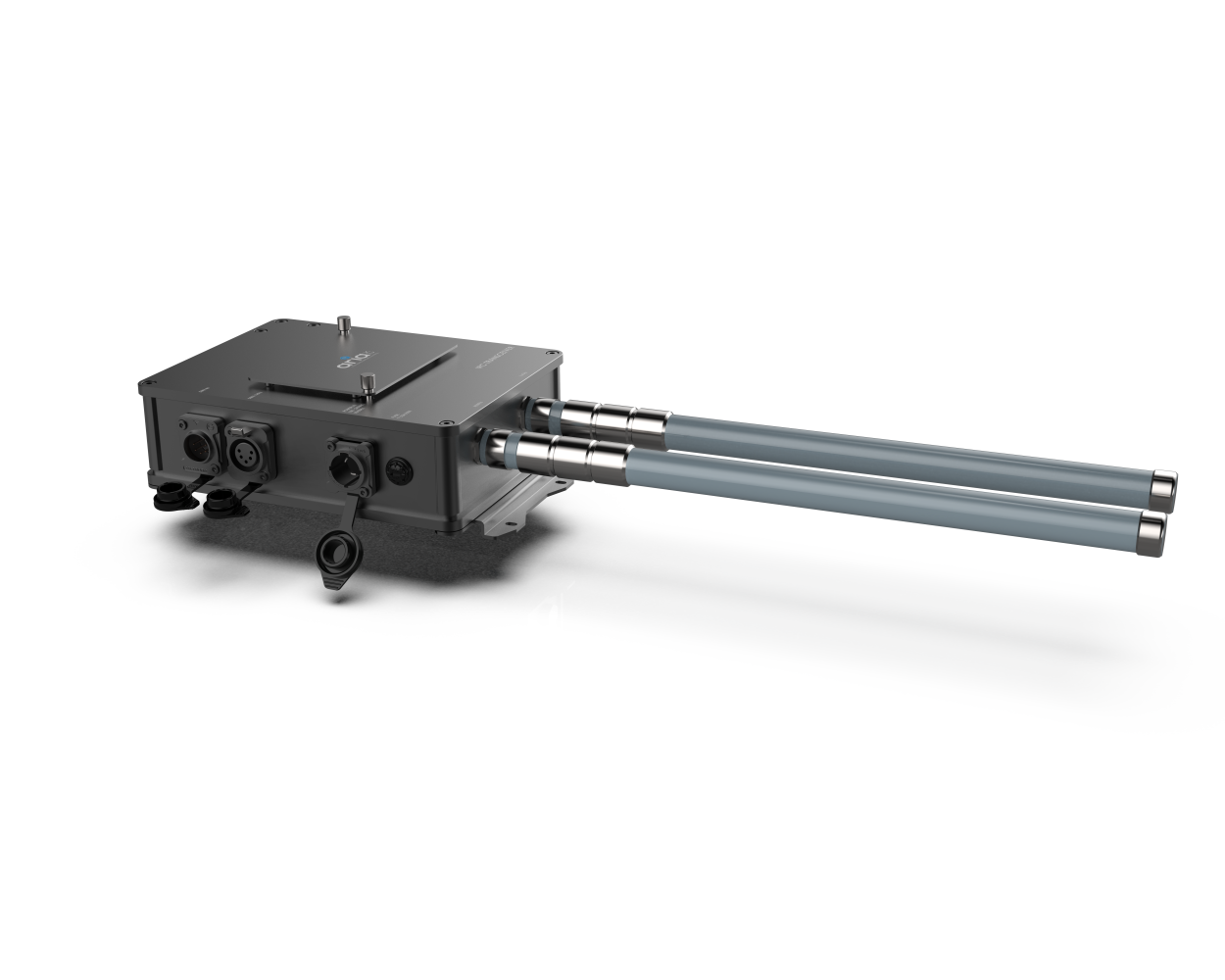

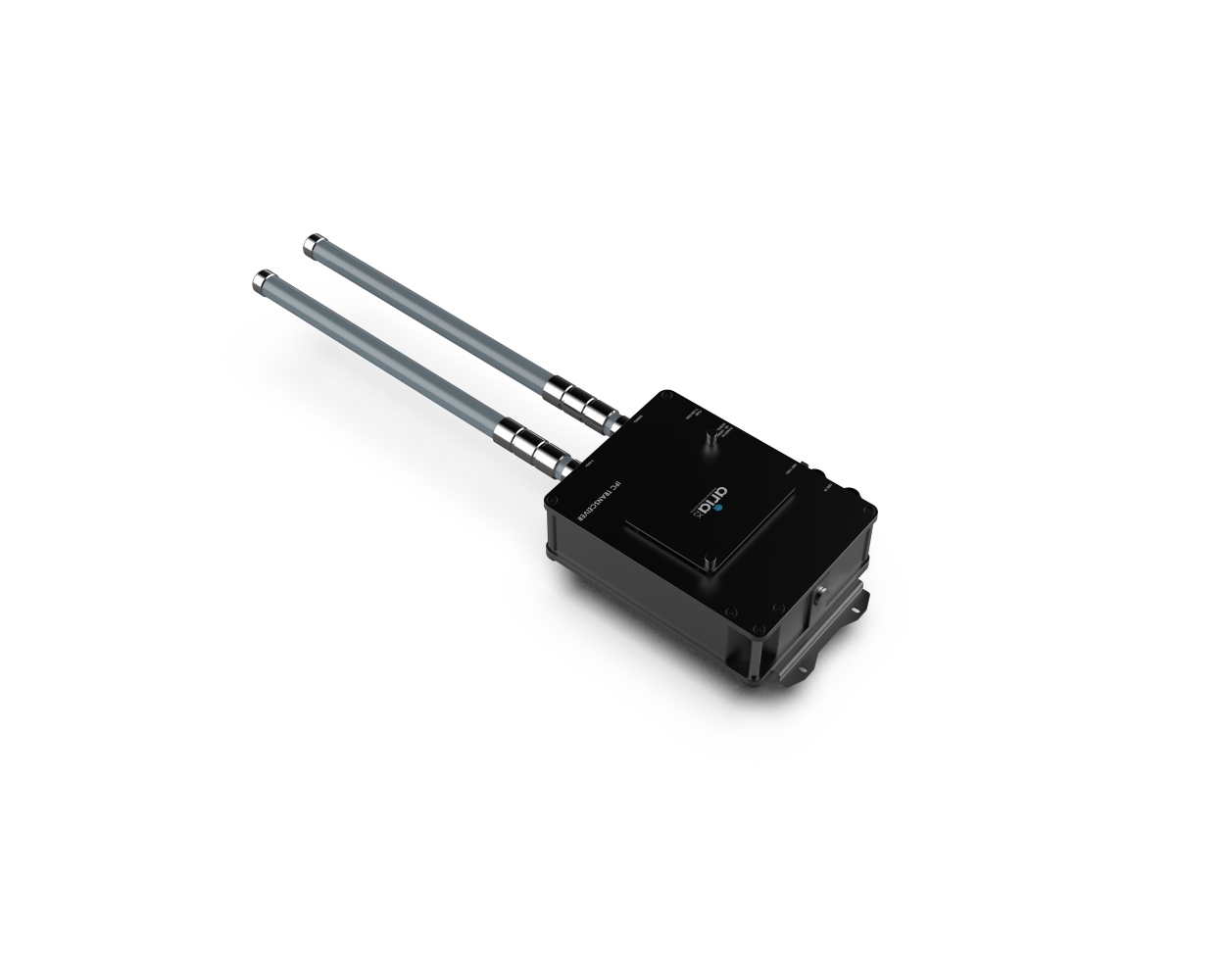

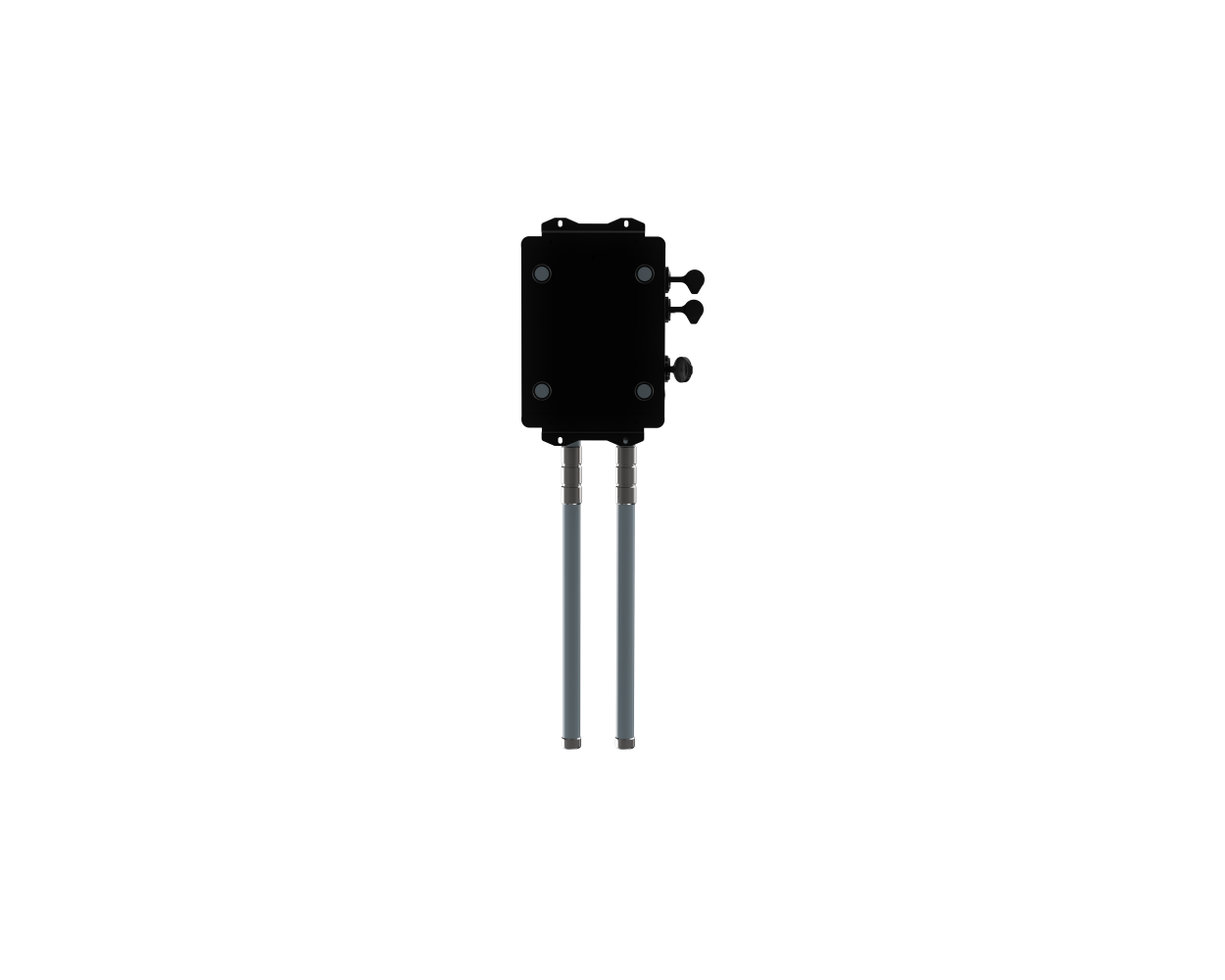

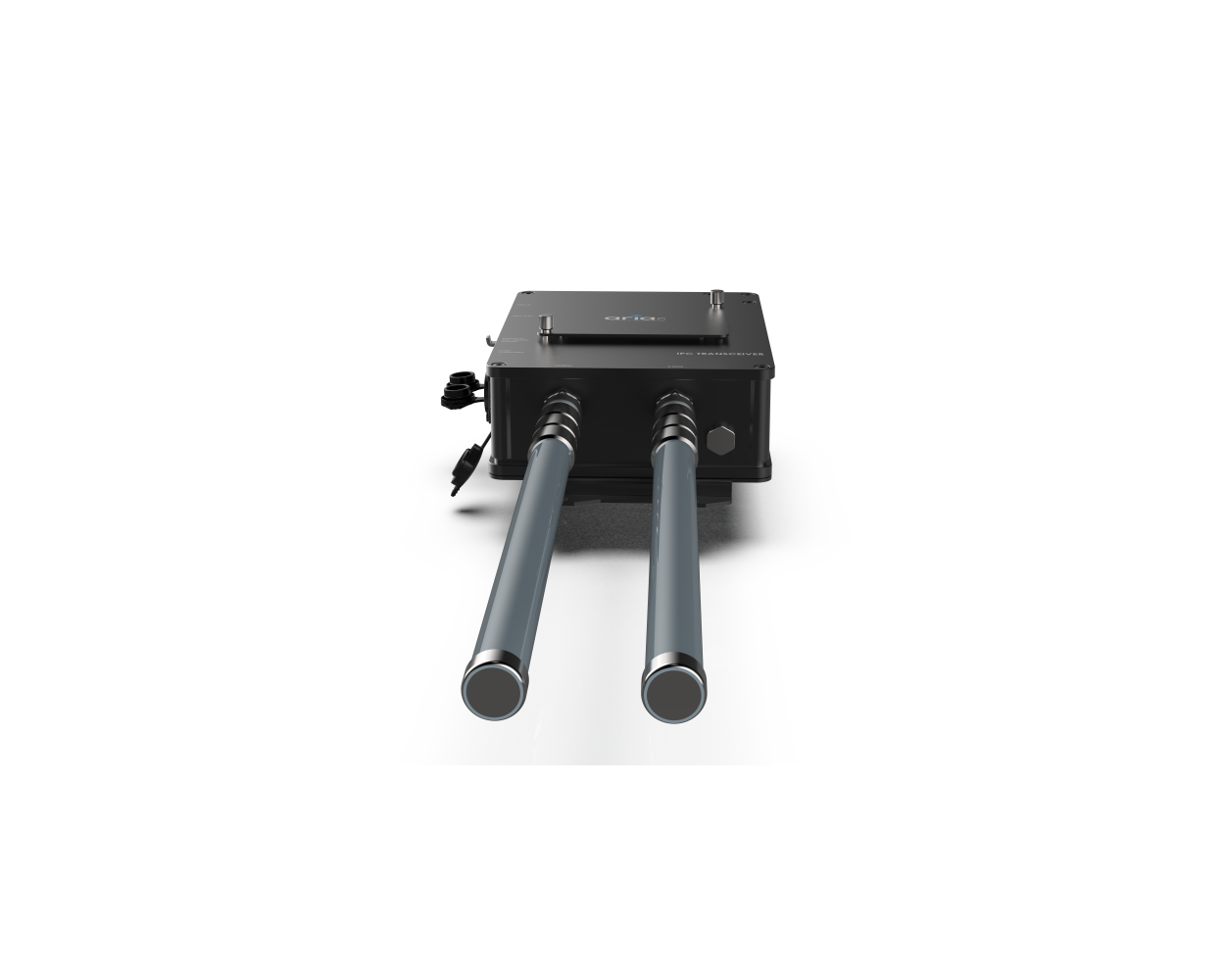

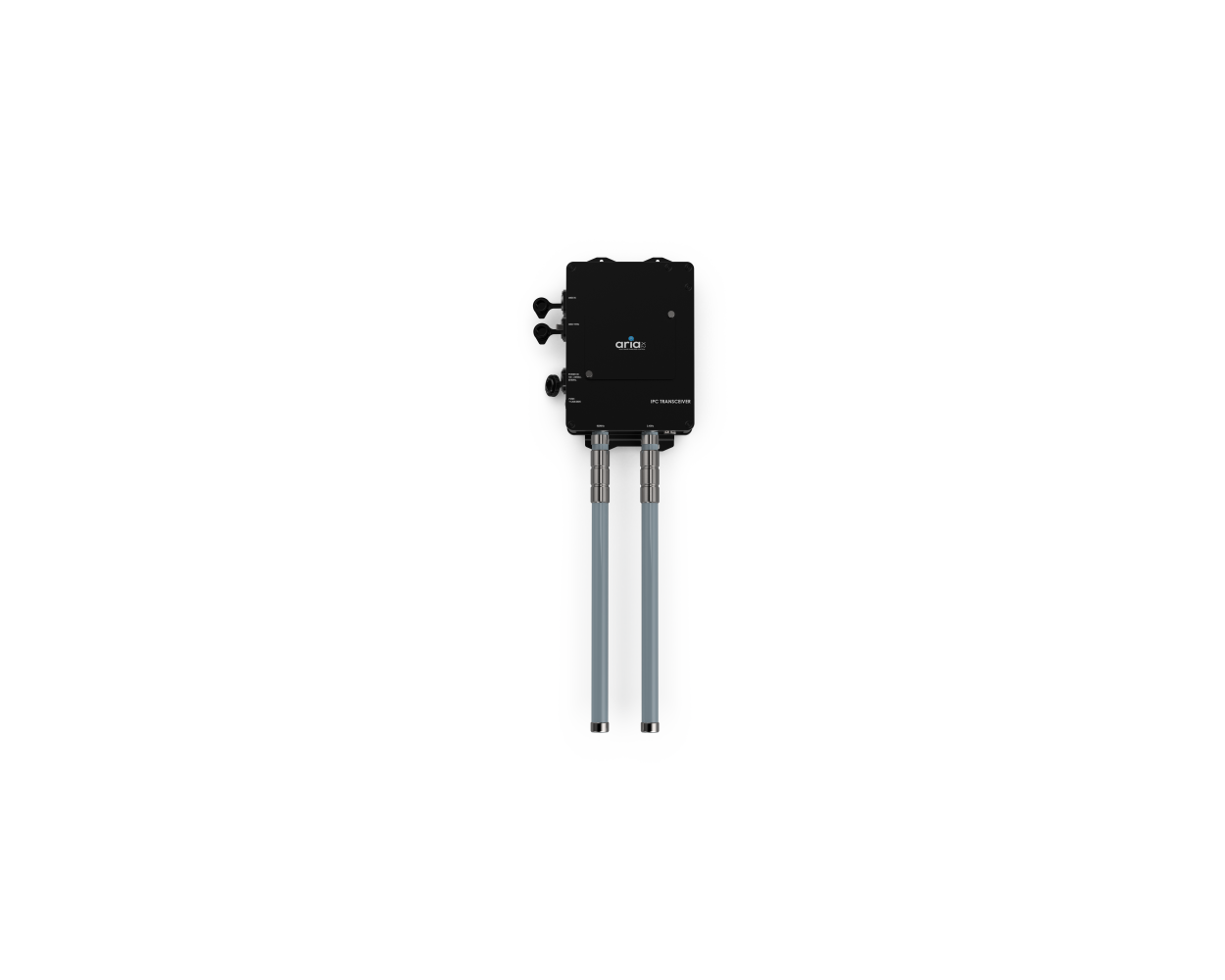

Aria X2 IPC

Regular price
$519.99
Regular price
Sale price
$519.99
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

From the Manufacturer

Introducing our latest innovation, the versatile Aria X2 IPC wireless DMX / fixture management controller. Featuring a single DMX universe, this device operates seamlessly with 900MHz, 2.4 GHz WiFi, and Bluetooth connectivity. Its IP65 housing ensures durability, making it suitable for both indoor and outdoor applications. With support for various protocols including DMX, Bluetooth 5.2, and our proprietary Aria X2 Mesh Protocol, this controller offers flexibility and ease of use. Complete with front panel configuration and future app compatibility, it's the perfect solution for lighting professionals.

Features

  • Single DMX Universe
  • 900Mhz., 2.4 GHz WiFi and Bluetooth
  • Configuration via App (Coming Soon) or Front panel
  • Wireless to DMX or DMX to Wireless
  • IP65 Housing

Supported Protocols:

  • DMX (RDM is planned for future software release)
  • Proprietary 802.15.4
  • Aria X2 Mesh Protocol
  • Bluetooth 5.2 (BLE)
  • Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures.)

RF Characteristics:

  • Frequency range
  • 2404-2480 MHz
  • 863-870 MHz (EU)
  • 902-928 MHz
  • Radio module: Aria X2
  • Interference mitigation
  • CSMA
  • Adaptive frequency hopping (on the roadmap)
  • OTA updates

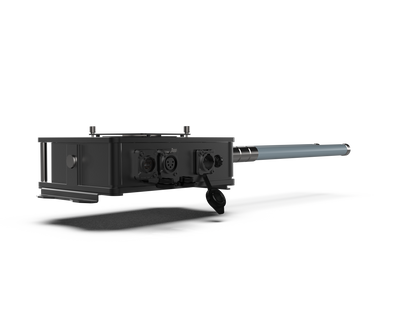

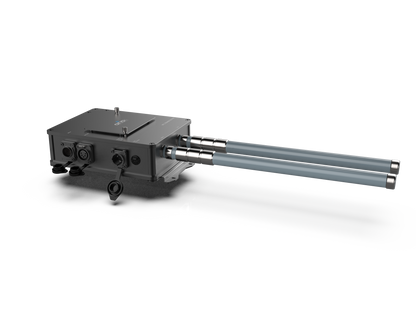

Connectors:

  • 900MHz Antenna
  • 2.4GHz Antenna
  • DMX: 5-pin XLR Input and Output
  • Outdoor Locking Power Input and Output

Power:

  • Power Input: AC100-240V 50/60Hz
  • Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
  • Power Fuse: T1.25A/250V. (5 x 20mm)

Physical:

  • IP65 Enclosure
  • Front panel digital screen
  • M12 Threads
  • Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
  • Max operating humidity: <75%
  • Storage temperature: 77°F (25°C)

Dimensions and Weight:

  • Length: 6.46" (163.95mm)
  • Width: 8.48" (215.30mm)
  • Height: 1.66" (42mm)
  • 2.7lbs (1.23kgs.)
