Aria X2 IPC Bridge

From the Manufacturer

The single universe, indoor Aria X2 Bridge, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.

Features

Features:

• Single DMX Universe
• 900Mhz., 2.4 GHz WiFi and Bluetooth
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
• Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
• SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2

Supported Protocols:

• DMX
• RDM (Planned for future software release)
• Proprietary 802.15.4
• Aria X2 Mesh Protocol
• Bluetooth 5.2 (BLE)
• Aria X2 Serial Protocol
• This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics:

• Frequency range
• 2404-2480 MHz
• 863-870 MHz (EU)
• 902-928 MHz
• Radio module: Aria X2
• Interference mitigation
• CSMA
• Adaptive frequency hopping (on the roadmap)
• OTA updates

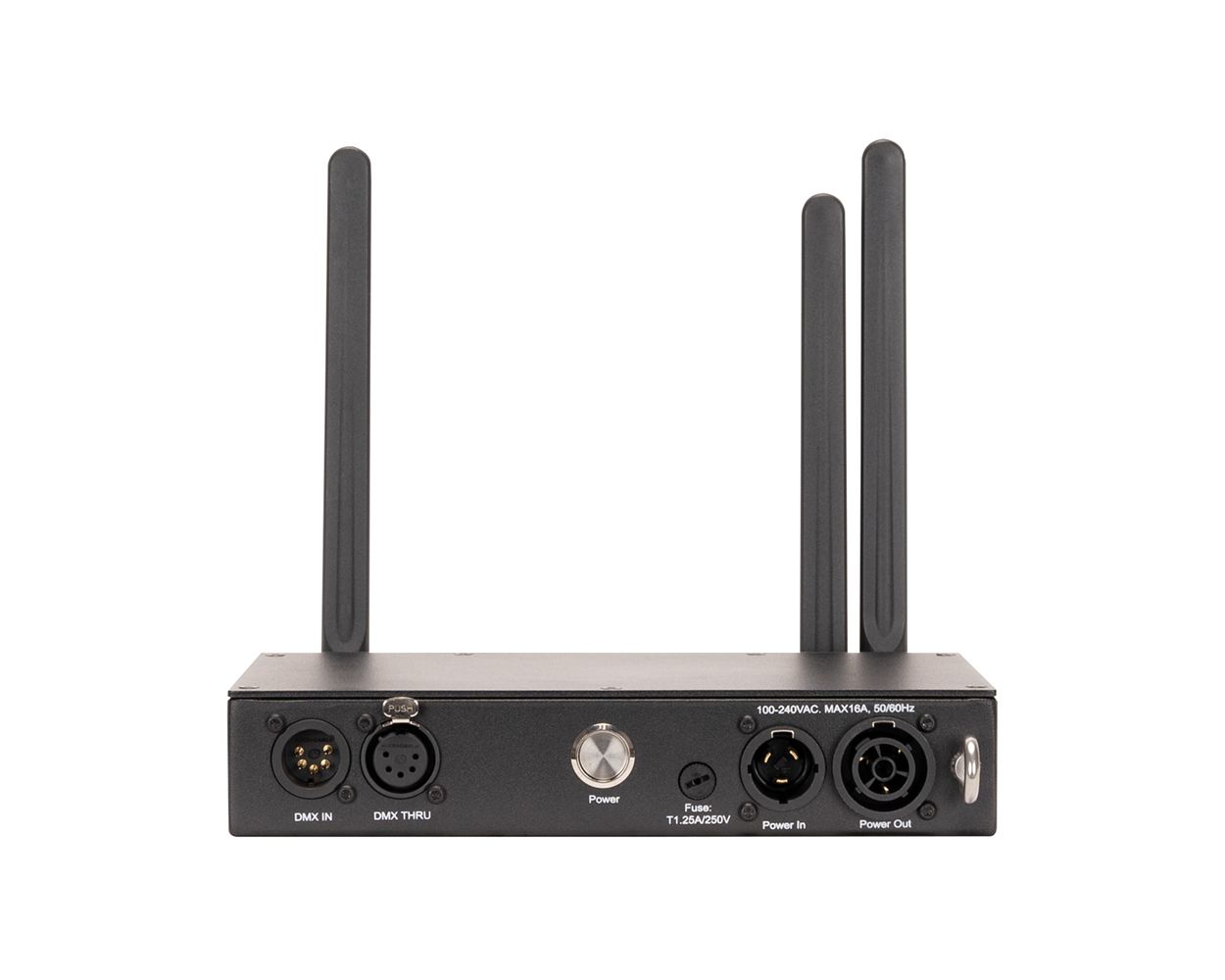

Connectors:

• Antenna: 5G JT SMA
• DMX: 5-pin XLR Input and Output
• DC: 2.5mm/5.5mm Barrel connector
• Outdoor Locking Power Input and Output

Power:

• AC100-240V 50/60Hz
• Power Consumption: 2W
• Power Fuse: T1.25A/250V. (5 x 20mm)

Physical:

• IP20 Aluminum / Metal enclosure

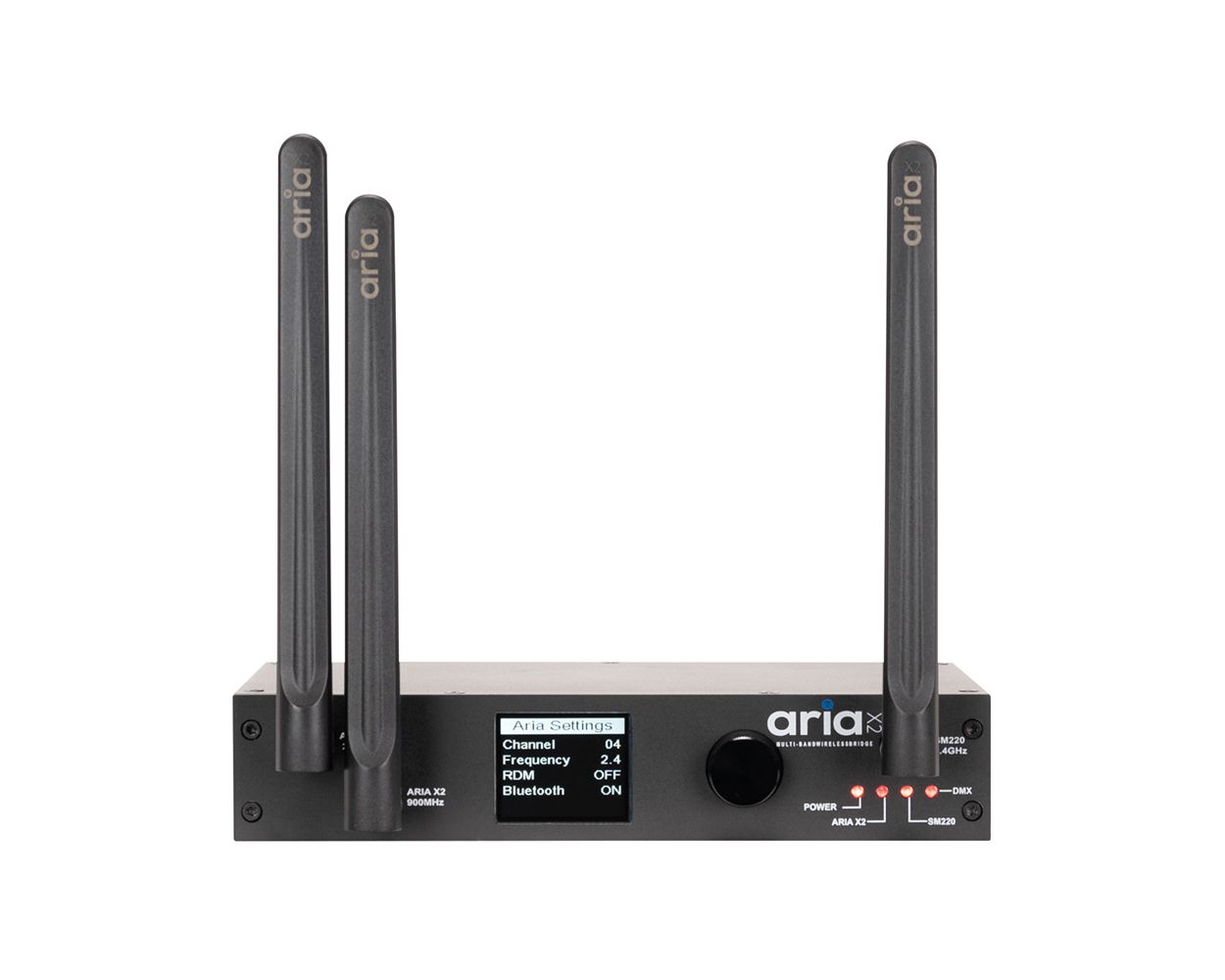

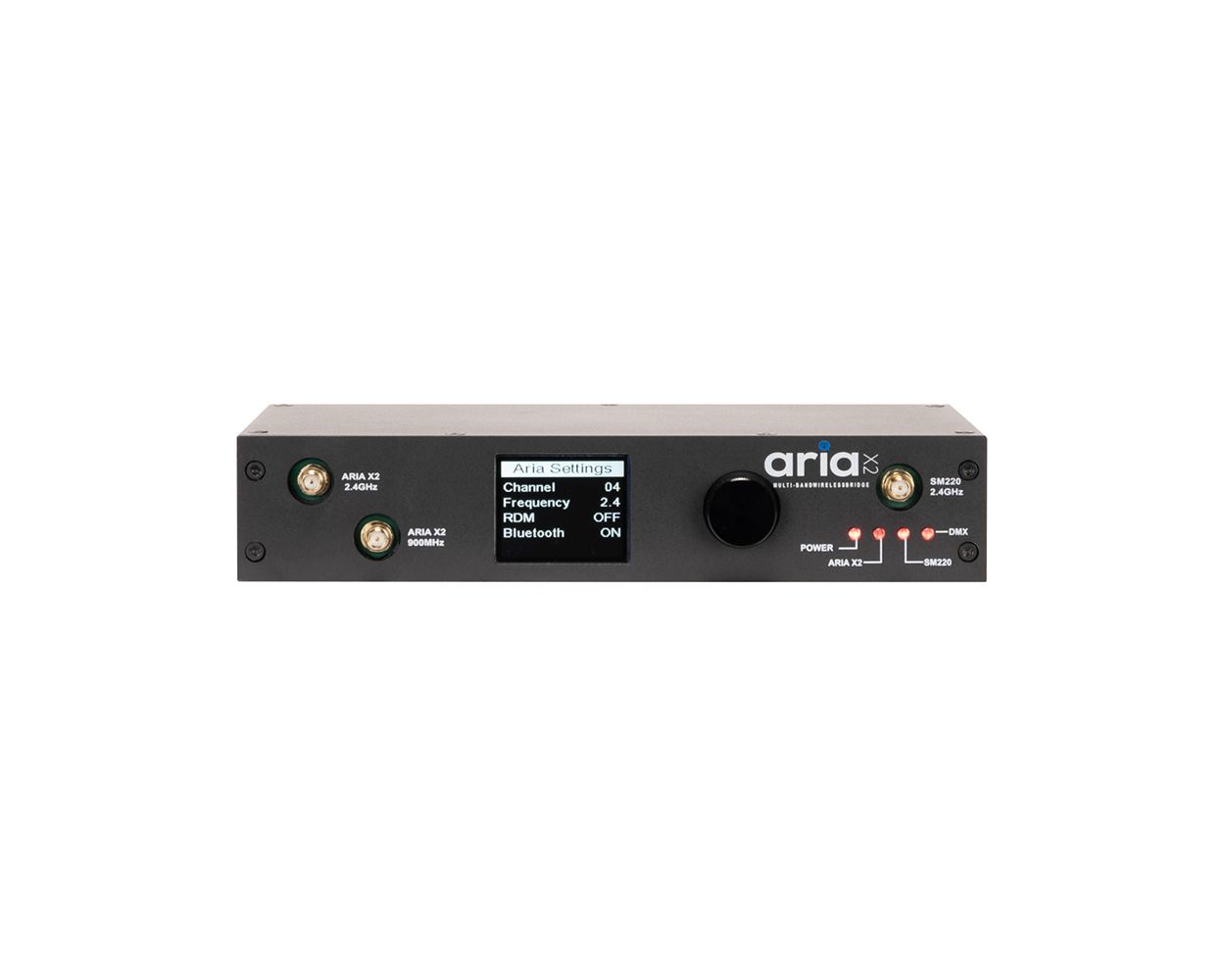

• Front panel digital screen and rotary knob

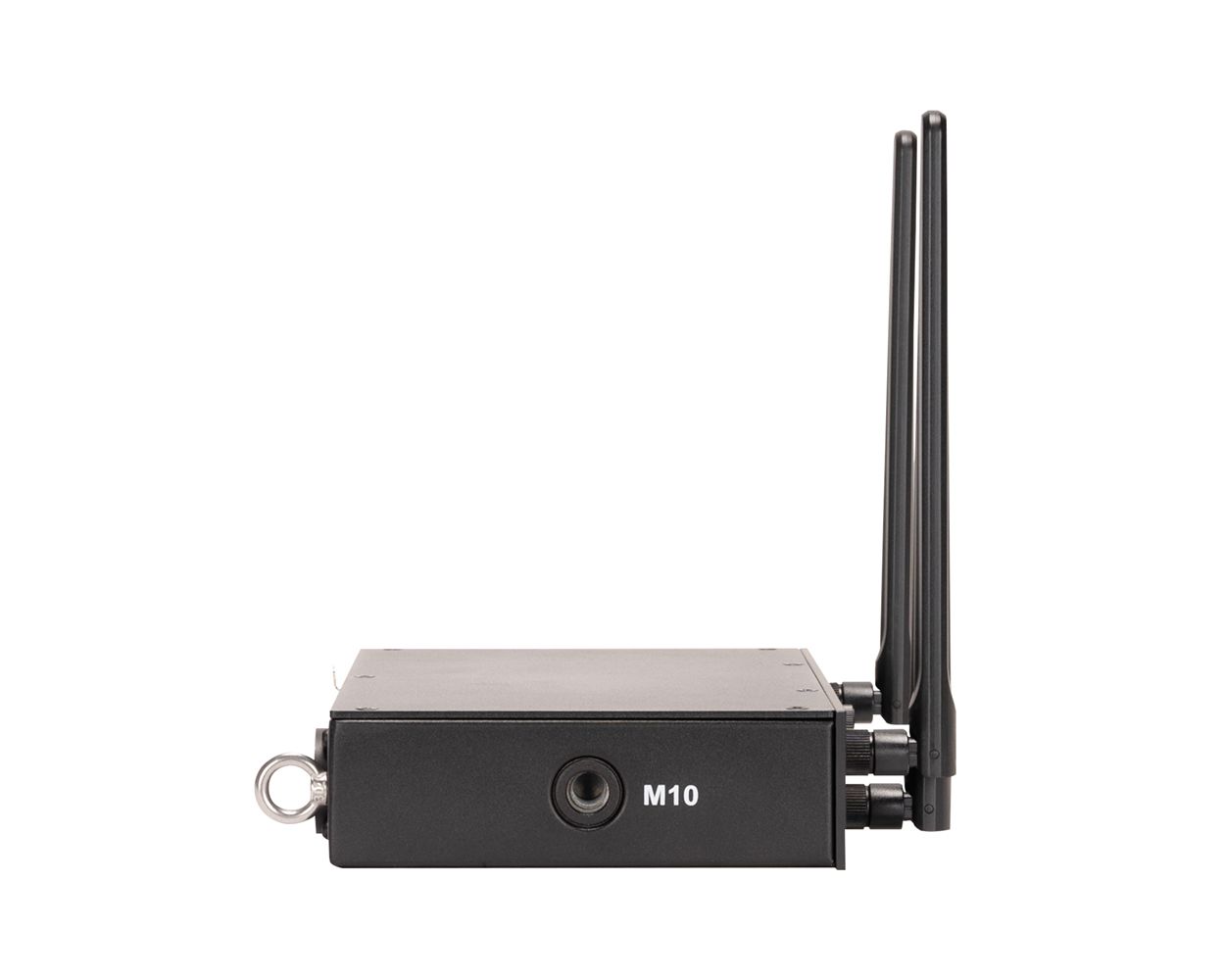

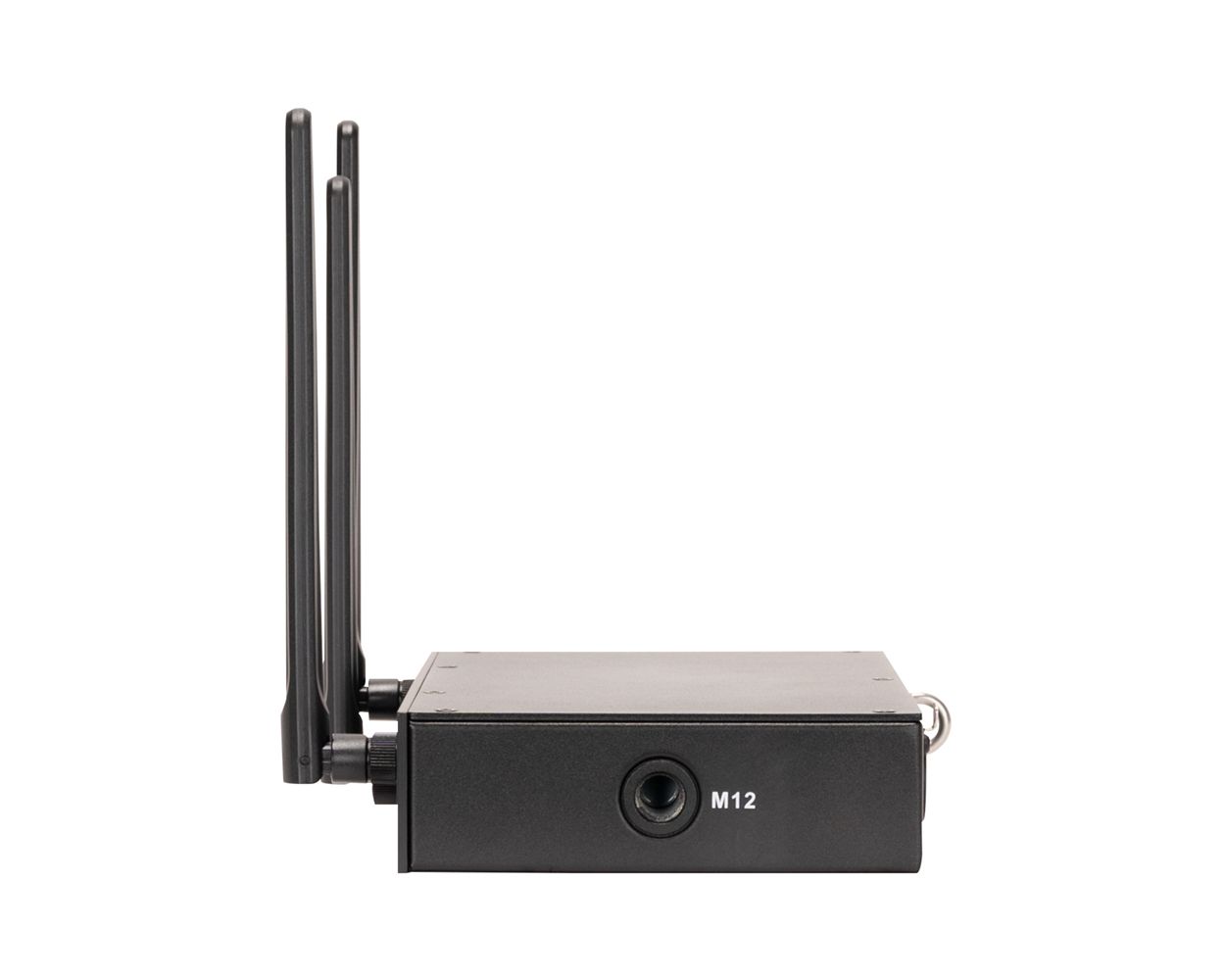

• M10 and M12 Threads
• Safety Eyelet
• Max ambient operating temp: 113°F (45°C)
• Max operating humidity: <75%
• Storage temperature: 77°F (25°C)
• Rack and wall mount accessories

Dimensions and Weight:

• Length: 6.46" (163.95mm)
• Width: 8.48" (215.30mm)
• Height: 1.66" (42mm)
• 2.7lbs (1.23kgs.)
