Aria X2 Transceiver
- Regular price
- $319.99
- Regular price
-
- Sale price
- $319.99
- Unit price
- / per
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The Aria X2 Transceiver comes with better reliability, and a greater range for amazing wireless communication of DMX signal between your console and fixtures. This device is easy to use with the large display screen an the simple app. This amazing product gives you the ability to remotely configure compatible fixtures and can also provide basic DMX control with the use of the app. Get yours now!
From the Manufacturer:

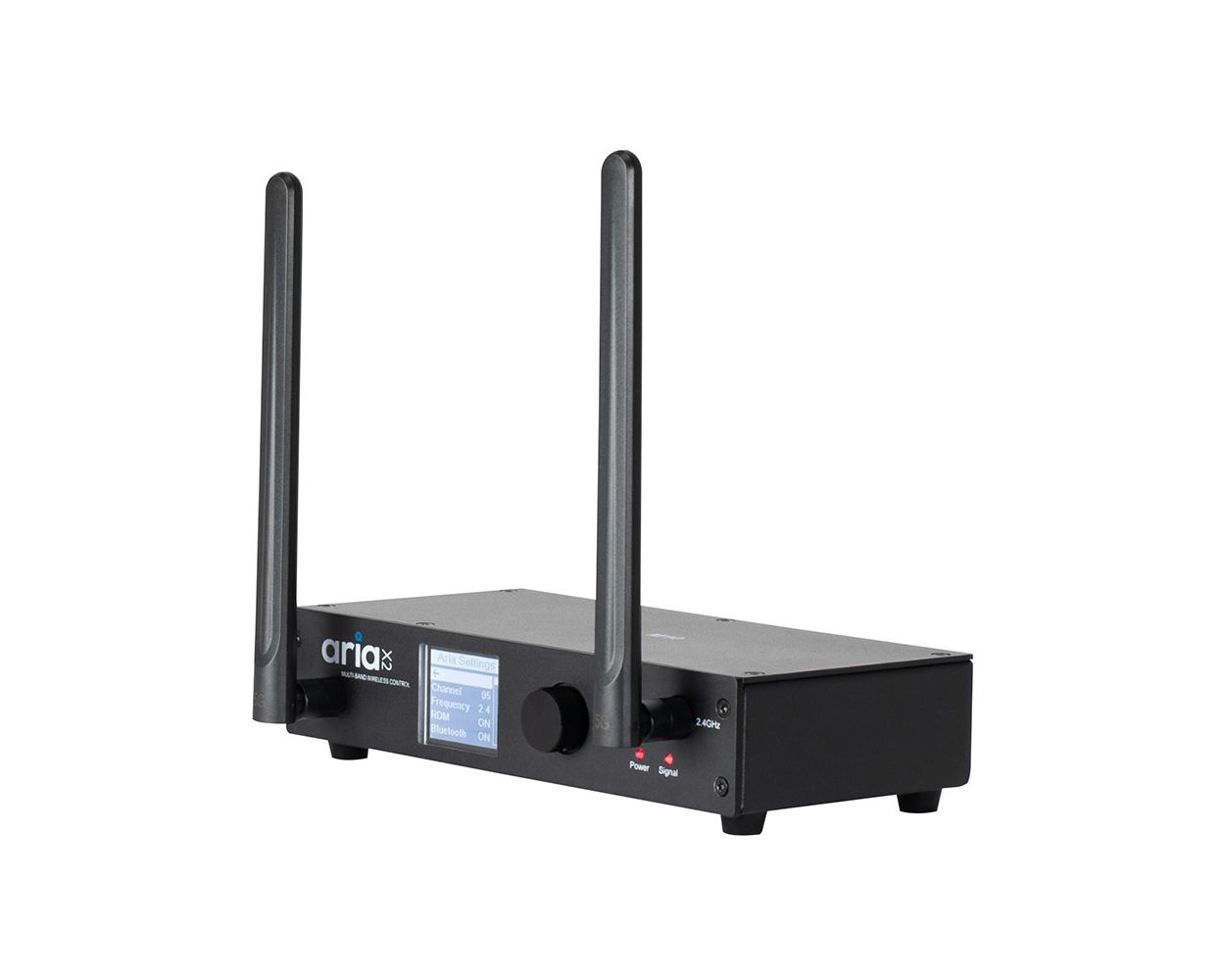

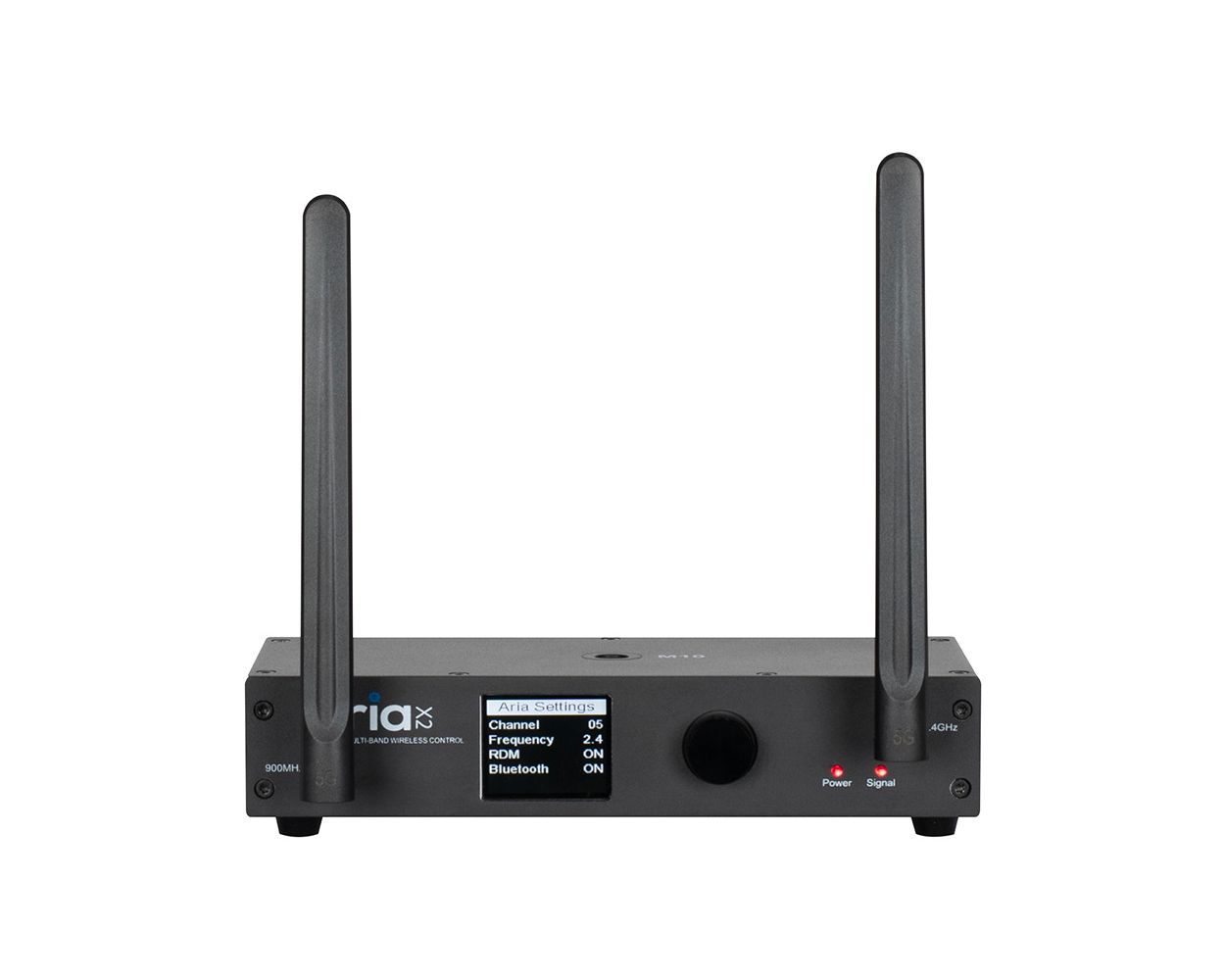

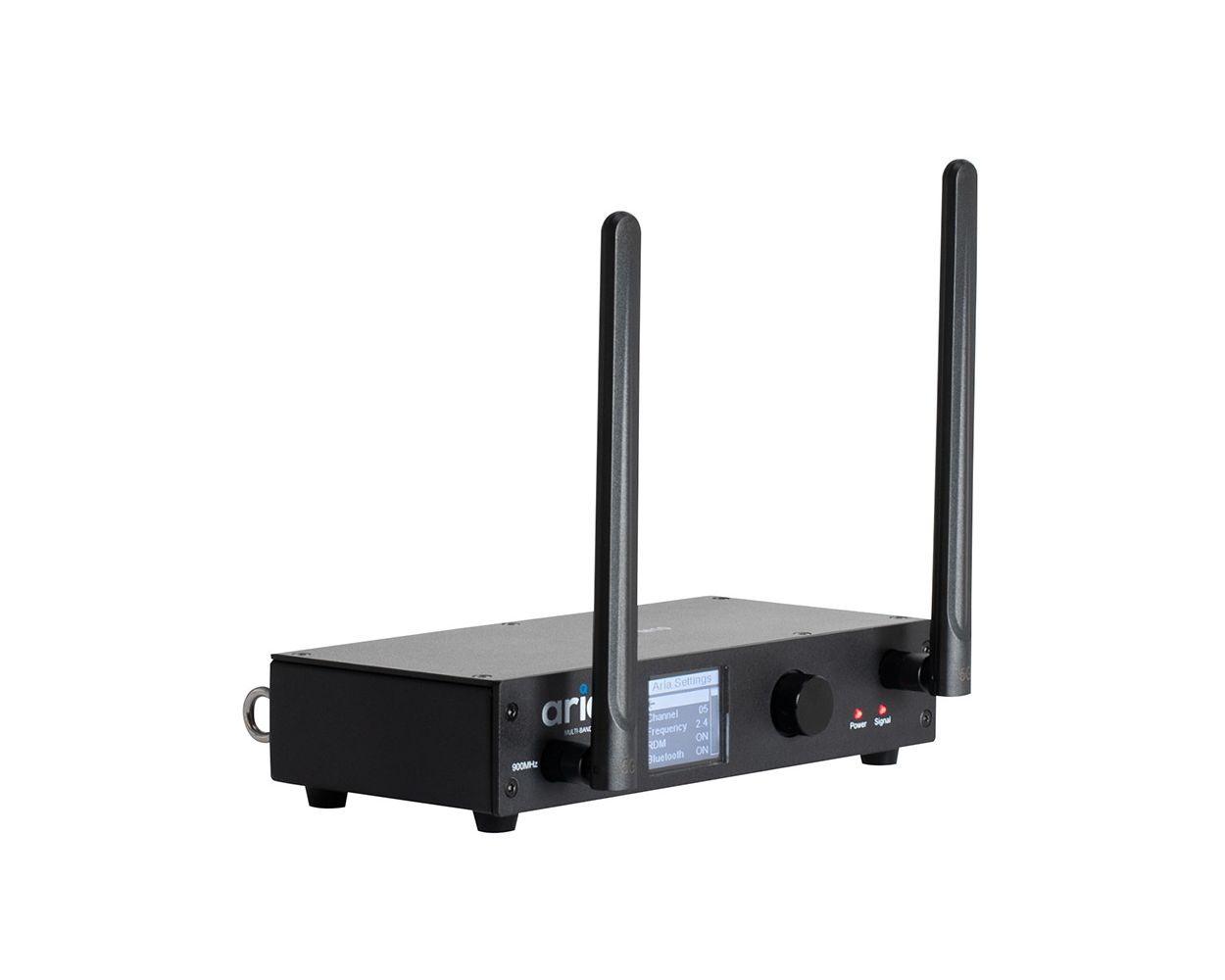

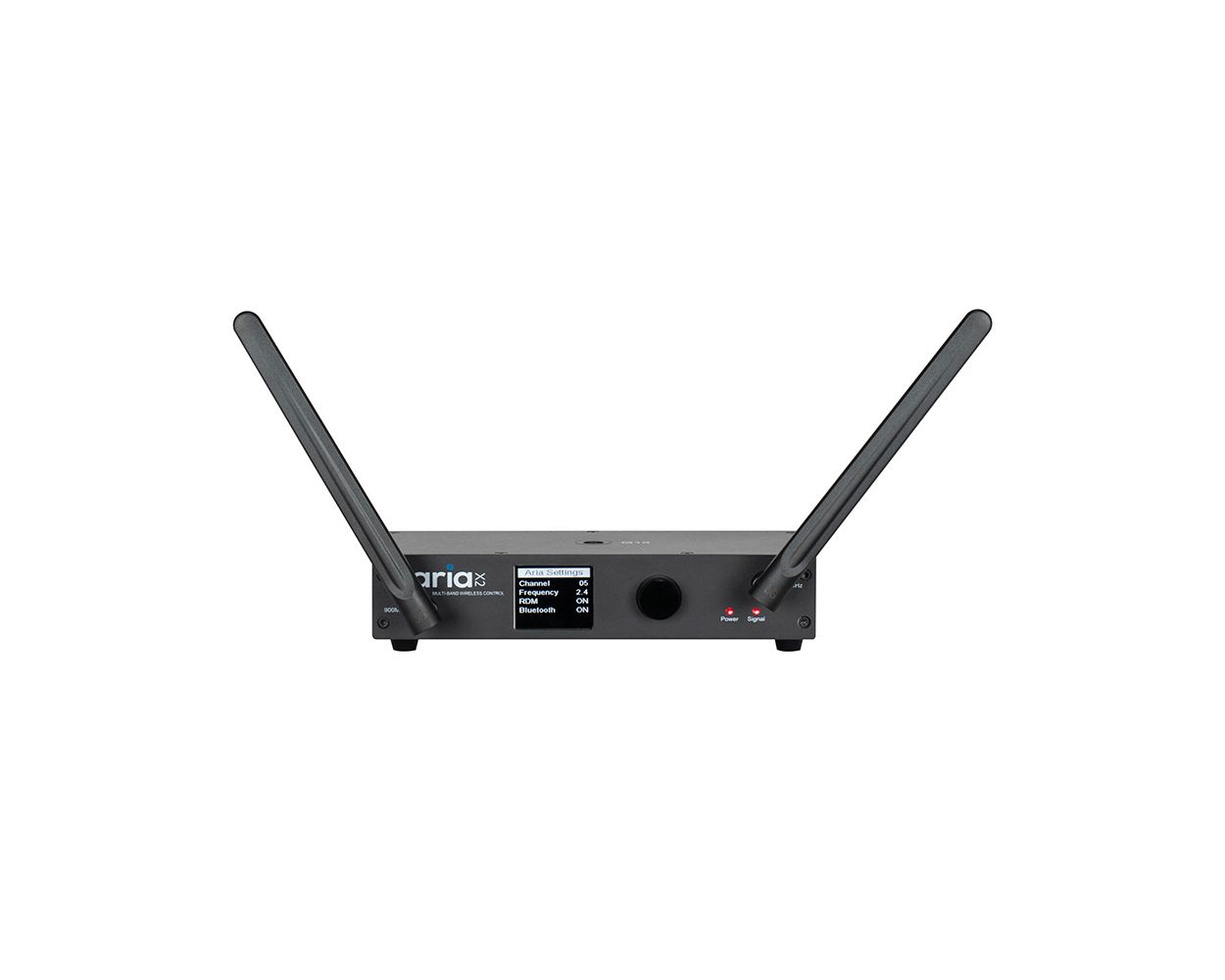

Meet the Aria X2 Transceiver. This next generation multi-band system is designed to increase the reliability and transmission range for cable free communication of a DMX signal between console and fixtures. Featuring an advanced proprietary protocol, it creates a wireless mesh that allows all Aria X2 devices within a given system to transmit the DMX signal between one another, which establishes an extremely robust network. The Aria X2 Transceiver features twin wireless antennas as well as 5-pin DMX input and thru connections. An Aria X2 network can be configured from the large display screen located on the front of the transceiver or using a dedicated mobile app. In addition, the app can also be used to remotely configure compatible fixtures and provide basic DMX control.
Key Features:
- Single DMX Universe
- 2.4 GHz WiFi and Bluetooth
- Configuration via App or Front Panel
Frequency Range:
- 2404-2480 MHz
- 863-870 MHz (EU)
- 902-928 MHz
- Radio module: Aria X2
Interference Mitigation:
- CSMA
- Adaptive frequency hopping (on the roadmap)
- OTA updates
Supported Protocols:
- DMX (RDM is planned)
- Proprietary 802.15.4
- Aria X2 Mesh Protocol
- Bluetooth 5.2 (BLE)
- Aria X2 Serial Protocol

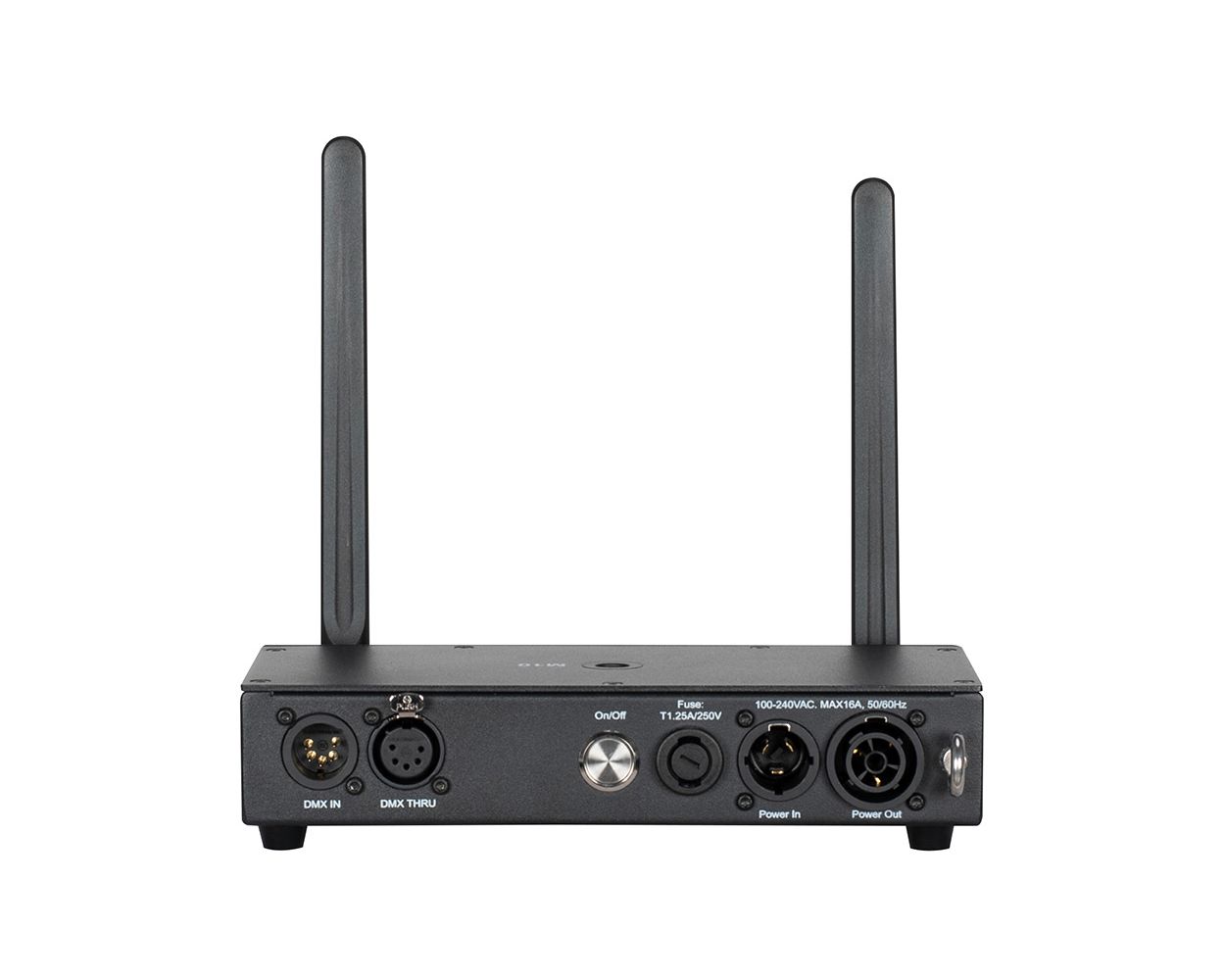

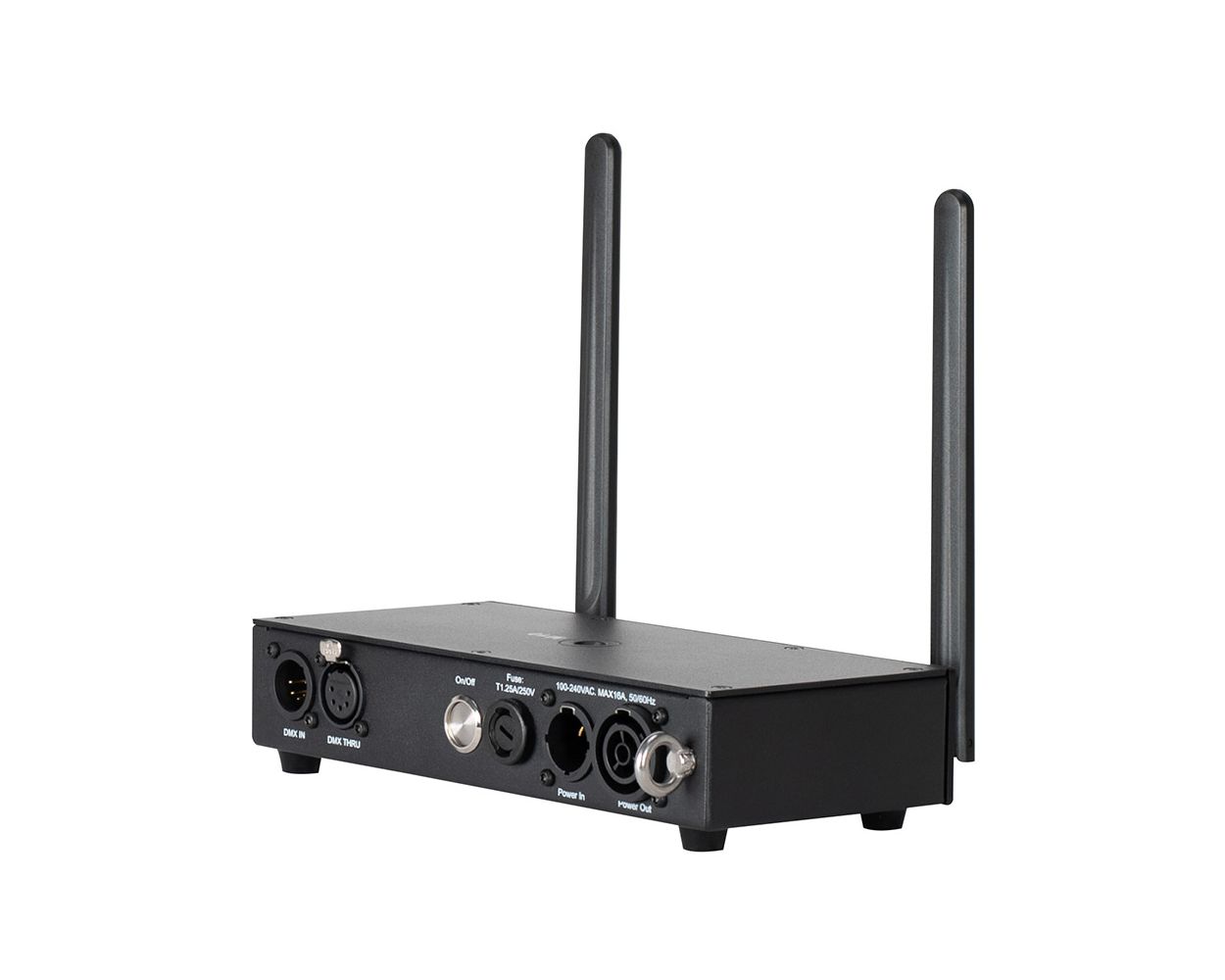

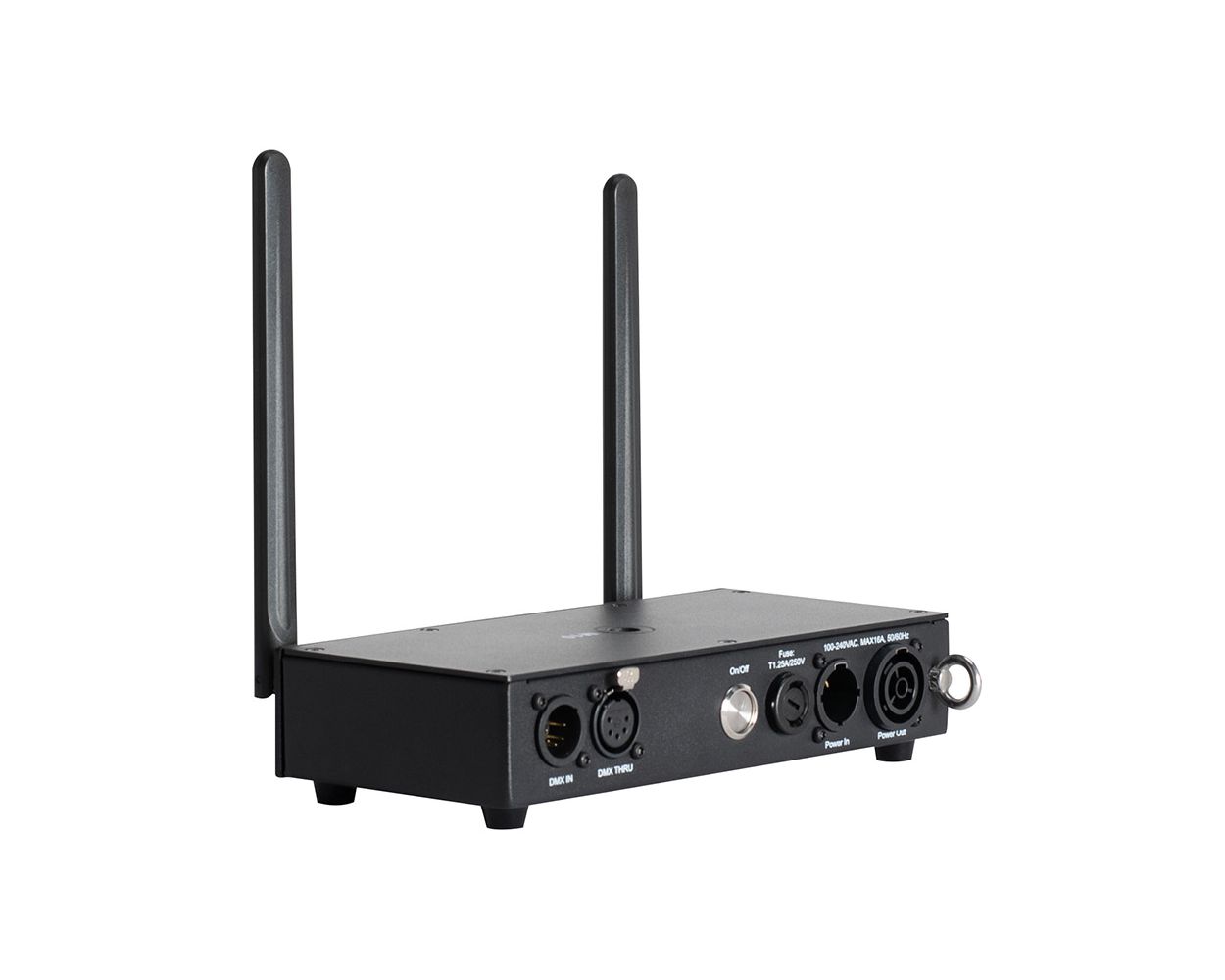

Connectors:
- Antenna: JT SMA
- DMX: 5-pin XLR Input and Output
- DC: 2.5mm/5.5mm Barrel connector
- Outdoor Locking Power Input and Output
Physical:
- IP20 Aluminium / Metal enclosure
- Front panel screen and rotary knob

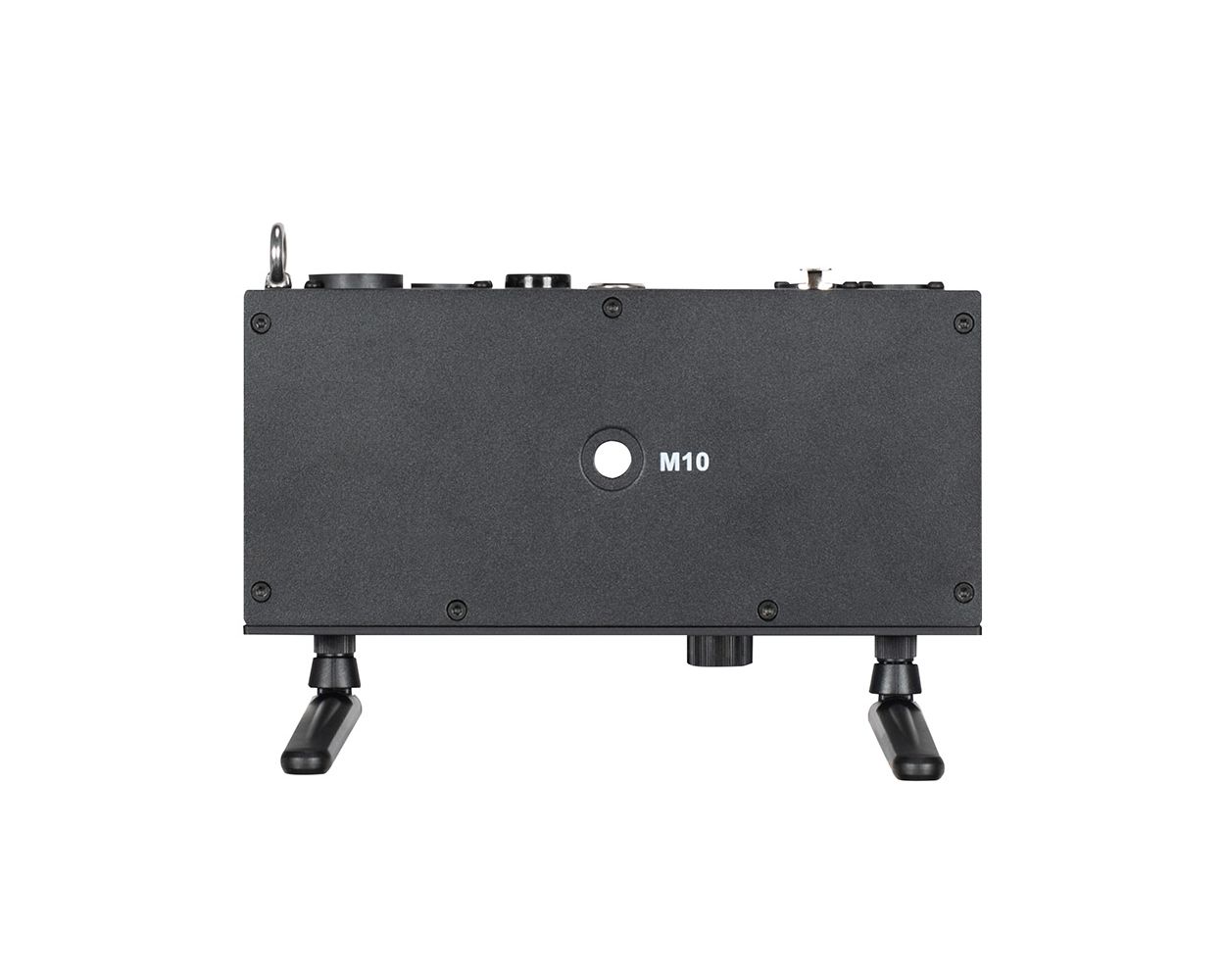

- M10 and M12 Threads

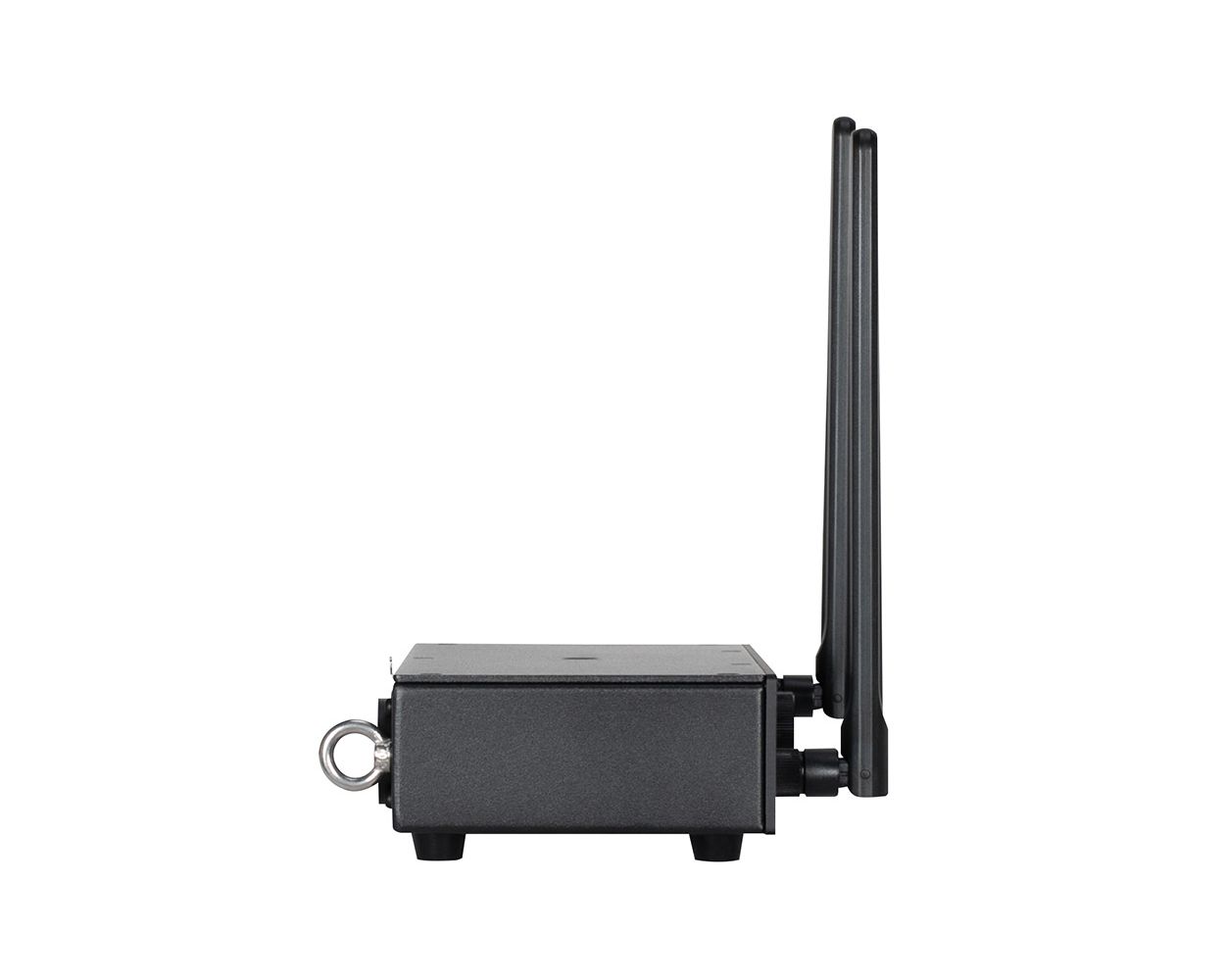

- Safety Eyelet
- Max ambient operating temp: 45°C
- Max operating humidity: <75%
- Storage temperature: 25°C)
- Rack and wall mount accessories
Dimensions:
- Length: 163.95mm
- Width: 215.30mm
- Height: 42mm
Weight:
- 2.71 lbs
