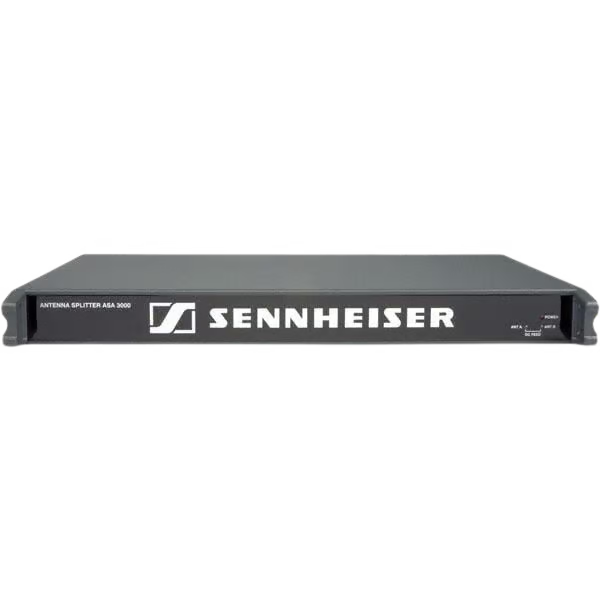

ASA 3000-US

Active wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules - cables not included

Specifications:

• Antenna splitter

• 2 x 1:8, active

• Frequency range

• 470 – 870 MHz

• Distribution attenuation

• +3/-1 dB

• Nominal impedance of the inputs/outputs

• 50 Ω

• Connections inputs A/B

• BNC sockets

• Connections outputs A1 – A8/B1 – B8

• BNC sockets

• Booster supply at the inputs A and B

• 12 V, 200 mA max. Each, short circuit-proof

• Supply voltage range

• nom. 100 – 240 V 50 –  60  Hz

• Power consumption

• 15 W

• Temperature range

•  -10 °C to +45 °C

• Weight approx.

• 3,000 g
