ASB6112

The JBL ASB6112 compact, high power 12-inch subwoofer provides the powerful sound you need, either in stand-alone arrays or combined with other AE series products.

From the Manufacturer

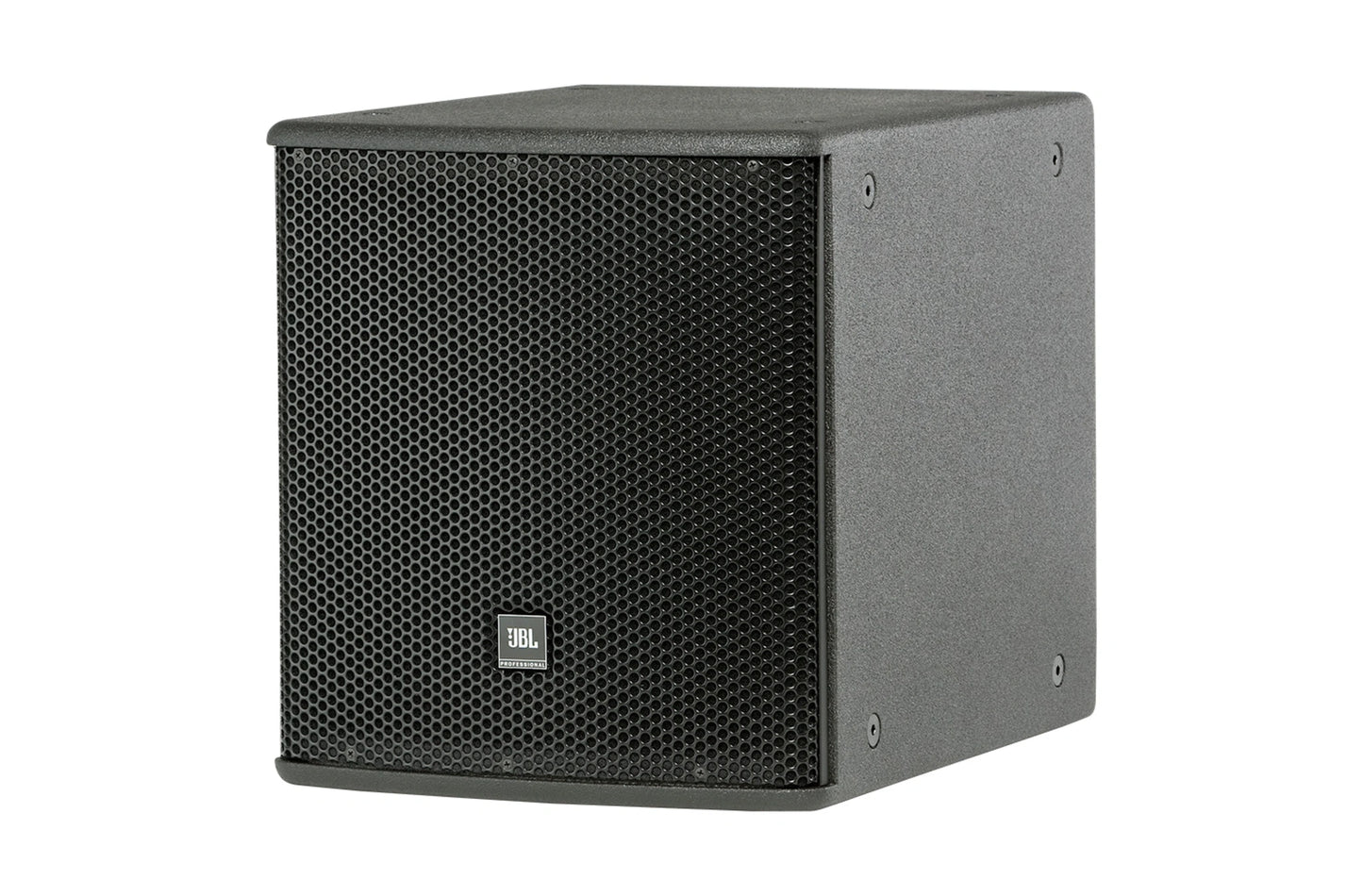

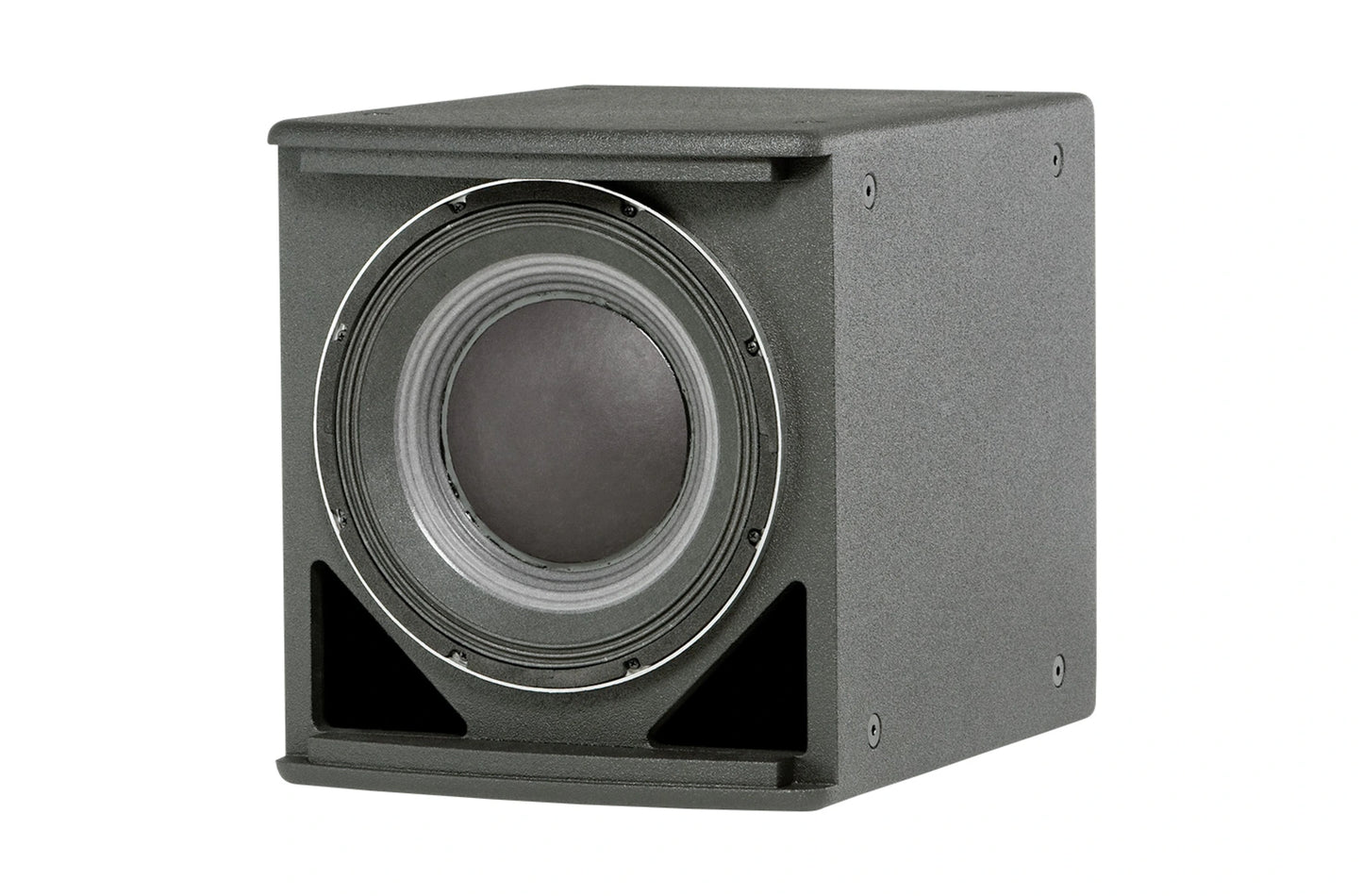

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

• 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
• 1000 watts continuous pink noise,
  4000 watts peak power handling capacity
• Large vent area for high output with low distortion
• FIR Tuning Set Matches Phase Profile to Full-Range Models
• For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

Specifications

• Frequency Range (-10dB): 35 Hz – 1 kHz
• Frequency Response (±3 dB): 43 Hz – 1 kHz
• Transducer Power Rating (AES): 1000 W (4000 W peak), 2 hrs.
• System Power Rating: 700 W (2800 W peak), 100 hrs.
• Maximum SPL (1m): 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
• System Sensitivity: 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
• Nominal Impedance: 8 ohms
• LF Driver: 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
• Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware

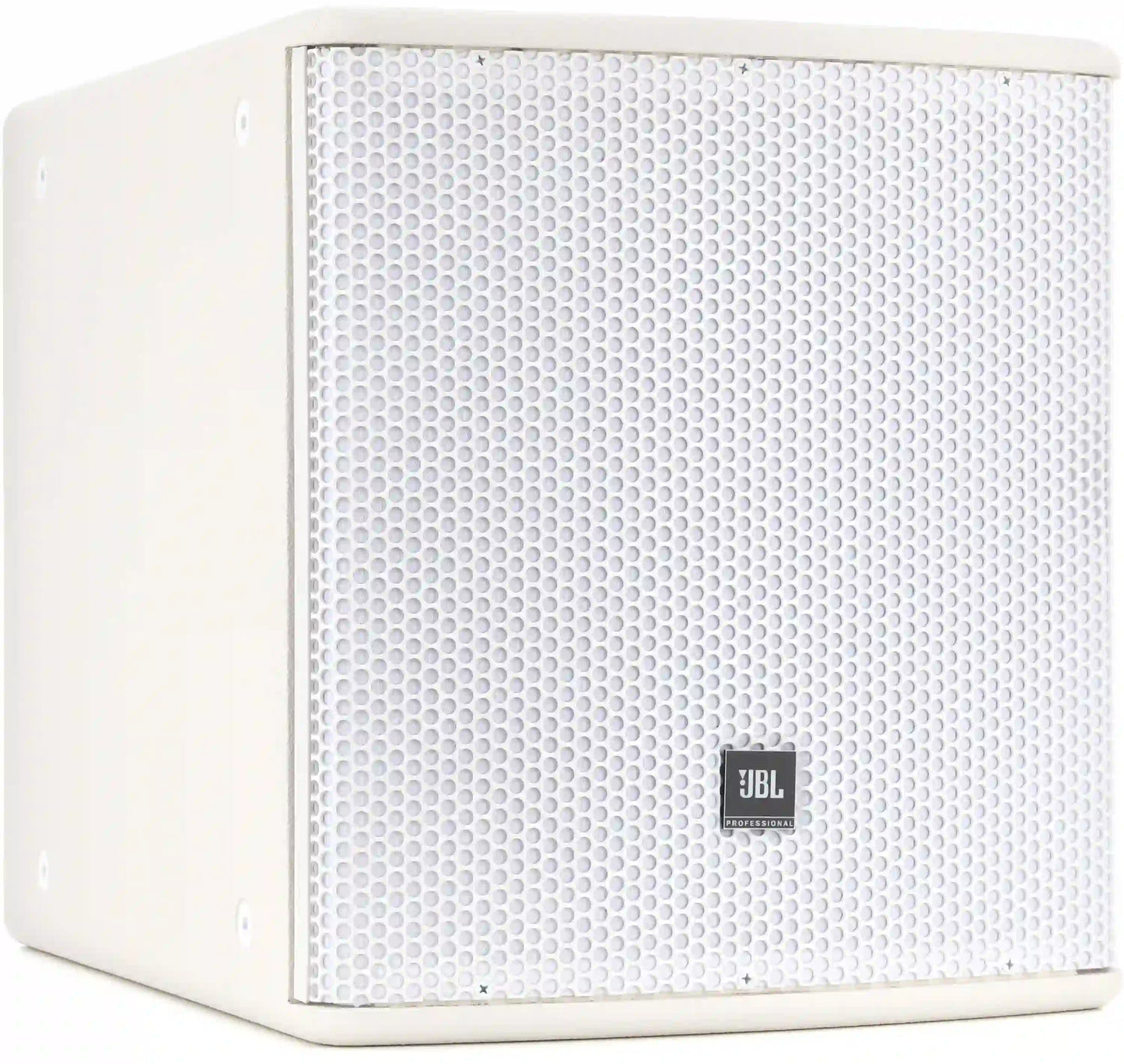

• Finish: Black or White DuraFlex™ finish.
• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Dimensions (H x W x D in vertical orientation): 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in)
• Net Weight (each): 16.3 kg (36.0 lb)
• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
• Nominal LF Driver Impedance: 8 ohms
