ASB6115

The ASB6115 is a compact and lightweight subwoofer. It is a great option for a cost effective and good audio quality option for medium to large sized installs.

From the Manufacturer

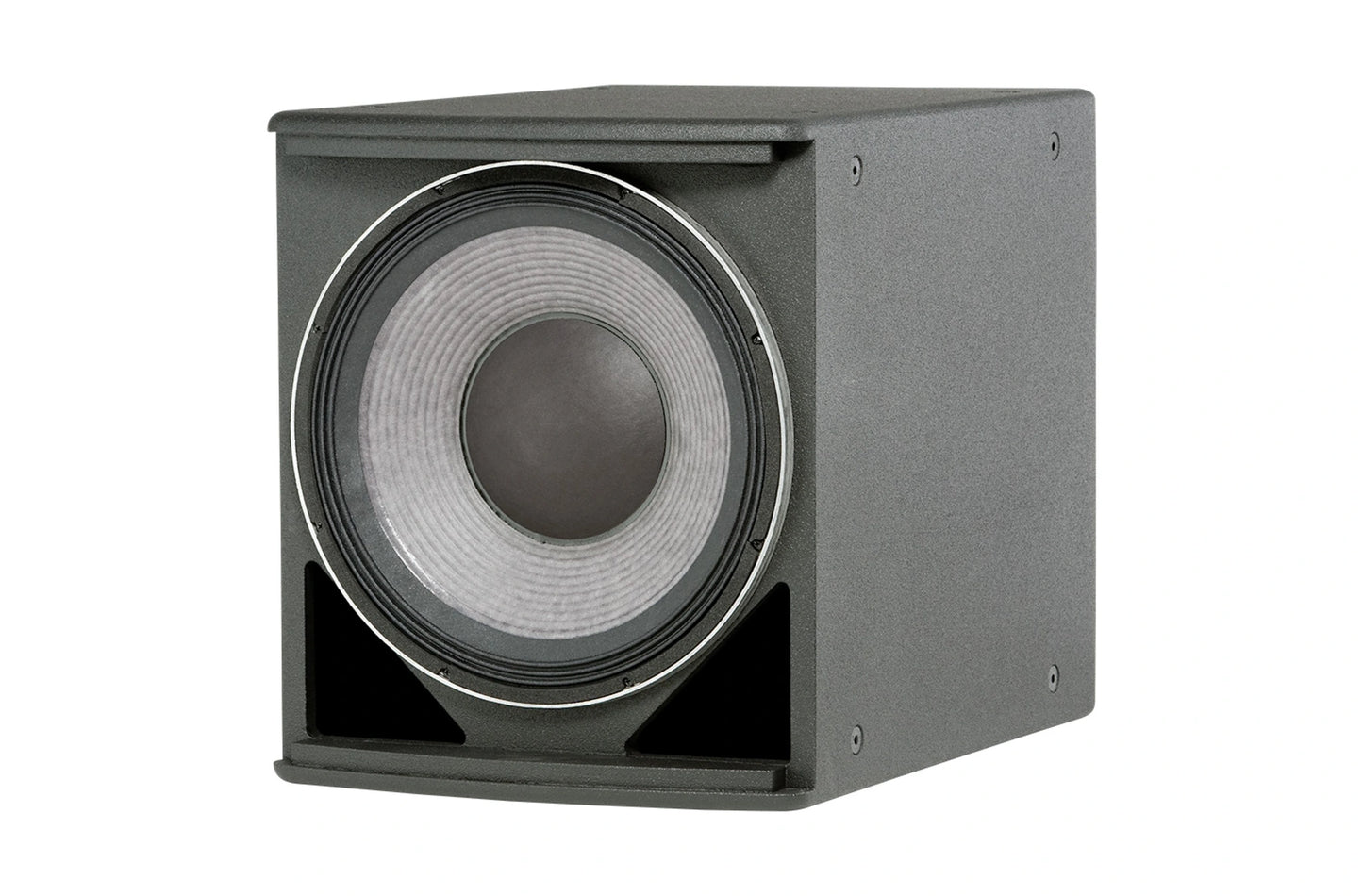

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

• 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer

• 800 watts continuous pink noise, 3200 watts peak power handling capacity

• Large vent area for high output with low distortion

• FIR Tuning Set Matches Phase Profile to Full-Range Models

• For ground-stacked or suspended applications in stand-alone arrays or in combination with other

• AE Series products

Specifications

• Frequency Range (-10dB)

• 32 Hz - 1 kHz

• Frequency Response (±3 dB)

• 42 Hz - 1 kHz

• Transducer Power Rating (AES)

• 800 W (3200 W peak), 2 hrs.

• System Power Rating

• 675 W (2700 W peak), 100 hrs.

• Maximum SPL (1m)

• 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)

• System Sensitivity

• 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m

• Nominal Impedance

• 8 ohms

• LF Driver\

• 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver

• Enclosure

• Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood

• Suspension Attachment

• 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware

• Finish

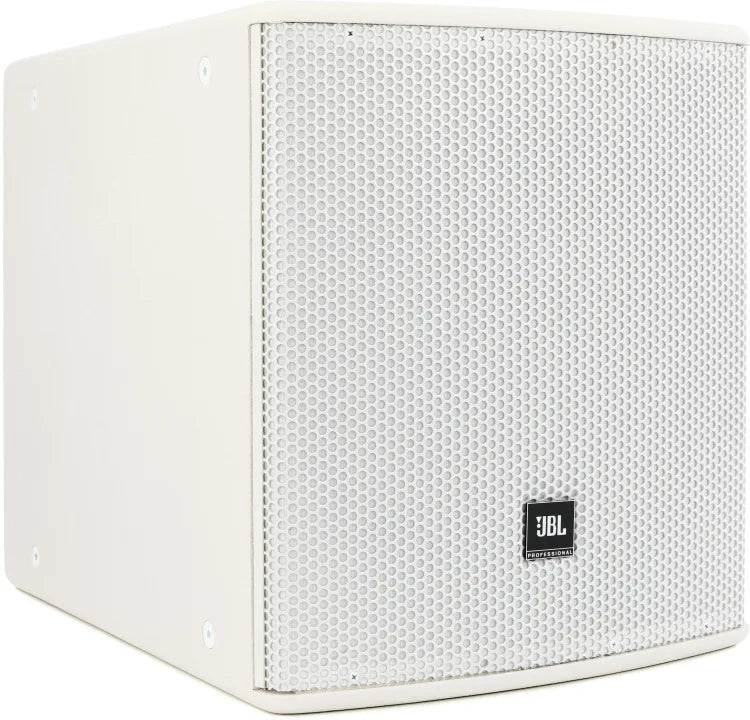

• Black DuraFlex™ finish. White available upon request.

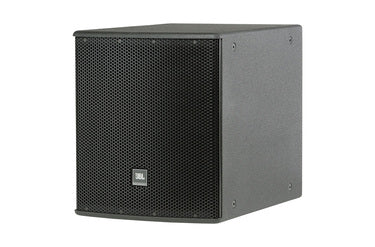

• Grille

• Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

• Input Connector

• NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

• Environmental

• Mil-Std 810; IP-x3 per IEC529.

• Dimensions (H x W x D in vertical orientation)

• 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in)

• Net Weight (each)

• 20.6 kg (45.5 lb)

• Optional Accessories

• M10 x 35 mm forged shoulder eyebolts with washers.

• Nominal LF Driver Impedance

• 8 ohms
