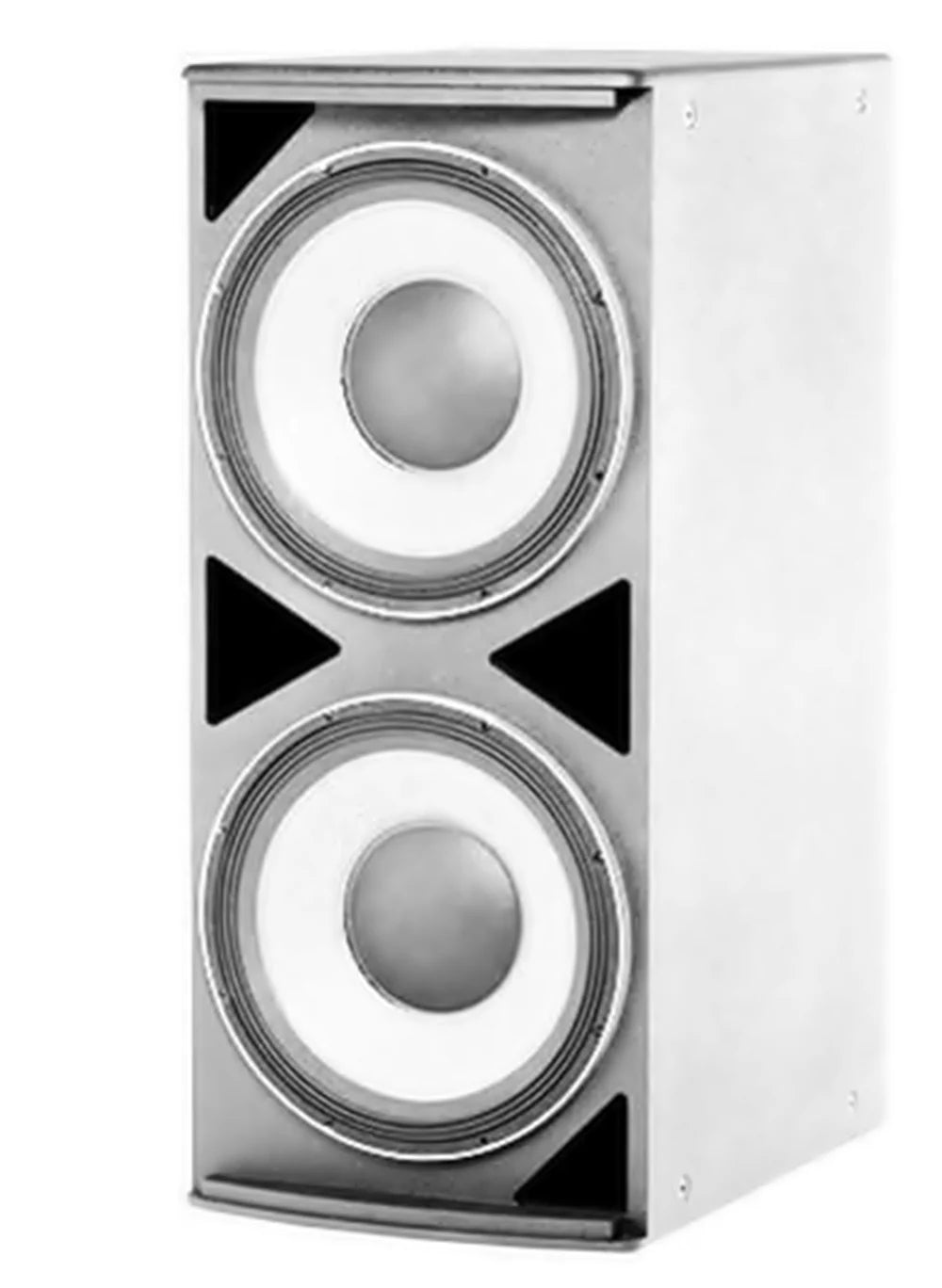

ASB6128

The JBL ASB6128 high power, duel 18-inch subwoofer is an excellent choice for any fixed installation application, in stand-alone arrays or combined with other AE series products.

From the Manufacturer

ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration

Features

• Large vent area for high output.
• Parallel/Discrete Switchable.
• FIR Tuning Set Matches Phase Profile to Full-Range Models
• For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications

• Frequency Range (-10dB): 28 Hz – 1 kHz
• Frequency Response (±3 dB): 35 Hz – 1 kHz
• Input Modes: Drivers Parallel / Drivers Discrete
• Transducer Power Rating (AES): 2400 W (9600 W peak), 2 hrs
• System Power Rating: 1600 W (6400 W peak), 100 hrs
• Maximum SPL (1m): 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
• System Sensitivity (1w @ 1m): 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
• Nominal Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
• LF Driver: 2 x JBL 2242H 460 mm (18 in) SVG™ drivers with 100 mm (4 in) voice coil
• Nominal LF Driver Impedance: 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
• Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
• Suspension Attachment: 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Net Weight (each): 161 lbs. (73 kgs)
