ASB7118

The JBL ASB7118 Ultra Long Excursion high power vented loudspeaker system provides a loud vent area for high output with low distortion.

From the Manufacturer

Ultra Long Excursion High Power 18-inch Subwoofer

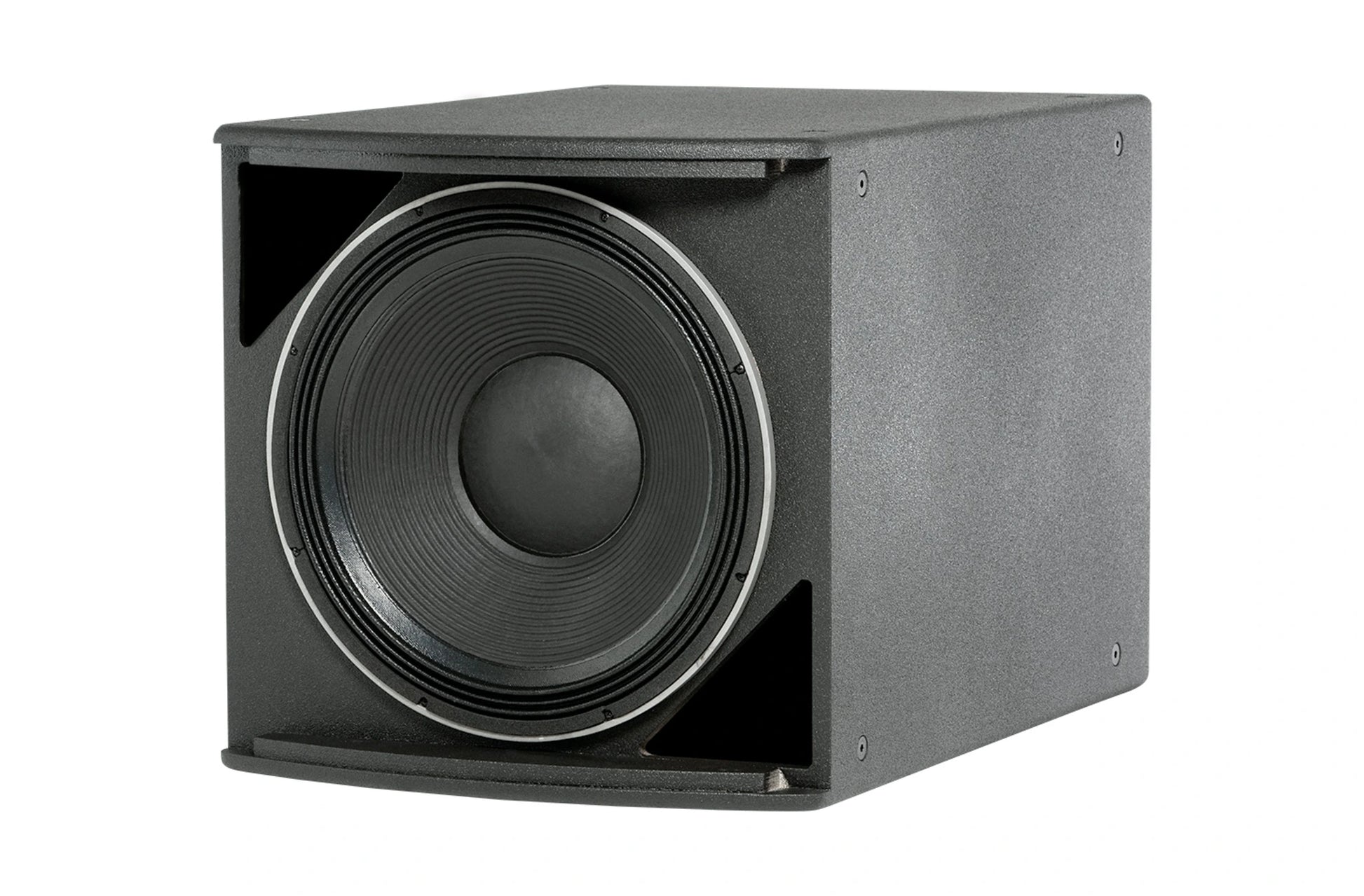

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

Features

• 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
• 2000 watts continuous pink noise,
  8000 watts peak power handling capacity
• Ultra Long Excursion
• Large vent area for high output with low distortion
• FIR Tuning Set Matches Phase Profile to Full-Range Models
• For ground-stacked or suspended applications in stand-alone arrays or in combination with other
  AE Series products

Specifications

• Frequency Range (-10dB): 22 Hz - 1 kHz
• Frequency Response (±3 dB): 34 Hz - 1 kHz
• Transducer Power Rating (AES): 2000 W (8000 W peak), 2 hrs
• System Power Rating: 1200 W (4800 W peak), 100 hrs.
• Maximum SPL (1m): 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
• System Sensitivity: 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
• Nominal Impedance: 8 ohms
• LF Driver: 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
• Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware

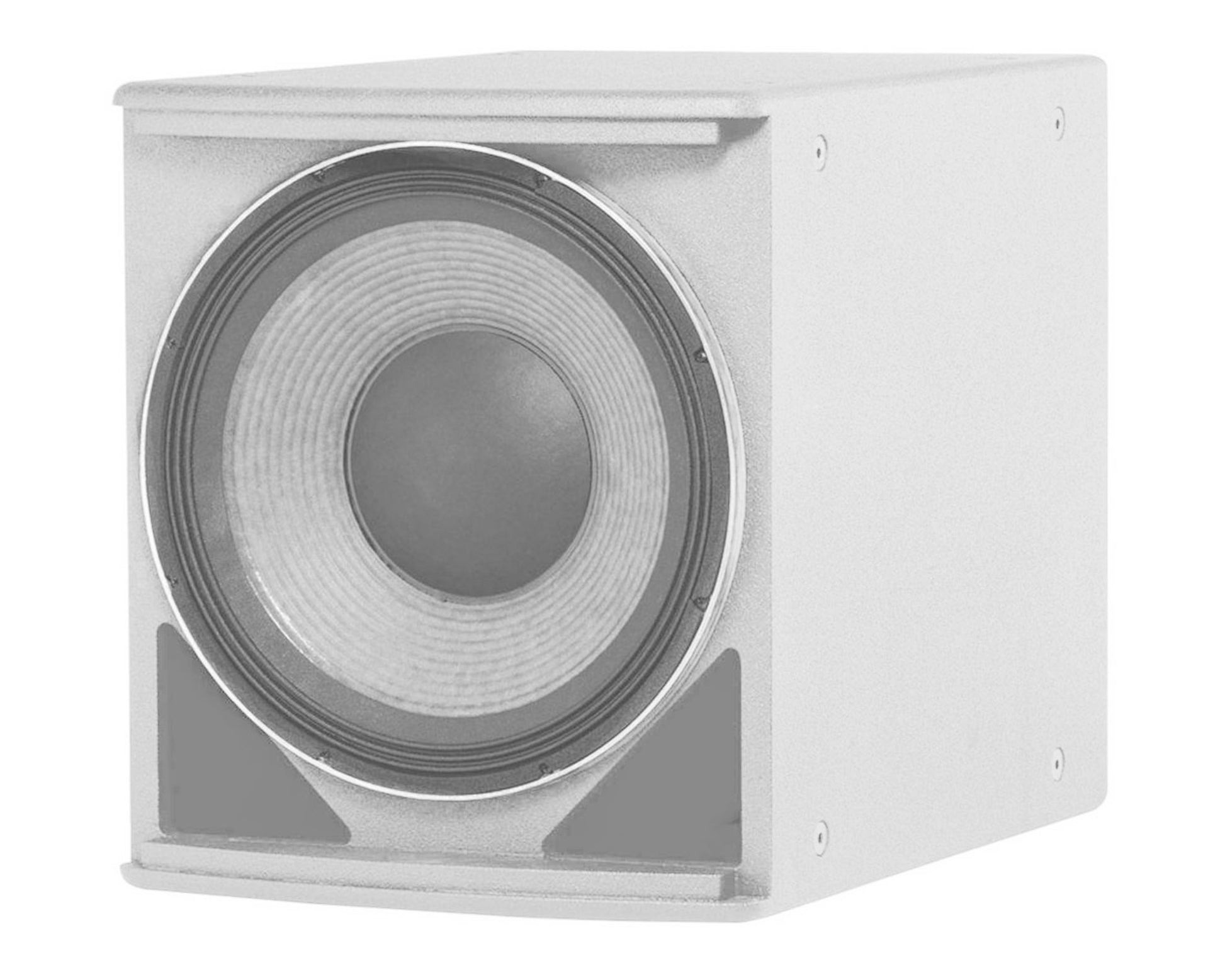

• Finish: Black DuraFlex™ finish. White available upon request.

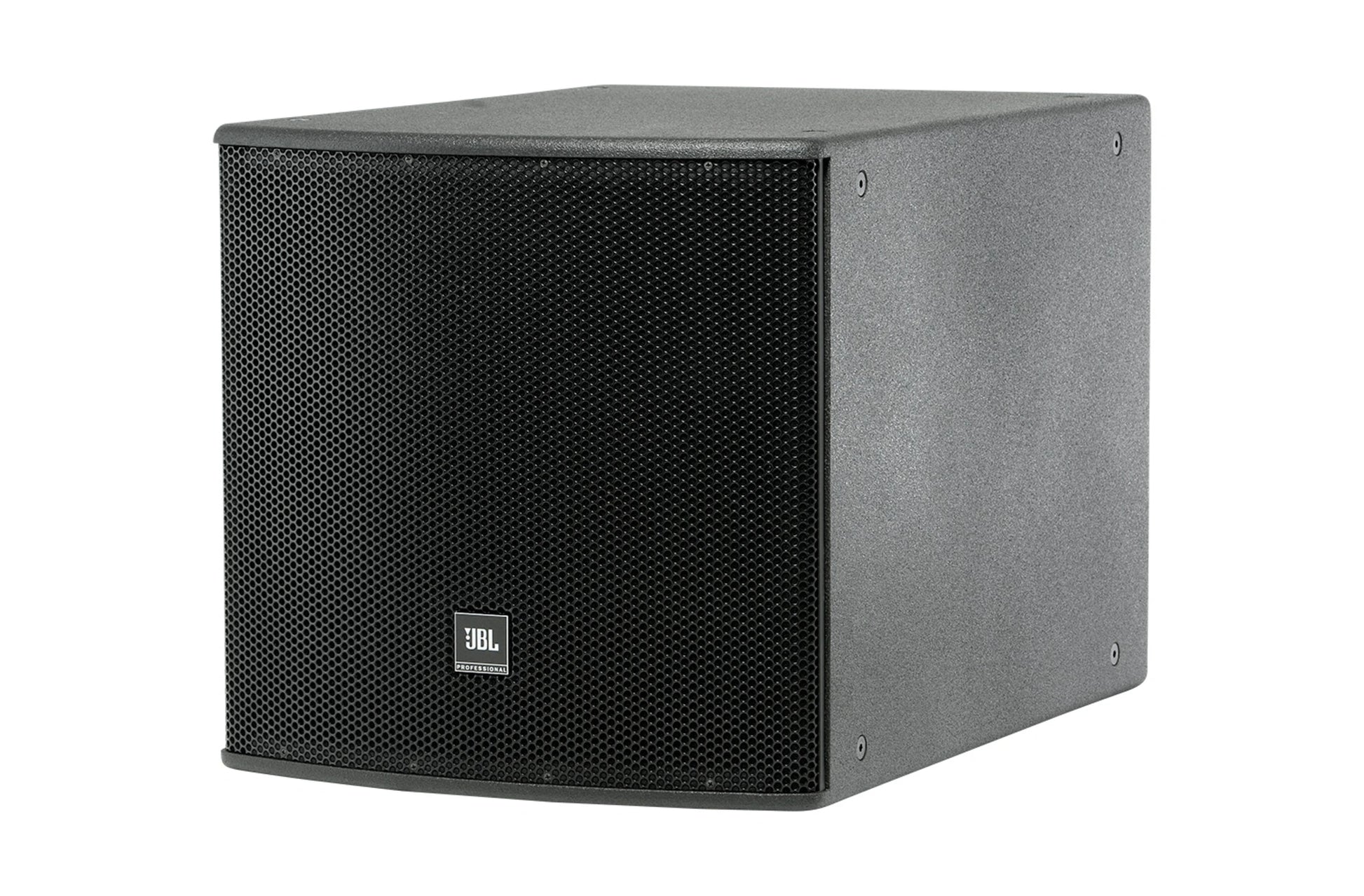

• Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Input Connector: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
• Environmental: Mil-Std 810; IP-x3 per IEC529.
• Dimensions (H x W x D in vertical orientation): 546 x 560 x 815 mm(21.5 x 22.0 x 32.1 in)
• Net Weight (each): 42.9 kg (94.5 lb)
• Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
• Nominal LF Driver Impedance: 8 ohms
