AT-5220 Titanium Clip Pack Wireless Microphone System (Dual Ear)

Airwave is the best kept secret in wireless mics today.  This is a brand that we've been watching and using for years - when you don't need top-dollar, high-end wireless, these Airwave mic's provide an exceptional value and quality at a reasonable price.

By bundling 2 channels of wireless together into one rack unit, Airwave saves on cost and complexity.  Smaller installations LOVE the fact that you can simple use (1) XLR output for both microphones when you're short on inputs.

All of the microphones sound good and have quality that is comparable to mid-level microphones from the major players.   When we have gotten these for customers, the feedback we get is that they love the mics, and they are comparable to systems that cost almost twice as much!

You'll notice that the receivers have a battery level and RF/AF indicator and IR sync.  Other wireless systems in this price range have none of that.

It's not a $3000/channel wireless system, but what it is, is a tremendous value for many churches, bands, installations, corporate AV, and more!

From the Manufacturer:

Engineered for the discerning professional, this cutting-edge system delivers unmatched performance for those who demand the best. This premium all-in-one package includes 2 Titanium Series dual-ear head-worn microphones, 2 lavalier microphones, and 2 body packs—ensuring crystal-clear, immersive sound in every environment. Whether you’re on the move or stationed for a set, enjoy unparalleled comfort, flawless flexibility, and effortless performance.

Designed for those who crave absolute audio perfection, this system takes your sound to new heights. Elevate your audio experience today with the ultimate solution in portable and stationary excellence. Step up your game and never settle for less than perfection.

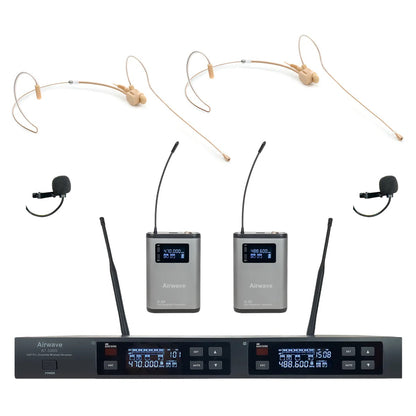

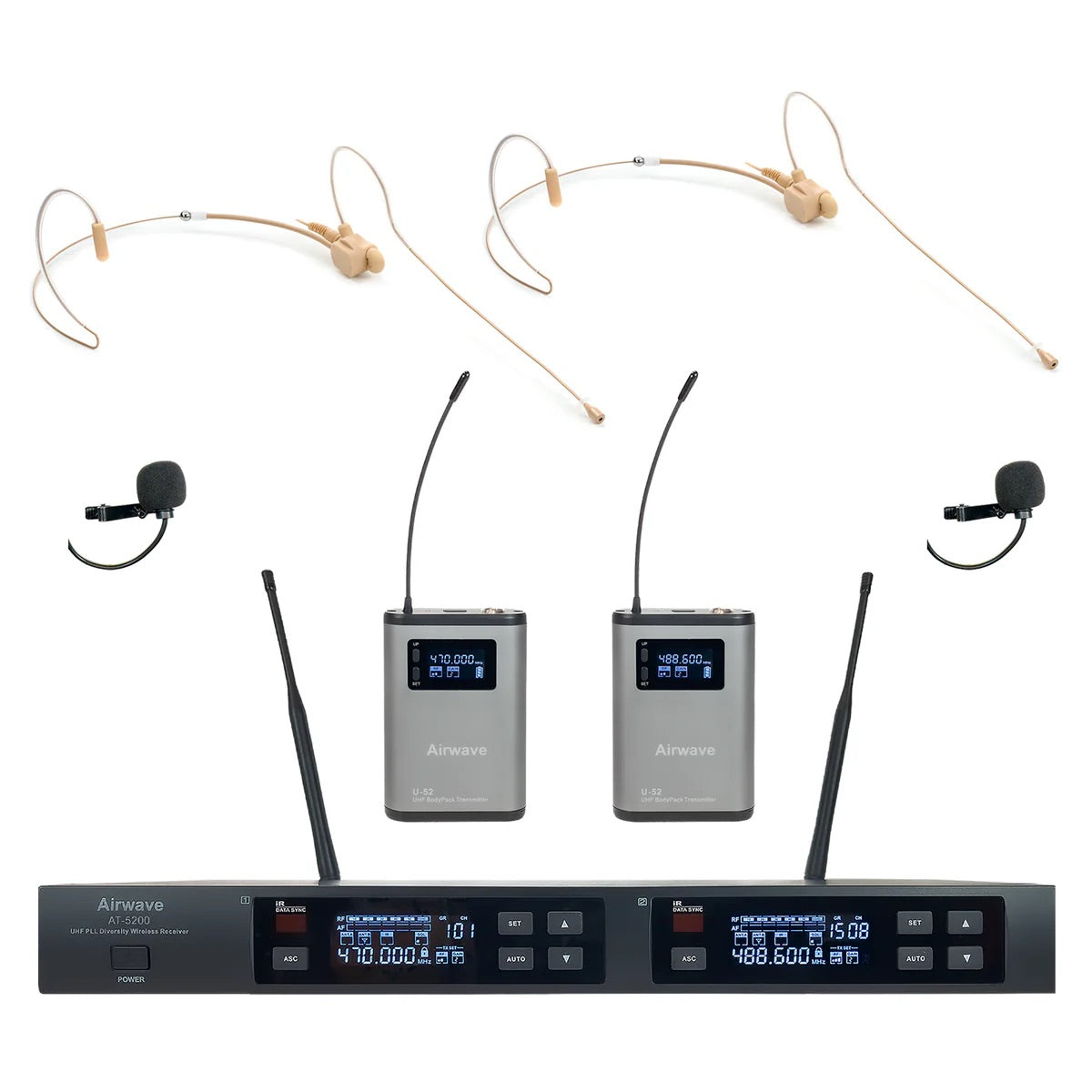

System Includes:

• 1 Airwave Technologies AT-5200 Dual Channel Wireless Systems

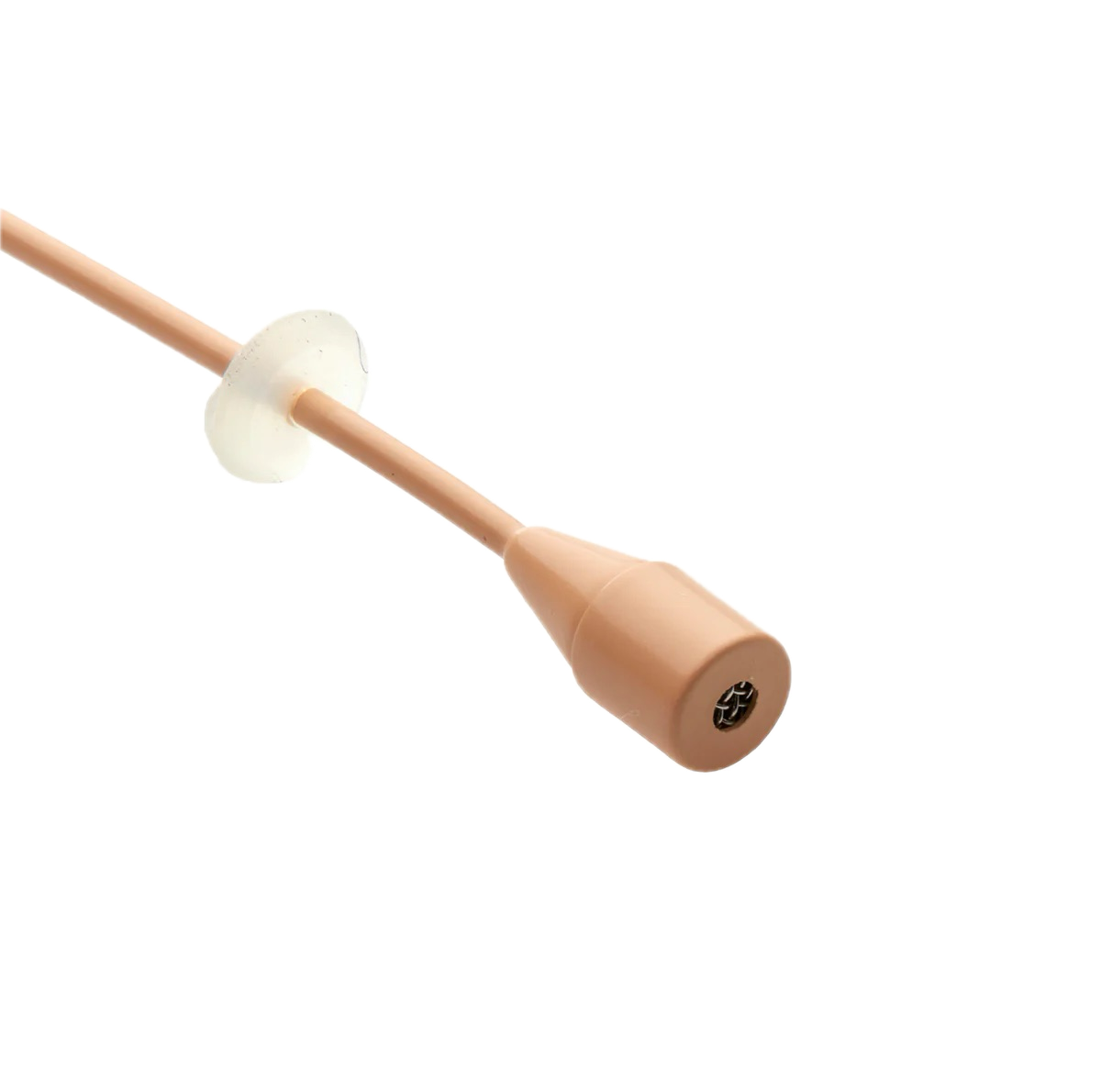

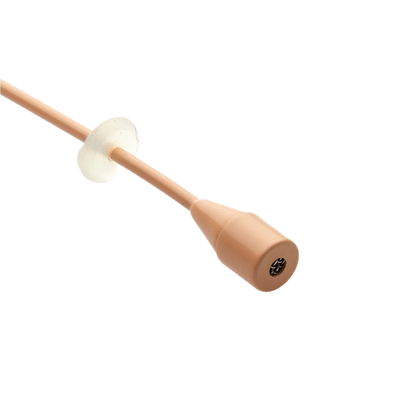

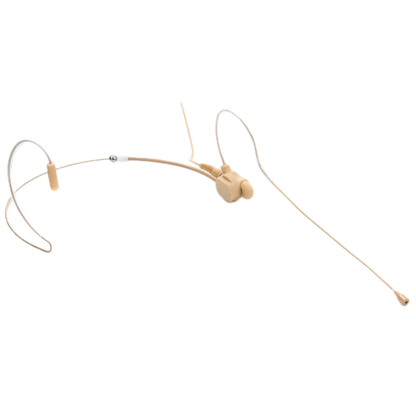

• 2 HSD-TITANIUM SLIM CLIP TAN Professional Dual Ear Wireless Microphone Headsets

• 2 AT-U52 Wireless Body Packs

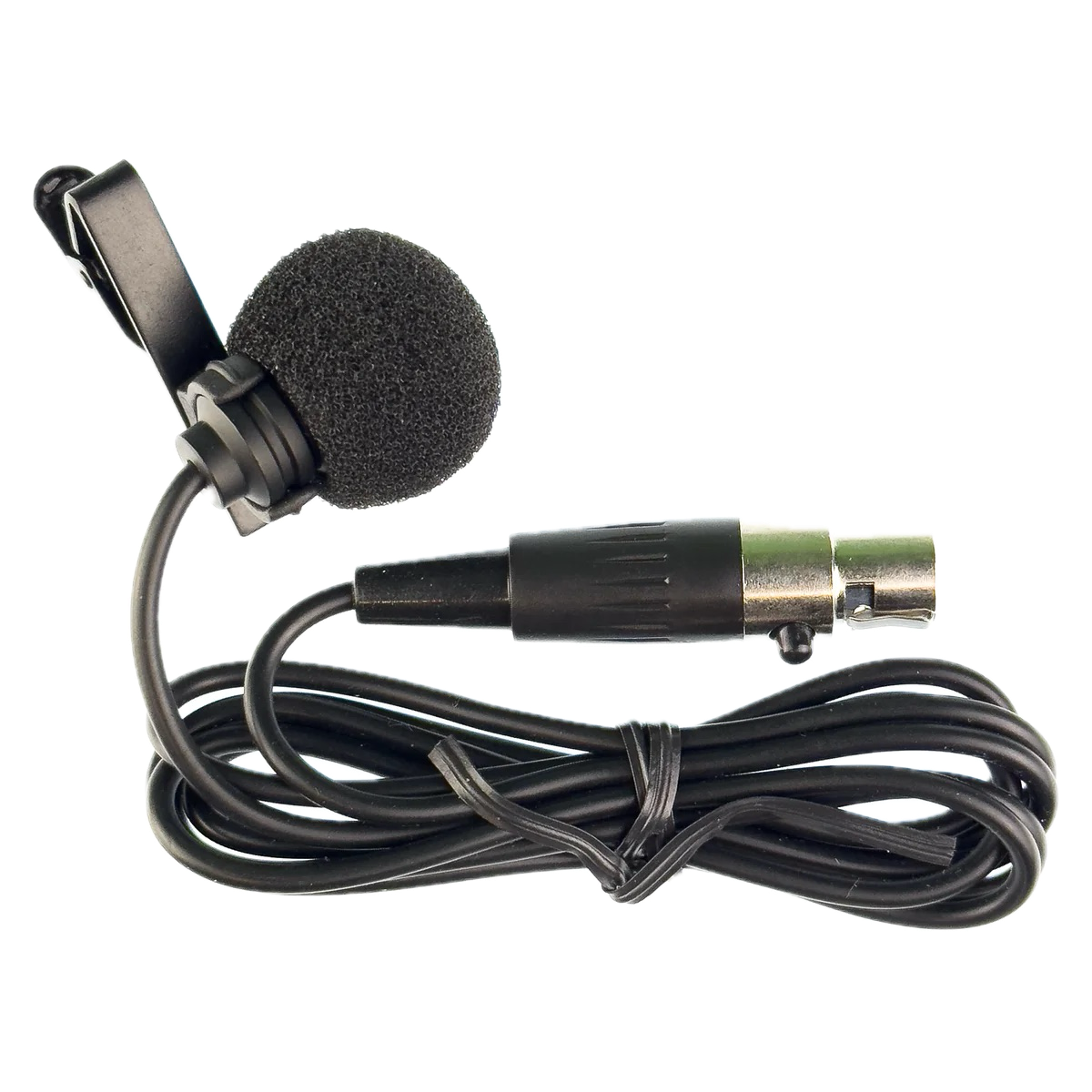

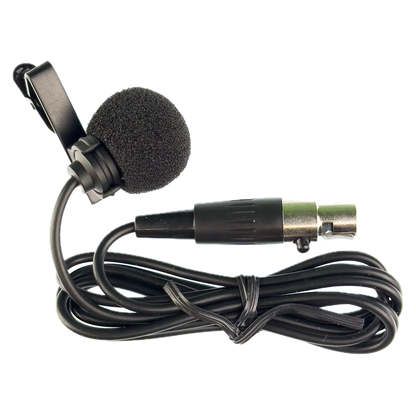

• 2 AT-LAV2 Lavaliere Microphones

• 514 - 542 MHz

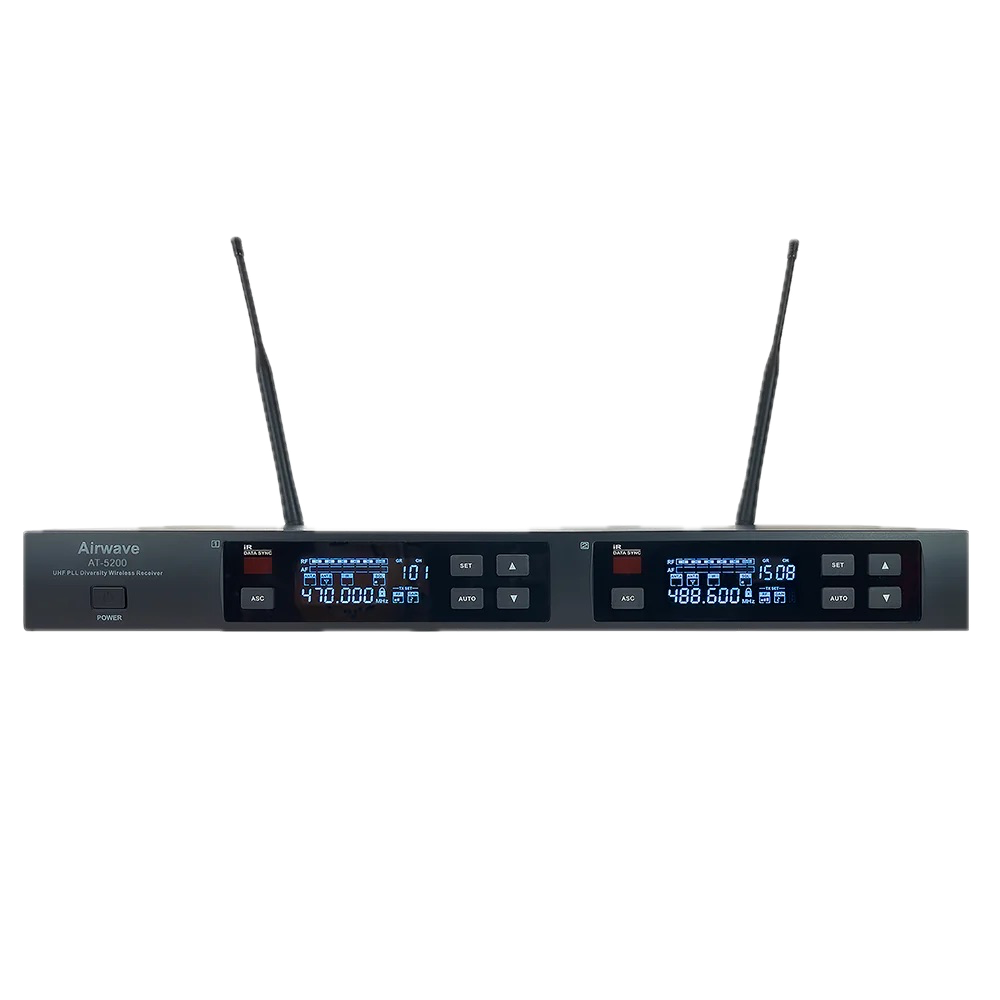

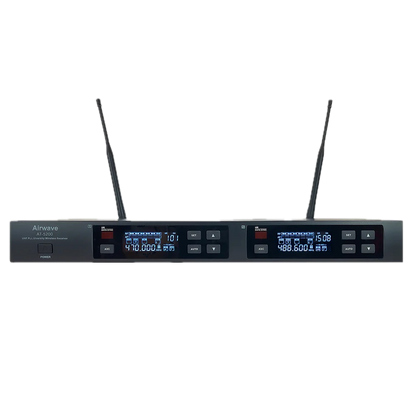

AT-5200 Wireless Microphone Receiver Features

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Band Width: 19MH / 28MHz

• Working Range: 328'

• Receiving Sensitivity: < -92dBm for 30dB S/N Ra

• Frequency Response: 50Hz-15KHz (±3dB)

• Maximum Frequency Offset: >+/-50KHz

• Signal to Noise Ratio: >1 00dB (A)

• THO: <1 % to 1 KHz

• Gain Control Range: 0 to 63dB per 1dB Step

• Dynamic Range: >102dB

• Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

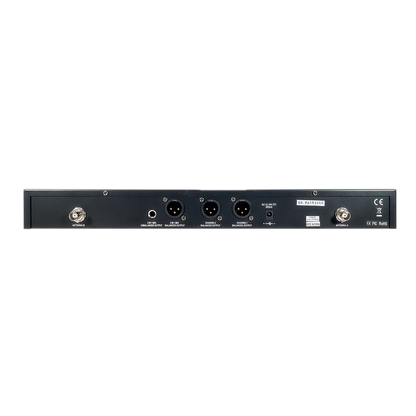

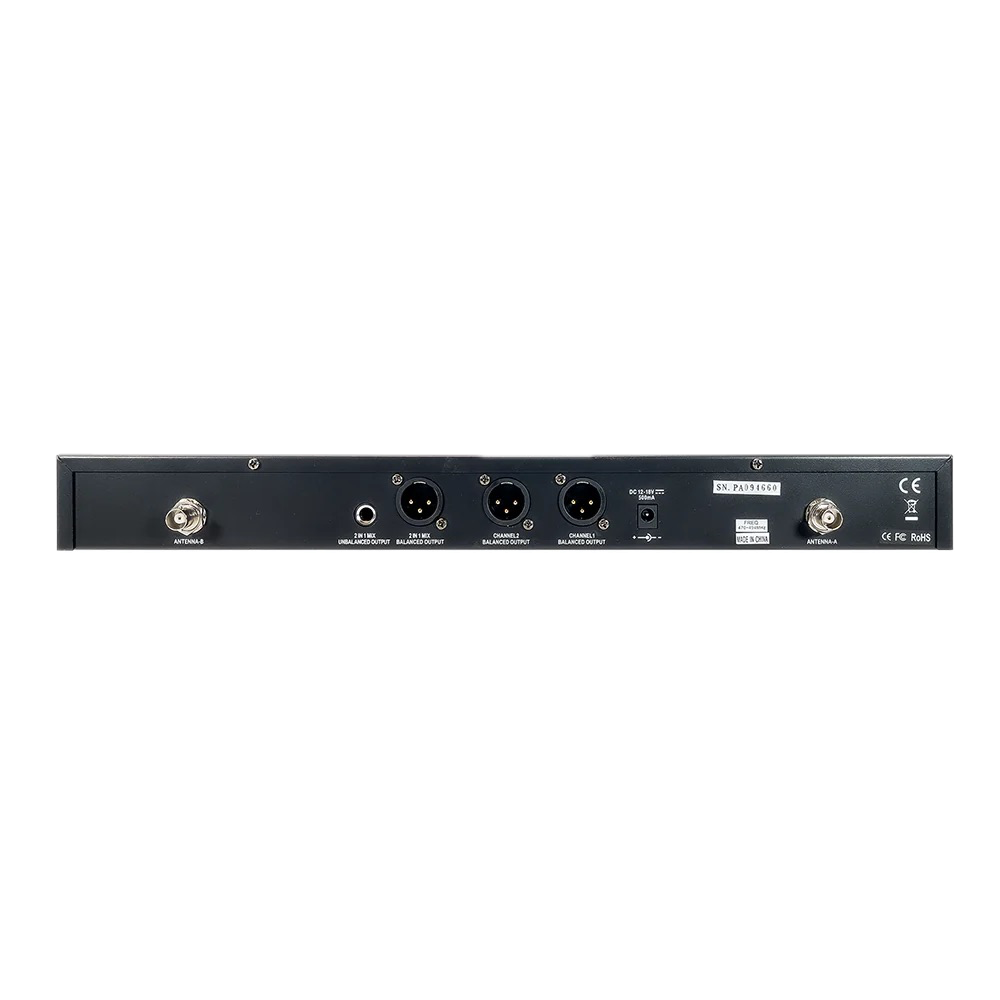

• Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector

• Impedance: XLR: 3KO / 1/4-inch connector: 3KO

• Antenna Connectors: 2 BNC 500

• Display: LCD

• Power Requirements: 12V/0.5A DC

• Operating Temperature Range: 28°F - 122°F

• Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)

• Weight: 3.86 lb.

• FCC ID: 2AINTU-51

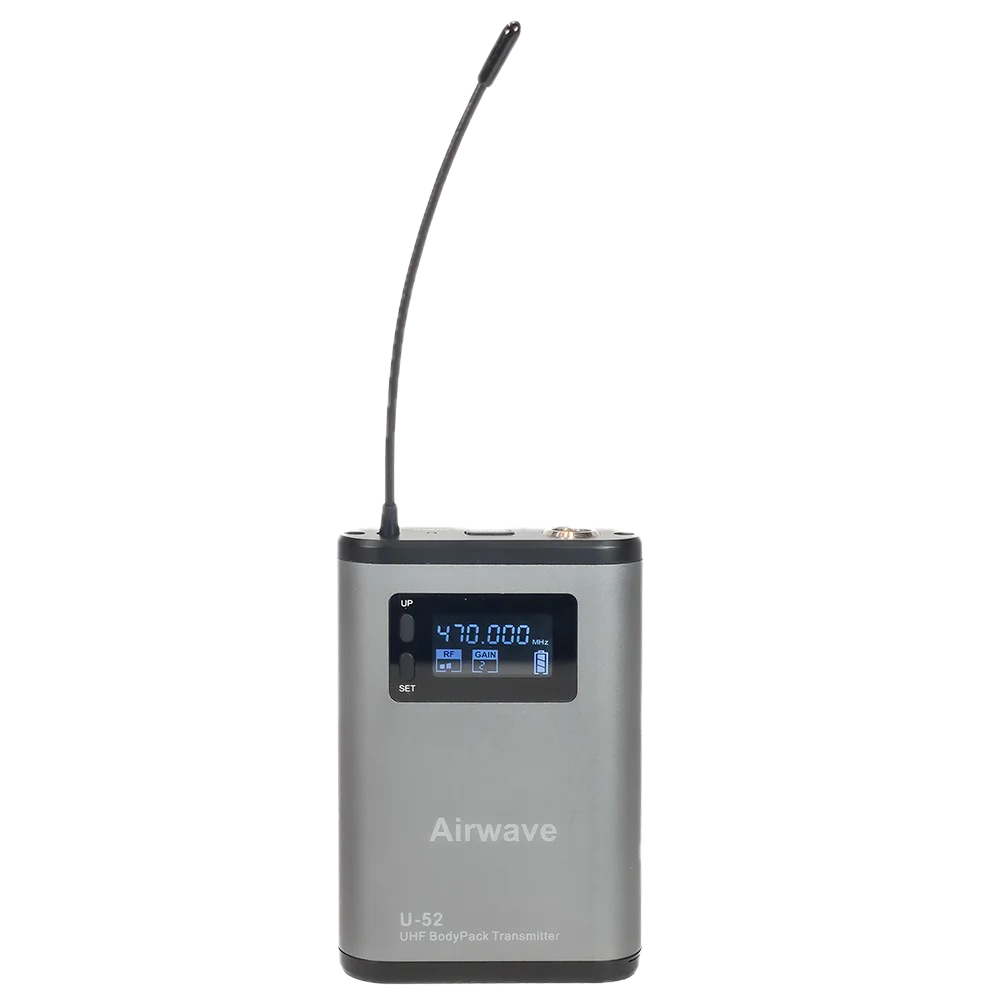

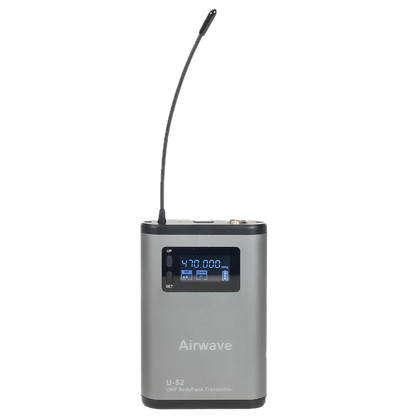

AT-U52 Body Pack Transmitter Specifications

• Frequency Range: 470-489MHz / 514-542 MHz

• Infrared Data Synchronization

• Frequency Response: 50Hz-15KHz (±3db)

• Gain Adjustment Range: 0 / -3/ -6 / -9 dB

• Input Impedance: 5KO

• Maximum Modulation Depth: >+/- 50KHz

• 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

• Harmonic Rejection: > 50dB

• Pilot Tone: 32.768KHz

• Display: LCD

• Power Requirements: 1.5V x 2(AA)

• Battery Life: >1 0H/1300mAH

• Dimensions: 6.5" x 2.56" x .91"

• Weight: 4.59oz

• FCC ID: 2AINTU-52
