Sku: AT-5220 TITANIUM LAV PAK - A

AT-5220 Titanium LAV Pack Wireless Microphone System

$959.95
$959.95
Sold out
Shipping calculated at checkout.
Vendor: Airwave Technologies

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Style: Frequency Range A: 470-489 MHz

Description

Caret Down

Airwave is the best kept secret in wireless mics today.  This is a brand that we've been watching and using for years - when you don't need top-dollar, high-end wireless, these Airwave mic's provide an exceptional value and quality at a reasonable price.

By bundling 2 channels of wireless together into one rack unit, Airwave saves on cost and complexity.  Smaller installations LOVE the fact that you can simple use (1) XLR output for both microphones when you're short on inputs.

All of the microphones sound good and have quality that is comparable to mid-level microphones from the major players.   When we have gotten these for customers, the feedback we get is that they love the mics, and they are comparable to systems that cost almost twice as much!

You'll notice that the receivers have a battery level and RF/AF indicator and IR sync.  Other wireless systems in this price range have none of that.

It's not a $3000/channel wireless system, but what it is, is a tremendous value for many churches, bands, installations, corporate AV, and more!

From the Manufacturer:

Elevate your sound experience with the next-level 5200 Series system, engineered for those who demand nothing less than perfection. This powerhouse setup includes 2 elite Titanium Series lavaliere microphones and 2 advanced body packs, delivering flawless audio clarity in any setting. Whether you're on the go or stationary, enjoy seamless comfort, unstoppable flexibility, and superior performance.

Step into a world where immaculate sound and effortless operation meet—because you deserve the best.

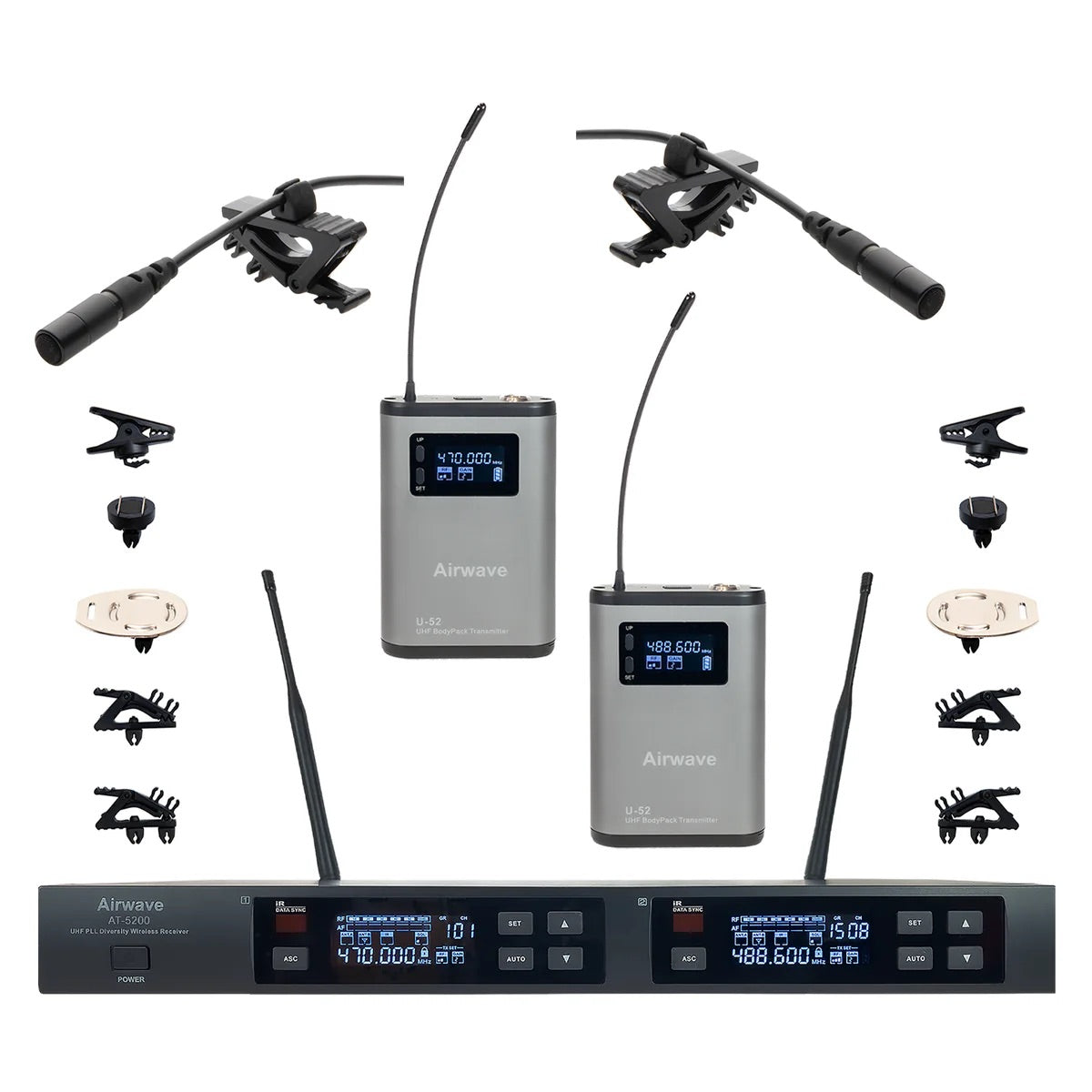

System Includes:

  • 1 Airwave Technologies AT-5200 Dual Channel Wireless Systems

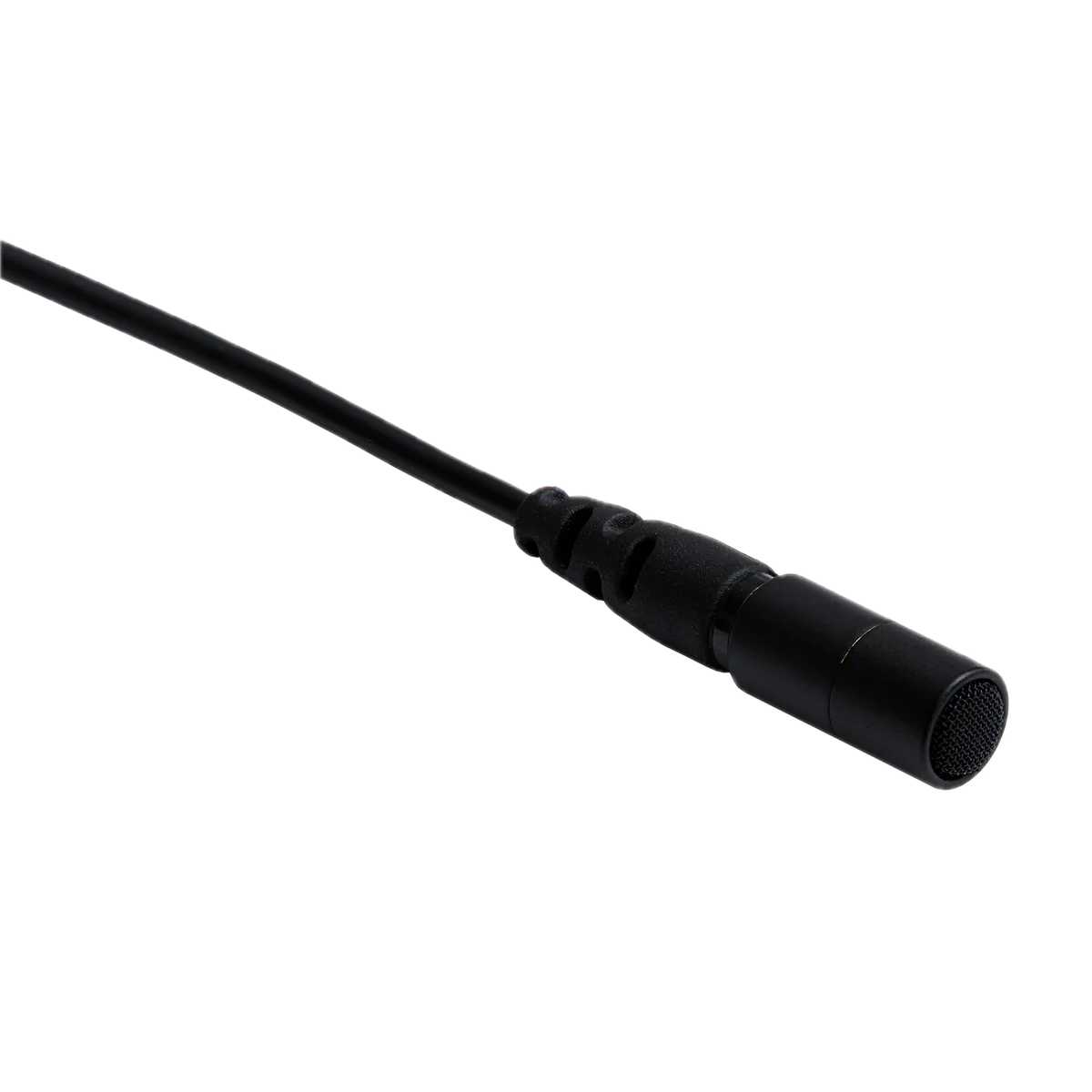

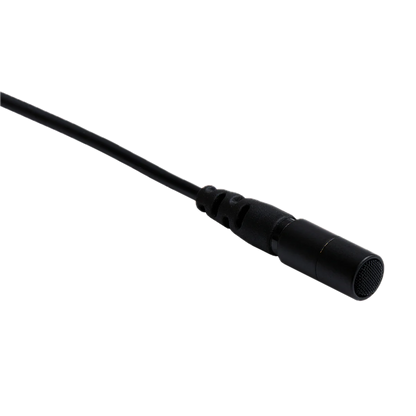

  • 2 LAV-TITANIUM T3 BLACK Professional Omni Lavaliere Microphones

  • 2 AT-U52 Wireless Body Packs

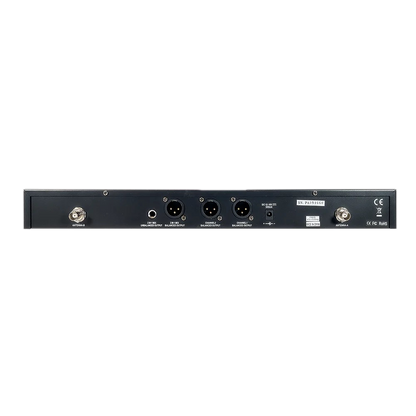

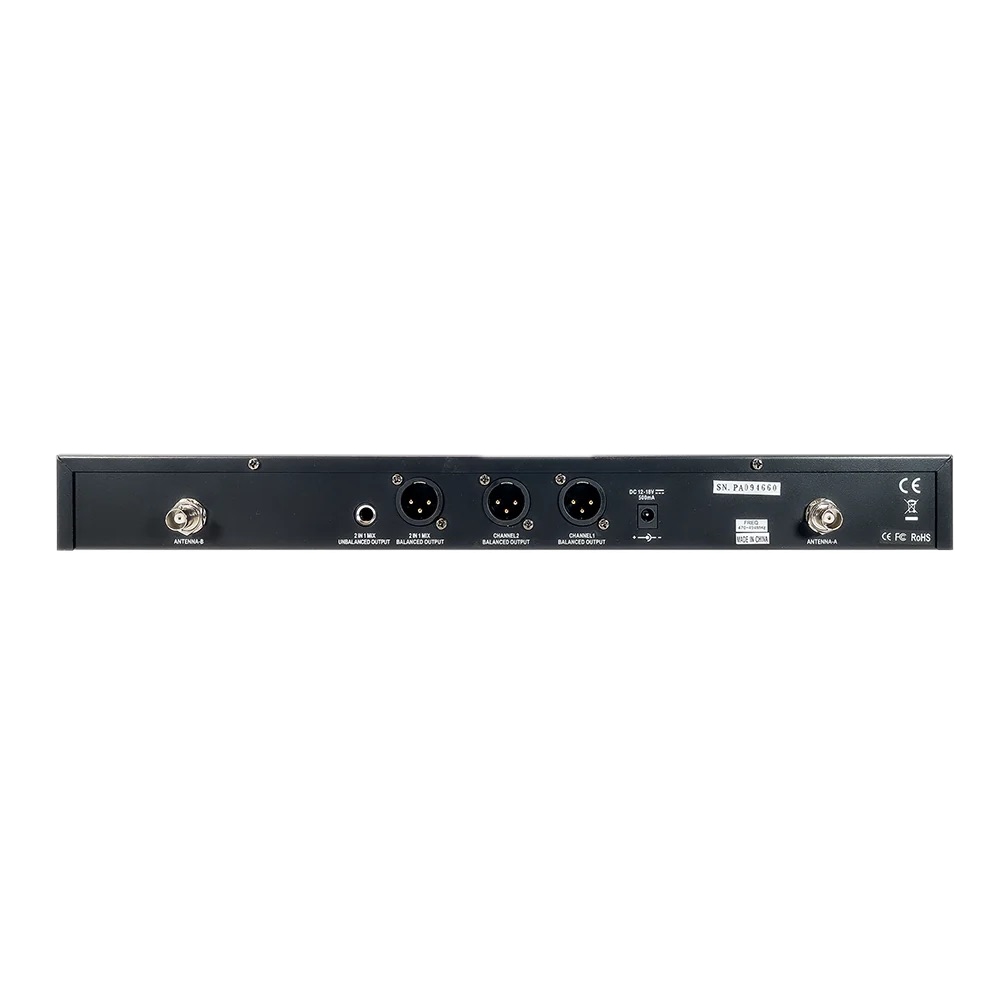

AT-5200 Wireless Microphone Receiver Features

  • Frequency Range: 470-489MHz / 514-542 MHz

  • Infrared Data Synchronization

  • Band Width: 19MH / 28MHz

  • Working Range: 328'

  • Receiving Sensitivity: < -92dBm for 30dB S/N Ra

  • Frequency Response: 50Hz-15KHz (±3dB)

  • Maximum Frequency Offset: >+/-50KHz

  • Signal to Noise Ratio: >1 00dB (A)

  • THO: <1 % to 1 KHz

  • Gain Control Range: 0 to 63dB per 1dB Step

  • Dynamic Range: >102dB

  • Audio Output Level: XLR: +8dBV / 1/4-inch connector: +8dBV

  • Audio Output Connectors: XLR Each Channel/ XLR Mix/ 1/4-inch connector

  • Impedance: XLR: 3KO / 1/4-inch connector: 3KO

  • Antenna Connectors: 2 BNC 500

  • Display: LCD

  • Power Requirements: 12V/0.5A DC

  • Operating Temperature Range: 28°F - 122°F

  • Dimensions: 6.299" (W) x 16.142" (L) x 1. 732" (H)

  • Weight: 3.86 lb.

  • FCC ID: 2AINTU-51

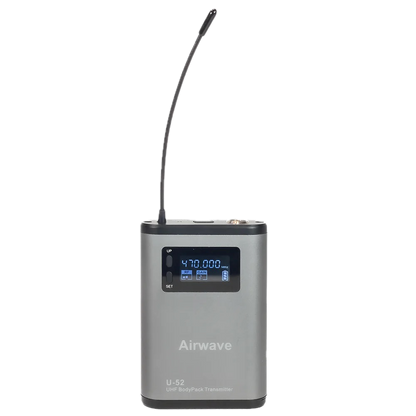

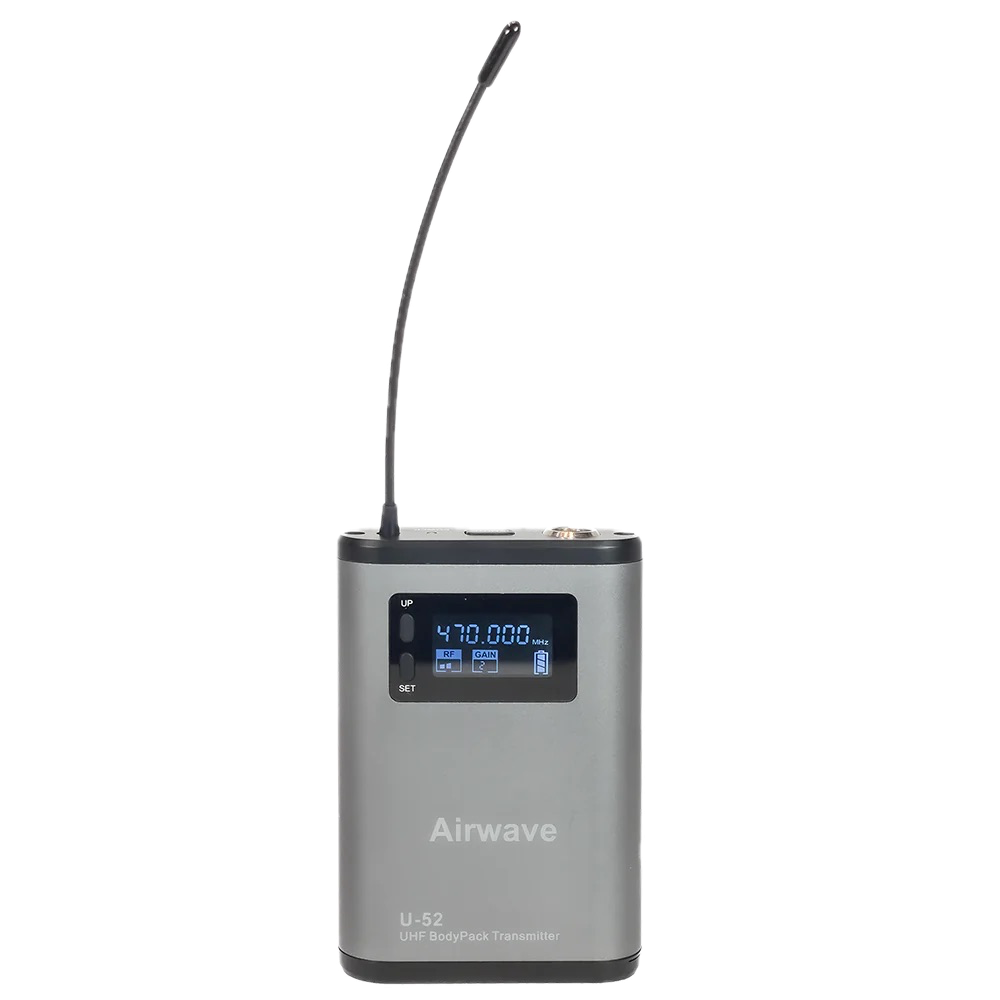

AT-U52 Body Pack Transmitter Specifications

  • Frequency Range: 470-489MHz / 514-542 MHz

  • Infrared Data Synchronization

  • Frequency Response: 50Hz-15KHz (±3db)

  • Gain Adjustment Range: 0 / -3/ -6 / -9 dB

  • Input Impedance: 5KO

  • Maximum Modulation Depth: >+/- 50KHz

  • 3-Stage RF Power Adjustment: 2mW / 10mW / 30mW

  • Harmonic Rejection: > 50dB

  • Pilot Tone: 32.768KHz

  • Display: LCD

  • Power Requirements: 1.5V x 2(AA)

  • Battery Life: >1 0H/1300mAH

  • Dimensions: 6.5" x 2.56" x .91"

  • Weight: 4.59oz

  • FCC ID: 2AINTU-52
